Green PVC Power Enclosed Conductor Rails System , 35A to 240A

Quick Details

•Standard length; 4m or 6m.

•Current: 35A~240A

•Conductor material: copper

•Support spacing: 1.2m

Detailed Product Description

HFP power line has been used successfully for many years and have been continuously improved and adapted in line with the latest state-of-the-art products. They are conductor lines in a rigid PVC housing with different copper cross sections for rated currents of 40-200 A. The current collectors, running in ball bearings, are guided by the housing. The mains power is transferred by spring-stored carbon brushes.

Application

The ranges of applications of HFP Power Rail Enclosed Conductor System

1. Overhead and elongated tracks for cranes.
2. Electric hoists, electric tools, stacking systems.
3. Electric tools
4. Other applications for supplying power to moving power load.

Design features

Compact arrangement, corrosion resistance and simple assembly are its essential features.

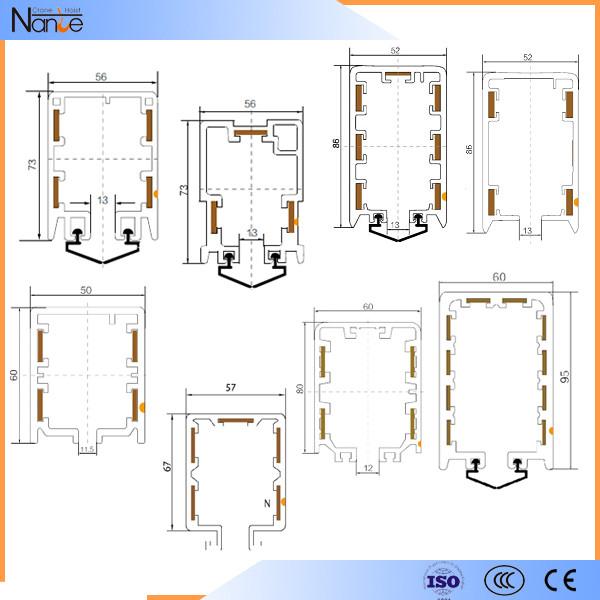

Housing

Color green, PVC housing for 4 conductors. Standard section 4 m.

Other sections are available.

The ground conductor is identified by international color code.

Phase reversing prevented by design of the collector and housing.

Couplings

Through PVC joint caps.

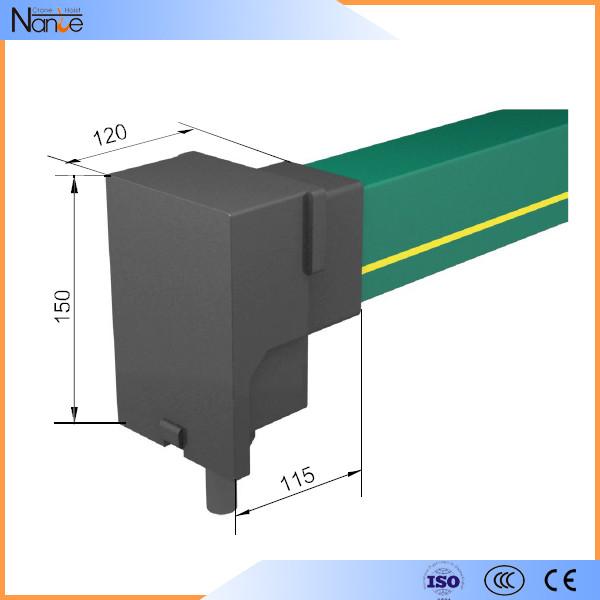

Feed Sets

Line feeds or end feeds.

End caps

The open ends of the powerail are closed by end caps for HFP.

Hangers

Standard brackets for powerail attachment to crane girders are available.

Powerail with sliding and fixpoint hangers.

Standard distance between suspension points for indoor and outdoor installations:1200mm.

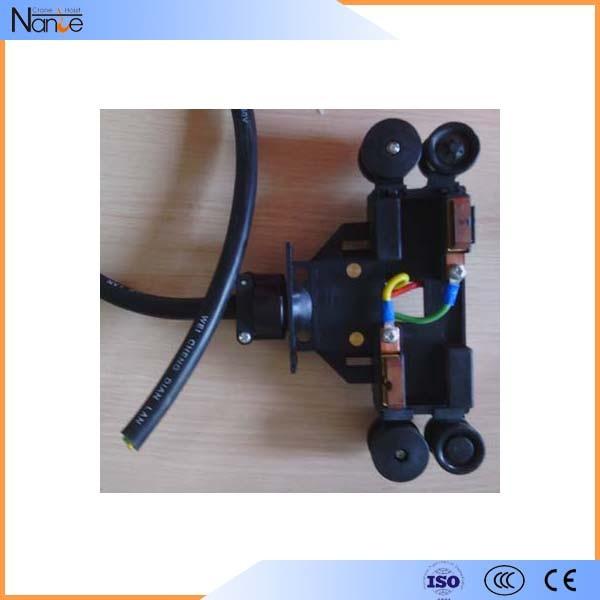

Current collectors

The current collectors are made of re-inforced polyester fiberglass,for high strength and light weight.

Spring loaded carbon brushes maintain uniform contact.

Connecting cables and hinged or flexible towing arms included.

Double Current collectors for transfer applications and higher amperage.

Green PVC Power Enclosed Conductor Rails System

HFP56-4 Technical Parameters
