Enclosed Conductor Rails for Cranes Wampfler 0842
Enclosed Conductor Rails for Cranes Wampfler 0842
Enclosed Conductor Rails for Cranes Wampfler 0842
Enclosed Conductor Rails for Cranes Wampfler 0842
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
NANTE
Certification :
ISO, CE, CCC
Model Number :
HFP56 35A~240A
MOQ :
100m
Packaging Details :
Naked or Wooden case
Delivery Time :
Within 10days
Payment Terms :
L/C, T/T
Supply Ability :
1,000,000m Per Year
Max. voltage :
600v
Bending strength :
75N/mm²±10%
Dielectric strength :
30-40kv/mm
Tensile strength :
40N/mm²±10%
Description

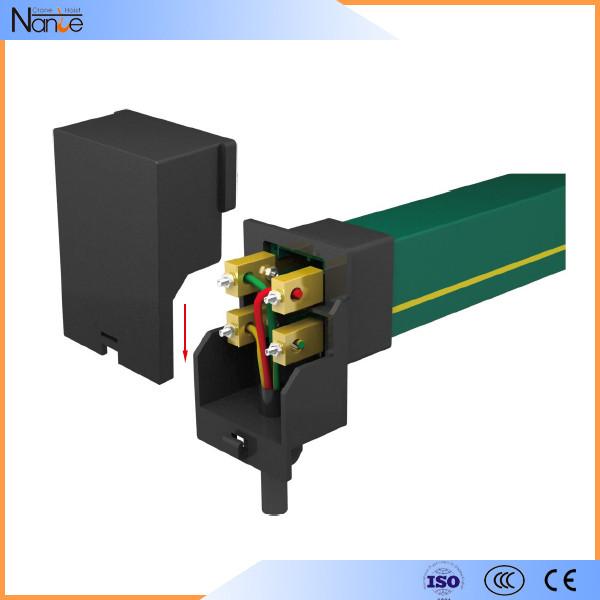

Enclosed Conductor Rails for Cranes Wampfler 0842

Quick Details

  • Standard length; 4m or 6m.
  • Current: 35A~240A
  • Conductor material: copper
  • Support spacing: 1.2m

Detailed Product Description

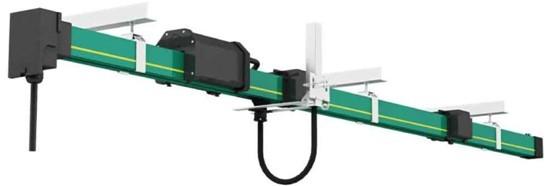

Enclosed conductor rail system, crane electrification system 35A~210A has been used successfully for many years and have been continuously improved and adapted in line with the latest state-of-the-art products. They are conductor lines in a rigid PVC housing with different copper cross sections for rated currents of 40-200 A. The current collectors, running in ball bearings, are guided by the housing. The mains power is transferred by spring-stored carbon brushes.

Design features
Compact arrangement, corrosion resistance and simple assembly are its essential features.


Expansion during temperature fluctuation
The Expansion sections are required to compensate the different expansions between copper conductors and steel-or concrete structures,in varying temperatures without interrupting electrial power.


Anti-condensation sections
These sections are used for transfer of the Powerail to outdoor areas to avoid condensation.
The Powerail is not separated electrically.


Current collectors
The current collectors are made of re-inforced polyester fiberglass,for high strength and light weight.
Spring loaded carbon brushes maintain uniform contact.
Connecting cables and hinged or flexible towing arms included.
Double Current collectors for transfer applications and higher amperage.



Enclosed Conductor Rails
HFP56-3 Technical Parameters

ModelPole No.Cross sectionMax. currentLeakage-distanceMax. voltageResistanceDimensions (H * W)Weight
HFP56-4-8/354835356001.94473*562.09
HFP56-4-10/5041050356001.65673*562.16
HFP56-4-12/6541265356001.32173*562.23
HFP56-4-15/8041580356001.13773*562.3
HFP56-4-20/100420100336001.01173*562.43
HFP56-4-25/120425120336000.71373*562.56
HFP56-4-35/140435140336000.52273*562.95
HFP56-4-50/170450170336000.33773*563.25
HFP56-4-70/210470210336000.26573*563.85
HFP56-4-80/240480240306000.22373*564.16
HFP56-3-10/5031050456001.65673*561.95
HFP56-3-15/8031580456001.13773*562.13
HFP56-3-20/100320100456001.01173*562.24
HFP56-3-25/120325120456000.71373*562.37
HFP56-3-35/140335140456000.52273*562.63
HFP56-3-50/170350170456000.33773*563.02
