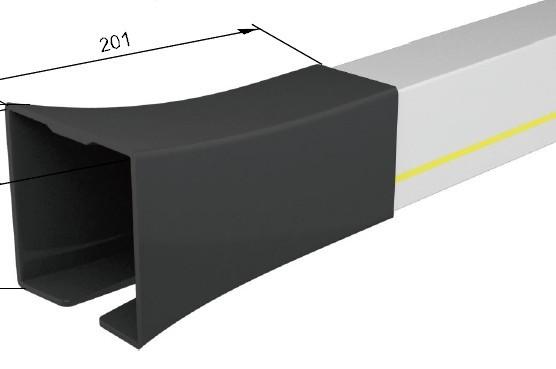

Power Multiple Insulation Conductor Rails With Transfer Guides
Power Multiple Insulation Conductor Rails With Transfer Guides
Power Multiple Insulation Conductor Rails With Transfer Guides
Power Multiple Insulation Conductor Rails With Transfer Guides
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Nante
Certification :
ISO9001, CE, CCC
Model Number :
HFP
MOQ :
1
Price :
N
Packaging Details :
Seaworthy packing
Delivery Time :
according to customer's requirements
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000m/year
Material :
Aluminium
Leakage-distance :
80MM
Max. voltage :
600v
Bending strength :
75N/mm²±10%
Description

Power Multiple Insulation Conductor Rails With Transfer Guides

Quick Details

  • Standard length; 4m or 6m.
  • Current: 50A~140A
  • Conductor material: copper
  • Single powerline, easytrack, single flexline, multiline, boxline

Application

The ranges of applications of HFP PVC power multiple insulation conductor rails with transfer guides:

  1. Overhead and elongated tracks for cranes, power supply system.
  2. Electric hoists, electric tools, stacking systems.
  3. Electric tools
  4. Other applications for supplying power to moving power load.

Design features

Compact arrangement, corrosion resistance and simple assembly are its essential features.

Housing

Color green, PVC housing for 4 conductors. Standard section 4 m.

Other sections are available.

The ground conductor is identified by international color code.

Phase reversing prevented by design of the collector and housing.

Power Multiple Insulation Conductor RailsTechnical Parameters

HFP 52

Model Pole No. Cross section Max. current Leakage-distance Max. voltage Resistance Weight
HFP52-4-10/50 4 10 50 55 600 1.656 2.05
HFP52-5 -10/50 5 10 50 15 600 1.656 2.14
HFP52-6-10/50 6 10 50 15 600 1.656 2.23
HFP52-7-10/50 7 10 50 15 600 1.656 2.32
HFP52-4-15/80 4 15 80 55 600 1.137 2.32
HFP52-5-15/80 5 15 80 15 600 1.137 2.44
HFP52-6-15/80 6 15 80 15 600 1.137 2.58
HFP52-7-15/80 7 15 80 15 600 1.137 2.71
HFP52-4-20/100 4 20 100 55 600 1.011 2.47
HFP52-5-20/100 5 20 100 15 600 1.011 2.65
HFP52-6-20/100 6 20 100 15 600 1.011 2.83
HFP52-7-20/100 7 20 100 15 600 1.011 2.99
HFP52-4-25/120 4 25 120 55 600 0.713 2.63
HFP52-5-25/120 5 25 120 15 600 0.713 2.83
HFP52-6-25/120 6 25 120 15 600 0.713 3.02
HFP52-7-25/120 7 25 120 15 600 0.713 3.27
HFP52-4-35/140 4 35 140 55 600 0.522 2.97
HFP52-5-35/140 5 35 140 15 600 0.522 3.25
HFP52-6-35/140 6 35 140 15 600 0.522 3.58
HFP52-7-35/140 7 35 140 15 600 0.522 3.87

HFP Series Multiple-Poles Conductor Rail System

Max. voltage

600v

Bending strength

75N/mm²±10%

Dielectric strength

30-40kv/mm

Tensile strength

40N/mm²±10%

Special resistance

5×1015 Ohm×cm

Leakage resistance

CTI600-2,7

Surface resistance

1013 Ohm×cm

Design and Manufacturing Standard

GB7251.2-2006

Distance between each suspension bracket (m)

1.2

Rail length per piece (m)

4

Flame retardant

Class B1-no flaming particles, self-extinguishing

Permissible Ambient temperature

Standard insulation -30℃- +70℃|High temperature insulation -20℃- +115℃|Low temperature insulation -40℃- +80℃
