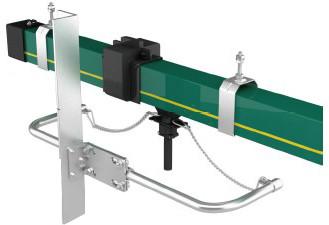

HFP56 Enclosed Conductor Rails System For Stacking Systems
HFP56 Enclosed Conductor Rails System For Stacking Systems
HFP56 Enclosed Conductor Rails System For Stacking Systems
HFP56 Enclosed Conductor Rails System For Stacking Systems
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
NANTE
Certification :
ISO, CE, CCC
Model Number :
HFP56 35A~240A
MOQ :
100m
Packaging Details :
Naked or Wooden case
Delivery Time :
Within 10days
Payment Terms :
L/C, T/T
Supply Ability :
1,000,000m Per Year
Description

HFP56 Enclosed Conductor Rails System For Stacking Systems

Quick Details

  • Standard length; 4m or 6m.
  • Current: 35A~240A
  • Conductor material: copper
  • Support spacing: 1.2m

Wampfler Boxline 0842, Conductor Rails, Powerails, Conductor Bar, Bus Bar, DSL System, Conductor Trolley Bar, IGS

The enclosed powerail type HFP56 are totally enclosed touch-proff conductor systems for safe mobile power feeding of overhead crane, monorail systems, electirc hoist and so on.

Application

The ranges of applications of HFP Power Rail Enclosed Conductor System

  1. Overhead and elongated tracks for cranes.
  2. Electric hoists, electric tools, stacking systems.
  3. Electric tools
  4. Other applications for supplying power to moving power load.

Technical Parameters

Model

Pole No.

Cross section

Max. current

Leakage-distance

Max. voltage

Resistance

Dimensions (H * W)

Weight

HFP56-4-8/35

4

8

35

35

600

1.944

73*56

2.09

HFP56-4-10/50

4

10

50

35

600

1.656

73*56

2.16

HFP56-4-12/65

4

12

65

35

600

1.321

73*56

2.23

HFP56-4-15/80

4

15

80

35

600

1.137

73*56

2.3

HFP56-4-20/100

4

20

100

33

600

1.011

73*56

2.43

HFP56-4-25/120

4

25

120

33

600

0.713

73*56

2.56

HFP56-4-35/140

4

35

140

33

600

0.522

73*56

2.95

HFP56-4-50/170

4

50

170

33

600

0.337

73*56

3.25

HFP56-4-70/210

4

70

210

33

600

0.265

73*56

3.85

HFP56-4-80/240

4

80

240

30

600

0.223

73*56

4.16

HFP56-3-10/50

3

10

50

45

600

1.656

73*56

1.95

HFP56-3-15/80

3

15

80

45

600

1.137

73*56

2.13

HFP56-3-20/100

3

20

100

45

600

1.011

73*56

2.24

HFP56-3-25/120

3

25

120

45

600

0.713

73*56

2.37

HFP56-3-35/140

3

35

140

45

600

0.522

73*56

2.63

HFP56-3-50/170

3

50

170

45

600

0.337

73*56

3.02

HFP Series Multiple-Poles Conductor Rail System

Max. voltage

600v

Bending strength

75N/mm²±10%

Dielectric strength

30-40kv/mm

Tensile strength

40N/mm²±10%

Special resistance

5×1015 Ohm×cm

Leakage resistance

CTI600-2,7

Surface resistance

1013 Ohm×cm

Design and Manufacturing Standard

GB7251.2-2006

Distance between each suspension bracket (m)

1.2

Rail length per piece (m)

4

Flame retardant

Class B1-no flaming particles, self-extinguishing

Permissible Ambient temperature

Standard insulation -30℃- +70℃|High temperature insulation -20℃- +115℃|Low temperature insulation -40℃- +80℃
