Conductor Rail Mobile Electrification For Electric Tools
Conductor Rail Mobile Electrification For Electric Tools
Conductor Rail Mobile Electrification For Electric Tools
Conductor Rail Mobile Electrification For Electric Tools
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
NANTE
Certification :
ISO, CE, CCC
Model Number :
HFP56 35A~240A
MOQ :
100m

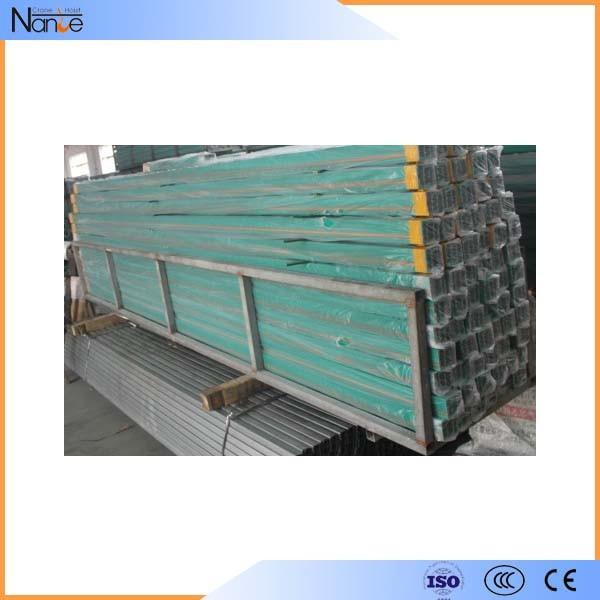

Packaging Details :
Naked or Wooden case
Delivery Time :
Within 10days
Payment Terms :
L/C, T/T
Supply Ability :
1,000,000m Per Year
Max. voltage :
600v
Leakage resistance :
CTI600-2,7
Pole No. :
4,3
Current :
35A~240A
Description

Conductor Rail Mobile Electrification For Electric Tools

Quick Details

  • Standard length; 4m or 6m.
  • Current: 35A~240A
  • Conductor material: copper
  • Support spacing: 1.2m

Detailed Product Description

Conductor rails power line system are available with any desired number of poles and in any desired length, and they are designed for simple, easy installation. Rails feature robust construction and are suitable for use in harsh industrial environments. Heavy-duty connective elements guarantee reliable transmission without interruption for problem-free operation.

Design features

Compact arrangement, corrosion resistance and simple assembly are its essential features.

Housing

Color green, PVC housing for 4 conductors. Standard section 4 m.

Other sections are available.

The ground conductor is identified by international color code.

Phase reversing prevented by design of the collector and housing.

Couplings

Through PVC joint caps.

Feed Sets

Line feeds or end feeds.

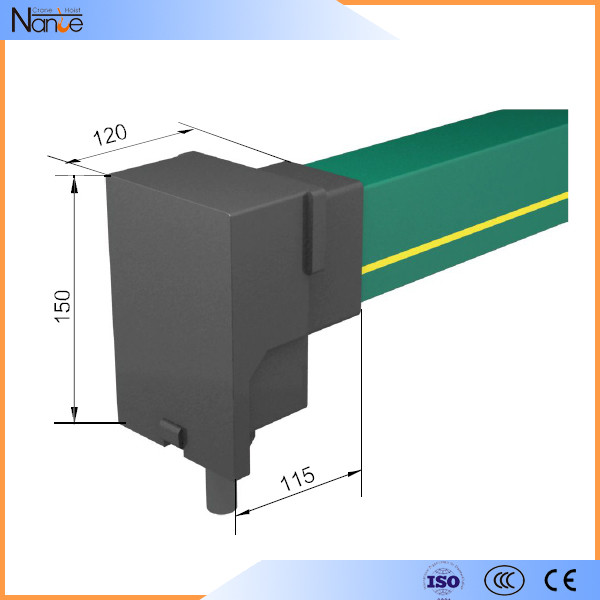

End caps

The open ends of the powerail are closed by end caps for HFP.

Hangers

Standard brackets for powerail attachment to crane girders are available.

Powerail with sliding and fixpoint hangers.

Standard distance between suspension points for indoor and outdoor installations:1200mm.

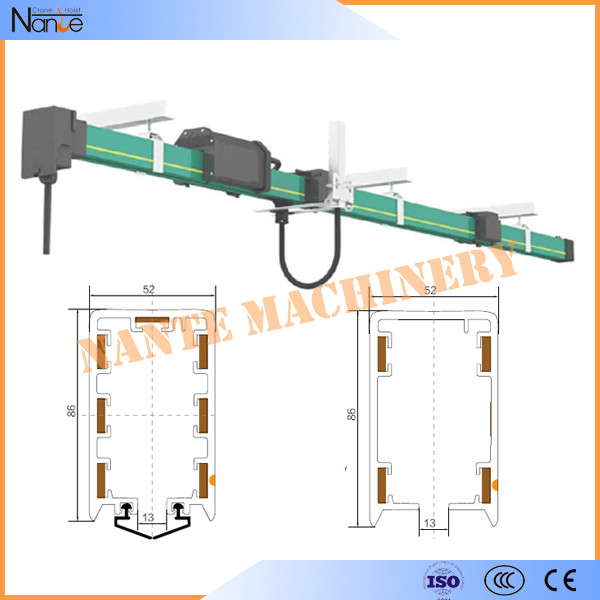

Conductor Rail Mobile Electrification

Technical Parameters

Model Pole No. Cross section Max. current Leakage-distance Max. voltage Resistance Dimensions (H * W) Weight
HFP56-4-8/35 4 8 35 35 600 1.944 73*56 2.09
HFP56-4-10/50 4 10 50 35 600 1.656 73*56 2.16
HFP56-4-12/65 4 12 65 35 600 1.321 73*56 2.23
HFP56-4-15/80 4 15 80 35 600 1.137 73*56 2.3
HFP56-4-20/100 4 20 100 33 600 1.011 73*56 2.43
HFP56-4-25/120 4 25 120 33 600 0.713 73*56 2.56
HFP56-4-35/140 4 35 140 33 600 0.522 73*56 2.95
HFP56-4-50/170 4 50 170 33 600 0.337 73*56 3.25
HFP56-4-70/210 4 70 210 33 600 0.265 73*56 3.85
HFP56-4-80/240 4 80 240 30 600 0.223 73*56 4.16
HFP56-3-10/50 3 10 50 45 600 1.656 73*56 1.95
HFP56-3-15/80 3 15 80 45 600 1.137 73*56 2.13
HFP56-3-20/100 3 20 100 45 600 1.011 73*56 2.24
HFP56-3-25/120 3 25 120 45 600 0.713 73*56 2.37
HFP56-3-35/140 3 35 140 45 600 0.522 73*56 2.63
HFP56-3-50/170 3 50 170 45 600 0.337 73*56 3.02

HFP Series Multiple-Poles Conductor Rail System

Max. voltage

600v

Bending strength

75N/mm²±10%

Dielectric strength

30-40kv/mm

Tensile strength

40N/mm²±10%

Special resistance

5×1015 Ohm×cm

Leakage resistance

CTI600-2,7

Surface resistance

1013 Ohm×cm

Design and Manufacturing Standard

GB7251.2-2006

Distance between each suspension bracket (m)

1.2

Rail length per piece (m)

4

Flame retardant

Class B1-no flaming particles, self-extinguishing

Permissible Ambient temperature

Standard insulation -30℃- +70℃|High temperature insulation -20℃- +115℃|Low temperature insulation -40℃- +80℃
