The European Style Prefabricated Substation is a complete, factory-assembled power distribution solution designed for outdoor high-voltage applications. Rated for 11kV, 15kV, and 33kV networks, this "Compact Substation" integrates high-voltage switchgear, a power transformer, and a low-voltage distribution board into a single, secure, and weather-resistant enclosure.

Commonly referred to as a "Box-Type Substation," this unit is engineered to minimize the footprint and civil engineering costs associated with traditional substation construction. Its modular, compartmentalized design ensures that the MV, Transformer, and LV sections are physically isolated, providing maximum safety for operators and the public. Whether for urban residential grids, wind farms, or temporary construction sites, the European Style Substation offers a "plug-and-play" alternative to site-built distribution hubs.

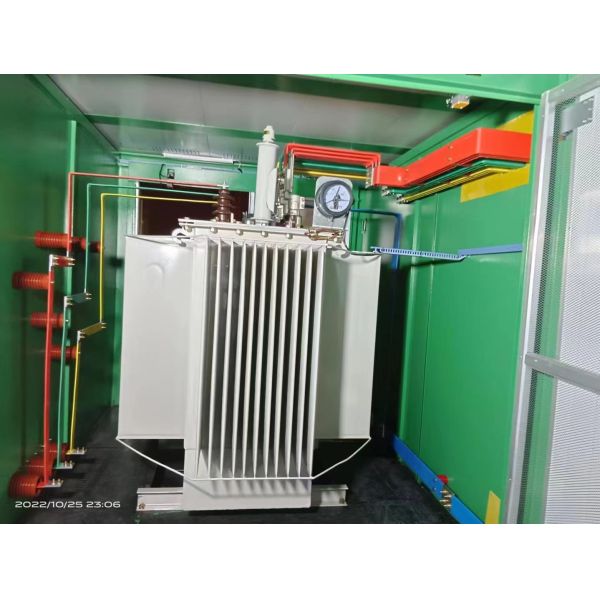

• Compact Modular Layout: Divided into three main compartments: the High-Voltage Room, the Transformer Room, and the Low-Voltage Room. This layout optimizes heat dissipation and cable management while reducing the total site area by up to 70% compared to open-air substations.

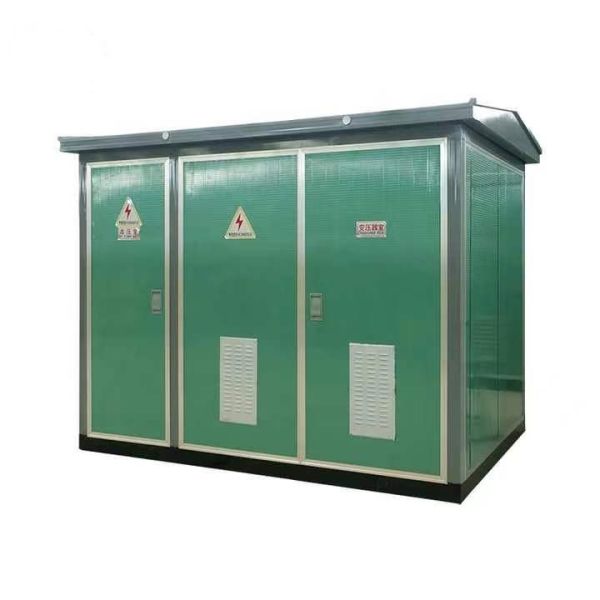

• Rugged All-Weather Enclosure: Constructed from high-quality materials such as GRC (Glass fiber Reinforced Cement), stainless steel, or Al-Zn coated steel plates. The double-layered roof design provides superior thermal insulation and prevents condensation.

• Integrated Safety Interlocking: Features a comprehensive "Five-Prevention" mechanical and electrical interlocking system. This ensures that maintenance can only be performed when the system is safely de-energized and earthed.

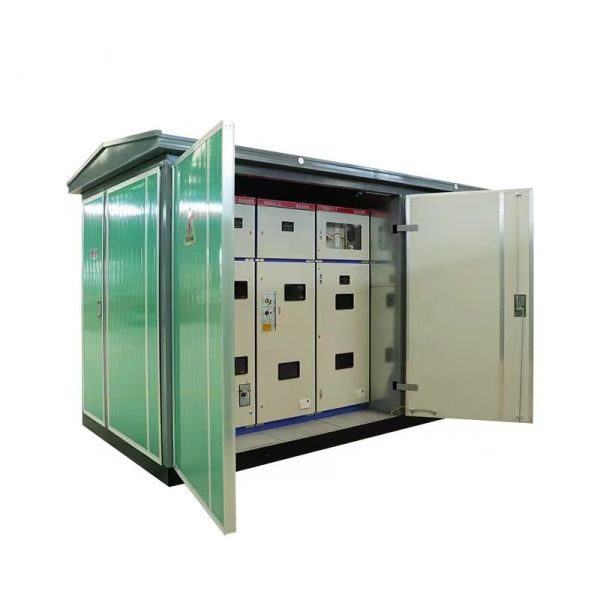

• High-Performance Components: Equipped with reliable Ring Main Units (RMU) for the HV side, high-efficiency oil-immersed or dry-type transformers, and modular GGD or GCK panels for the LV distribution side.

• Intelligent Monitoring: Supports the integration of Remote Terminal Units (RTU) for real-time monitoring of current, voltage, transformer temperature, and environmental status via SCADA or 5G networks.

1. Urban Residential Grids: Low-noise, aesthetic distribution points for city neighborhoods and commercial districts.

2. Renewable Energy Parks: Step-up and collection substations for large-scale solar PV farms and wind power installations.

3. Industrial Complexes: Reliable power hubs for mining sites, factories, and oil & gas refineries requiring rapid deployment.

4. Infrastructure Projects: Temporary or permanent power for airports, railway systems, and high-speed highway services.

• Turnkey Manufacturer Expertise: We handle the entire engineering process, from component selection and internal busbar design to factory testing, ensuring perfect compatibility between the HV and LV sections.

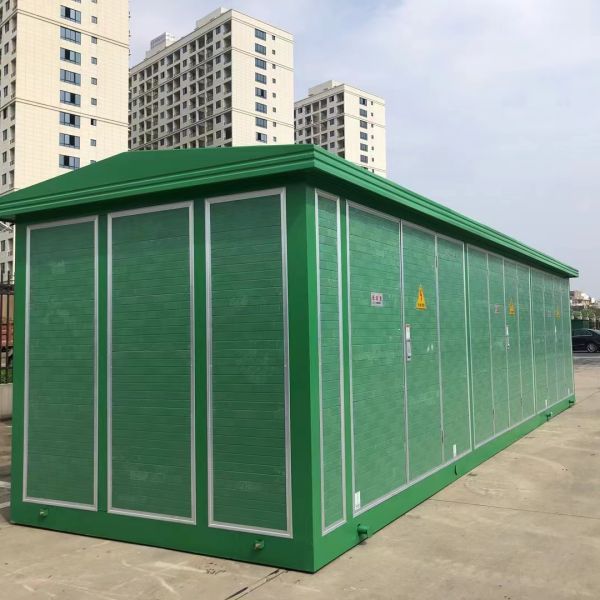

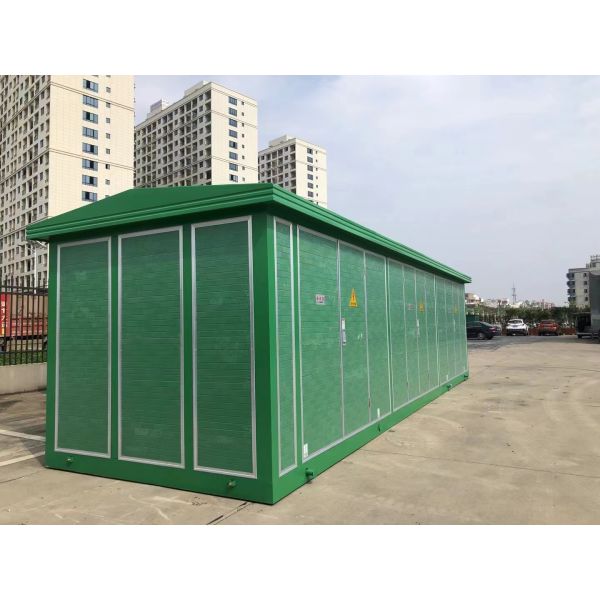

• Flexible Enclosure Aesthetics: For urban environments, we offer various exterior finishes (including wood-grain, stone-texture, or custom RAL colors) to harmonize with local architecture.

• Rapid Site Commissioning: Since the unit is factory-tested and pre-wired, on-site installation only requires foundation preparation and cable connection, reducing project timelines by weeks.

• Extreme Climate Adaptation: Our substations are engineered for environments ranging from -40°C arctic conditions to +50°C tropical heat, with optional anti-condensation heaters and automatic cooling fans.

Q: What is the difference between European and American style substations?

A: The European style is more modular and allows for easier component replacement. It features separate rooms for the transformer and switchgear, whereas the American style (Pad-mount) often integrates the transformer and switchgear in a more compact, shared-tank design.

Q: Can I specify the brand of the internal circuit breakers?

A: Yes. We can integrate world-class components from ABB, Schneider, or Siemens, or utilize our own high-quality certified switchgear to suit your project budget.

Q: Is the enclosure fireproof?

A: Yes. We use non-combustible materials and specialized fire-resistant seals. GRC (Glass fiber Reinforced Cement) enclosures, in particular, offer the highest fire ratings for sensitive urban locations.
