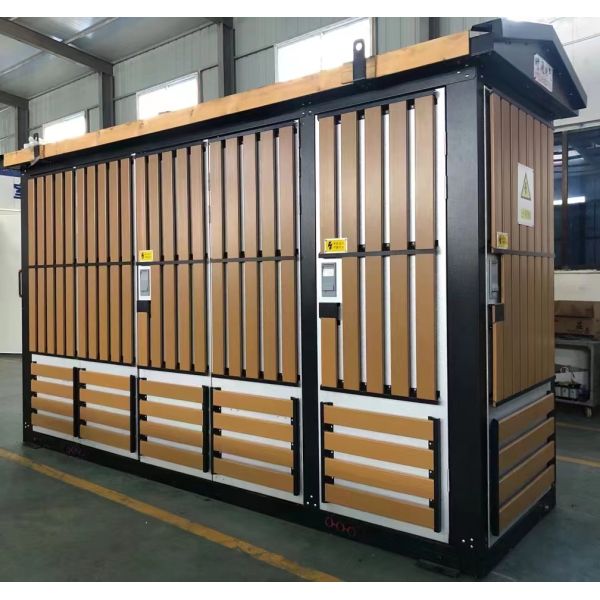

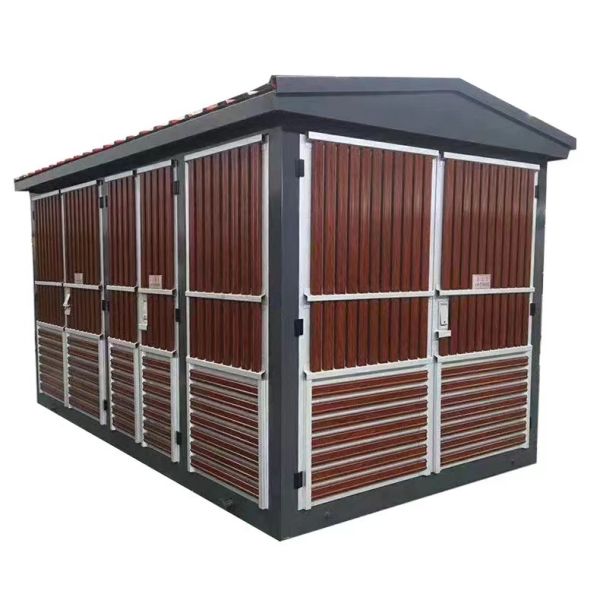

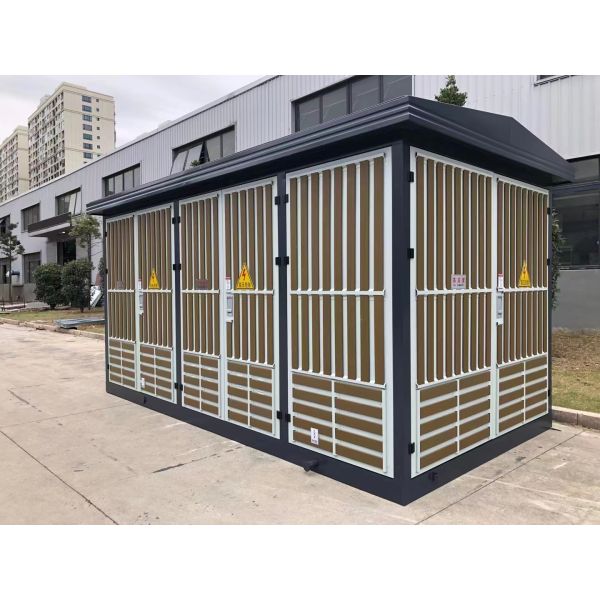

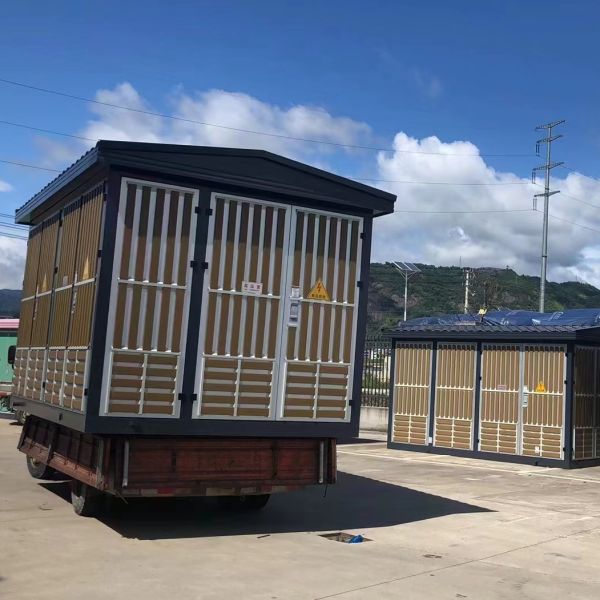

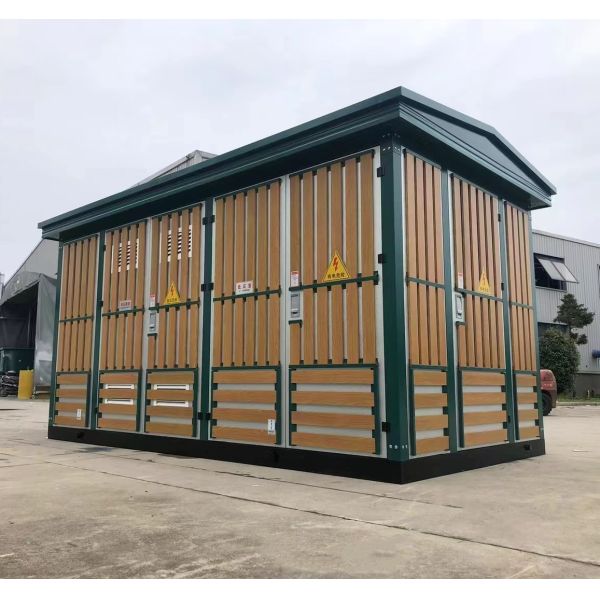

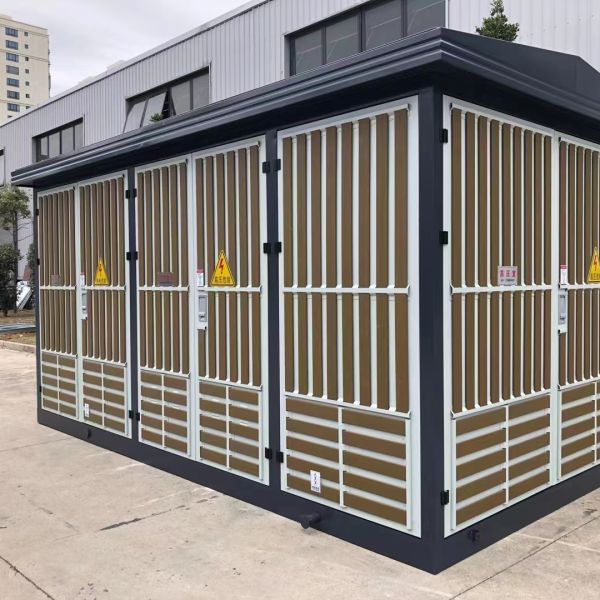

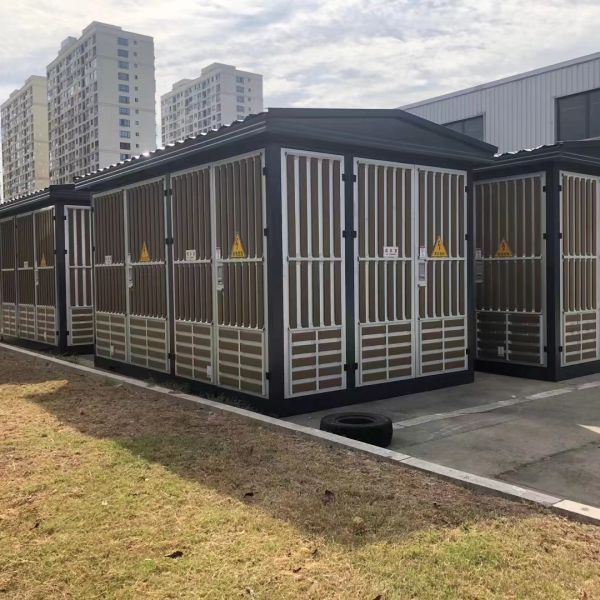

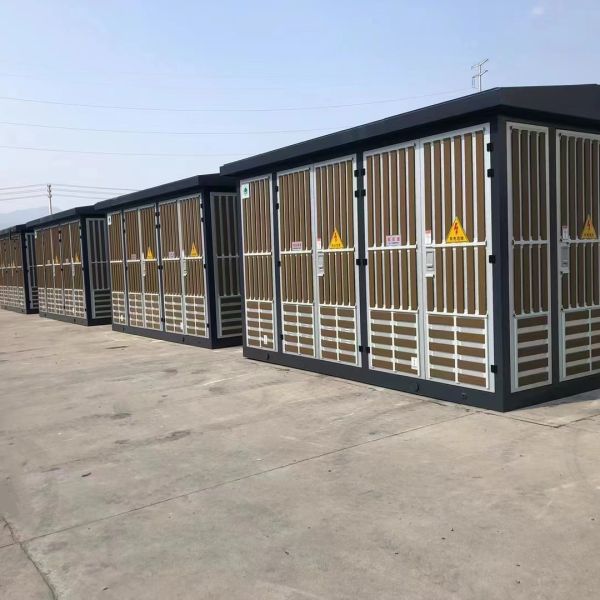

The YBW Series Landscape Box-Type Substation is a premium, pre-installed power distribution solution designed where functionality meets aesthetics. This "European-style" substation integrates high-voltage switchgear, a power transformer, and low-voltage distribution panels into a single, highly durable enclosure.

What sets the YBW series apart is its specialized landscape-friendly exterior. Utilizing a high-strength Aluminum-Zinc (Al-Zn) coated steel structure finished with a decorative wooden strip or wood-grain texture, it is engineered to blend seamlessly into public parks, high-end residential areas, and tourist resorts. It offers a "Plug-and-Play" alternative to traditional brick-and-mortar substations, drastically reducing installation time while providing superior protection against corrosion and weathering.

• Landscape-Integrated Aesthetic: The wooden strip exterior allows the substation to blend into natural environments, making it the preferred choice for city green belts, resorts, and architectural projects.

• Aluminum-Zinc Coated Chassis: The core structure uses Al-Zn coated steel, which offers 3-5 times the corrosion resistance of standard galvanized steel, ensuring a service life of over 30 years in outdoor environments.

• Compact "All-In-One" Design: Consolidates the HV room, Transformer room, and LV room into a compact footprint, requiring minimal land area and reducing civil engineering costs.

• Thermal Management Intelligence: Features natural ventilation combined with automated, temperature-controlled forced-air cooling to ensure stable operation in temperatures from -40°C to +45°C.

• Superior Safety Interlocks: Equipped with a mechanical "Five-Prevention" interlocking system to prevent unauthorized access and operator error during grid switching.

1. Public Parks & Green Belts: Power distribution that doesn't detract from the natural beauty of urban recreational spaces.

2. High-End Residential Communities: Aesthetically pleasing kiosks that match modern architectural styles.

3. Tourist Resorts & Hotels: Providing stable power for large facilities while maintaining a "nature-friendly" appearance.

4. Urban Street Transformation: Replacing old, exposed equipment with safe, compact, and decorative integrated substations.

• Turnkey Delivery: Every unit is factory-assembled, wired, and tested. Once it arrives on-site, only the HV/LV cable connections are required for immediate commissioning.

• Corrosion & Fire Resistance: Despite the wooden appearance, the enclosure is made of non-combustible Al-Zn steel that resists UV radiation, acid rain, and salt-spray.

• Customizable Internal Layouts: We provide tailored configurations based on your Single Line Diagram (SLD), including your choice of breaker brands such as ABB, Schneider, or Siemens.

• Smart Grid Ready: Can be equipped with remote monitoring units (RTUs) for real-time tracking of transformer health, load data, and environmental conditions via SCADA.

Q: Is the wooden strip finish actual wood?

A: We offer two options: high-durability treated natural wood strips or, more commonly, metal wood-grain panels that provide the same look but with significantly higher fire resistance and lower maintenance requirements.

Q: How does the substation handle high humidity or coastal air?

A: The Aluminum-Zinc coating is specifically chosen for its self-healing properties and resistance to oxidation, making it far superior to painted cold-rolled steel in coastal or humid regions.

Q: Can we specify a dry-type transformer instead of oil-immersed?

A: Absolutely. We can configure the YBW series with a cast resin dry-type transformer for projects where fire safety or environmental regulations prohibit the use of oil.

This series of intelligent box substation is by the high voltage unit, power transformer, low voltage unit, measurement unit and intelligent system, optimize the combined into a complete intelligent power supply complete sets of equipment, its function, wide use, more safe and reliable operation, nice appearance, and has convenient installation, covers an area of less, less maintenance, less investment, quick effect, long service life, etc. It can be used as transformer and distribution equipment for urban buildings, residential areas, municipal facilities, factories, mines, highways, wharves, oil fields and temporary electricity departments and places.
