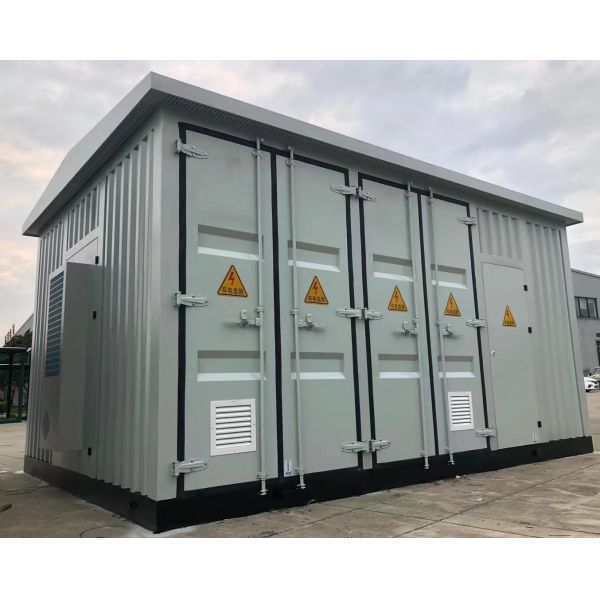

The Dedicated Box-Type Substation for EV Charging is a specialized power distribution solution engineered to meet the unique, high-demand requirements of Electric Vehicle fast-charging infrastructure. Unlike standard distribution centers, this substation is designed for heavy cyclic loads and frequent power fluctuations typical of high-power DC fast-charging sites.

Integrating high-voltage switchgear, a high-efficiency power transformer, and a low-voltage distribution system into a single, compact, and weather-resistant enclosure, this substation provides a "Plug-and-Play" power source for centralized EV charging hubs. It is the premier choice for highway service areas, municipal bus depots, and commercial supercharging stations, ensuring consistent power delivery for hundreds of simultaneous charge cycles.

• High-Load Cyclic Capacity: Engineered to handle the intensive, rapid load-switching characteristics of high-power DC charging piles, reducing thermal stress on the transformer and breakers.

• Modular "Plug-and-Play" Design: Factory-assembled and pre-wired to significantly reduce on-site civil works. Installation is limited to foundation securing and cable termination, cutting commissioning time by up to 60%.

• Intelligent Grid Management: Integrated with smart energy controllers that enable load-shedding and demand-response capabilities, helping operators manage grid electricity costs effectively.

• Superior Environmental Resilience: Housed in a heavy-duty, corrosion-resistant steel or Al-Zn enclosure (IP54), designed to thrive in outdoor parking lots, exposed highway environments, and industrial depots.

• Smart Monitoring & Data Access: Features an integrated RTU/PLC unit that communicates directly with your charging management software via Ethernet/4G/5G, providing real-time data on load, voltage stability, and transformer temperature.

1. EV Supercharging Hubs: Providing centralized power for multiple high-power DC fast chargers (120kW/240kW/480kW stations).

2. Electric Bus/Logistics Depots: Dedicated power infrastructure for overnight charging of large-scale fleet vehicles.

3. Highway Service Areas: High-capacity power kiosks designed to support rapid-charging corridors.

4. Commercial & Retail Centers: Enabling EV charging stations in shopping mall parking structures and high-traffic commercial zones.

• Turnkey Customization: We offer tailored low-voltage distribution designs to accommodate multiple charger cabinet inputs, ensuring optimized cable runs and minimal power loss.

• Thermal Management for Reliability: EV charging is continuous. Our substations include extra-capacity ventilation and smart fan control to maintain transformer longevity during 24/7 high-load operations.

• Enhanced Safety Interlocks: Every unit features a full "Five-Prevention" mechanical interlocking system to protect your maintenance teams and ensure system safety at all times.

• Aesthetic Integration: Available in custom finishes and RAL colors to ensure the substation complements the design of modern parking facilities and commercial storefronts.

Q: Can this substation support both AC chargers and DC fast chargers?

A: Yes. We configure the low-voltage distribution panel to manage distinct circuits for both AC and DC charging piles, often with separate metering for each.

Q: What if the power demand increases in the future?

A: Our modular design allows for parallel unit operation. If your site expands, we can add a secondary substation unit to increase capacity without replacing existing infrastructure.

Q: Is this system SCADA ready?

A: Absolutely. Every unit comes with a digital gateway supporting open protocols like Modbus-TCP or IEC 61850, making integration with your EV charging software platform straightforward.

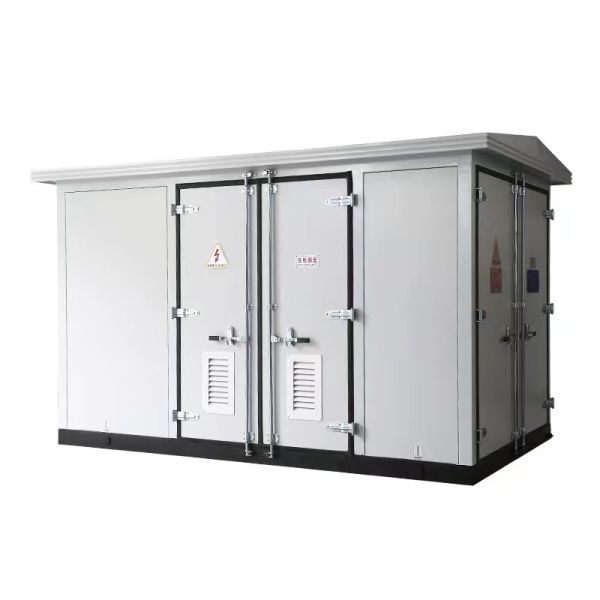

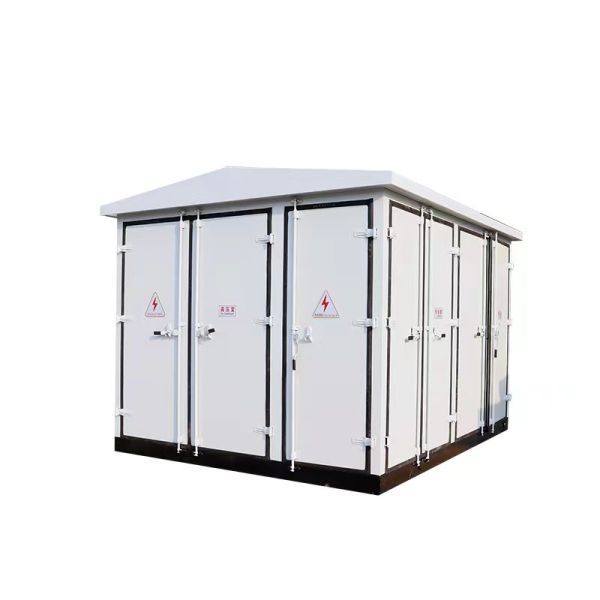

YB intelligent pre-installed substation

This series of intelligent box substation is by the high voltage unit, power transformer, low voltage unit, measurement unit and intelligent system, optimize the combined into a complete intelligent power supply complete sets of equipment, its function, wide use, more safe and reliable operation, nice appearance, and has convenient installation, covers an area of less, less maintenance, less investment, quick effect, long service life, etc. It can be used as transformer and distribution equipment for urban buildings, residential areas, municipal facilities, factories, mines, highways, wharves, oil fields and temporary electricity departments and places.
