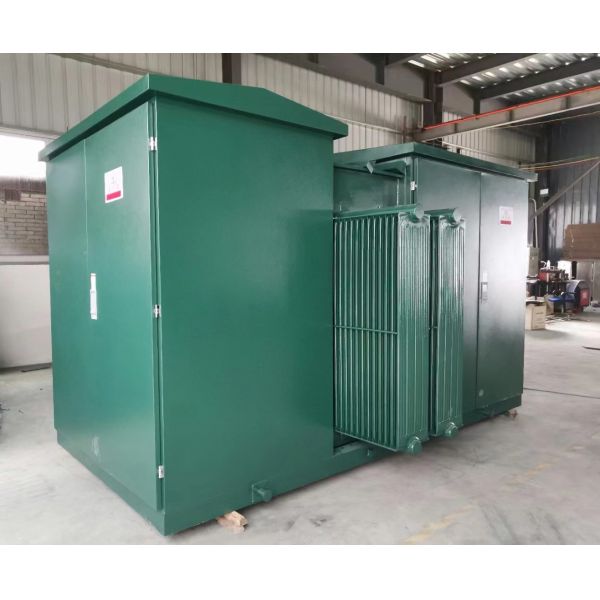

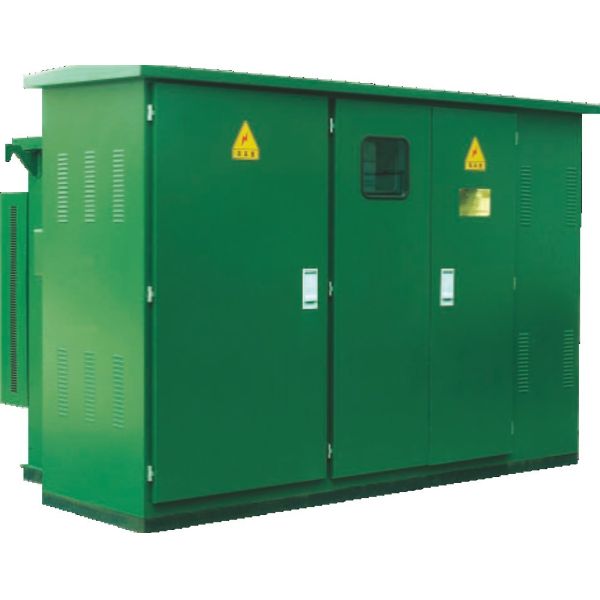

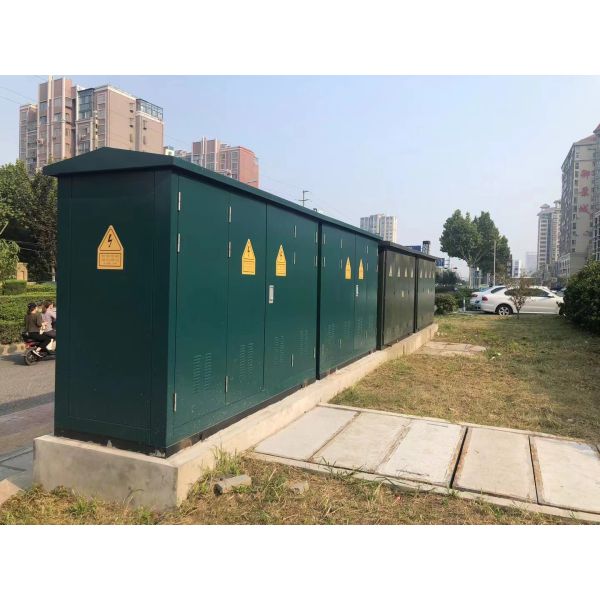

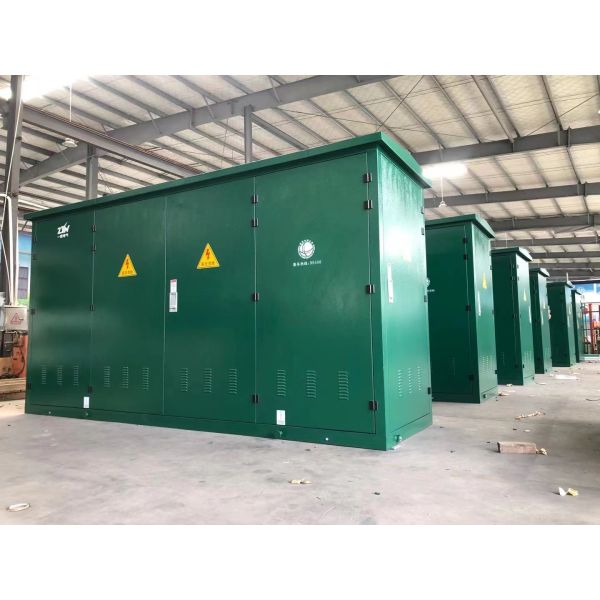

The Intelligent Integrated Box-Type Substation is a sophisticated, pre-engineered power distribution hub that combines High-Voltage (HV) switchgear, a power transformer, and Low-Voltage (LV) distribution panels into a single, weather-resistant modular enclosure.

Unlike traditional substations that require extensive on-site civil work, this "Power Modular" solution is factory-assembled, wired, and tested. It is designed for the modern smart grid, featuring integrated sensing technology that allows for remote monitoring and automated load management. It is the definitive choice for rapid infrastructure deployment in urban residential areas, industrial parks, and Utility-Scale Solar/Wind farms.

• Smart Grid Integration: Equipped with intelligent terminal units (RTUs) and fiber-optic communication. Monitor transformer health, oil levels, and breaker status in real-time via SCADA.

• Compact Modular Architecture: Drastically reduces the installation footprint compared to open-air substations. Its "all-in-one" design is ideal for high-density urban locations or narrow industrial corridors.

• Thermal Intelligence: Features an automated climate control system with sensor-driven fans and heaters to prevent condensation and maintain optimal operating temperatures in climates from -40°C to +50°C.

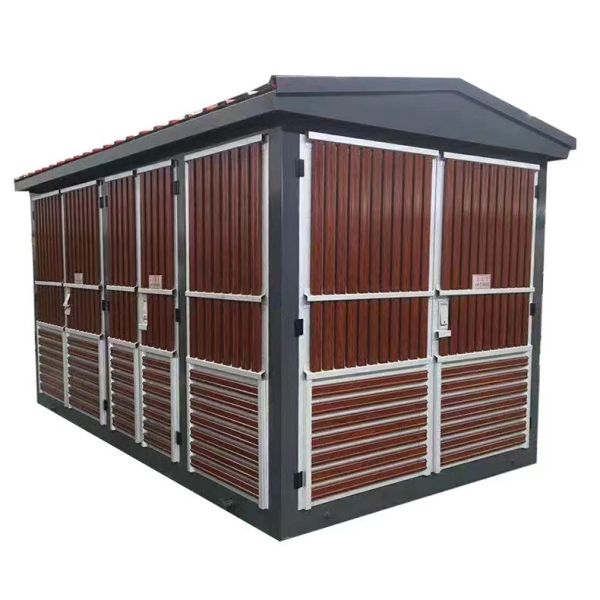

• High-Grade Enclosure Options: Available in Aluminum-Zinc alloy, Stainless Steel, or GRC (Glass-fiber Reinforced Concrete). Our enclosures are tested for UV resistance and C4/C5-M corrosion categories.

• Enhanced Operational Safety: Includes internal arc-fault protection and a comprehensive mechanical "Five-Prevention" interlocking system to ensure operator safety during manual switching.

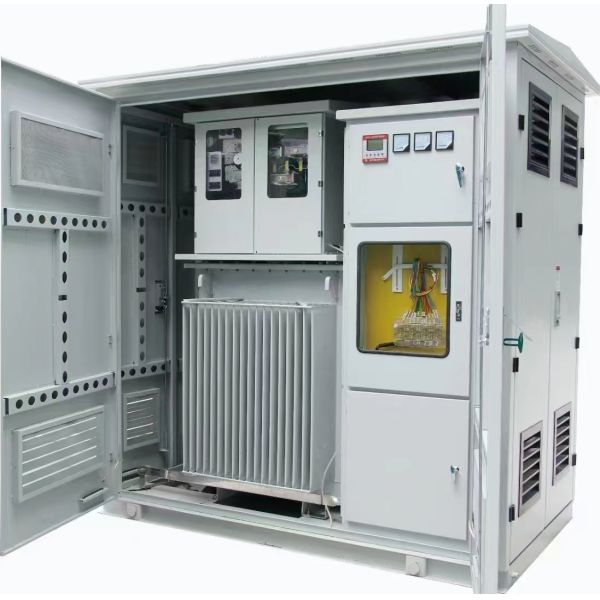

1. Renewable Energy Collection: Acts as the grid-connection point for solar arrays and wind turbine clusters.

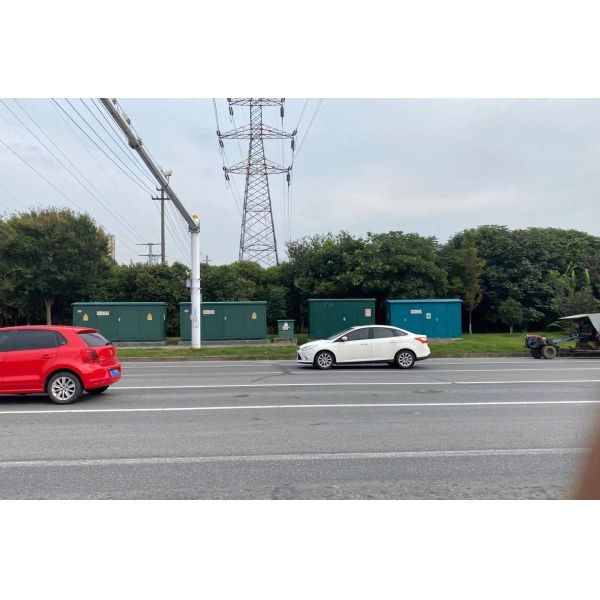

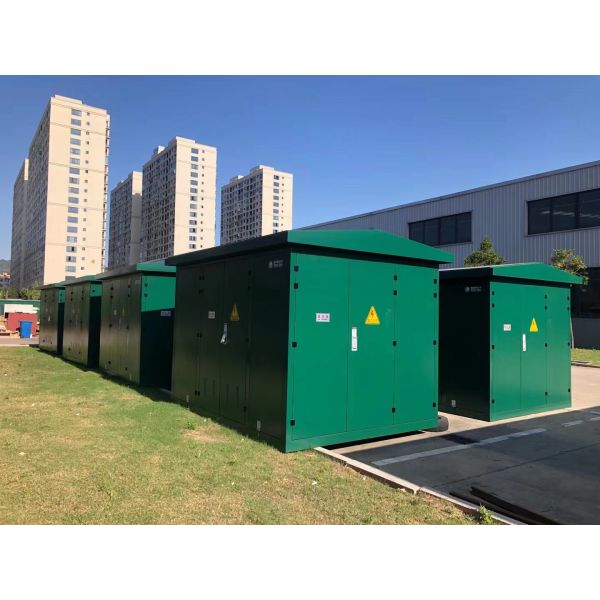

2. Urban Grid Strengthening: Quickly adds capacity to metropolitan areas without the need for new permanent buildings.

3. Industrial Mining & Oil/Gas: Provides a rugged, transportable power source for remote extraction sites and refineries.

4. EV Charging Superstations: Manages the high-power distribution required for centralized electric vehicle charging hubs.

• Plug-and-Play Commissioning: Our units arrive on-site 100% ready. Simply secure the base, connect the HV/LV cables, and the system is live, reducing site labor costs by up to 70%.

• Global Component Flexibility: We can populate the substation with your preferred switchgear brands, such as ABB, Schneider, or Siemens, ensuring your local maintenance team has parts compatibility.

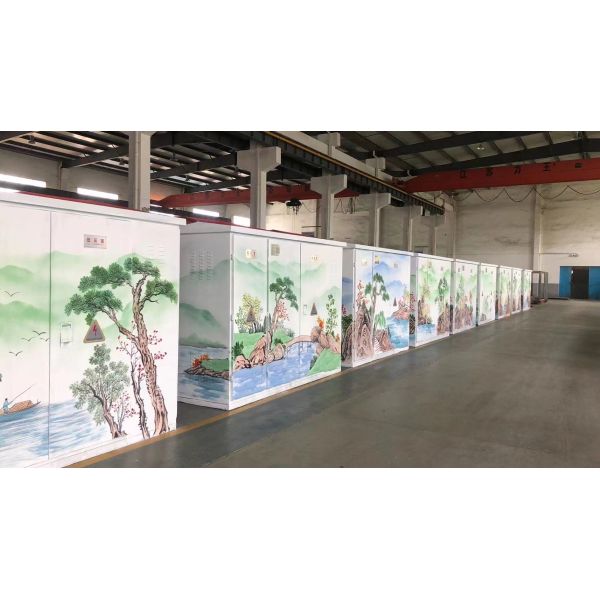

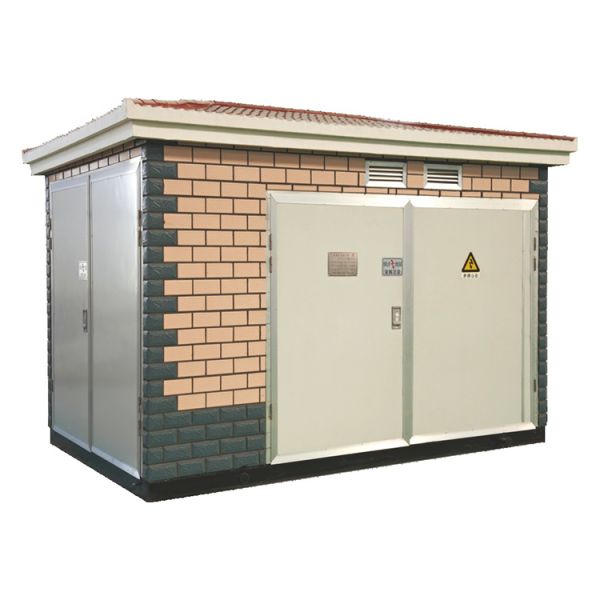

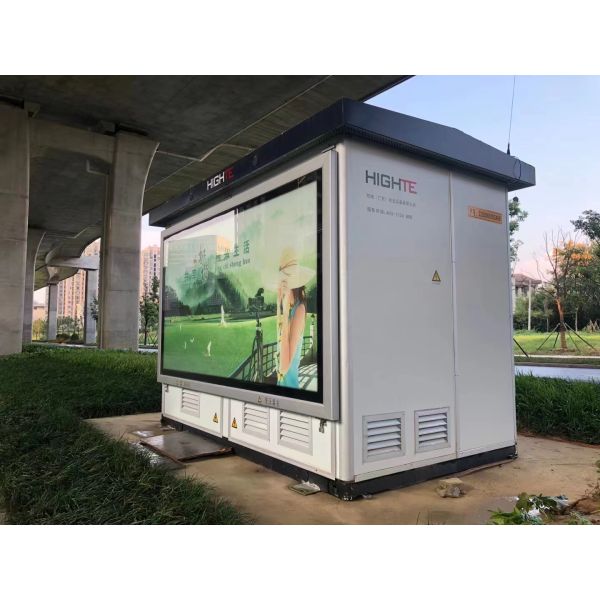

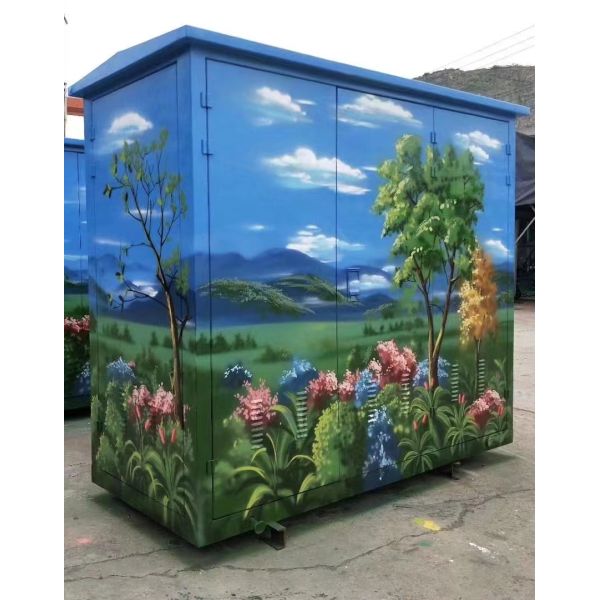

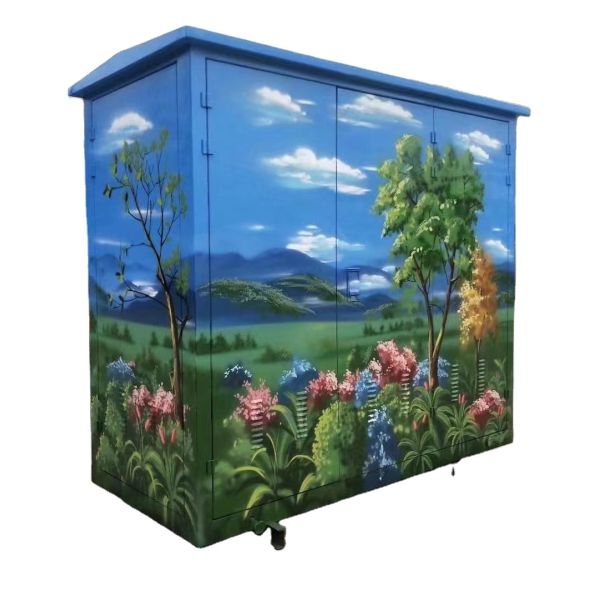

• Environmental Aesthetics: We offer custom exterior finishes, including landscape-matching colors or textured panels, ensuring the unit blends into public parks or high-end residential zones.

• Rigorous Factory Testing: Every unit undergoes a full suite of tests (insulation, temperature rise, mechanical sequence) to ensure it meets international safety benchmarks before shipping.

Q: Can this unit handle 690V output for industrial applications?

A: Yes. We frequently customize the LV side for 690V or other specific voltages required by industrial motors or specialized wind turbine converters.

Q: Is the substation protected against internal fire?

A: Every compartment is built with fire-resistant materials. For oil-immersed transformers, the unit includes an integrated oil-leakage sump to prevent environmental contamination.

Q: How do I monitor the system remotely?

A: The substation includes a smart digital gateway that supports Ethernet or GPRS communication, allowing you to access all parameters via a web interface or your existing SCADA system.
