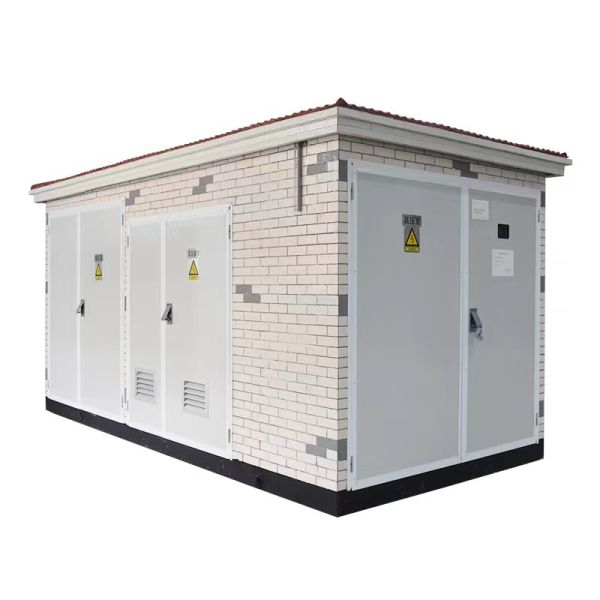

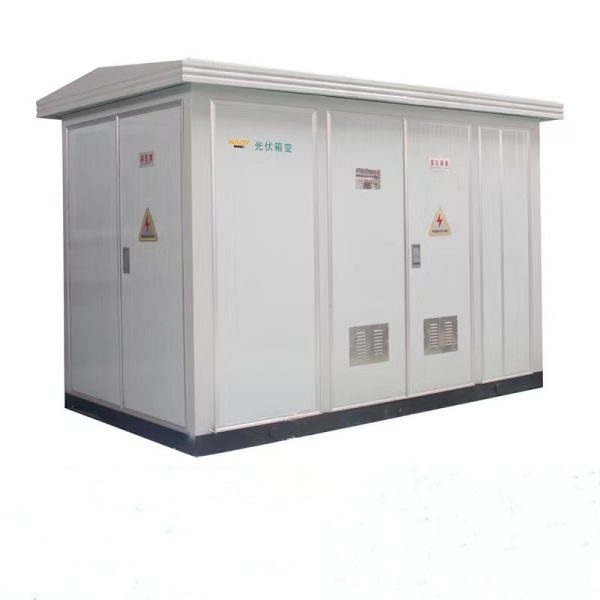

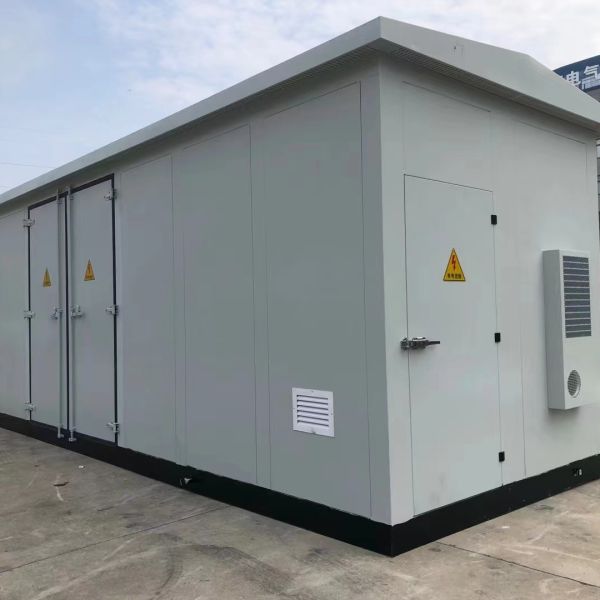

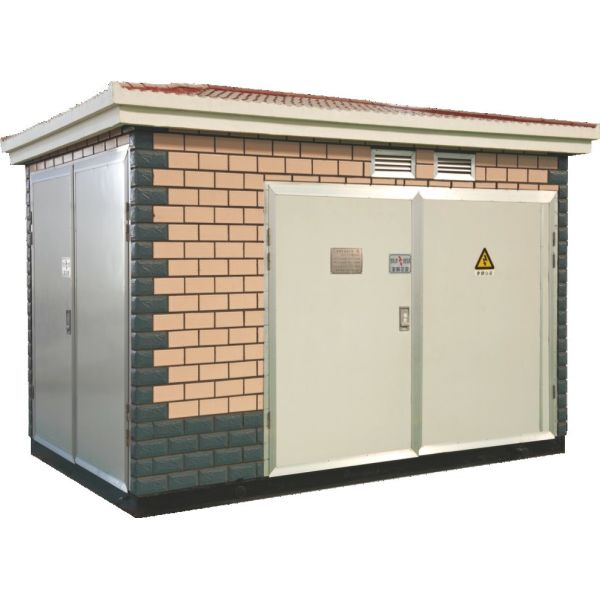

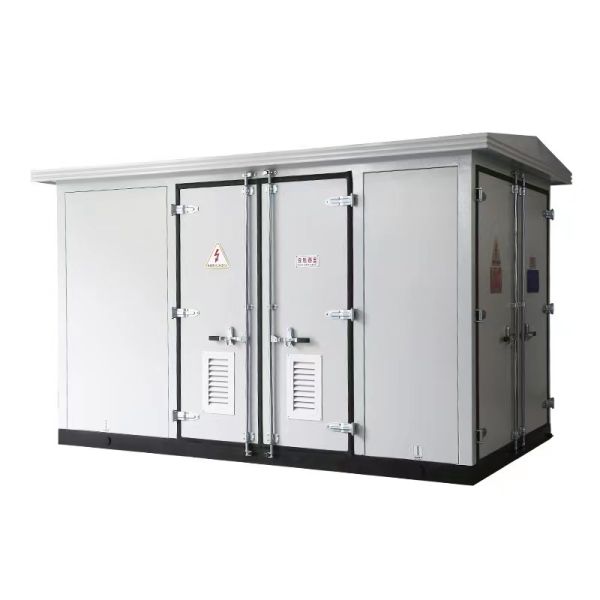

The YBF-10/0.4kV series is a specialized, prefabricated "Box-type" substation engineered specifically for the renewable energy sector. It acts as the critical power conversion link in Photovoltaic (PV) plants and Wind farms, stepping up the low-voltage output (0.4kV, 0.6kV, or 0.69kV) from inverters and turbines to the 10kV/11kV medium-voltage collection grid.

Designed for high-reliability in remote, harsh environments, the YBF series combines the transformer, high-voltage switchgear, and low-voltage control systems into a single, weather-sealed enclosure that is "plug-and-play" ready for rapid site deployment.

• Optimized for Inverter Harmonics: The internal transformer and switchgear are specifically designed to handle the high-frequency harmonics and variable load cycles characteristic of solar and wind energy production.

• Corrosion-Resistant "Box" Design: The enclosure is available in high-grade Aluminum Alloy, Stainless Steel, or Glass-fiber Reinforced Cement (GRC). It features a protection rating of IP54, ensuring long-term durability against salt spray, desert sand, and intense UV radiation.

• Intelligent Thermal Management: Features a dual-layer ventilation structure with an air-interlayer to prevent solar radiation from overheating the internal components. Automated forced-air cooling is triggered by smart temperature sensors.

• Rapid Deployment & Low Civil Cost: As a completely prefabricated unit, the YBF substation requires only a simple concrete base on-site, significantly reducing construction time and labor costs compared to traditional built-in-place stations.

• Compact Footprint: The streamlined layout allows for installation in tight spaces, such as at the base of wind turbine towers or between rows of PV arrays.

1. Utility-Scale Solar Farms: Stepping up power from central or string inverters for efficient medium-voltage transmission.

2. Onshore Wind Power: Reliable voltage conversion located directly at the site of the wind turbine generator.

3. BESS (Battery Energy Storage Systems): Serving as the interface between large-scale battery banks and the utility grid.

4. Hybrid Energy Microgrids: Balancing renewable inputs with local industrial distribution.

• Integrated Smart Monitoring: Every unit can be equipped with remote telemetry systems (RTU/FTU) for real-time monitoring of transformer oil temperature, pressure, and electrical loads via SCADA.

• High Safety Standards: Includes comprehensive mechanical interlocks (five-proof) and pressure relief valves to ensure the safety of maintenance personnel in remote areas.

• Flexible Component Selection: We offer global brand integration (ABB, Schneider, Siemens) for breakers and relays, or cost-effective, high-performance domestic alternatives.

• Proven Performance: Our substations have been deployed in high-altitude, extreme cold, and high-humidity environments worldwide, with a proven service life exceeding 25 years.

Q: Can the substation handle bidirectional power flow?

A: Yes. The YBF series is designed for the modern smart grid, supporting the bidirectional flow required for energy storage and grid-tied renewable systems.

Q: Is the low-voltage side compatible with 690V wind turbine outputs?

A: Absolutely. We customize the low-voltage winding of the transformer (0.69kV) specifically for modern wind turbine and large-scale inverter requirements.

Q: How is the unit shipped?

A: The unit is shipped as a fully assembled "Complete Set." For very large capacities (above 2500kVA), we may ship in modular sections that are easily bolted together on-site.

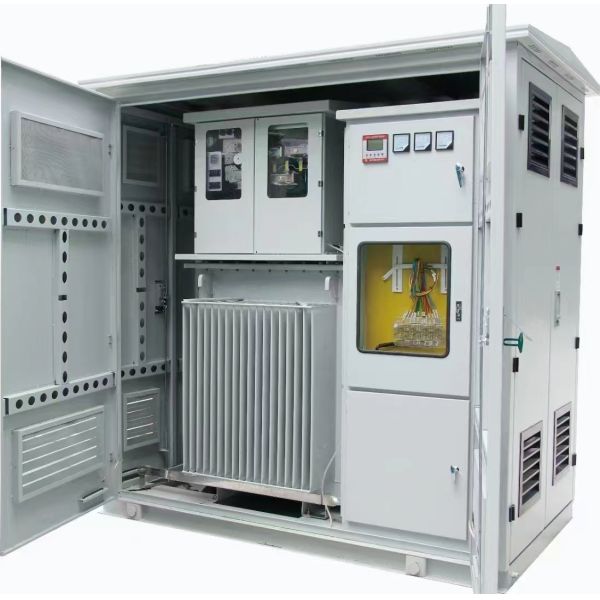

This series of intelligent box substation is by the high voltage unit, power transformer, low voltage unit, measurement unit and intelligent system, optimize the combined into a complete intelligent power supply complete sets of equipment, its function, wide use, more safe and reliable operation, nice appearance, and has convenient installation, covers an area of less, less maintenance, less investment, quick effect, long service life, etc. It can be used as transformer and distribution equipment for urban buildings, residential areas, municipal facilities, factories, mines, highways, wharves, oil fields and temporary electricity departments and places.
