Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5040GXWA6
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
3269-4859usd
Payment Terms :
T/T
Supply Ability :
5,000 units per year
Delivery Time :
15-45 workdays
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Item :
ZBJ5040GXWA6
Energy type :
Diesel
Dimension(L x W x H) :
5230×1810,1660×2240,2290(mm)
Chassis :
EQ1045SJ16DC
Engine :
Q23A-110E60
Curb Weight :
2765kg
Rated Loading :
1600kg
Total Mass :
4495kg
Max. Speed :
110km/h
App./Dep.Angle :
20/25(°)
Front / Rear suspension :
1190/1240(mm)
Axle Load :
1650/2845 kg
Tank Volume :
2000L
Description
ZBJ5040GXWA6 2m³ 2000L 4.5tons diesel sewer sewage suction truck
Key Parameters​

Total Weight: 4495Kg. Compact, fits small/medium sewage work.​

Size: 5230×1810, 1660×2240, 2290mm. Moves flexibly in various roads.​

Power: 108-horsepower diesel engine. Stable, meets sewage suction needs.​

Load: 1600Kg. Suitable for small/medium sewage collection and transport.

​

Core Features​

Devices & Performance: Has vacuum pump for sewage suction. Handles suspended pollutants (0.8t/m³). 2m³ tank (2226mm long, φ1208mm diameter) for storage.​

Safety: Side/rear protection (Q235, bolted). Rear: 100×50×3mm, 370/405mm off ground. APG3550500A ABS (Zhejiang Yatai) boosts safety. Rear arrow light warns during work.​

Chassis: 2800mm wheelbase, ensures stable and flexible operation.​

Options
​
Choose filters, hydraulic locks, warning devices; pipeline layouts, side protection; positions of oil tank, control cabinet, valve group, tail cylinder. Fits various needs.
​
Uses
​
Good for urban streets, communities, small factories. Compact, stable, with special devices, it handles pollutants well for clean environments.
parameters:
Item ZBJ5040GXWA6
Energy type Diesel
Dimension(L x W x H) 5230×1810,1660×2240,2290(mm)
Chassis EQ1045SJ16DC
Engine Q23A-110E60
Curb Weight 2765(Kg)
Rated Loading 1600(Kg)
Total Mass 4495(Kg)
Maximum Speed 110(km/h)
App./Dep.Angle 20/25(°)
Front / Rear suspension 1190/1240(mm)
Axle Load 1650/2845 kg
Tank Volume 2000L

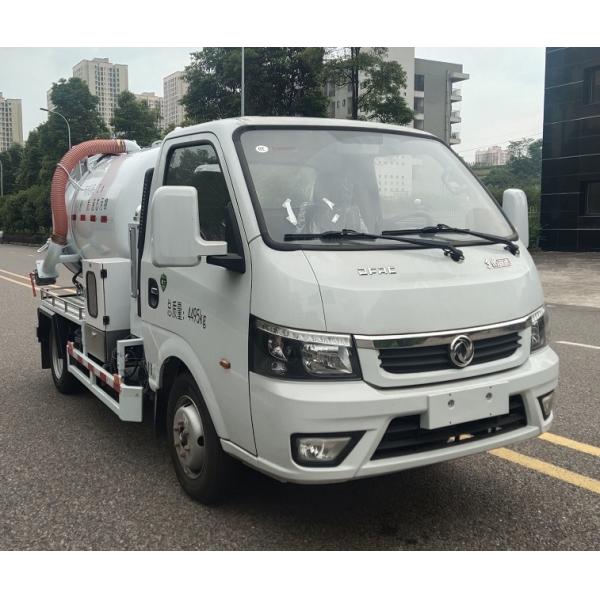

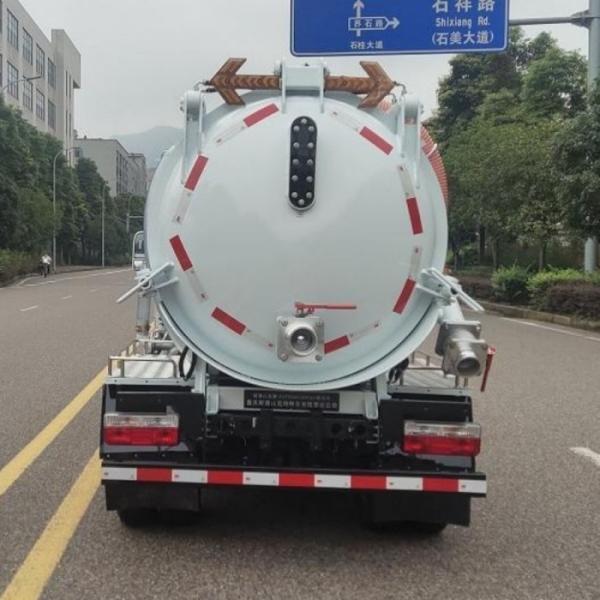

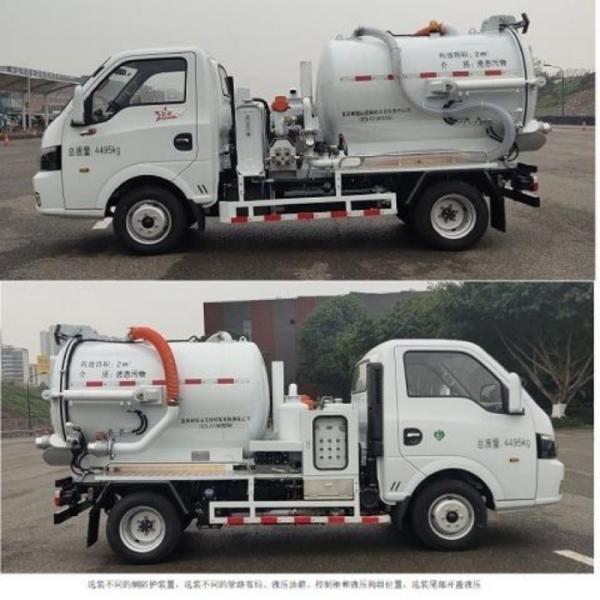

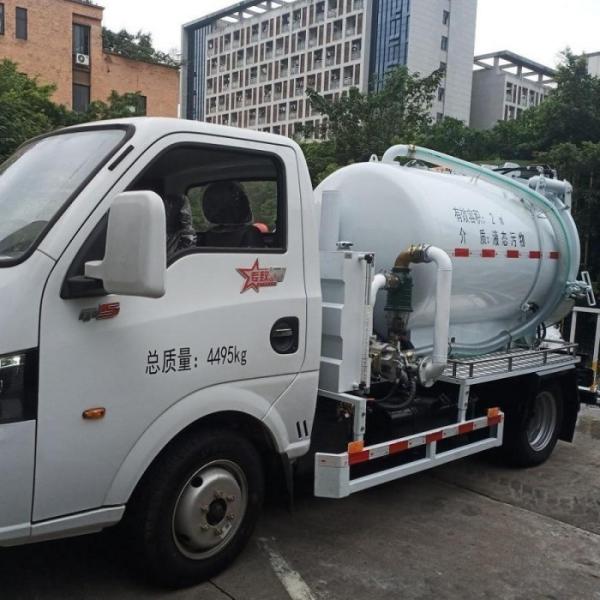

Actual photos
2m3 2000L 4.5tons Diesel Sewage Suction Truck High Performance For Urban Streets
2m3 2000L 4.5tons Diesel Sewage Suction Truck High Performance For Urban Streets
2m3 2000L 4.5tons Diesel Sewage Suction Truck High Performance For Urban Streets
2m3 2000L 4.5tons Diesel Sewage Suction Truck High Performance For Urban Streets
General Optional Setups & Region-Specific Configurations:
Optional Configurations
 Intelligent Monitoring System
Multilingual Control Panel
Anti-Overflow Alarm Device
Quick-Connect Fittings & Multi-Size Suction Hoses
Hydraulic Drive System
Self-Cleaning Flushing System
Overload Protection Device
Anti-overflow Valve


Tropical Regions


 Anti-UV Thermal Insulation Coating
High-Efficiency Cooling System
Moisture-Resistant Electrical Components
Corrosion-Resistant Sealing Gaskets
High-Flow Cooling Water Pump


Cold Regions


 Tank Thermal Insulation Layer
Engine Preheating System
Battery Heater
Anti-Freeze Vacuum Pump Oil
Suction Hose Heating Tape
Low-Temperature-Resistant Rubber Parts
Drain Valve Heat Tracing System
