2.2m3 2200L 7.4tons Sewage Suction Truck Diesel Powered Pipeline Dredging
2.2m3 2200L 7.4tons Sewage Suction Truck Diesel Powered Pipeline Dredging
2.2m3 2200L 7.4tons Sewage Suction Truck Diesel Powered Pipeline Dredging
2.2m3 2200L 7.4tons Sewage Suction Truck Diesel Powered Pipeline Dredging
2.2m3 2200L 7.4tons Sewage Suction Truck Diesel Powered Pipeline Dredging
2.2m3 2200L 7.4tons Sewage Suction Truck Diesel Powered Pipeline Dredging
2.2m3 2200L 7.4tons Sewage Suction Truck Diesel Powered Pipeline Dredging
2.2m3 2200L 7.4tons Sewage Suction Truck Diesel Powered Pipeline Dredging
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5070GQWBHA
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
4055-4565usd
Payment Terms :
T/T
Supply Ability :
5,000 units per year
Delivery Time :
15-45 workdays
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Item :
ZBJ5070GQWBHA
Energy type :
Diesel
Dimension(L x W x H) :
5995×2150×2650(mm)
Chassis :
ZZ1077F3315F174
Engine :
D30TCIF1
Curb Weight :
5385(Kg)
Rated Loading :
1845,1780(Kg)
Total Mass :
7360(Kg)
Max. Speed :
80,95(km/h)
App./Dep.Angle :
19/10(°)
Front / Rear suspension :
1165/1550(mm)
Axle Load :
2640/4720 kg
Tank Volume :
2200L
Description
ZBJ5070GQWBHA 2.2m³ 2200L 7.4tons diesel sewer sewage suction truck
Key Specs & Devices
  • Chassis: 3280mm wheelbase, fit for pro sewage suction/cleaning.
  • Tanks:
    • Sewage: 2.33 total/2.225 effective m³ (liquid waste, 800kg/m³). 3575mm long, 3300×1200mm straight section (front 1500mm lower for high-pressure pump).
    • Clean water: 1.86 total/1.78 effective m³ (water, 1000kg/m³). 2900×560×900mm special shape.
    • Tanks are independent (can’t both full), liftable. Clean water for cleaning, sewage for suction.

Core Features

  • Function: Tanks + cleaning/suction tools for sewer drainage/dredging.
  • Safety: Q235A steel side (bolted) and rear (welded) protection. Rear: 100×50mm, 360mm off ground.
  • Brakes: Optional ABS (XH-KQ4S4M-E01, CM4XL-4S/4M, VIE ABS-Ⅱ) for stability.

Options

  • Speed limiter (80km/h).
  • Rear reel layout, side valve positions, tank mouth/shape.
  • Chassis accessories, cabs.

Uses

Good for sewers, pipeline dredging. With double tanks, liftable design, handles urban/community waste well.
parameters:
Item ZBJ5070GQWBHA
Energy type Diesel
Dimension(L x W x H) 5995×2150×2650(mm)
Chassis ZZ1077F3315F174
Engine D30TCIF1
Curb Weight 5385(Kg)
Rated Loading 1845,1780(Kg)
Total Mass 7360(Kg)
Maximum Speed 80,95(km/h)
App./Dep.Angle 19/10(°)
Front / Rear suspension 1165/1550(mm)
Axle Load 2640/4720 kg
Tank Volume 2200L

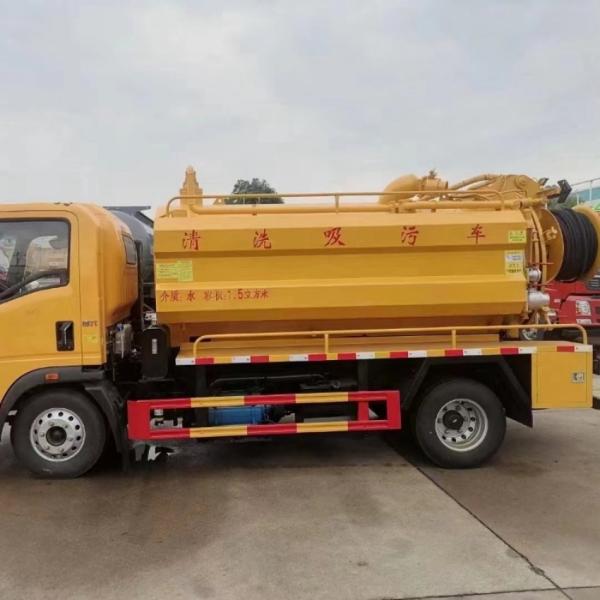

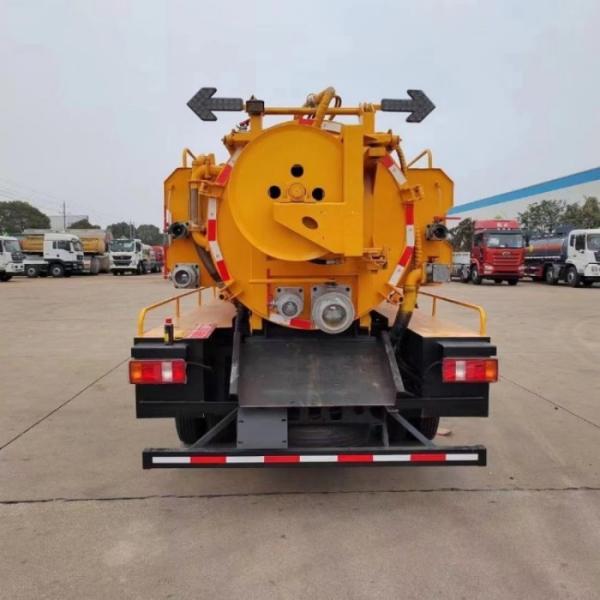

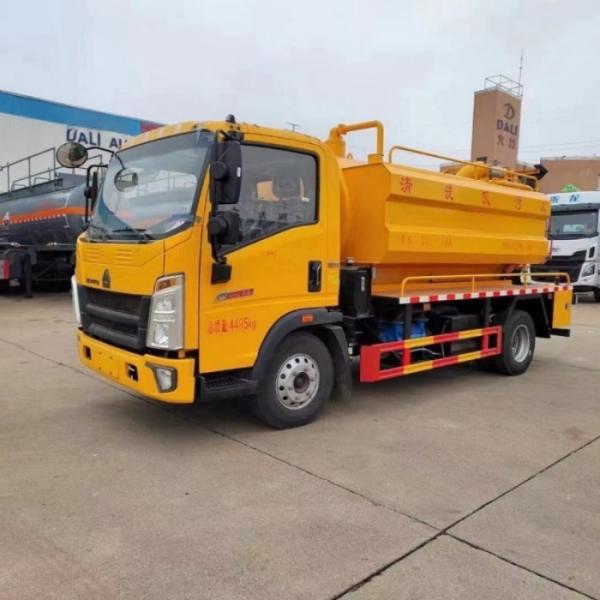

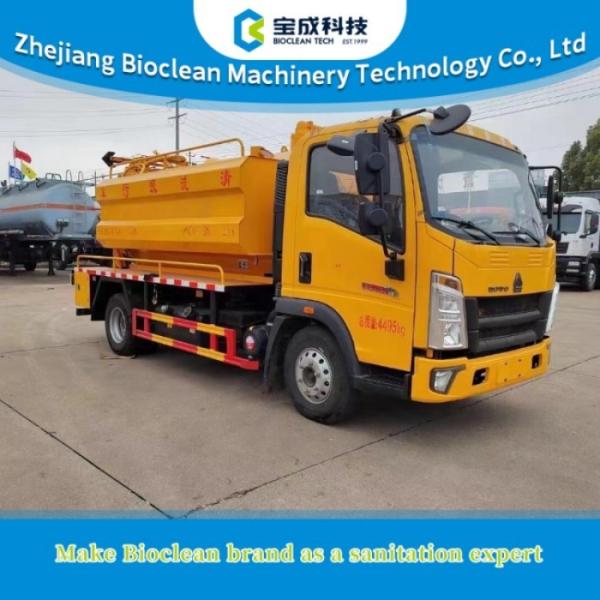

Actual photos
2.2m3 2200L 7.4tons Sewage Suction Truck Diesel Powered Pipeline Dredging
2.2m3 2200L 7.4tons Sewage Suction Truck Diesel Powered Pipeline Dredging
2.2m3 2200L 7.4tons Sewage Suction Truck Diesel Powered Pipeline Dredging
2.2m3 2200L 7.4tons Sewage Suction Truck Diesel Powered Pipeline Dredging
General Optional Setups & Region-Specific Configurations:
Optional Configurations
 Intelligent Monitoring System
Multilingual Control Panel
Anti-Overflow Alarm Device
Quick-Connect Fittings & Multi-Size Suction Hoses
Hydraulic Drive System
Self-Cleaning Flushing System
Overload Protection Device
Anti-overflow Valve


Tropical Regions


 Anti-UV Thermal Insulation Coating
High-Efficiency Cooling System
Moisture-Resistant Electrical Components
Corrosion-Resistant Sealing Gaskets
High-Flow Cooling Water Pump


Cold Regions


 Tank Thermal Insulation Layer
Engine Preheating System
Battery Heater
Anti-Freeze Vacuum Pump Oil
Suction Hose Heating Tape
Low-Temperature-Resistant Rubber Parts
Drain Valve Heat Tracing System
