Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5160GXWE6
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
6275-7855usd
Payment Terms :
T/T
Supply Ability :
5,000 units per year
Delivery Time :
15-45 workdays
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Item :
ZBJ5160GXWE6
Energy type :
Diesel
Dimension(L x W x H) :
7350,7480,7550×2500,2550×3300,3350,3450,3550(mm)
Chassis :
EQ1165LJ9CDE
Engine :
D4.5NS6B240
Curb Weight :
7800,8000(Kg)
Rated Loading :
8270,8205,8070,8005(Kg)
Total Mass :
16200(Kg)
Max. Speed :
89,105(km/h)
App./Dep.Angle :
19/11,19/12,19/13(°)
Front / Rear suspension :
1260/2140,1260/2270,1260/2340,1420/1980,1420/2110,1420/2180,1450/1950,1450/2080,1450/2150(mm)
Axle Load :
5600/10600kg
Tank Volume :
10000L
Description
ZBJ5160GXWE6 10m³ 10000L 16tons diesel sewer sewage suction truck
Core Parameters​

Total Weight: 16200Kg, stable for suction, transport and discharge of fecal liquid or dirt.​

Size: 7350,7480,7550×2500,2550×3300,3350,3450,3550mm, fits various work environments.​

Power: 239hp, strong for efficient operations.​

Load Capacity: 8270,8205,8070,8005Kg, handles large fecal liquid or dirt amounts.

​

Main Devices & Functions
​
Key devices: tank and sewage suction pump, used for suction, transport and discharge of fecal liquid/dirt. Tank lifts for easier discharge.
​
Wheelbase & Tank Specs​

Wheelbase: Only 3950mm.​

Tank Capacity: Total 10.5m³; effective 10m³.​

Tank Dimensions: Straight section 4150×1800mm (diameter); total length 4870mm.

​

Safety​

ABS: Optional J ABS (Jiaozuo Borui Ke) and ABS/ASR-24V-4S/4M (Xiangyang Dongfeng Longcheng), ensuring stable braking.​

Protection: Side/rear (Q235). Side: bolted; rear: welded (150×50mm section, 470mm off ground).

​

Options​

Direct power ETC, speed limiter (89km/h).​

Cab (with chassis).​

Positions/styles of urea tank, gas tank, battery, pump (left/right sides).​

Hydraulic locking rod, rear outlet, and appearance styles.

​

Uses
​
Suitable for urban/rural fecal liquid/dirt tasks. 239hp, proper load, and professional devices ensure efficient operations, keeping environments clean.​
parameters:
Item ZBJ5160GXWE6
Energy type Diesel
Dimension(L x W x H) 7350,7480,7550×2500,2550×3300,3350,3450,3550(mm)
Chassis EQ1165LJ9CDE
Engine D4.5NS6B240
Curb Weight 7800,8000(Kg)
Rated Loading 8270,8205,8070,8005(Kg)
Total Mass 16200(Kg)
Maximum Speed 89,105(km/h)
App./Dep.Angle 19/11,19/12,19/13(°)
Front / Rear suspension 1260/2140,1260/2270,1260/2340,1420/1980,1420/2110,1420/2180,1450/1950,1450/2080,1450/2150(mm)
Axle Load 5600/10600kg
Tank Volume 10000L

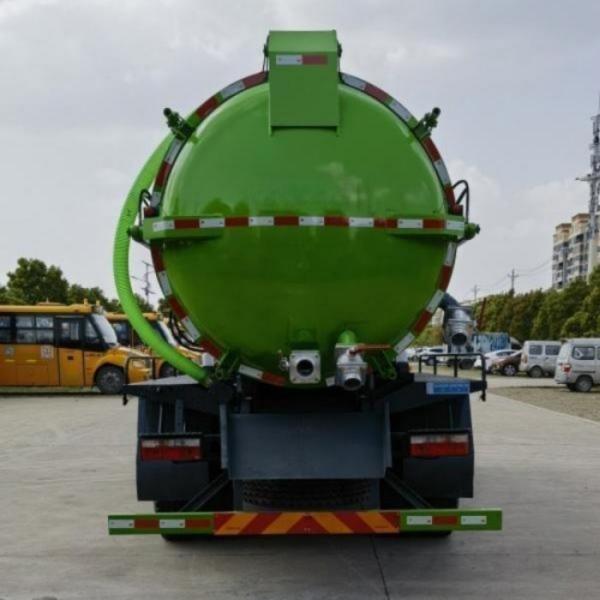

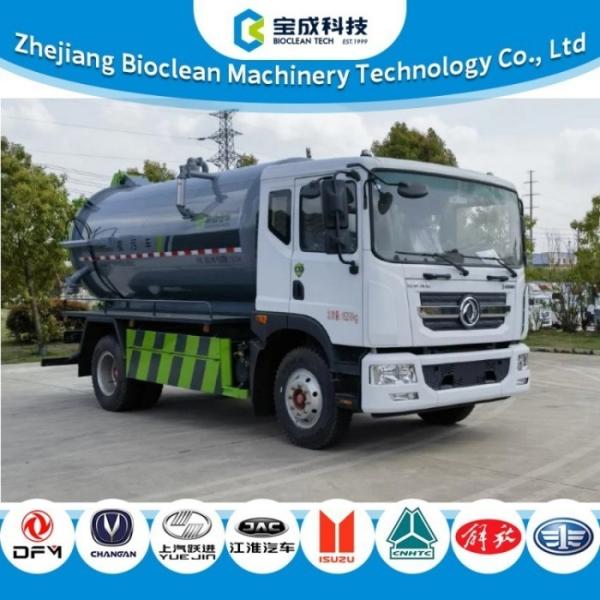

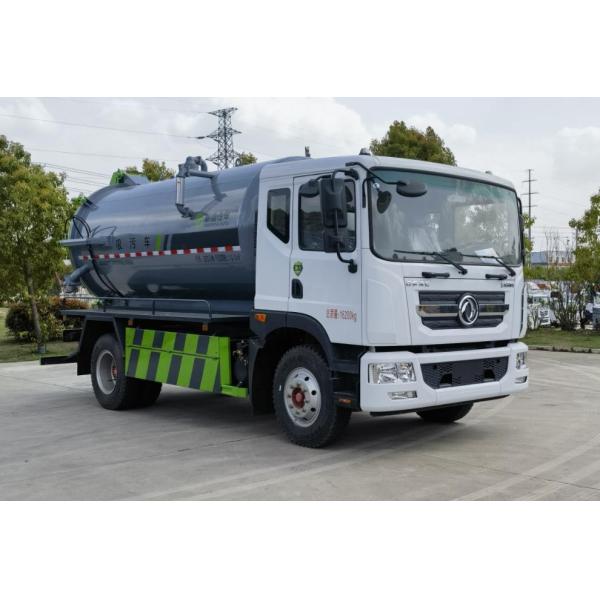

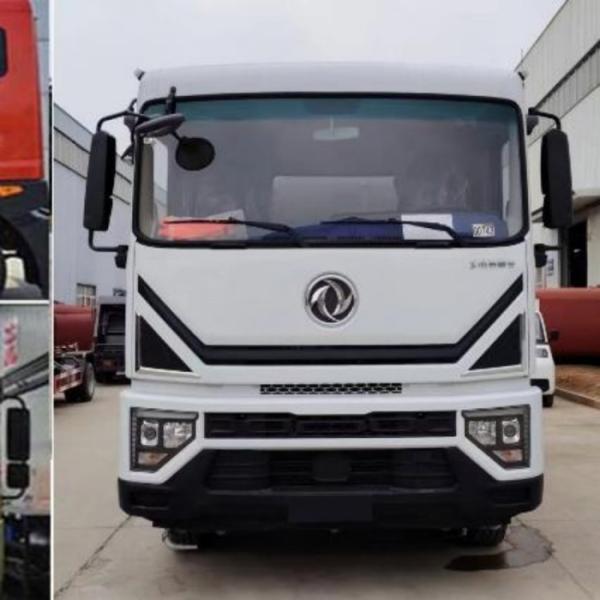

Actual photos
10m3 10000L 16tons Suction Sewage Truck With D4.5NS6B240 Engine
10m3 10000L 16tons Suction Sewage Truck With D4.5NS6B240 Engine
10m3 10000L 16tons Suction Sewage Truck With D4.5NS6B240 Engine
10m3 10000L 16tons Suction Sewage Truck With D4.5NS6B240 Engine
General Optional Setups & Region-Specific Configurations:
Optional Configurations
 Intelligent Monitoring System
Multilingual Control Panel
Anti-Overflow Alarm Device
Quick-Connect Fittings & Multi-Size Suction Hoses
Hydraulic Drive System
Self-Cleaning Flushing System
Overload Protection Device
Anti-overflow Valve


Tropical Regions


 Anti-UV Thermal Insulation Coating
High-Efficiency Cooling System
Moisture-Resistant Electrical Components
Corrosion-Resistant Sealing Gaskets
High-Flow Cooling Water Pump


Cold Regions


 Tank Thermal Insulation Layer
Engine Preheating System
Battery Heater
Anti-Freeze Vacuum Pump Oil
Suction Hose Heating Tape
Low-Temperature-Resistant Rubber Parts
Drain Valve Heat Tracing System
