Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5090GXWC6
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
5865-6875usd
Payment Terms :
T/T
Supply Ability :
5,000 units per year
Delivery Time :
15-45 workdays
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Item :
ZBJ5090GXWC6
Energy type :
Diesel
Dimension(L x W x H) :
5990×2140×2830(mm)
Chassis :
CA1090P40K42L2BE6A84
Engine :
CA4DD2-18E6
Curb Weight :
4880(Kg)
Rated Loading :
4245(Kg)
Total Mass :
9100(Kg)
Max. Speed :
95(km/h)
App./Dep.Angle :
20/14(°)
Front / Rear suspension :
1115/1575(mm)
Axle Load :
3300/5800 kg
Tank Volume :
5000L
Description
ZBJ5090GXWC6 5m³ 5000L 9.1tons diesel sewer sewage suction truck
Core Specs​

Weight: 9100Kg, solid for suction work.​

Size: 5990×2140×2830mm, fits narrow spaces.​

Power: 179hp, strong for efficient work.​

Load: 4025Kg, carries much liquid waste.

​

Devices & Use​
Sucks liquid from sewers/septic tanks, with suction tank and system. Tank: 5.28 total/5.03 effective m³ (800kg/m³), 3240×1440mm.​
Safety​

Side protection: Q235B, bolted, 380mm off ground.​

Rear protection: cold-formed steel/Q235B, bolted (100×50mm, 390mm off ground).​

ABS options: CM4XL-4S/4M (Guangzhou Ruili), VIE ABS-II (Zhejiang Wanan).​

Options​

Cab: crew, modified side windows, new front, different doors.​

Exterior: new bumper, fenders, aluminum rims.​

Functions: no spare tire, ETC.​

Uses​
Good for sewers/septic tanks. With 179hp, 4025Kg load and pro devices, it handles waste well.
parameters:
Item ZBJ5090GXWC6
Energy type Diesel
Dimension(L x W x H) 5990×2140×2830(mm)
Chassis CA1090P40K42L2BE6A84
Engine CA4DD2-18E6
Curb Weight 4880(Kg)
Rated Loading 4025(Kg)
Total Mass 9100(Kg)
Maximum Speed 95(km/h)
App./Dep.Angle 20/14(°)
Front / Rear suspension 1115/1575(mm)
Axle Load 3300/5800 kg
Tank Volume 5000L

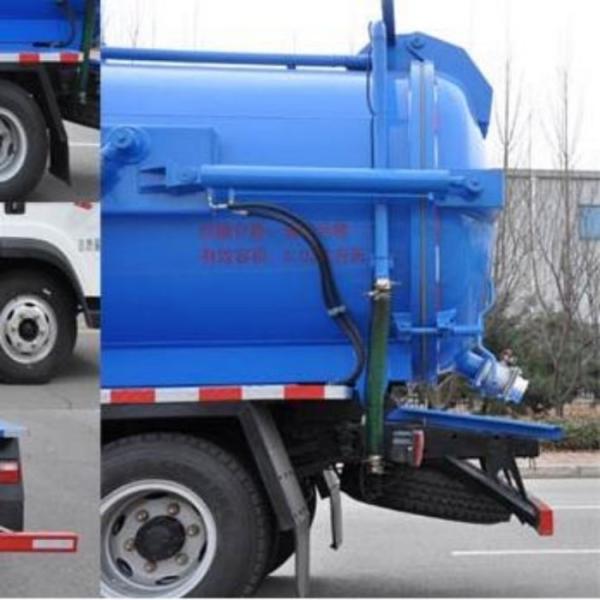

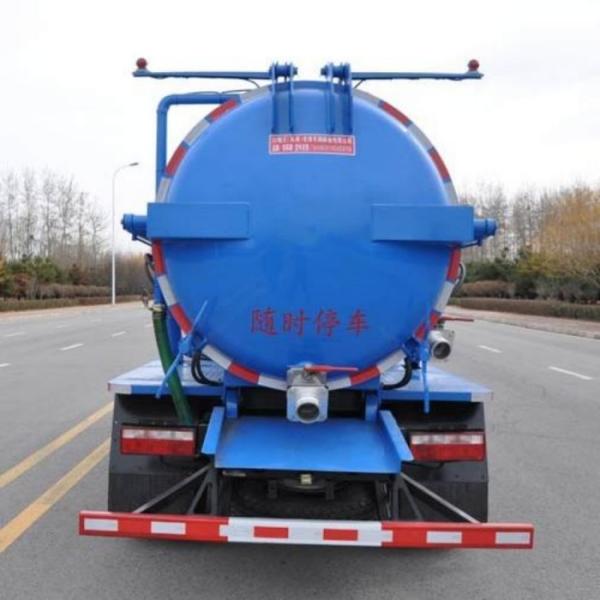

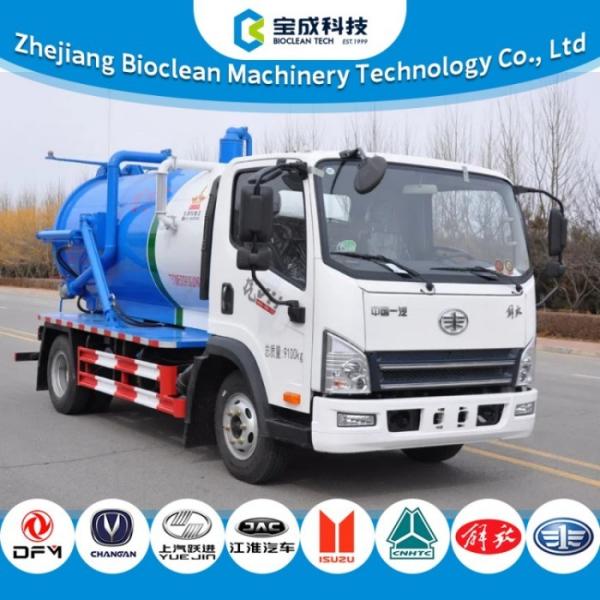

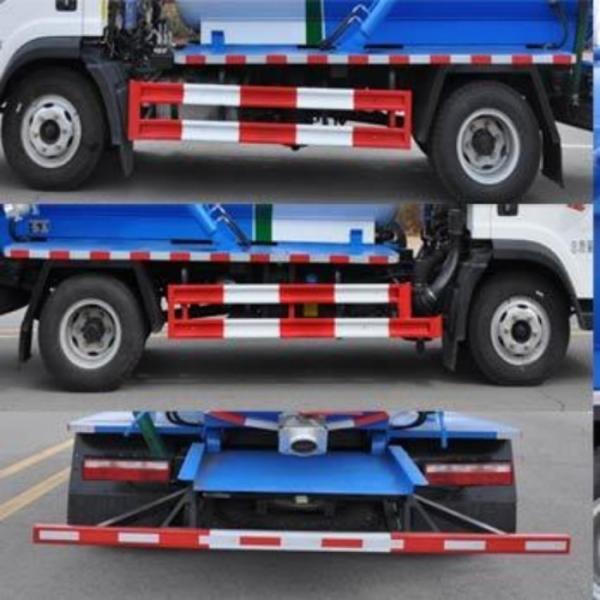

Actual photos
5m3 5000L 9.1tons Sewer Suction Truck Strong Power For Efficient Work
5m3 5000L 9.1tons Sewer Suction Truck Strong Power For Efficient Work
5m3 5000L 9.1tons Sewer Suction Truck Strong Power For Efficient Work
5m3 5000L 9.1tons Sewer Suction Truck Strong Power For Efficient Work
General Optional Setups & Region-Specific Configurations:
Optional Configurations
 Intelligent Monitoring System
Multilingual Control Panel
Anti-Overflow Alarm Device
Quick-Connect Fittings & Multi-Size Suction Hoses
Hydraulic Drive System
Self-Cleaning Flushing System
Overload Protection Device
Anti-overflow Valve


Tropical Regions


 Anti-UV Thermal Insulation Coating
High-Efficiency Cooling System
Moisture-Resistant Electrical Components
Corrosion-Resistant Sealing Gaskets
High-Flow Cooling Water Pump


Cold Regions


 Tank Thermal Insulation Layer
Engine Preheating System
Battery Heater
Anti-Freeze Vacuum Pump Oil
Suction Hose Heating Tape
Low-Temperature-Resistant Rubber Parts
Drain Valve Heat Tracing System
