Pure Electric Sewer Suction Vehicle 5.04m3 5040L 11.8tons With TZ365XSC07 Engine
Pure Electric Sewer Suction Vehicle 5.04m3 5040L 11.8tons With TZ365XSC07 Engine
Pure Electric Sewer Suction Vehicle 5.04m3 5040L 11.8tons With TZ365XSC07 Engine
Pure Electric Sewer Suction Vehicle 5.04m3 5040L 11.8tons With TZ365XSC07 Engine
Pure Electric Sewer Suction Vehicle 5.04m3 5040L 11.8tons With TZ365XSC07 Engine
Pure Electric Sewer Suction Vehicle 5.04m3 5040L 11.8tons With TZ365XSC07 Engine
Pure Electric Sewer Suction Vehicle 5.04m3 5040L 11.8tons With TZ365XSC07 Engine
Pure Electric Sewer Suction Vehicle 5.04m3 5040L 11.8tons With TZ365XSC07 Engine
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5120GXWBEV
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
4980-5995usd
Payment Terms :
T/T
Supply Ability :
5,000 units per year
Delivery Time :
15-45 workdays
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Item :
ZBJ5120GXWBEV
Energy type :
Pure Electric
Dimension(L x W x H) :
7310×2340×2860(mm)
Chassis :
BYD112014FBEVD1
Engine :
TZ365XSC07
Curb Weight :
7760(Kg)
Rated Loading :
3845(Kg)
Total Mass :
11800(Kg)
Max. Speed :
95(km/h)
App./Dep.Angle :
19/13(°)
Front / Rear suspension :
1205/1905(mm)
Axle Load :
3900/7900kg
Tank Volume :
5040L
Description

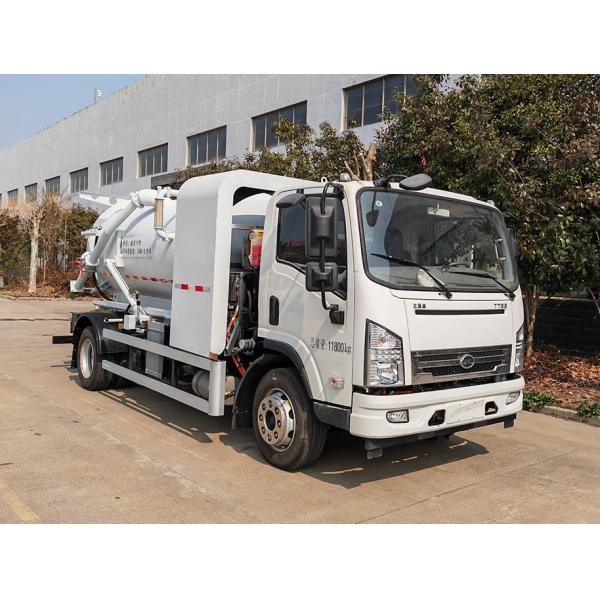

ZBJ5120GXWBEV 5.04m³ 5040L 11.8tons pure Electric sewer sewage suction truck
Core Specs​

Weight: 11800Kg, strong for all suction work.​

Size: 7310×2340×2860mm, fits various workplaces.​

Power: 217hp electric, strong, eco-friendly, efficient.​

Load: 3845Kg, carries much dirt, fewer trips.

​

Devices & Use​
Has tank, suction pipe, vacuum pump. Sucks, transports, discharges sewer sediments. Tank: 5.04 total/4.8 effective m³, 1480×3860mm (with head).
​
Power System​

Battery: Lithium iron phosphate (Shanwei BYD), stable range.​

Motor: Permanent magnet (Jingjin Electric), 95kW rated/160kW peak, strong, responsive.​

Safety​

Protection: Aluminum side (bolted); Q345B rear (bolted, 120×60mm, 410mm off ground).​

Brakes: CM4XL-4S/4M ABS (Guangzhou Ruili), stable, safe.​

Options

​

Aluminum rims (no front fog lamp); direct-power ETC. Fits needs.
​
Uses
​
Good for urban sewers, municipal pipes. Electric, powerful, with pro tools, it handles sediments well, aiding green cleaning.
parameters:
Item ZBJ5120GXWBEV
Energy type Pure Electric
Dimension(L x W x H) 7310×2340×2860(mm)
Chassis BYD112014FBEVD1
Engine TZ365XSC07
Curb Weight 7760(Kg)
Rated Loading 3845(Kg)
Total Mass 11800(Kg)
Maximum Speed 95(km/h)
App./Dep.Angle 19/13(°)
Front / Rear suspension 1205/1905(mm)
Axle Load 3900/7900kg
Tank Volume 5040L

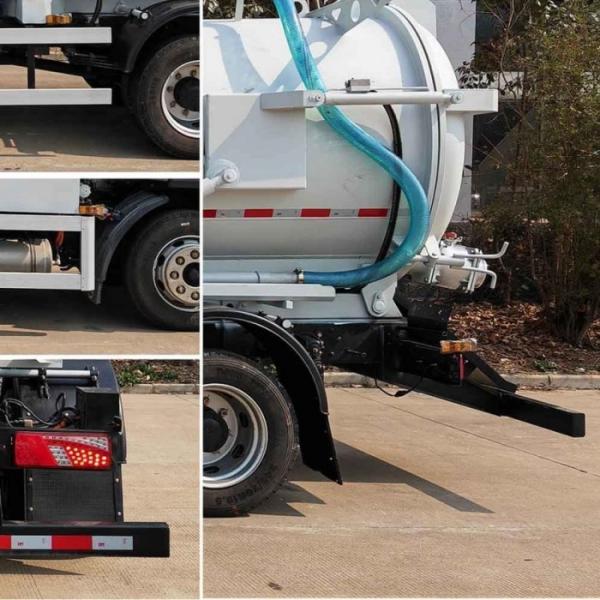

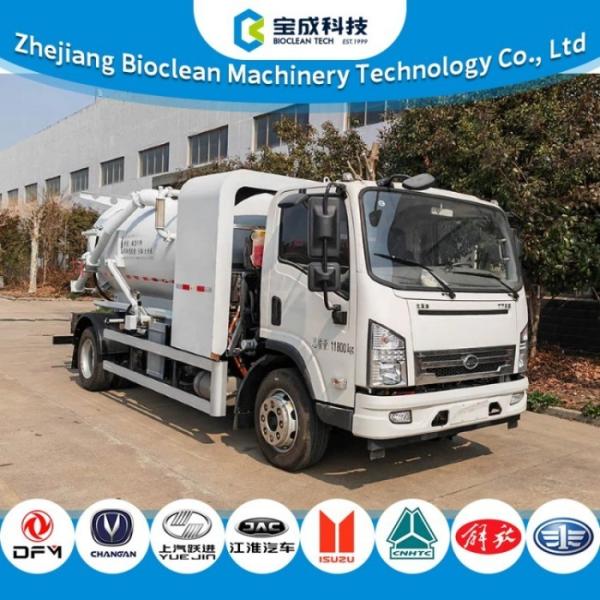

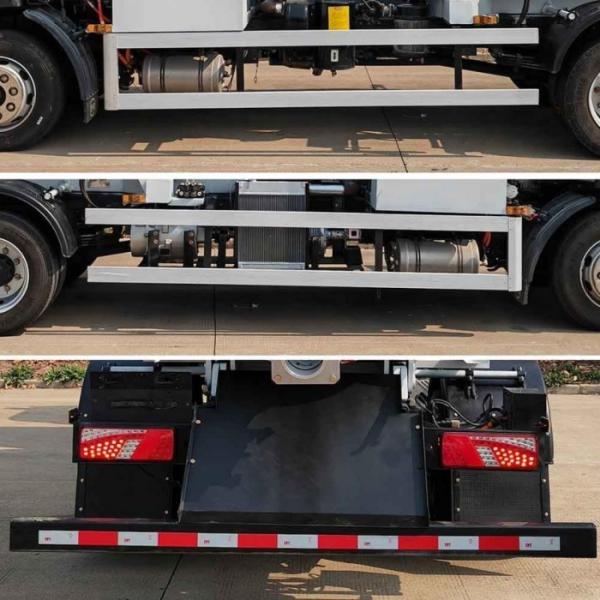

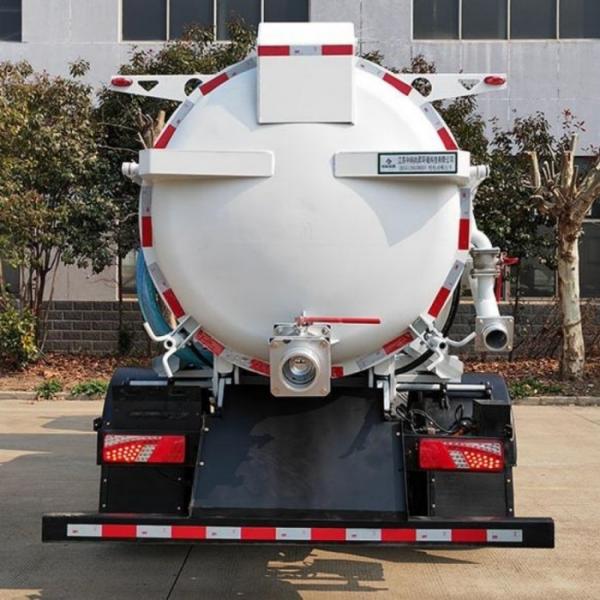

Actual photos
Pure Electric Sewer Suction Vehicle 5.04m3 5040L 11.8tons With TZ365XSC07 Engine
Pure Electric Sewer Suction Vehicle 5.04m3 5040L 11.8tons With TZ365XSC07 Engine
Pure Electric Sewer Suction Vehicle 5.04m3 5040L 11.8tons With TZ365XSC07 Engine
Pure Electric Sewer Suction Vehicle 5.04m3 5040L 11.8tons With TZ365XSC07 Engine
General Optional Setups & Region-Specific Configurations:
Optional Configurations
 Intelligent Monitoring System
Multilingual Control Panel
Anti-Overflow Alarm Device
Quick-Connect Fittings & Multi-Size Suction Hoses
Hydraulic Drive System
Self-Cleaning Flushing System
Overload Protection Device
Anti-overflow Valve


Tropical Regions


 Anti-UV Thermal Insulation Coating
High-Efficiency Cooling System
Moisture-Resistant Electrical Components
Corrosion-Resistant Sealing Gaskets
High-Flow Cooling Water Pump


Cold Regions


 Tank Thermal Insulation Layer
Engine Preheating System
Battery Heater
Anti-Freeze Vacuum Pump Oil
Suction Hose Heating Tape
Low-Temperature-Resistant Rubber Parts
Drain Valve Heat Tracing System
