11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work
11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work
11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work
11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work
11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work
11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5180GXWAHA
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
6355-7695usd
Payment Terms :
T/T
Supply Ability :
5,000 units per year
Delivery Time :
15-45 workdays
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Item :
ZBJ5180GXWAHA
Energy type :
Diesel
Dimension(L x W x H) :
8250,8050×2500×3450(mm)
Chassis :
EQ1185LJ9CDE
Engine :
B6.2NS6B260
Curb Weight :
8300(Kg)
Rated Loading :
9570,9505(Kg)
Total Mass :
18000(Kg)
Max. Speed :
89,105(km/h)
App./Dep.Angle :
19/13,19/15(°)
Front / Rear suspension :
1260/2490,1450/2300,1260/2290,1450/2100,1420/2330,1420/2130(mm)
Axle Load :
6500/11500kg
Tank Volume :
11880L
Description
ZBJ5180GXWAHA 11.88m³ 11880L 18tons diesel sewer sewage suction truck
Core Parameters​

Total Weight: 18000Kg, stable for sewage suction.​

Size: 8250, 8050×2500×3450mm, fits urban/suburban sewage cleaning.​

Power: 259hp, strong for efficient work.​

Load Capacity: 9570, 9505Kg, handles large liquid waste.

​

Main Functions & Devices
​
Used to suck dirt from ditches/sewers. Key devices: sewage suction tank and system, for efficient liquid waste collection/transport.
​
Size & Wheelbase
​
4500mm wheelbase chassis. Length/front overhang/wheelbase/rear overhang (mm) relations: 8250/1260/4500/2490, etc.
​
Tank Specifications​

Total volume: 12.47m³; effective: 11.88m³ (liquid waste, density 800kg/m³).​

Tank dimensions (straight section × diameter): 4800×1800mm, liftable for discharge.

​

Safety​

ABS: Optional J ABS (Jiaozuo Borui Ke) and ABS/ASR-24V-4S/4M4 (Xiangyang Dongfeng Longcheng).​

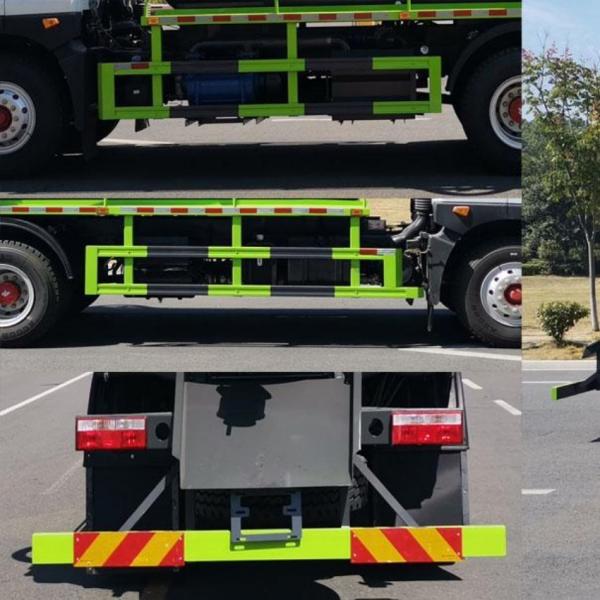

Protection: Q235A material. Side (welded + bolted); rear (welded, 120×55mm section, 430mm off ground).

​

Options​

Cab/pedal styles, speed limiter (89km/h), exhaust pipe position (with chassis).​

Water pump position, rear head lock, ladder, tank shape.

​

Uses
​
Ideal for urban/suburban ditch/sewer dirt suction. Powerful, large-load, keeps environments clean.
​
parameters:
Item ZBJ5180GXWAHA
Energy type Diesel
Dimension(L x W x H) 8250,8050×2500×3450(mm)
Chassis EQ1185LJ9CDE
Engine B6.2NS6B260
Curb Weight 8300(Kg)
Rated Loading 9570,9505(Kg)
Total Mass 18000(Kg)
Maximum Speed 89,105(km/h)
App./Dep.Angle 19/13,19/15(°)
Front / Rear suspension 1260/2490,1450/2300,1260/2290,1450/2100,1420/2330,1420/2130(mm)
Axle Load 6500/11500kg
Tank Volume 11880L

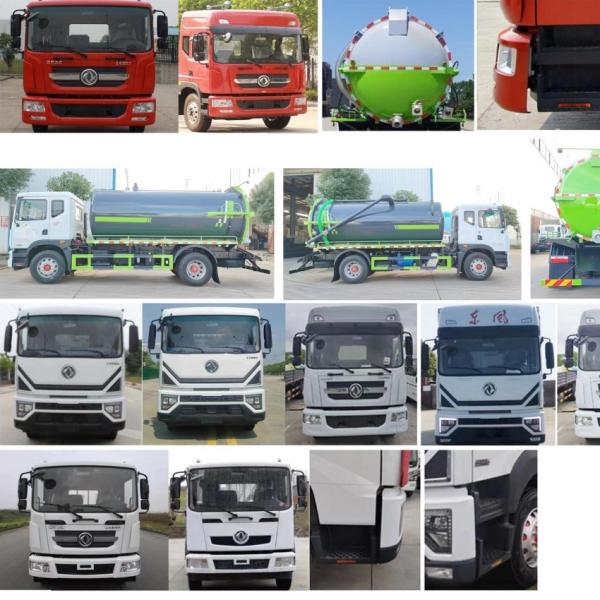

Actual photos
11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work
11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work
11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work
11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work
General Optional Setups & Region-Specific Configurations:
Optional Configurations
 Intelligent Monitoring System
Multilingual Control Panel
Anti-Overflow Alarm Device
Quick-Connect Fittings & Multi-Size Suction Hoses
Hydraulic Drive System
Self-Cleaning Flushing System
Overload Protection Device
Anti-overflow Valve


Tropical Regions


 Anti-UV Thermal Insulation Coating
High-Efficiency Cooling System
Moisture-Resistant Electrical Components
Corrosion-Resistant Sealing Gaskets
High-Flow Cooling Water Pump


Cold Regions


 Tank Thermal Insulation Layer
Engine Preheating System
Battery Heater
Anti-Freeze Vacuum Pump Oil
Suction Hose Heating Tape
Low-Temperature-Resistant Rubber Parts
Drain Valve Heat Tracing System

11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work

11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work
