4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box
4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box
4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box
4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box
4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box
4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box
4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box
4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5040TYHDFBEV
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
5690-6135usd
Payment Terms :
T/T
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Supply Ability :
5,000 units per year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Dimension(L x W x H) :
5440×1780,1715×2060,2220(mm)
Chassis :
EQ1041TACEV4
Weight :
4495(Kg)
Load Capacity :
1645,1685,1585(Kg)
Chassis Total Capacity :
2720,2680,2780(Kg)
Maximum Speed :
80(km/h)
Front/Rear Suspension :
1176/1100(mm)
Engine :
TZ215XS070
Axle load :
1500/2995
Tyre size :
185R15LT 8PR
Description

4495KG 2.1m³ pure electric roadside assistance Service Road Maintenance Truck

Total Mass: 4495kg​

Loading Capacity: 1645kg, 1685kg, 1585kg

​

Main Use & Key Devices
​

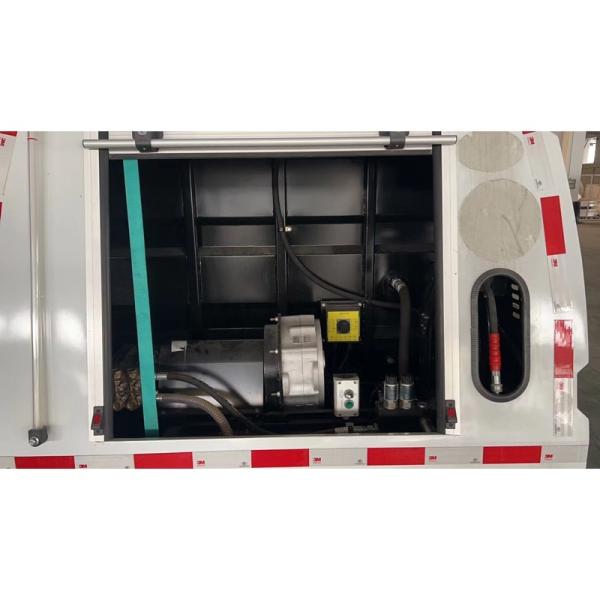

Used for cleaning and maintaining urban roads, sidewalks, guardrails, curbs, etc. Equipped with a box, water system and front water spray frame.
​
Power & Energy​

Energy storage: Lithium iron phosphate battery (CATL, cell and assembly by CATL).​

Drive motor: Rated power 40kW, peak power 70kW.

​

Dimensions​

Overall length: 5440mm (including 364mm front overhang).

​

Safety Protections​

Side protection: Replaced by side skirt (Q235B), bolted.​

Rear protection: Replaced by rear skirt (Q235B), bolted. Size 245×30mm, 460mm above ground.

​

ABS System
​
Model: RL-108
​
Optional Configurations​

ETC device; rear arrow lights (only on during work).​

With/without rear upper spray, with/without rear lower spray, 360° camera, internal pipelines.​

Roller shutter lower trim, box internal structure, B-type rear lower spray device, top cover.​

Side guards, wheel fenders, rear logo look, left/right corner sprays.

​

Uses
​
Suitable for urban road maintenance. Flexible options meet various work needs.
parameters
Item ZBJ5040TYHDFBEV
Energy type Pure electric
Dimension(L x W x H) 5440×1780,1715×2060,2220(mm)
Chassis EQ1041TACEV4
Engine TZ215XS070
Secondary Engine —
Curb Weight 2720,2680,2780(Kg)
Rated Loading 1645,1685,1585(Kg)
Total Mass 4495(Kg)
Max.Speed 80(km/h)
Front/Rear suspension 1176/1100(mm)
Tank Volum 1.2-1.5 cubic meters
​

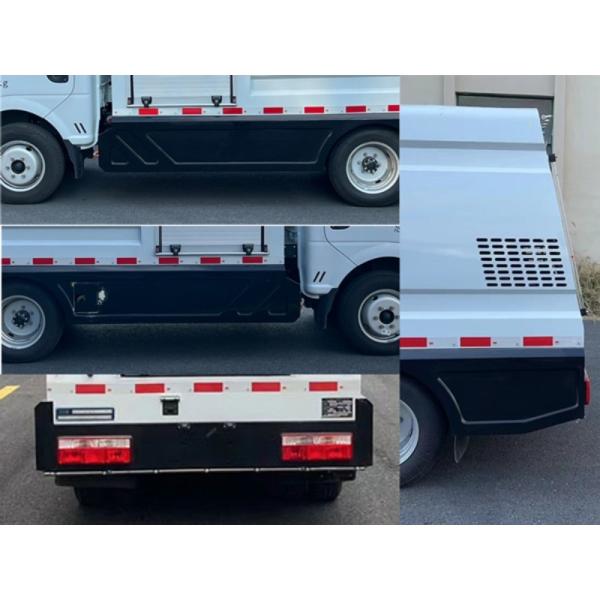

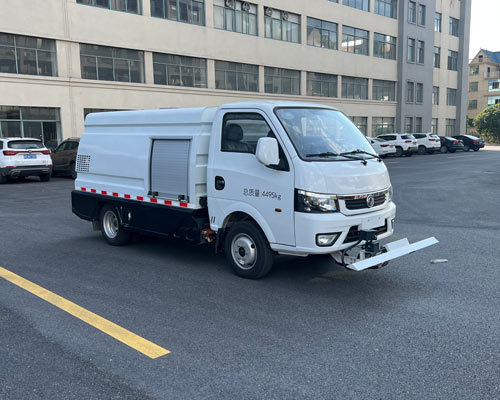

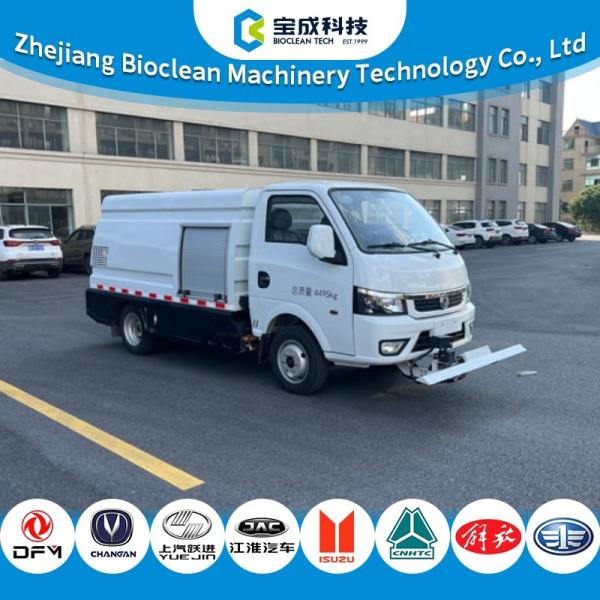

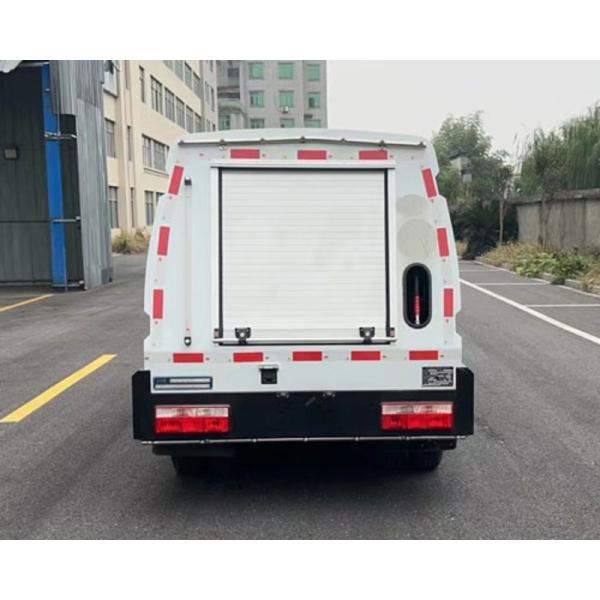

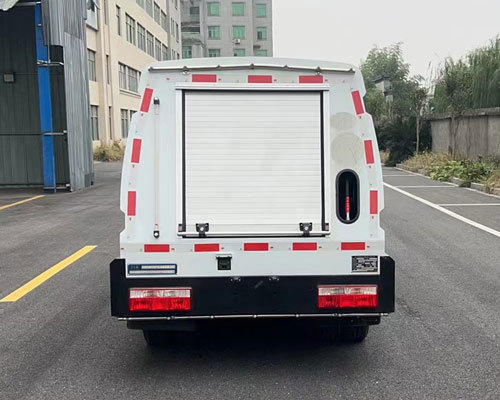

Actual photos
4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box 4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box

4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box
