4.5T 2m3 Electric Road Maintenance Truck With Water Spray Frame Mechanism
4.5T 2m3 Electric Road Maintenance Truck With Water Spray Frame Mechanism
4.5T 2m3 Electric Road Maintenance Truck With Water Spray Frame Mechanism
4.5T 2m3 Electric Road Maintenance Truck With Water Spray Frame Mechanism
4.5T 2m3 Electric Road Maintenance Truck With Water Spray Frame Mechanism
4.5T 2m3 Electric Road Maintenance Truck With Water Spray Frame Mechanism
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5040TYHCKBEV
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
2995-3780 usd
Payment Terms :
T/T
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Supply Ability :
5,000 units per year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Dimension(L x W x H) :
5855×1835×2290(mm)
Chassis :
CKS1040D5BD61BEV
Weight :
4495(Kg)
Load Capacity :
1675(Kg)
Chassis Total Capacity :
2690(Kg)
Maximum Speed :
80(km/h)
Front/Rear Suspension :
1195/1400(mm)
Engine :
TZ210XS103
Axle load :
1750/2745
Tyre size :
185R15LT 8PR
Description

4.5tons 2m³ pure electric roadside assistance Service Road Maintenance Truck

Total Mass: 4495kg​

Loading Capacity: 1675kg

​

Main Use & Key Devices
​
Used for road maintenance operations. Equipped with special device: water spray frame mechanism. Front overhang: 410mm.
​
Power & Energy​

Energy storage: Lithium iron phosphate battery (CATL, cell and assembly by CATL).​

Motor: Permanent magnet synchronous motor, model TZ210XS103 . Rated power 60kW, peak power 130kW.

​

Safety Protections​

Side and rear protections: Replaced by vehicle body structure, material Q355B.​

Rear protection height above ground: 495mm.

​

ABS System
Model: CM4YL.
​
Optional Configurations​

Logo styles (with chassis); front logo can be omitted.​

Right corner spray, arrow indicator lights, rear upper spray, rear lower spray.​

Arrow indicator lights (only lit during operation). Optional configurations have negligible impact on vehicle weight.

​

Uses
​
Suitable for road maintenance. Flexible options meet various work needs with eco-friendly electric power.
parameters
Item ZBJ5040TYHCKBEV
Energy type Pure electric
Dimension(L x W x H) 5855×1835×2290(mm)
Chassis CKS1040D5BD61BEV
Engine TZ210XS103
Secondary Engine —
Curb Weight 2690(Kg)
Rated Loading 1675(Kg)
Total Mass 4495(Kg)
Max.Speed 80(km/h)
Front/Rear suspension 1195/1400(mm)
Tank Volum 2.5 cubic meters

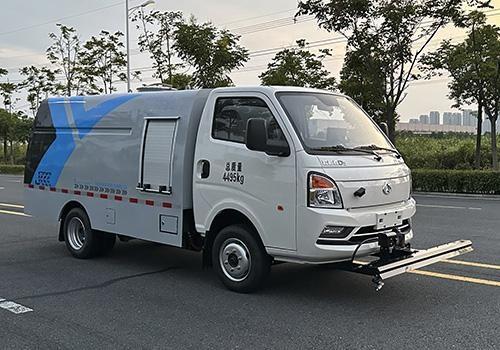

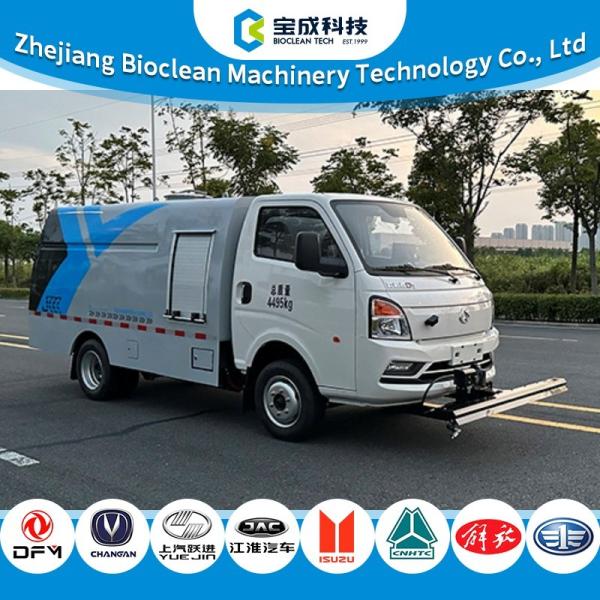

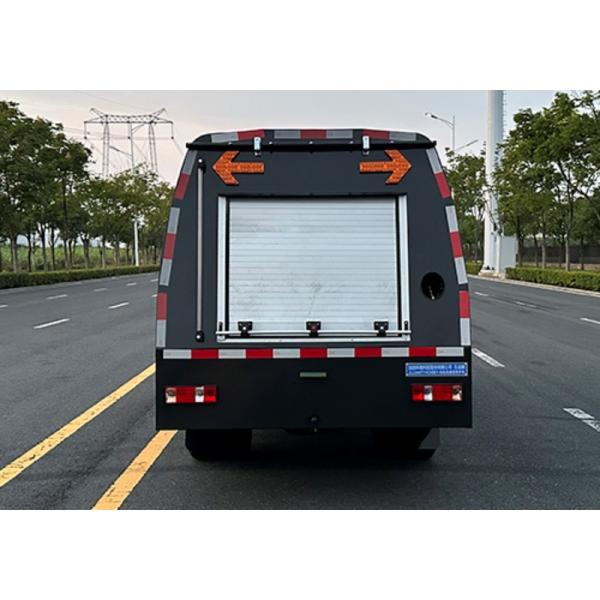

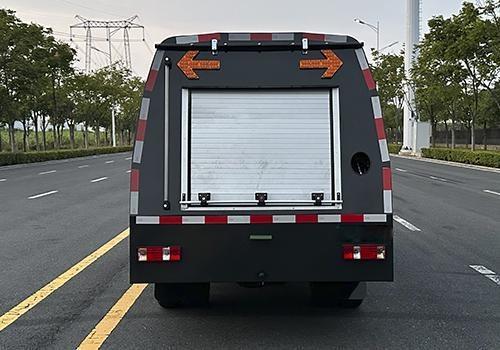

Actual photos

4.5T 2m3 Electric Road Maintenance Truck With Water Spray Frame Mechanism 4.5T 2m3 Electric Road Maintenance Truck With Water Spray Frame Mechanism

4.5T 2m3 Electric Road Maintenance Truck With Water Spray Frame Mechanism4.5T 2m3 Electric Road Maintenance Truck With Water Spray Frame Mechanism4.5T 2m3 Electric Road Maintenance Truck With Water Spray Frame Mechanism4.5T 2m3 Electric Road Maintenance Truck With Water Spray Frame Mechanism4.5T 2m3 Electric Road Maintenance Truck With Water Spray Frame Mechanism4.5T 2m3 Electric Road Maintenance Truck With Water Spray Frame Mechanism4.5T 2m3 Electric Road Maintenance Truck With Water Spray Frame Mechanism4.5T 2m3 Electric Road Maintenance Truck With Water Spray Frame Mechanism
