18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine
18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine
18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine
18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine
18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine
18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine
18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine
18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5180GQXC
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
3995-5855usd
Payment Terms :
T/T
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Supply Ability :
5,000 units per year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Dimension(L x W x H) :
8975×2520×2900
Chassis :
DFH1180EX8
Weight :
18000
Load Capacity :
9555KG
Chassis Total Capacity :
8250KG
Maximum Speed :
89km/h
Front/Rear Suspension :
740/1400/2335
Engine :
D6.7NS6B230
Description

18tons water tank 10m³ roadside assistance Service Road Maintenance Truck

Total Mass: 4495kg​

Loading Capacity: 500kg, 565kg

​

Main Use & Key Devices
​
Mainly used for road maintenance operations. Equipped with special devices: box, high-pressure flushing device, road maintenance device.
​
Chassis & Dimensions​

Wheelbase: 3360mm (only this wheelbase is used).

​

Safety Protections​

Side protection: Q235B carbon steel. Connection: left and right sides with bolted and welded connections.​

Rear protection: Q235B carbon steel, bolted. Section size: 120×60mm; height above ground: 320mm.

​

ABS System​
Controller model: CM4XL-4S/4M .
​
Optional Configurations​

Speed limiter (95km/h or 80km/h), cab styles, pneumatic ball valves.​

Water inlet and outlet styles, front 对冲,front flush duckbill, reel.​

Waist flushing device, rear platform water cannon styles.​

Left/right positions of fuel tank, battery, urea tank, air tank; appearance styles.

​

Uses
​
Suitable for road maintenance tasks with various optional configurations to meet different work requirements.
parameters
Item ZBJ5180GQXC
Energy type Diesel
Dimension(L x W x H) 8975x2520x2900
Chassis DFH1180EX8
Engine D6.7NS6B230/B6.2NS6B210
Secondary Engine JE493ZG5
Curb Weight 8250(Kg)
Rated Loading 9555(Kg)
Total Mass 18000(Kg)
Max.Speed 89(km/h)
Front/Rear suspension 740/1400/2335(mm)
Tank Volume 10 cubic meters
Dedicated Device Front spray rack,side
spray,rear spray,rear
flushing platform
​
​

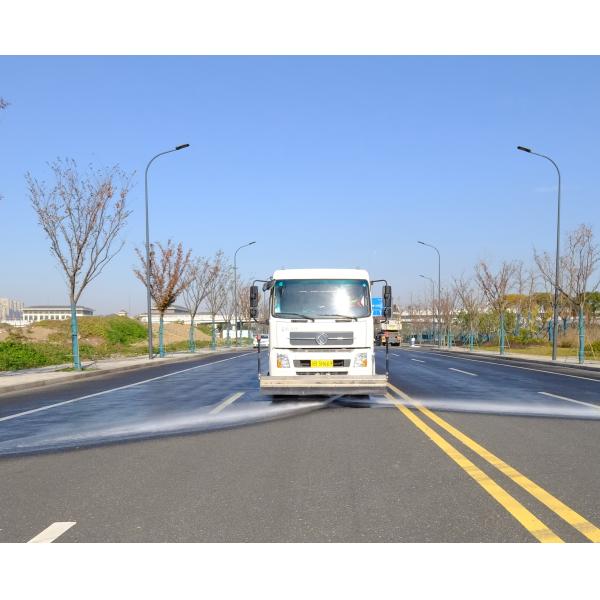

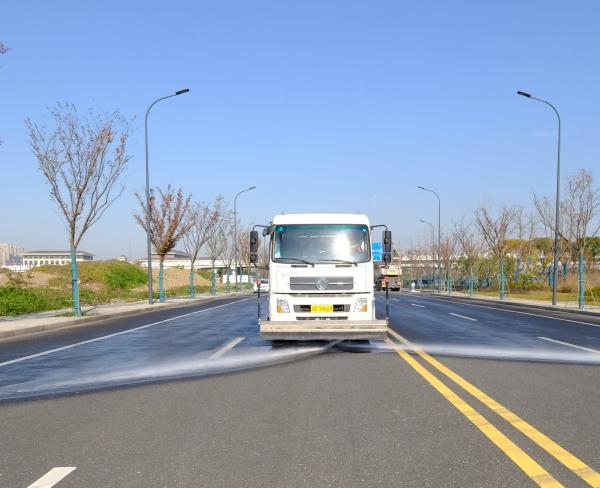

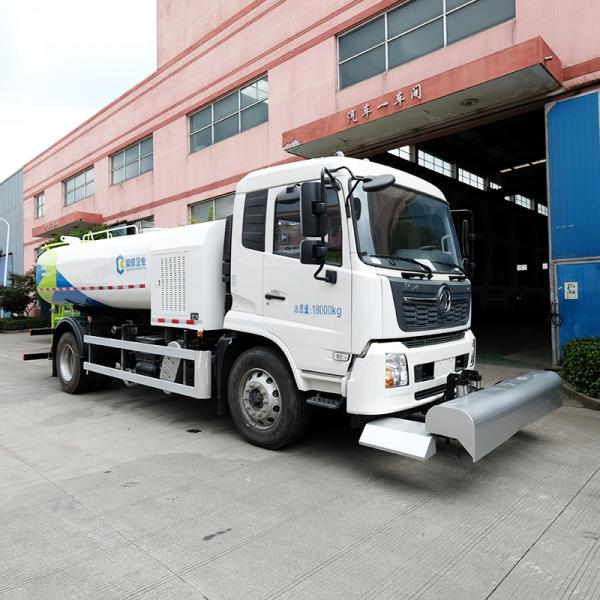

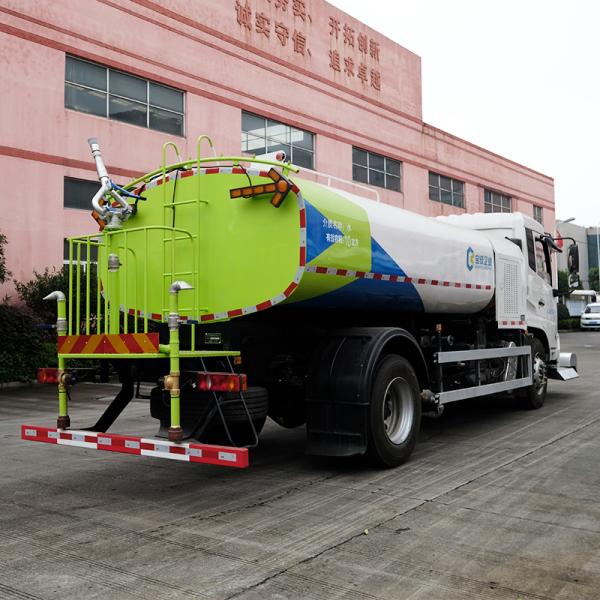

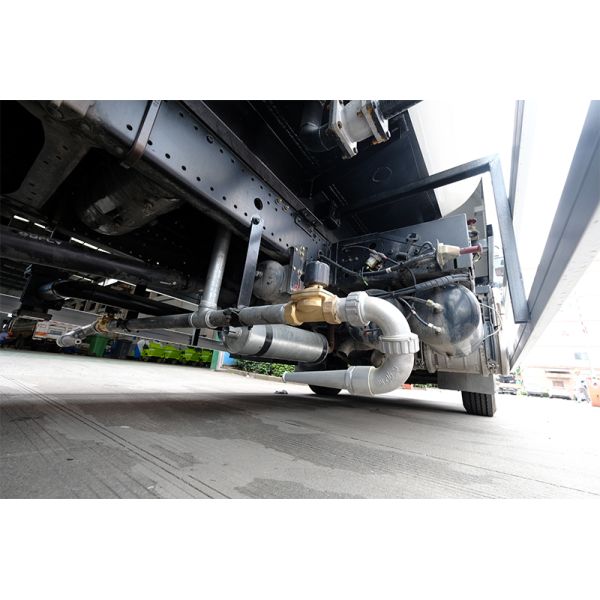

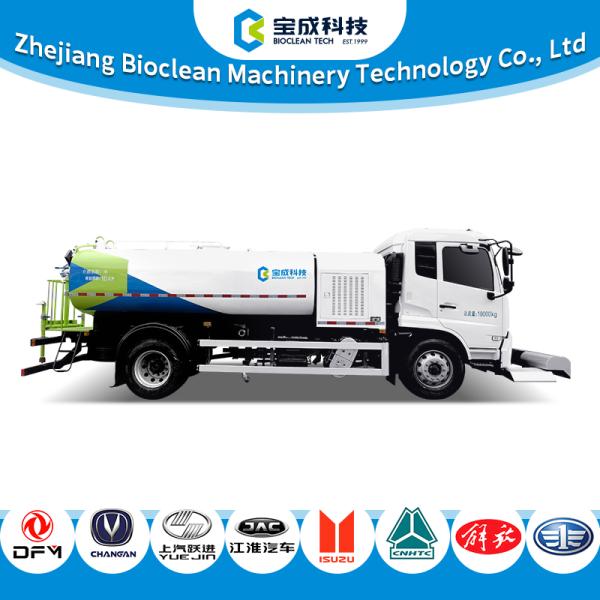

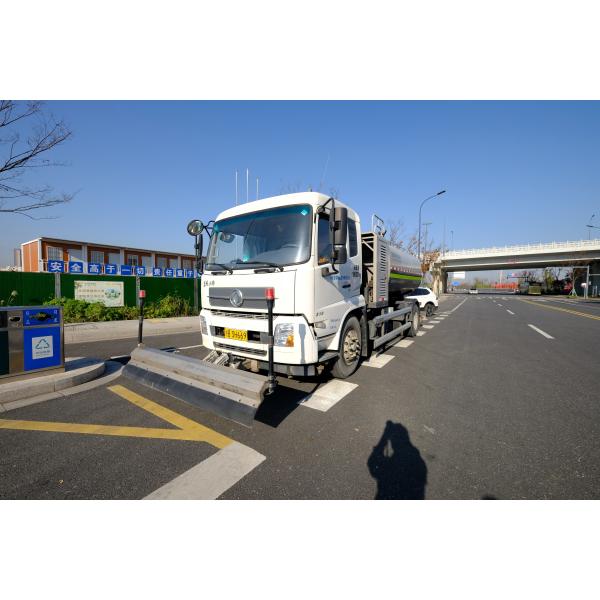

Actual photos
18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine 18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine
18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine 18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine
18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine 18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine
18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine18tons Water Tank 10m3 Road Maintenance Truck With D6.7NS6B230 Engine
