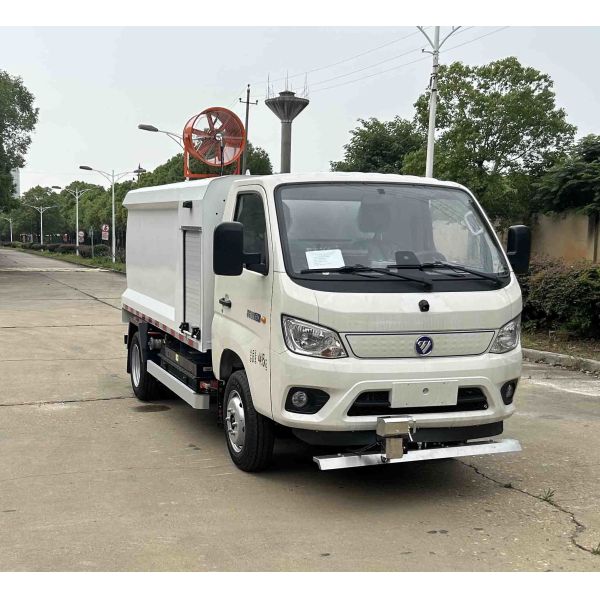

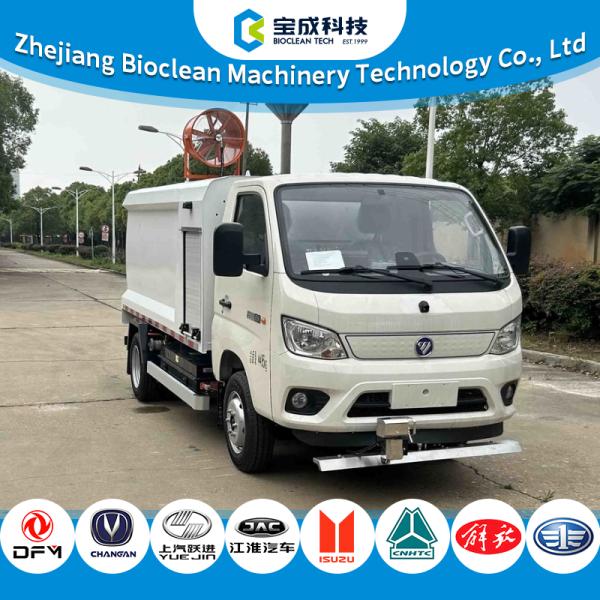

4.5 Tons Pure Electric Road Maintenance Vehicle Equipped With Special Devices
4.5 Tons Pure Electric Road Maintenance Vehicle Equipped With Special Devices
4.5 Tons Pure Electric Road Maintenance Vehicle Equipped With Special Devices
4.5 Tons Pure Electric Road Maintenance Vehicle Equipped With Special Devices
4.5 Tons Pure Electric Road Maintenance Vehicle Equipped With Special Devices
4.5 Tons Pure Electric Road Maintenance Vehicle Equipped With Special Devices
4.5 Tons Pure Electric Road Maintenance Vehicle Equipped With Special Devices
4.5 Tons Pure Electric Road Maintenance Vehicle Equipped With Special Devices
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5047TYHEV-H1
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
2990-5365USD
Payment Terms :
T/T
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Supply Ability :
5,000 units per year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Dimension(L x W x H) :
5320×1870×2155,2855,2280(mm)
Chassis :
BJ1042EVJA2
Weight :
4495(Kg)
Load Capacity :
1485,1355(Kg)
Chassis Total Capacity :
2880,3010(Kg)
Maximum Speed :
70(km/h)
Front/Rear Suspension :
1080/1170(mm)
Engine :
FTTBP075B
Axle load :
1580/2915
Tyre size :
185R15LT 8PR
Description

4.5tons pure electric roadside assistance Service Road Maintenance Truck

Total Mass: 4495kg​

Loading Capacity: 500kg, 565kg

​

Main Use & Key Devices
​
Mainly used for road maintenance operations. Equipped with special devices: box, high-pressure flushing device, road maintenance device.
​
Chassis & Dimensions​

Wheelbase: 3360mm (only this wheelbase is used).

​

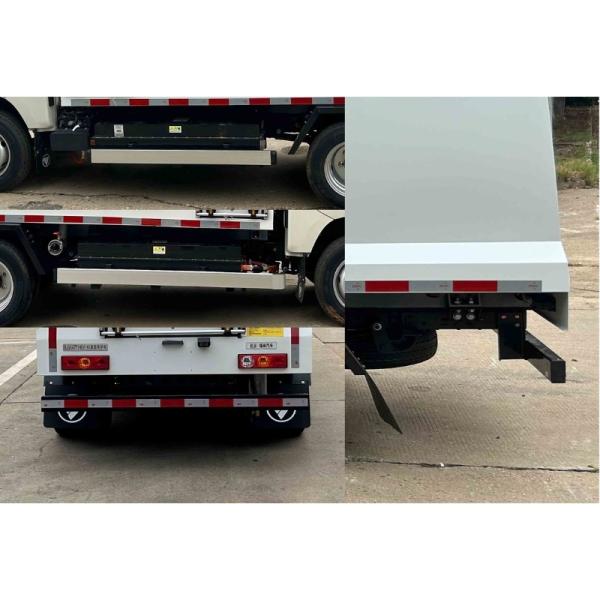

Safety Protections​

Side protection: Q235B carbon steel. Connection: left and right sides with bolted and welded connections.​

Rear protection: Q235B carbon steel, bolted. Section size: 120×60mm; height above ground: 320mm.

​

ABS System
​
Controller model: CM4XL-4S/4M .
​
Optional Configurations​

Speed limiter (95km/h or 80km/h), cab styles, pneumatic ball valves.​

Water inlet and outlet styles, front 对冲,front flush duckbill, reel.​

Waist flushing device, rear platform water cannon styles.​

Left/right positions of fuel tank, battery, urea tank, air tank; appearance styles.

​

Uses
​
Suitable for road maintenance tasks with various optional configurations to meet different work requirements.
parameters
Item ZBJ5047TYHEV-H1
Energy type Pure electric
Dimension(L x W x H) 5320×1870×2855(mm)
Chassis BJ1042EVJA2
Engine FTTBP075B
Secondary Engine —
Curb Weight 2880,3010(Kg)
Rated Loading 1485,1355(Kg)
Total Mass 4495(Kg)
Max.Speed 70(km/h)
Front/Rear suspension 1080/1170(mm)
Tank Volume 5.8 cubic meters

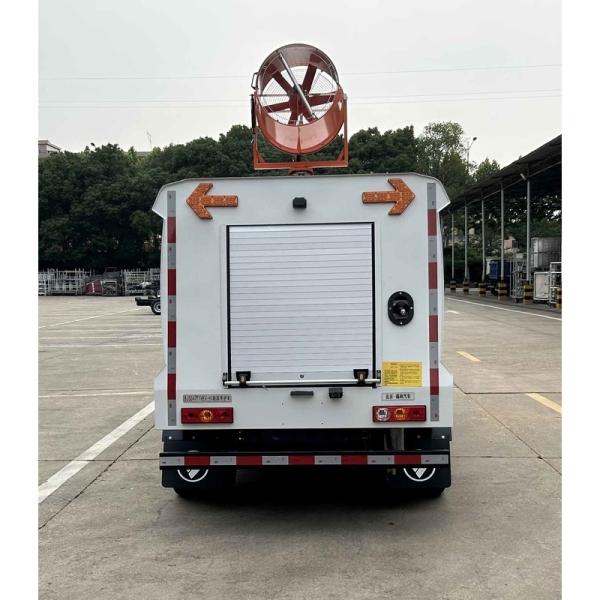

Actual photos

4.5 Tons Pure Electric Road Maintenance Vehicle Equipped With Special Devices4.5 Tons Pure Electric Road Maintenance Vehicle Equipped With Special Devices4.5 Tons Pure Electric Road Maintenance Vehicle Equipped With Special Devices4.5 Tons Pure Electric Road Maintenance Vehicle Equipped With Special Devices4.5 Tons Pure Electric Road Maintenance Vehicle Equipped With Special Devices4.5 Tons Pure Electric Road Maintenance Vehicle Equipped With Special Devices4.5 Tons Pure Electric Road Maintenance Vehicle Equipped With Special Devices4.5 Tons Pure Electric Road Maintenance Vehicle Equipped With Special Devices4.5 Tons Pure Electric Road Maintenance Vehicle Equipped With Special Devices
