4495KG Pure Electric Road Maintenance Vehicle With EQ1041TACEV3 Chassis
4495KG Pure Electric Road Maintenance Vehicle With EQ1041TACEV3 Chassis
4495KG Pure Electric Road Maintenance Vehicle With EQ1041TACEV3 Chassis
4495KG Pure Electric Road Maintenance Vehicle With EQ1041TACEV3 Chassis
4495KG Pure Electric Road Maintenance Vehicle With EQ1041TACEV3 Chassis
4495KG Pure Electric Road Maintenance Vehicle With EQ1041TACEV3 Chassis
4495KG Pure Electric Road Maintenance Vehicle With EQ1041TACEV3 Chassis
4495KG Pure Electric Road Maintenance Vehicle With EQ1041TACEV3 Chassis
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5041TYHBEV
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
3595-4865 usd
Payment Terms :
T/T
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Supply Ability :
5,000 units per year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Dimension(L x W x H) :
5235,5595×1820×2240,2275(mm)
Chassis :
EQ1041TACEV3
Weight :
4495(Kg)
Load Capacity :
1485(Kg)
Chassis Total Capacity :
2880(Kg)
Maximum Speed :
90(km/h)
Front/Rear Suspension :
1176/1259(mm)
Engine :
TZ210XSZ03
Axle load :
1500/2995
Tyre size :
6.00R15LT 10PR,185R15LT 8PR,195/70R15LT 12PR
Description

4495KG pure electric roadside assistance Service Road Maintenance Truck

Total Mass: 4495kg​

Loading Capacity: 1645kg, 1685kg, 1585kg

​

Main Use & Key Devices
​
Used for cleaning and maintaining urban roads, sidewalks, guardrails, curbs, etc. Equipped with a box, water system and front water spray frame.
​
Power & Energy​

Energy storage: Lithium iron phosphate battery (CATL, cell and assembly by CATL).​

Drive motor: Rated power 40kW, peak power 70kW.

​

Dimensions​

Overall length: 5440mm (including 364mm front overhang).

​

Safety Protections​

Side protection: Replaced by side skirt (Q235B), bolted.​

Rear protection: Replaced by rear skirt (Q235B), bolted. Size 245×30mm, 460mm above ground.

​

ABS System
​
Model: RL-108.
​

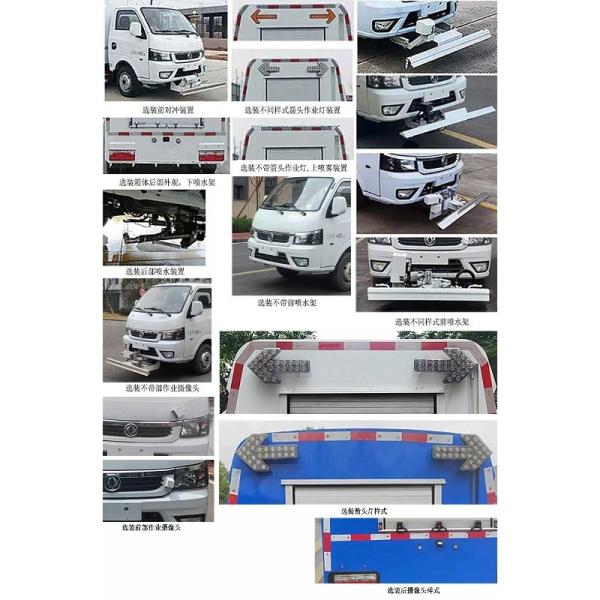

Optional Configurations​

ETC device; rear arrow lights (only on during work).​

With/without rear upper spray, with/without rear lower spray, 360° camera, internal pipelines.​

Roller shutter lower trim, box internal structure, B-type rear lower spray device, top cover.​

Side guards, wheel fenders, rear logo look, left/right corner sprays.

​

Uses
​
Suitable for urban road maintenance. Flexible options meet various work needs.
parameters
Item ZBJ5041TYHBEV
Energy type Pure electric
Dimension(L x W x H) 5235,5595×1820×2240,2275(mm)
Chassis EQ1041TACEV3
Engine TZ210XSZ03
Secondary Engine —
Curb Weight 2880(Kg)
Rated Loading 1485(Kg)
Total Mass 4495(Kg)
Max.Speed 90(km/h)
Front/Rear suspension 1176/1259(mm)
Tank Volum 1.2-1.5 cubic meters
​

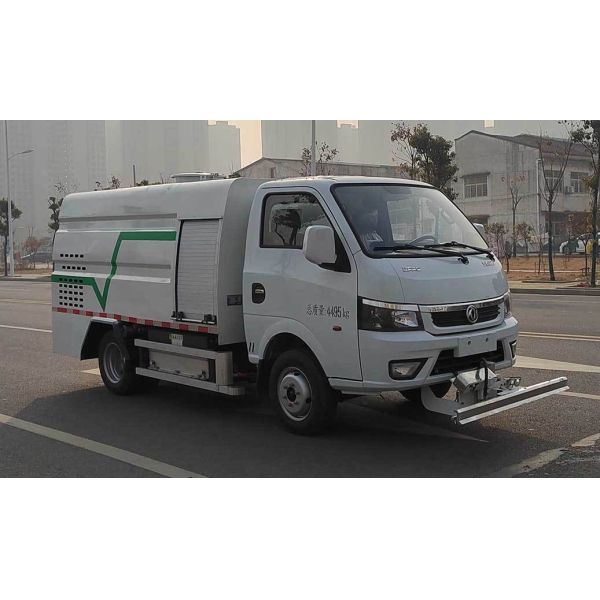

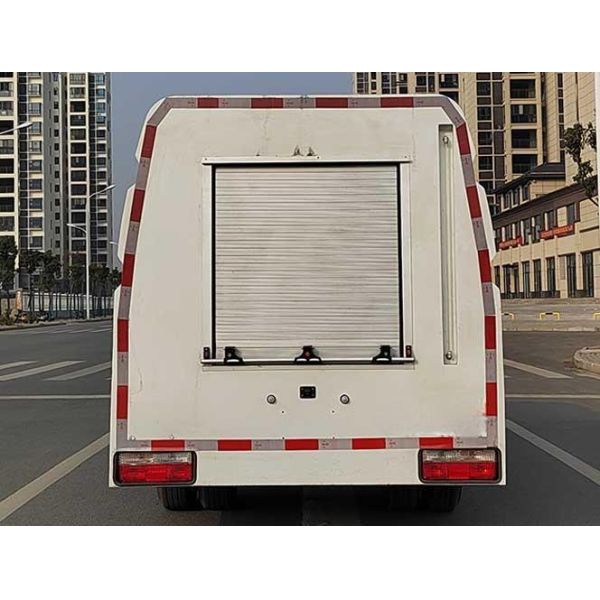

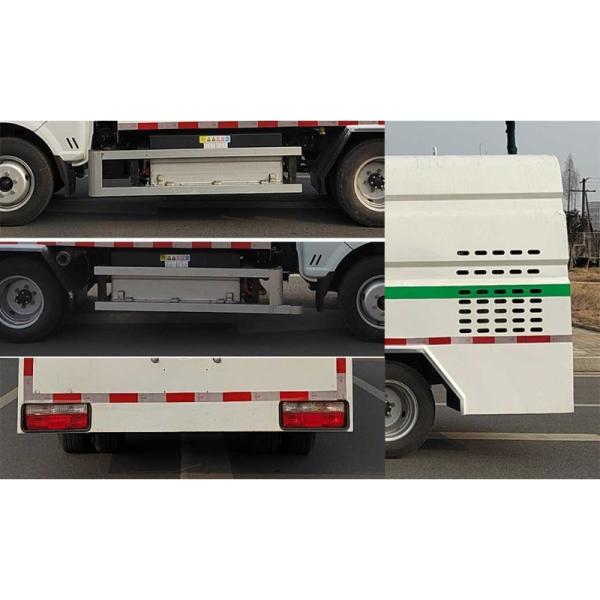

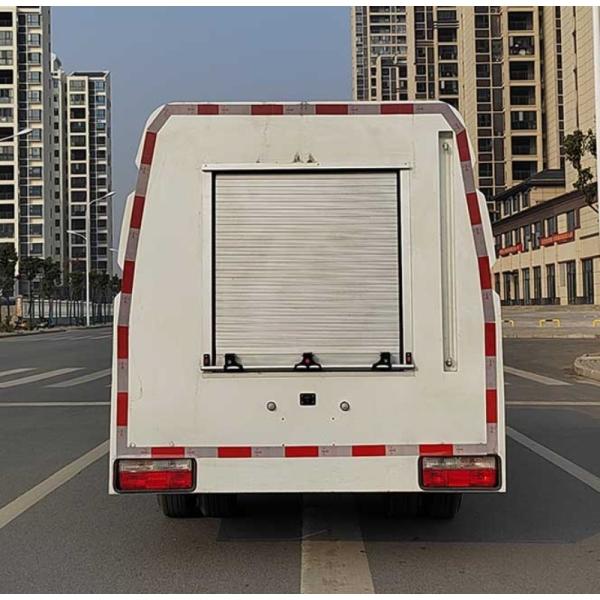

Actual photos
