2.2m3 Water Tank Road Maintenance Vehicle Pure Electric 665kg 600kg Loading Capacity
2.2m3 Water Tank Road Maintenance Vehicle Pure Electric 665kg 600kg Loading Capacity
2.2m3 Water Tank Road Maintenance Vehicle Pure Electric 665kg 600kg Loading Capacity
2.2m3 Water Tank Road Maintenance Vehicle Pure Electric 665kg 600kg Loading Capacity
2.2m3 Water Tank Road Maintenance Vehicle Pure Electric 665kg 600kg Loading Capacity
2.2m3 Water Tank Road Maintenance Vehicle Pure Electric 665kg 600kg Loading Capacity
2.2m3 Water Tank Road Maintenance Vehicle Pure Electric 665kg 600kg Loading Capacity
2.2m3 Water Tank Road Maintenance Vehicle Pure Electric 665kg 600kg Loading Capacity
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5040TYHEVEQ
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
2895-4855 usd
Payment Terms :
T/T
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Supply Ability :
5,000 units per year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Dimension(L x W x H) :
5480×1800×2150(mm)
Chassis :
EQ1040BTZEVJ
Weight :
4495(Kg)
Load Capacity :
1605(Kg)
Chassis Total Capacity :
2760(Kg)
Maximum Speed :
90(km/h)
Front/Rear Suspension :
1180/1170(mm)
Engine :
TZ290XS025
Axle load :
1495/3000
Tyre size :
6.00R15LT 10PR,185R15LT 8PR,195/70R15LT 12PR
Description

2.2m³ water tank pure electric roadside assistance Service Road Maintenance Truck

Total Mass: 4495kg​

Loading Capacity: 665kg, 600kg, 485kg, 420kg

​

Main Use & Key Devices
​
Used for road cleaning and maintenance. Equipped with special device: spray cleaning frame. Front overhang: 330mm.
​
Chassis & Dimensions​

Wheelbase: 2800mm (only this wheelbase is used).​

Tire options: 6.00R15LT 10PR, 185R15LT 8PR.

​

Safety Protections​

Side and rear lower guards: Q235 material, bolted.​

Rear lower guard: section size 100×50mm, 370mm above ground.

​

ABS System
​
Options: CM4YL, CM0953YL .
​
Power & Energy​

Battery: Lithium iron phosphate battery (CATL, cell and assembly by CATL), assembly model L173TB3.​

Drive motor: Permanent magnet synchronous motor, model TZ180XSA05 . Rated power 42kW, peak power 100kW.

​

Optional Configurations​

Front spray device shapes, double-point spray components, rear spray rods, front cameras.​

Rear work indicator lights (only used during operation).

​

Uses
​
Suitable for road cleaning and maintenance. Flexible options meet different needs.
parameters
Item ZBJ5045TYHE6
Energy type Pure electric
Dimension(L x W x H) 5480×1800×2150(mm)
Chassis EQ1040BTZEVJ
Engine TZ180XSA05
Secondary Engine —
Curb Weight 2760(Kg)
Rated Loading 1605(Kg)
Total Mass 4495(Kg)
Max.Speed 90(km/h)
Front/Rear suspension 1180/1170(mm)
Tank Volum 2.1 cubic meters

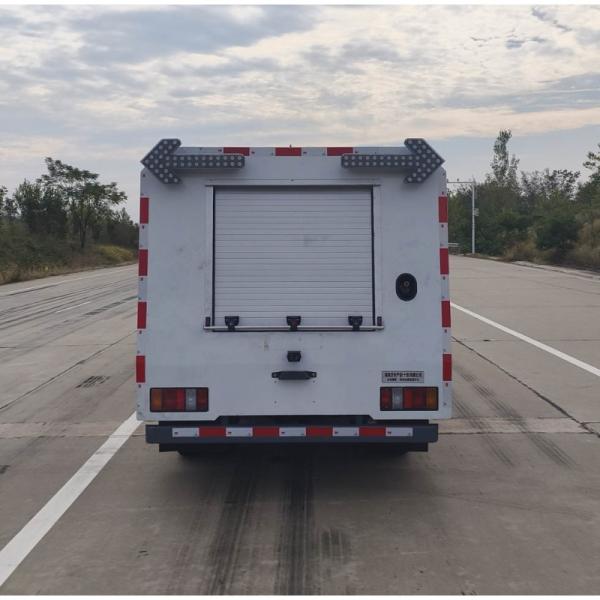

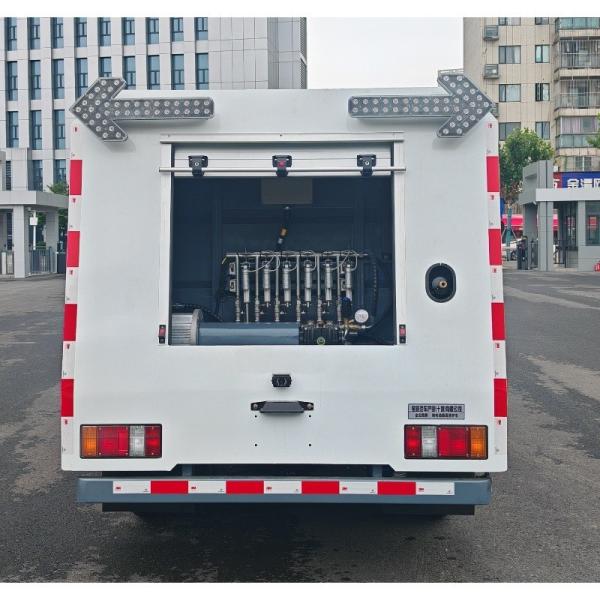

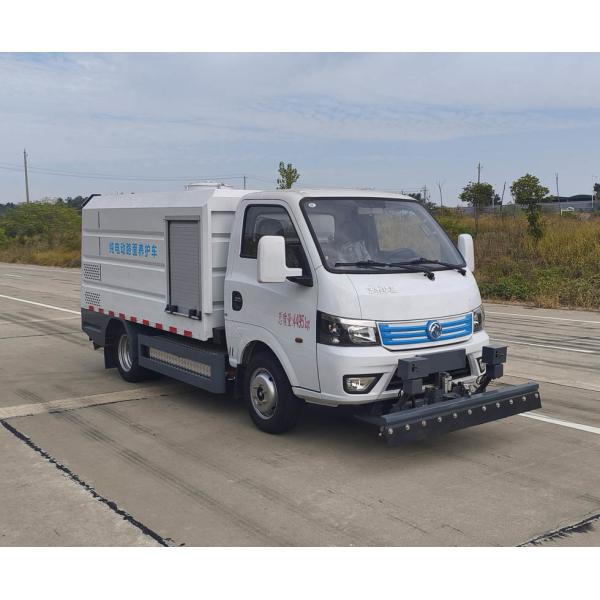

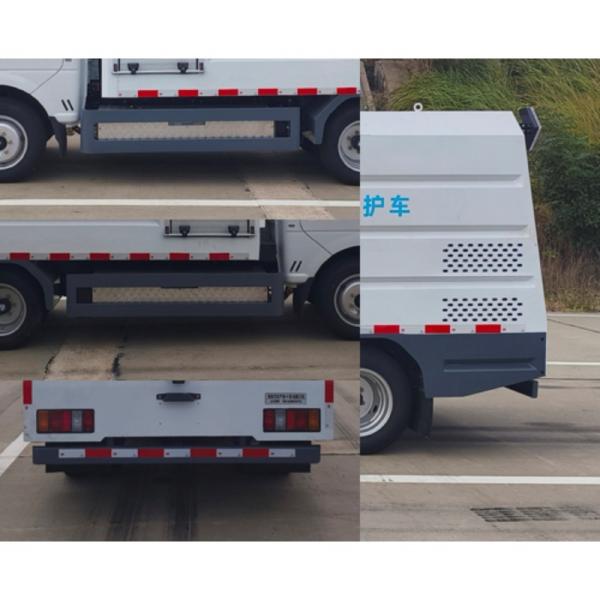

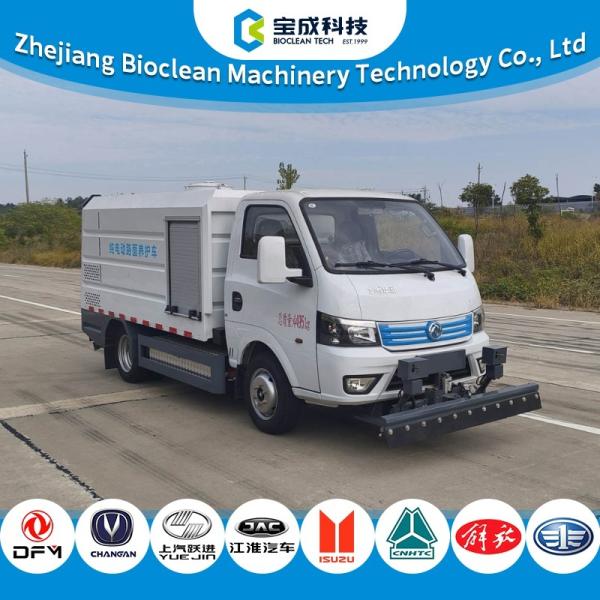

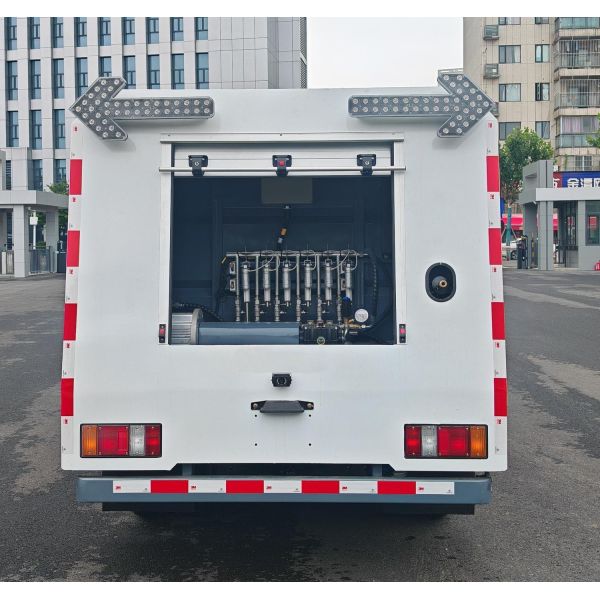

Actual photos
