Specifications
Transport Package :
Carton Packaging
Usage :
Vibration Feeding Controller
Price :
260
Origin :
China
Motor Power(kw) :
1~10
Specification :
250*160*120mm
MOQ :
1
Feeding Size :
≤300 mm
HS Code :
8537101990
Model NO. :
SDVC40-SD
Type :
Vibration Disk Feeder
Production Capacity :
500000PCS/Year
Frequency :
Adjustable
Trademark :
CUH
Description

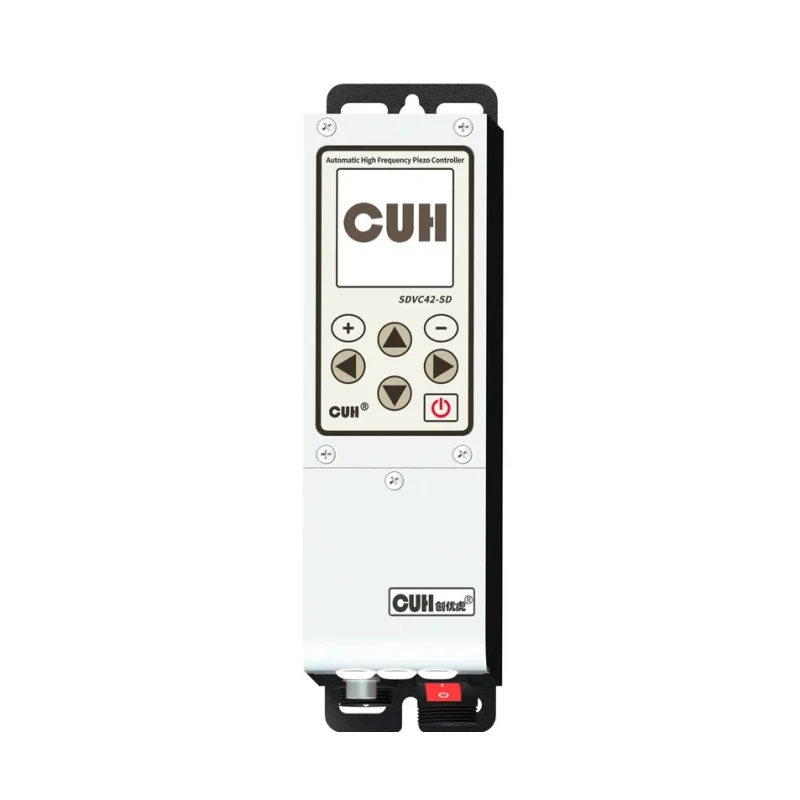

Autotune High Frequency Piezo Controller (600mA)
Autotune High Frequency Piezo Controller (600mA)
Variable Frequency Digital Controller for Piezo Feeder
Product Feature
The category:Variable Frequency Digital Controller for Piezo Feeder
Profile information:Capacitive Load; Automatic Constant Feed Speed Control; Automatic Resonant Frequency Search; RS485 Communication; Automatic Switch Sensor Type Recognition; Digital Overheat Protection; Overcurrent Protection; Restorable Short Circuit Protection; Counting; Overvoltage Protection
Capacitive Load: The controller is adaptive to resistive load, inductive load, and especially capacitive load, such as a piezo vibrator.
Automatic Constant Feed Speed Control: Automatic output voltage adjustment in real-time to ensure constant preset feed speed regardless of the weight change of the workpieces
Automatic Resonant Frequency Search: Search out and output the resonant frequency of the load. Other related parameters are also set automatically.
RS485 Communication: All parameters of the controller can be adjusted via RS485.
Automatic Switch Sensor Type Recognition: The controller can recognize and adapt to PNP and NPN switch sensors.
Digital Overheat Protection: If the internal temperature of the controller gets too high, the controller will stop its output to protect itself.
Overcurrent Protection: If the output current exceeds its rated value, the controller will stop its output to protect itself and the load.
Restorable Short Circuit Protection: If the controller's output is short-circuited, the controller will shut down its output to protect itself and the load. But the fuse inside will not be blown. So when there is no short circuit at the output side, the controller will work again after powering on.
Counting: Count the number of feed materials. The controller will slow down or stop when counting up to the preset value.
Overvoltage Protection: If the input voltage is too high, the power supply of the controller will shut down automatically to protect itself.
