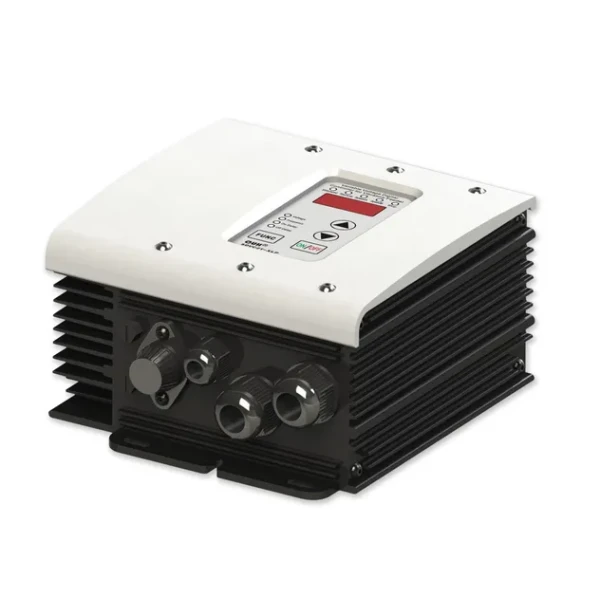

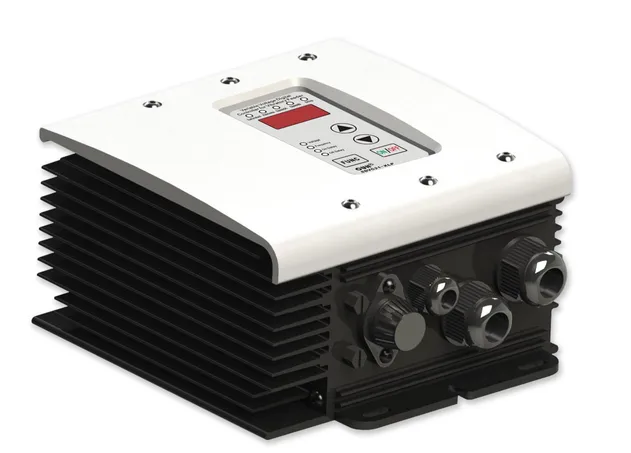

Sdvc21-Xlp (25A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Xlp (25A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Xlp (25A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Xlp (25A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Xlp (25A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Xlp (25A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Xlp (25A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Xlp (25A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Xlp (25A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Xlp (25A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Xlp (25A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Xlp (25A) Variable Voltage Digital Controller for Vibratory Feeder
Specifications
Feeding Size :
500-800 mm
HS Code :
8537101990
Model NO. :
SDVC21-XLP
Price :
180
MOQ :
1
Type :
Vibration Disk Feeder
Motor Power(kw) :
1~10
Origin :
China
Usage :
Vibration Feeding Controller
Specification :
400*300*160MM
Trademark :
CUH
Transport Package :
Carton Packaging
Production Capacity :
500000PCS/Year
Description
Sdvc21-Xlp (25A) Variable Voltage Digital Controller for Vibratory Feeder
Product Feature
IP Grade: IP67. The controller keeps running well in humid, oily, and dusty environments.

Super Wide Input Operation Voltage: The input voltage value to the controller could range from 85 to 400 VAC.

Automatic Voltage Regulation: The internal digital voltage regulation circuit can reduce feed speed variation caused by mains voltage fluctuation.

Time Adjustable Soft Start: The controller will gently increase output voltage from 0 to the preset value when powered on to avoid a sudden shock. Soft start time can be digitally preset.

Preset Speeds: 4 feed speeds can be preset, stored, and outputted by connecting external short-circuit signals.

Dual Switch Sensor ON/OFF Control: 2 NPN switch sensors or PLCs can be connected to turn on /off the controller.

Photoelectric Sensor ON/OFF Control: The CUH Intelligent Photoelectric Sensor can be connected to turn on/off the controller.

Remote Speed Control: The Output Voltage of the controller can be adjusted remotely by an external potentiometer, a PLC, or a 1- 5V DC signal.

DC Control Output: The controller can output low-voltage DC power associated with the ON/OFF Control of the controller to drive a solenoid or other external devices

Lightning Protection: The controller can withstand a lightning strike below 4kV
Overheat Protection: If the internal temperature of the controller gets too high, the controller will stop its output to protect itself.

Overcurrent Protection: If the output current exceeds its rated value, the controller will stop its output to protect itself and the load.

Fuse-Short Circuit Protection: If the output of the controller is short-circuited, the fuse inside will blow to protect the controller and the load.

Max Adjustable Output Voltage: Max Adjustable Output Voltage can be preset to protect the load from damage caused by too high a voltage.

Sdvc21-Xlp (25A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Xlp (25A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Xlp (25A) Variable Voltage Digital Controller for Vibratory Feeder
