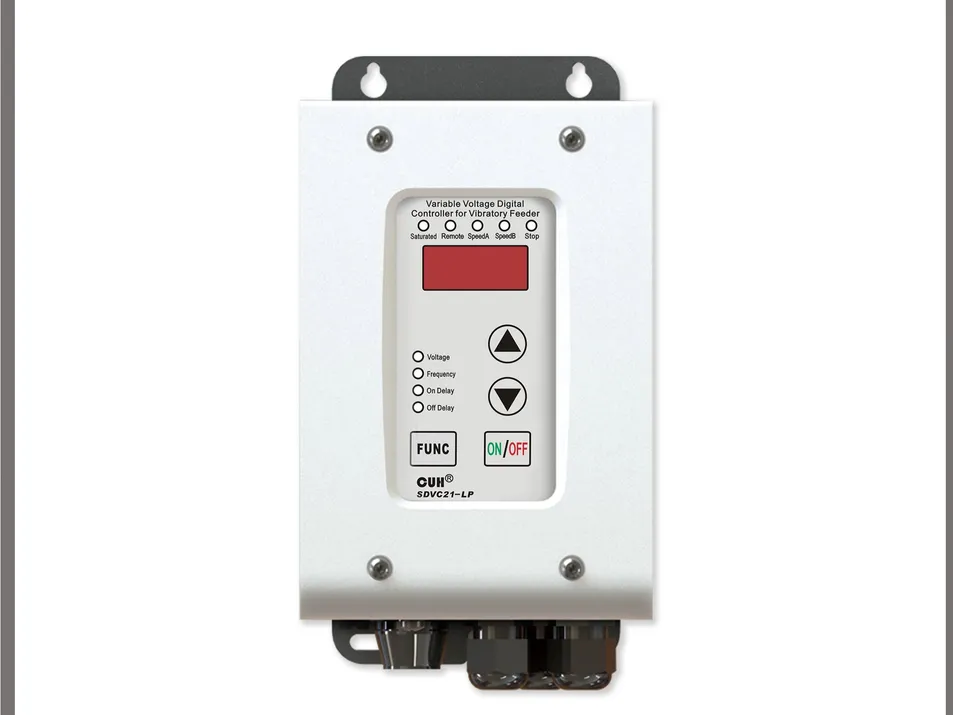

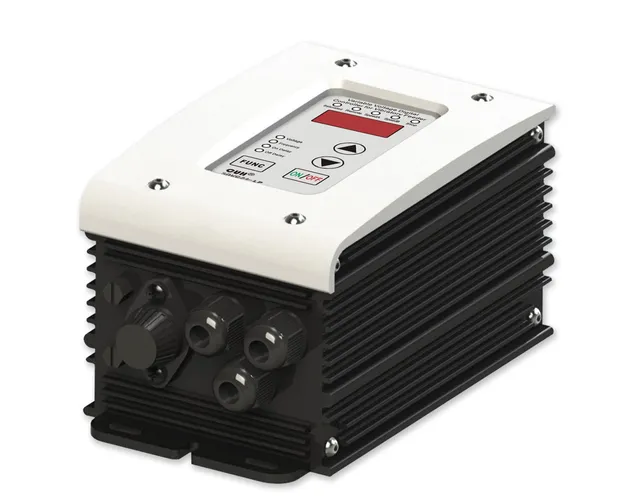

Sdvc21-Lp (10A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Lp (10A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Lp (10A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Lp (10A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Lp (10A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Lp (10A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Lp (10A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Lp (10A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Lp (10A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Lp (10A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Lp (10A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-Lp (10A) Variable Voltage Digital Controller for Vibratory Feeder
Specifications
Type :
Vibration Disk Feeder
Usage :
Vibration Feeding Controller
Trademark :
CUH
Origin :
China
Feeding Size :
300-500 mm
Motor Power(kw) :
1~10
Transport Package :
Carton Packaging
Specification :
400*300*160MM
Production Capacity :
500000PCS/Year
Model NO. :
SDVC21-LP
HS Code :
8537101990
MOQ :
1
Price :
140
Description
Sdvc21-Lp (10A) Variable Voltage Digital Controller for Vibratory Feeder
Product Feature
IP Grade: IP67. The controller keeps running well in a humid, oily, and dusty environment.

Super Wide Input Operation Voltage: The input voltage value to the controller could range from 85 to 400 VAC.
Automatic Voltage Regulation: The internal digital voltage regulation circuit can reduce feed speed variation caused by mains voltage fluctuation.

Time Adjustable Soft Start: The controller will gently increase output voltage from 0 to the preset value when powered on to avoid a sudden shock. Soft start time can be digitally preset.

Preset Speeds: 4 feed speeds can be preset, stored, and outputted by connecting external short-circuit signals.

Dual Switch Sensor ON/OFF Control: 2 NPN switch sensors or PLCs can be connected to turn on/off the controller.

Photoelectric Sensor ON/OFF Control: The CUH Intelligent Photoelectric Sensor can be connected to turn on/off the controller.

Remote Speed Control: Output Voltage of the controller can be adjusted remotely by an external potentiometer, a PLC, or a 1- 5V DC signal.

DC Control Output: The controller can output low-voltage DC power associated with the ON/OFF Control of the controller to drive a solenoid or other external devices.

Lightning Protection: The controller can withstand a lightning strike below 4kV

Overheat Protection: If the internal temperature of the controller gets too high, the controller will stop its output to protect itself.

Overcurrent Protection: If the output current exceeds its rated value, the controller will stop its output to protect itself and the load

Fuse-Short Circuit Protection: If the output of the control is short-circuited, the fuse inside will blow to protect the circuit and the load
Max Adjustable Output Voltage: Max Adjustable Output Voltage can be preset to protect the load from damage caused by too high a voltage
