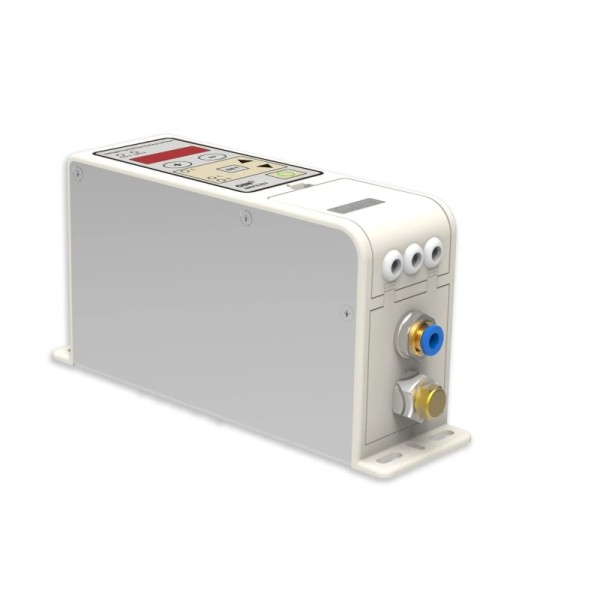

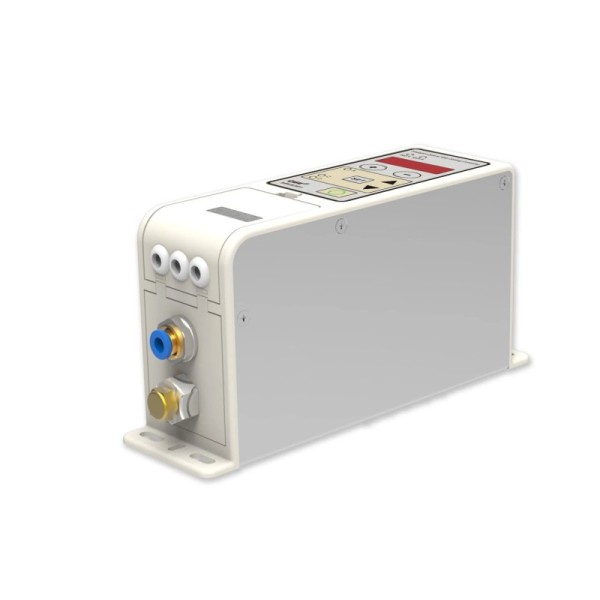

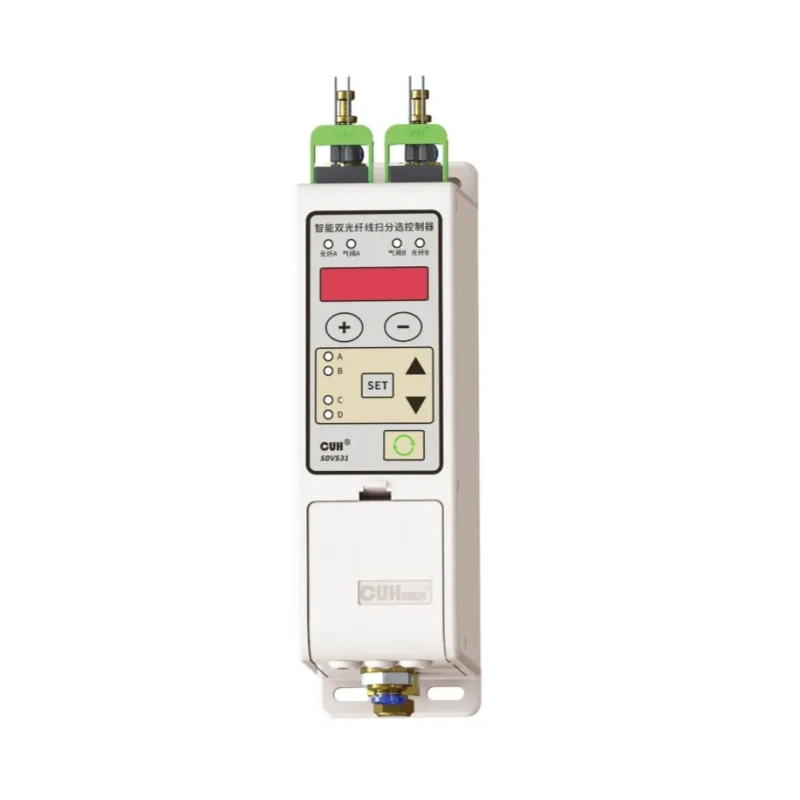

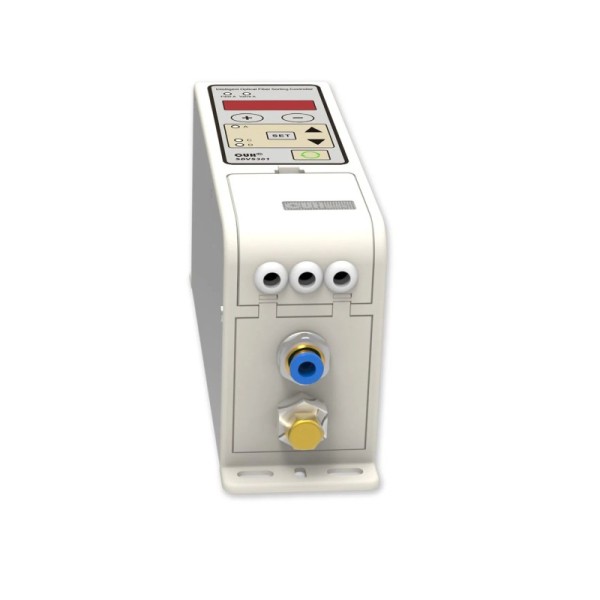

Sdvs301 Intelligent Optical Fiber Sorting Controller
Sdvs301 Intelligent Optical Fiber Sorting Controller
Sdvs301 Intelligent Optical Fiber Sorting Controller
Sdvs301 Intelligent Optical Fiber Sorting Controller
Sdvs301 Intelligent Optical Fiber Sorting Controller
Sdvs301 Intelligent Optical Fiber Sorting Controller
Sdvs301 Intelligent Optical Fiber Sorting Controller
Sdvs301 Intelligent Optical Fiber Sorting Controller
Sdvs301 Intelligent Optical Fiber Sorting Controller
Sdvs301 Intelligent Optical Fiber Sorting Controller
Sdvs301 Intelligent Optical Fiber Sorting Controller
Sdvs301 Intelligent Optical Fiber Sorting Controller

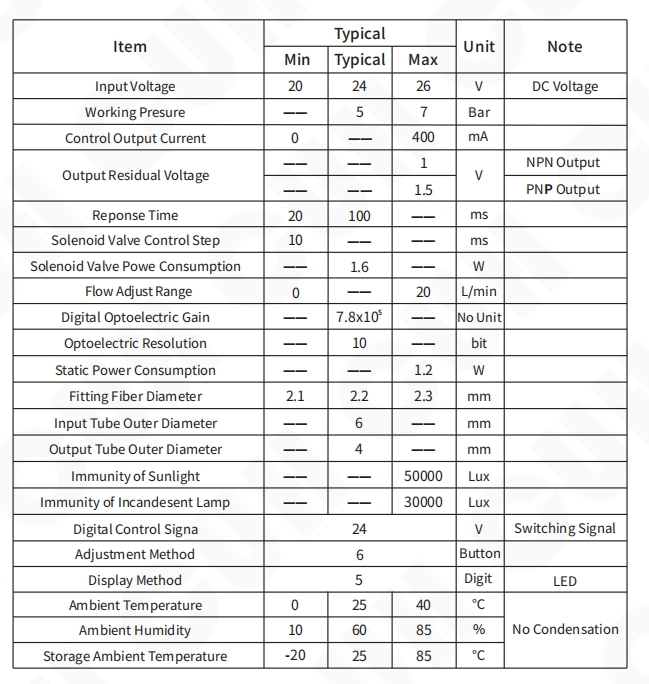

Specifications
MOQ :
1
Price :
85
Description
Sdvs301 Intelligent Optical Fiber Sorting Controller
Product Feature
Solenoid Valve Switch Counting: Provide switch counting data for lifetime evaluation

Dual Switch Sensor ON/OFF Control: Support 2-way On/off switch input, anti-shake or delay time can be set.

Automatic Switch Sensor Type Recognition: The controller can recognize and adapt to both PNP and NPN type switch sensors.

Type of Control Output: Push-Pull type with OCP and SCP.

DC Control Output: The controller can output low voltage DC power associated with ON/OFF Control of the controller to drive a solenoid or other external devices

Overvoltage Protection: If input voltage exceed the normal working value, the controller will stop and put the error code. If exceed too much, the controller will be shutdown automatically to protect itself.

Overcurrent Protection: If the working current exceed the rate value, this port will disable to protect circuit. wihle current return normal value. the function will recover automatically.

Restorable Short Circuit Protection: If the output port short to 24Vor GND, the controller will set this port to high impedence state to protect electronic component inside. while short condition removed, this port will recover normal operation automatically.
Sdvs301 Intelligent Optical Fiber Sorting Controller
Sdvs301 Intelligent Optical Fiber Sorting Controller
Sdvs301 Intelligent Optical Fiber Sorting Controller
