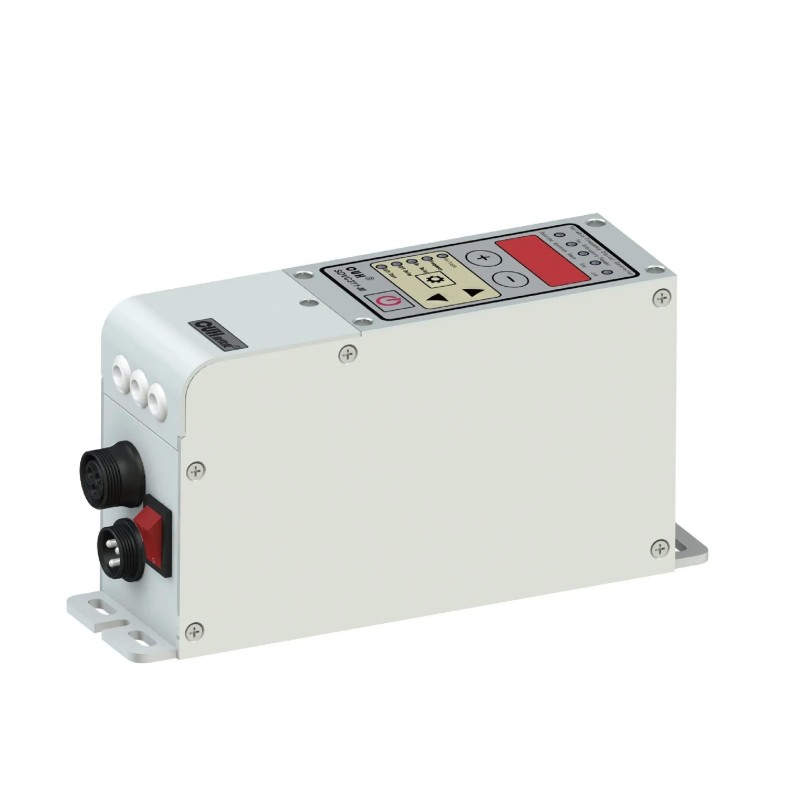

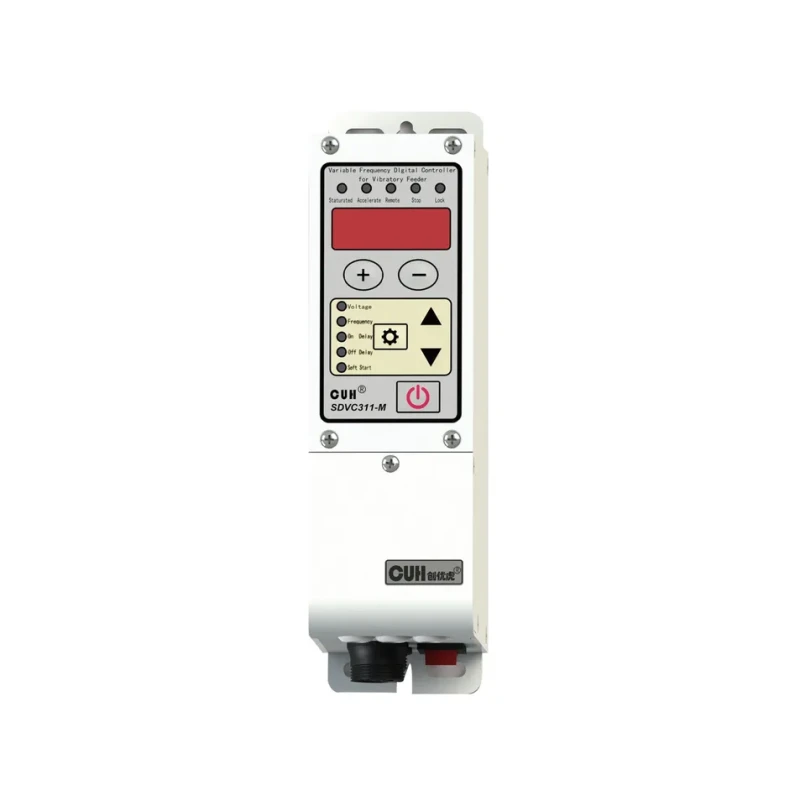

Sdvc311-M (3.0A) Variable Frequency Digital Controller for Vibratory Feeder Vibration Feeding Controller
Sdvc311-M (3.0A) Variable Frequency Digital Controller for Vibratory Feeder Vibration Feeding Controller
Sdvc311-M (3.0A) Variable Frequency Digital Controller for Vibratory Feeder Vibration Feeding Controller
Sdvc311-M (3.0A) Variable Frequency Digital Controller for Vibratory Feeder Vibration Feeding Controller
Sdvc311-M (3.0A) Variable Frequency Digital Controller for Vibratory Feeder Vibration Feeding Controller
Sdvc311-M (3.0A) Variable Frequency Digital Controller for Vibratory Feeder Vibration Feeding Controller
Sdvc311-M (3.0A) Variable Frequency Digital Controller for Vibratory Feeder Vibration Feeding Controller
Sdvc311-M (3.0A) Variable Frequency Digital Controller for Vibratory Feeder Vibration Feeding Controller
Sdvc311-M (3.0A) Variable Frequency Digital Controller for Vibratory Feeder Vibration Feeding Controller
Sdvc311-M (3.0A) Variable Frequency Digital Controller for Vibratory Feeder Vibration Feeding Controller

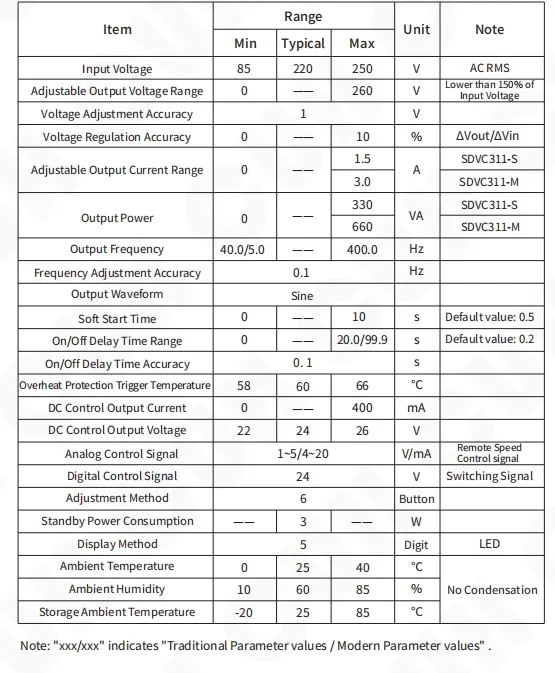

Specifications
Price :
85
Usage :
Building Materials, Chemical Industry, Colliery, Gravel Field, Metallurgy, Mine, Vibration Feeding Controller
Specification :
250*160*120mm
Production Capacity :
500000PCS/Year
Motor Power(kw) :
1~10
Transport Package :
Carton Packaging
Current :
3A
Trademark :
CUH
MOQ :
1
Model NO. :
SDVC311-M
Origin :
China
Type :
Vibration Disk Feeder
HS Code :
8537101990
Feeding Size :
≤300 mm
Frequency Range :
5-400Hz
Description
Sdvc311-M (3.0A) Variable Frequency Digital Controller for Vibratory Feeder Vibration Feeding Controller
Sdvc311-M (3.0A) Variable Frequency Digital Controller for Vibratory Feeder Vibration Feeding Controller
Variable Frequency Digital Controller
Product Feature
The category:Variable Frequency Digital Controller
Profile information: The output frequency range covers 5.0Hz to 400.0Hz with 0.1Hz accuracy. Brake function to quickly stop the vibratory feeder by shifting the current phase by 180° during the soft-stop process.
Frequency Adjustment: The Output frequency of the controller can be manually adjusted to the resonant frequency of the vibratory feeder to get a smooth, quiet, and energy-saving feed effect.
 Automatic High Precision Voltage Regulation: The internal digital voltage regulation circuit can eliminate feed speed variation caused by mains voltage fluctuation.
 Time Adjustable Soft Start/Shutdown: During startup or shutdown, the output voltage will gradually change to avoid sudden shock. Soft start/shutdown time can be digitally preset.
 Switch Sensor ON/OFF Control: An Adaptive switch sensor or PLC can be connected to turn on/off the controller.
 Photoelectric Sensor ON/OFF Control:  The CUH Intelligent Photoelectric Sensor can be connected to turn on/off the controller.
 Remote Speed Control: Output Voltage of the controller can be adjusted remotely by an external potentiometer, a PLC, a 1- 5V DC signal, or a 4- 20mA current signal.
 DC Control Output: The controller can output low-voltage DC power associated with the ON/OFF Control of the controller to drive a solenoid or other external devices.
 Keypad Lock: Lock all buttons on the keypad to prevent misoperation by pressing the ON/OFF button and holding for 2 seconds.
Frequency Adjustment: The Output frequency of the controller can be manually adjusted to the resonant frequency of the vibratory feeder to get a smooth, quiet, and energy-saving feed effect.
 Automatic High Precision Voltage Regulation: The internal digital voltage regulation circuit can eliminate feed speed variation caused by mains voltage fluctuation.
 Time Adjustable Soft Start/Shutdown: During startup or shutdown, the output voltage will gradually change to avoid sudden shock. Soft start/shutdown time can be digitally preset.
 Switch Sensor ON/OFF Control: An Adaptive switch sensor or PLC can be connected to turn on/off the controller.
 Photoelectric Sensor ON/OFF Control:  The CUH Intelligent Photoelectric Sensor can be connected to turn on/off the controller.
 Remote Speed Control: Output Voltage of the controller can be adjusted remotely by an external potentiometer, a PLC, a 1- 5V DC signal, or a 4- 20mA current signal.

Sdvc311-M (3.0A) Variable Frequency Digital Controller for Vibratory Feeder Vibration Feeding Controller
Sdvc311-M (3.0A) Variable Frequency Digital Controller for Vibratory Feeder Vibration Feeding Controller
Sdvc311-M (3.0A) Variable Frequency Digital Controller for Vibratory Feeder Vibration Feeding Controller
