Sdvc21-S (5A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-S (5A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-S (5A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-S (5A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-S (5A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-S (5A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-S (5A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-S (5A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-S (5A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-S (5A) Variable Voltage Digital Controller for Vibratory Feeder

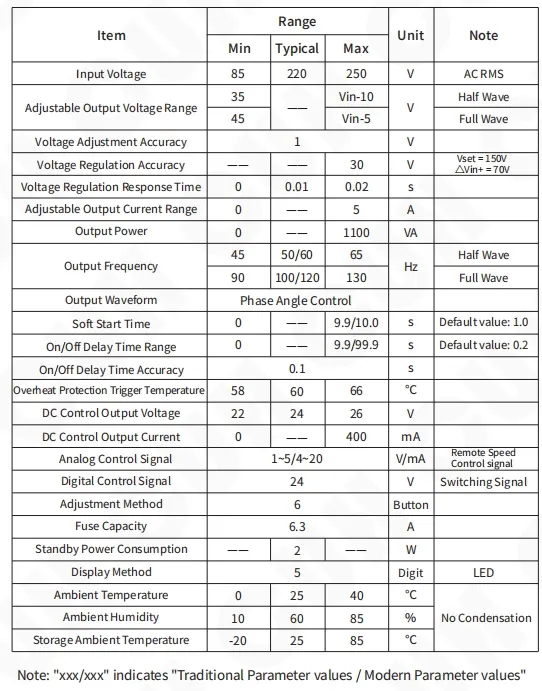

Specifications
Trademark :
CUH
Origin :
China
Production Capacity :
500000PCS/Year
Motor Power(kw) :
1~10
Type :
Vibration Disk Feeder
Specification :
250*150*120mm
HS Code :
8537101990
Current :
5A
Model NO. :
SDVC21-S
Transport Package :
Carton Packaging
Feeding Size :
≤300 mm
Usage :
Building Materials, Chemical Industry, Colliery, Gravel Field, Metallurgy, Mine, Ore-dressing, Vibration Feeding Controller
MOQ :
1
Voltage :
220V
Price :
36
Description
Sdvc21-S (5A) Variable Voltage Digital Controller for Vibratory Feeder
Product Feature
Automatic Voltage Regulation: The internal digital voltage regulation circuit can reduce feed speed variation caused by mains voltage fluctuation.

Time Adjustable Soft Start: The controller will gently increase output voltage from 0 to the preset value when powered on to avoid a sudden shock. Soft start time can be digitally preset

Preset Speeds: 4 feed speeds can be preset, stored, and outputted by connecting external short-circuit signals.

Dual Switch Sensor ON/OFF Control: 2 NPN switch sensors or PLCs can be connected to turn on/ off the controller.

Photoelectric Sensor ON/OFF Control: The CUH Intelligent Photoelectric Sensor can be connected to turn on/off the controller.
Remote Speed Control: The output voltage of the controller can be adjusted remotely by an external potentiometer, a PLC, or a 1- 5V DC signal.

DC Control Output: The controller can output low-voltage DC power associated with ON/OFF Control of the controller to drive a solenoid or other external devices.

Overheat Protection: If the internal temperature of the controller gets too high, the controller will stop its output to protect itself.

Overcurrent Protection: If the output current exceeds its rated value, the controller will stop its output to protect itself and the load.

Overvoltage Protection: If the input voltage is too high, the power supply of the controller will be shut down automatically to protect itself.

Fuse-Short Circuit Protection: If the output of the controller is short-circuited, the fuse inside will blow to protect the controller and the load.

Max Adjustable Output Voltage: Max Adjustable Output Voltage can be preset to protect the load from damage caused by too high a voltage.
Sdvc21-S (5A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-S (5A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-S (5A) Variable Voltage Digital Controller for Vibratory Feeder
Sdvc21-S (5A) Variable Voltage Digital Controller for Vibratory Feeder
