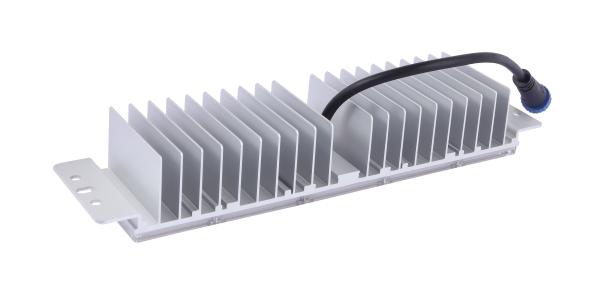

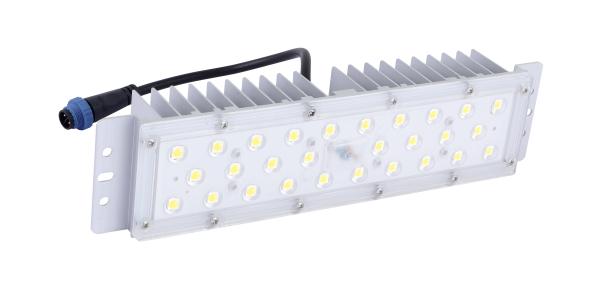

5050 Chip 42VC 60 Watt LED Street Light Module For Advertising Lighting
5050 Chip 42VC 60 Watt LED Street Light Module For Advertising Lighting
5050 Chip 42VC 60 Watt LED Street Light Module For Advertising Lighting
5050 Chip 42VC 60 Watt LED Street Light Module For Advertising Lighting
5050 Chip 42VC 60 Watt LED Street Light Module For Advertising Lighting
5050 Chip 42VC 60 Watt LED Street Light Module For Advertising Lighting
Specifications
Brand Name :
Vbrite
Model Number :
VB-M05
Place of Origin :
China
Material :
Aluminum6063 + Optical PC
Power :
30W/40W/50W/60W
Efficiency :
160~190lm
LED Chip :
5050
CCT :
3000K/4000K/5000K/5700K/6000K
CRI :
>70(>80, >90 optional)
IP rating :
IP66
Lifetime :
>50,000 hours
Name :
LED Street Light Module
MOQ :
10PCS
Packaging Details :
Carton Packing
Delivery Time :
10~15Day
Payment Terms :
L/C,T/T,D/A,D/P,Western Union
Description

5050 Chip 42VC 60 Watt LED Street Light Module

Product Description

VB-M05 LED module uses a 5050 high-power chip with a VC42 constant current driver solution, providing a wide power range of 30W-60W, suitable for outdoor and industrial lighting scenarios. With an IP66 waterproof and dustproof rating, it can operate stably in harsh environments, with a light efficiency of up to 160-190LM/W, taking into account both high brightness and energy-saving requirements, and is an ideal choice for advertising lighting, building floodlighting, warehouses, mining and other applications.

Specification

Model VB-M05
Power 30W 40W 50W 60W
Driving Current 0.63A 0.84A 1.05A 1.25A
Voltage DC42-48V
LED chip Lumileds 5050/Customized 5050
CCT 3000K/4000K/5000K/5700/6000K
CRI >70(>80, >90 optional)
Efficacy 190lm 180lm 170lm 160lm
Lumen Flux 5700lm 7200lm 8500lm 9600lm
Beam angle Type I / II / III / IV / V / 30° / 60° / 90°
Lens Dimension 260x70mm
IP rating IP66
Working Temp.(°C) -40℃~50℃ , 20%~90% RH
Storage Temp.(°C) -40℃~50℃ , 10%~90% RH
Lifetime >50,000 hours
Main Material Aluminum6063 + Optical PC
Product Dimension 300x70x50mm
Carton 425x350x455mm, 40pcs/CTN
N.W.(KG) 0.52KG/PCS
G.W.(KG) 25.5KG/CNT

Features

  1. High-brightness LED chips and quality heat dissipation materials ensure excellent light performance
  2. Long lifespanc, Highly customizable and applicable for various street lighting and industrial lighting retrofit projects
  3. Multiple lighting distributions available (Type I / II / III / IV / V / 30° / 60° / 90°)
  4. Improves energy efficiency and brightness, significantly reducing energy consumption and maintenance cost
  5. Providing high-quality and reliable lighting solutions.

Application

Road, Mo-torway, Urban Resi-dential Street, Bike, Sidewalk paths, Public squares, Sidewalk Street, Parking, Bridges, Industrial areas, Stadium lighting
