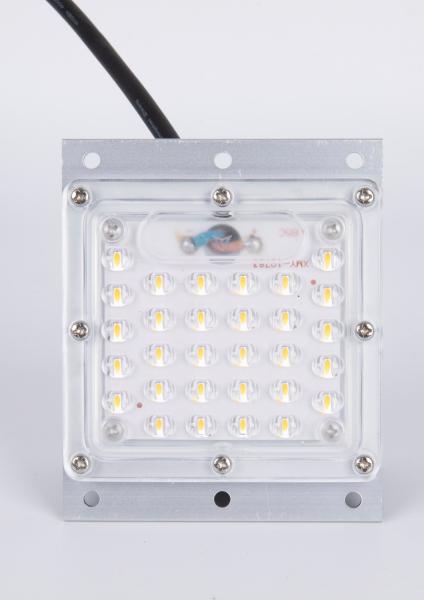

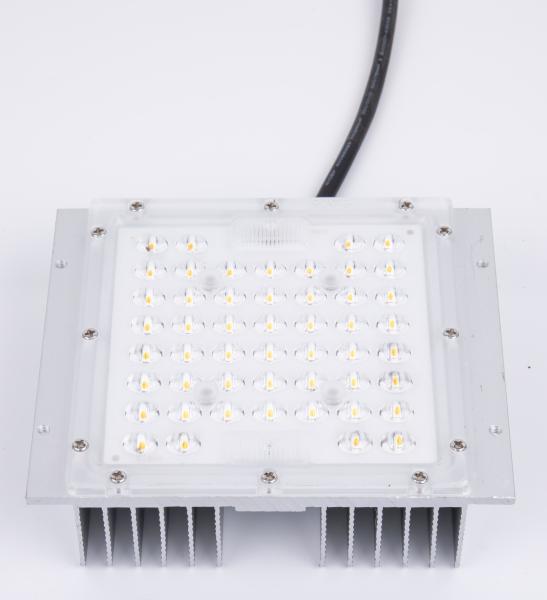

Indoor Outdoor SMD3030 LED Light Module , IP66 LED Street Light Retrofit Kit
Indoor Outdoor SMD3030 LED Light Module , IP66 LED Street Light Retrofit Kit
Indoor Outdoor SMD3030 LED Light Module , IP66 LED Street Light Retrofit Kit
Indoor Outdoor SMD3030 LED Light Module , IP66 LED Street Light Retrofit Kit
Indoor Outdoor SMD3030 LED Light Module , IP66 LED Street Light Retrofit Kit
Indoor Outdoor SMD3030 LED Light Module , IP66 LED Street Light Retrofit Kit
Specifications
Brand Name :
Vbrite
Model Number :
VB-M26
Place of Origin :
China
MOQ :
10PCS
Packaging Details :
Carton Packing
Delivery Time :
10~15Day
Payment Terms :
L/C,T/T,D/A,D/P,Western Union
Power :
30W/ 50W/ 60W/ 70W/ 80W
LED Chip :
SMD3030/ SMD5050
CCT :
3000K/4000K/5000K/6000K/6500K
Beam Type :
150*75º，90º / 50*75º / 150*75º /70x145º
IP Rating :
IP66
Material :
Aluminum + Optical PC
Lifetime :
>50,000 hours
Warranty :
5 Years
Name :
LED Retrofit Kits
Description

Product Description
VB-M26 series is a high-performance LED module designed for harsh industrial environments, providing five power options of 30W/40W/50W/60W/80W. It provides high-quality 5050 and 3030 chip options, 5050 large chip solution single chip 0.5W, luminous efficiency up to 145lm/W, suitable for high power, 3030 high-density solution single chip 0.3W, to achieve a more uniform light field distribution. It is required to be equipped with IP66 protection level, fully sealed die-cast aluminum housing and tempered glass lens, and 5-year long warranty service.
Specification

ModelVB-M26
Power30W50W60W70~80W
LED chipSMD3030(30PCS)

SMD3030
SMD5050(optional)

SMD3030
SMD5050 (optional)

SMD3030
Product Dimension100.4*84.5*39mm146*121.3*38mm146*121.3*38mm176*160*46mm
Input voltageDC30V
CCT3000K/4000K/5000K/6000K/6500K
CRIRa>70/80
Efficiency140LM/W

140LM/W(3030)
160~170LM/W(5050)

140LM/W(3030)
160~170LM/W(5050)

140LM/W(3030)
Lumen flux4200lm

7000lm(3030)
8000~8500lm(5050)

8400lm(3030)
9600~10200lm(5050)

11200lm
Beam angle150*75º,90º150*75º150*75º70x145º
IP ratingIP66
Ambient Temp.(°C)-40℃~50℃,20%~90R.H
Storage Temp.(°C)-40℃~50℃,10%~90% R.H
Lifetime50,000 hours
Body materialAluminum+Optical PC
Warranty5 years


Features

  1. High performance SMD3030/5050 led chip
  2. Optimized extrusion aluminum design for superior thermal management.
  3. Professional optical Anti UV PC lens design, higher light output and more precise direction.
  4. Silicone ring and stainless steel screw design provide better protection for led module.
  5. IP66 waterproof

Advantage

  1. Support power (30W~80W optional), adapt to a variety of scenarios
  2. 5-year long warranty, industry-leading reduction in maintenance costs,
  3. luminous efficiency up to 145lm/W, 50% energy saving compared to traditional lamps.
  4. Support OEM or ODM customization services.

Application
Courtyard lamp, Retrofit bulb, Graden lamp, lawn lamp.
