Power Guard LED Garden Lamp IP66 LED Courtyard Light Module
Power Guard LED Garden Lamp IP66 LED Courtyard Light Module
Power Guard LED Garden Lamp IP66 LED Courtyard Light Module
Power Guard LED Garden Lamp IP66 LED Courtyard Light Module
Power Guard LED Garden Lamp IP66 LED Courtyard Light Module
Power Guard LED Garden Lamp IP66 LED Courtyard Light Module
Power Guard LED Garden Lamp IP66 LED Courtyard Light Module
Power Guard LED Garden Lamp IP66 LED Courtyard Light Module
Specifications
Brand Name :
Vbrite
Model Number :
VB-M26
Place of Origin :
China
Name :
LED Garden Lamp
Material :
Aluminum + Optical PC
Power :
30W/ 50W/ 60W/ 70W/ 80W
LED Chip :
SMD3030/ SMD5050
CCT :
3000K/4000K/5000K/6000K/6500K
CRI :
Ra>70/80
Beam Type :
150*75º，90º / 50*75º / 150*75º /70x145º
IP Rating :
IP66
Lifetime :
>50,000 hours
Warranty :
5 Years
MOQ :
10PCS
Packaging Details :
Carton Packing
Delivery Time :
10~15Day
Payment Terms :
L/C,T/T,D/A,D/P,Western Union
Description

Power Guard IP66 Graden Lamp Led Module Courtyard Light Module

Product Description

VB-M26 series is a high-performance LED module designed for harsh industrial environments, providing five power options of 30W/40W/50W/60W/80W. It provides high-quality 5050 and 3030 chip options, 5050 large chip solution single chip 0.5W, luminous efficiency up to 145lm/W, suitable for high power, 3030 high-density solution single chip 0.3W, to achieve a more uniform light field distribution. It is required to be equipped with IP66 protection level, fully sealed die-cast aluminum housing and tempered glass lens, and 5-year long warranty service.

Specification

Model VB-M26
Power 30W 50W 60W 70~80W
LED chip SMD3030(30PCS)

SMD 3030

SMD 5050 (optional)

SMD 3030

SMD 5050 (optional)

 SMD3030
Product Dimension

100.4*84.5*39mm

146*121.3*38mm

146*121.3*38mm

176*160*46mm
Input voltage DC30V
CCT 3000K/4000K/5000K/6000K/6500K
CRI Ra>70/80
Efficiency 140LM/W

140LM/W(3030)

160-170LM/W(5050)

140LM/W(3030)

160-170LM/W(5050)

 140LM/W
Lumen flux 4200lm

7000lm(3030)

8000~8500lm(5050)

8400lm(3030) 9600~10200lm(5050)

 11200lm
Beam angle

150*75º,90º

150*75º

150*75º

70x145º
IP rating IP66

Ambient Temp.(°C)

-40℃~50℃,20%~90 R.H

Storage Temp.(°C)

-40℃~50℃,10%~90% R.H.

Lifetime

 50,000 hours

Body material

 Aluminum+Optical PC

Warranty

 5Years

Features

  1. High performance SMD3030/5050 led chip

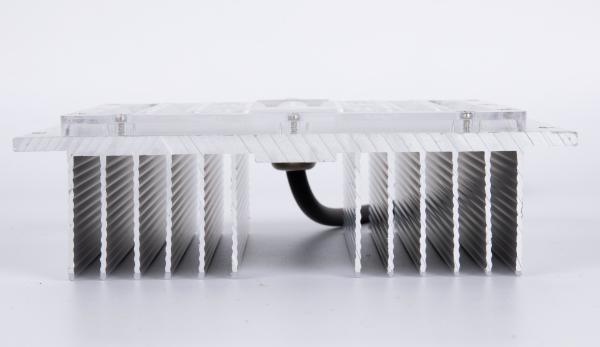

  2. Optimized extrusion aluminum design for superior thermal management.
  3. Professional optical Anti UV PC lens design, higher light output and more precise direction.
  4. Silicone ring and stainless steel screw design provide better protection for led module.
  5. IP66 waterproof

Advantage

  1. Support power (30W~80W optional), adapt to a variety of scenarios
  2. 5-year long warranty, industry-leading reduction in maintenance costs,
  3. luminous efficiency up to 145lm/W, 50% energy saving compared to traditional lamps.
  4. Support OEM or ODM customization services.

Application

Courtyard lamp, Retrofit bulb, Graden lamp, lawn lamp.
