30W LED Street Light Module 3000K 4000K 5000K LED Light Source Module
30W LED Street Light Module 3000K 4000K 5000K LED Light Source Module
30W LED Street Light Module 3000K 4000K 5000K LED Light Source Module
30W LED Street Light Module 3000K 4000K 5000K LED Light Source Module
30W LED Street Light Module 3000K 4000K 5000K LED Light Source Module
30W LED Street Light Module 3000K 4000K 5000K LED Light Source Module
30W LED Street Light Module 3000K 4000K 5000K LED Light Source Module
30W LED Street Light Module 3000K 4000K 5000K LED Light Source Module
Specifications
Brand Name :
Vbrite
Model Number :
VB-M09
Place of Origin :
China
Name :
LED Street Light Module
Power :
30W
LED Chip :
5050
CCT :
3000K/ 4000K/ 5000K
CRI :
>70 (>80 >90 optional)
N.W. :
0.52/PCS
G.W. :
25.5KG/CNT
MOQ :
10PCS
Packaging Details :
Carton Packing
Delivery Time :
10~15Day
Payment Terms :
L/C,T/T,D/A,D/P,Western Union
Description

60 Watt Led Street Light Source Led Module Lights Module Led 50w Street Lamp Led Module

Product Description

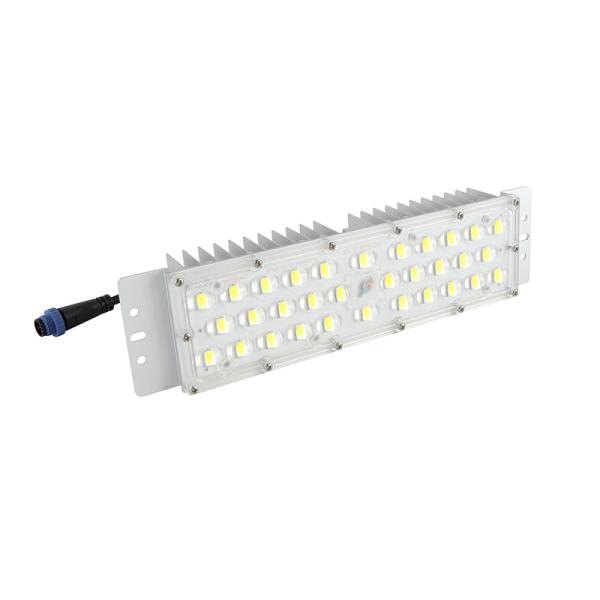

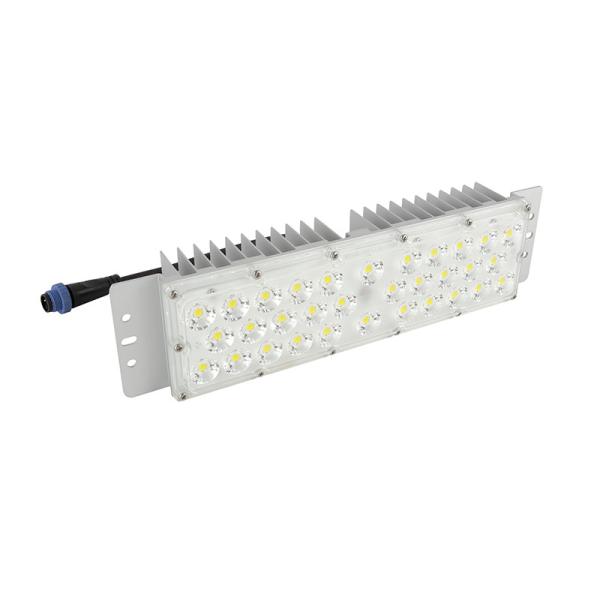

VB-M09 LED module adopts 32pcs 5050 chips with high efficiency and long life time. High quality aluminium heat sink and good structural design ensures good heat dissipation. Various beam angles suitable for different application place.

Specification

Model VB-M09-30
Power 30W
Driving Current 0.63A
Voltage DC42-48V
LED chip Domestic 5050
CCT 3000K / 4000K / 5000K
CRI > 70 ( >80, >90 optional )
Efficacy 180~215lm/w
Lumen Flux 6450lm
Beam Type 20° / 40° / 60° / 90° /150x70°
Lens Dimension 250x75mm
IP Rating IP66
Working Temp.(°C) -40℃ ~50℃, 20%~90% RH
Storage Temp.(°C) -40℃ ~50℃, 10~90% RH
Lifetime >50,000 hours
Main Material Aluminum6063 + Optical PC
Product Dimension 300x75x50mm
Carton 425x350x455mm, 40pcs/CTN
N.W.(KG) 0.52KG/PCS
G.W.(KG) 25.5KG/CNT

Advantage

  1. The working temperature of the heat dissipation management is 15℃ lower than similar products
  2. LED life up to 50,000 hours (about 30,000 hours for ordinary IP66 modules)
  3. Built with quality LEDs, the module provides smooth and consistent lighting.
  4. The light source or driver can be replaced from the front, reducing the maintenance cost by 60%.
