High Brightness 5050 LED Light Chip , Outdoor LED Module Lights
High Brightness 5050 LED Light Chip , Outdoor LED Module Lights
High Brightness 5050 LED Light Chip , Outdoor LED Module Lights
High Brightness 5050 LED Light Chip , Outdoor LED Module Lights
High Brightness 5050 LED Light Chip , Outdoor LED Module Lights
High Brightness 5050 LED Light Chip , Outdoor LED Module Lights
Specifications
Brand Name :
Vbrite
Model Number :
VB-M09
Place of Origin :
China
MOQ :
10PCS
Packaging Details :
Carton Packing
Delivery Time :
10~15Day
Payment Terms :
L/C,T/T,D/A,D/P,Western Union
Name :
LED Optical Lens
Power :
60W
LED Chip :
Customized 5050
CCT :
3000K~6000K
CRI :
>70
Beam Type :
60°/90°/150×70°
Description

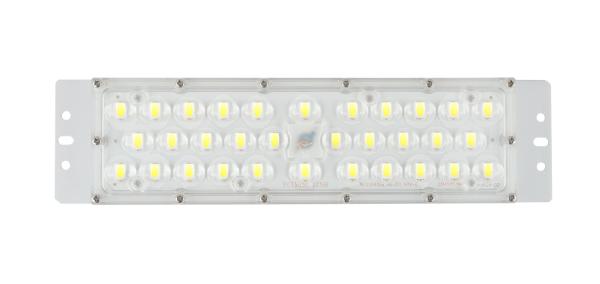

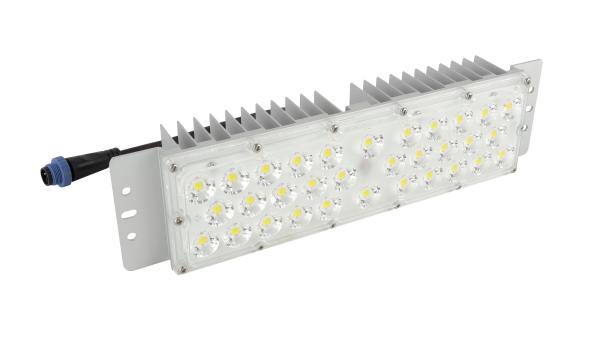

High Brightness LED Chip Lumildes 5050 Outdoor Street LED Module

Product Description

Equipped with 32pcs 5050 LEDs, the VB-M09 offers high brightness and durability. It features strong heat dissipation and flexible beam angles for various applications.

Specification

Model VB-M09-60
Power 60W
Driving Current 1.25A
Voltage DC42-48V
LED chip Customized 5050
CCT 3000K ~5700K
CRI > 70
Efficacy 185~210lm/w
Beam Type 20° / 40° / 60° / 90° /150x70°
Lens Dimension 250x75mm
IP Rating IP66
Working Temp.(°C) -40℃ ~50℃, 20%~90% RH
Storage Temp.(°C) -40℃ ~50℃, 10~90% RH
Lifetime >50,000 hours
Main Material Aluminum6063 + Optical PC
Product Dimension 300x75x50mm
Carton 425x350x455mm, 40pcs/CTN
N.W.(KG) 0.52KG/PCS
G.W.(KG) 25.5KG/CNT

Features

  1. The LED module delivers even lighting using high-quality LED chips.
  2. Suitable for commercial and industrial lighting
  3. energy-saving and environmentally friendly, power consumption is as low as 1/10 of traditional light sources
  4. Lasts up to 50,000 hours, reducing the need for frequent replacements.
