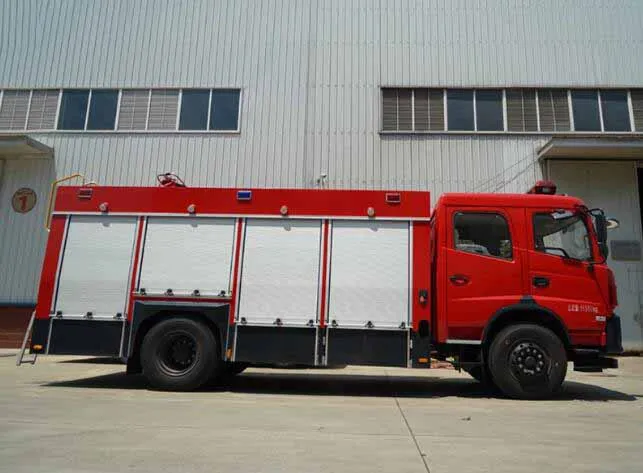

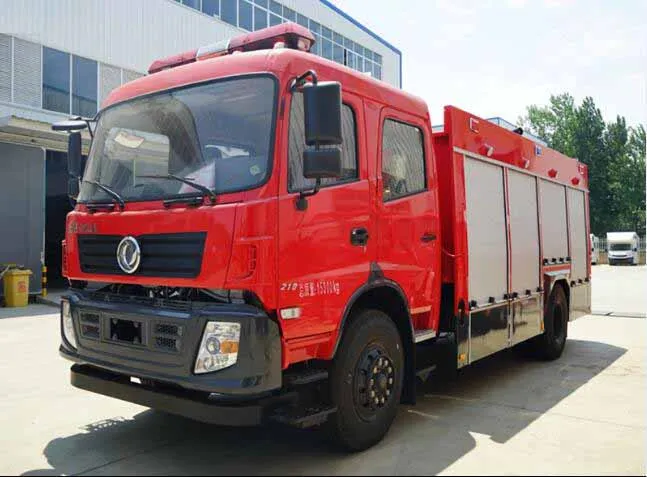

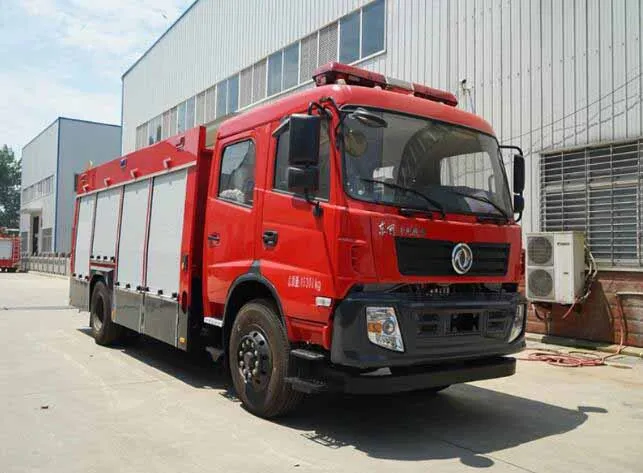

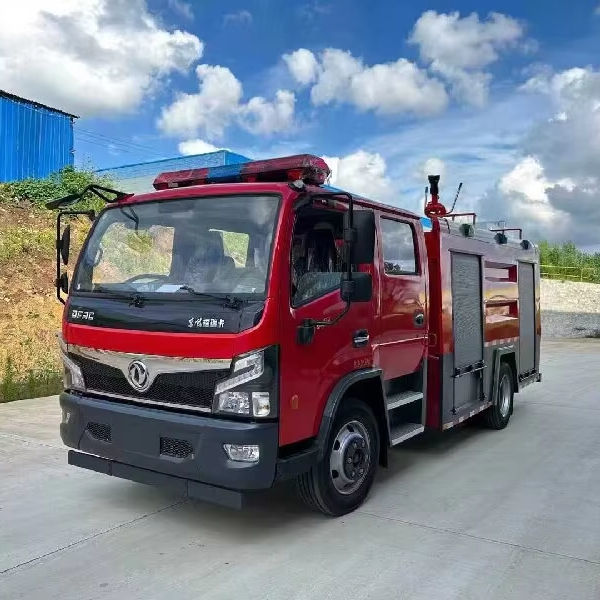

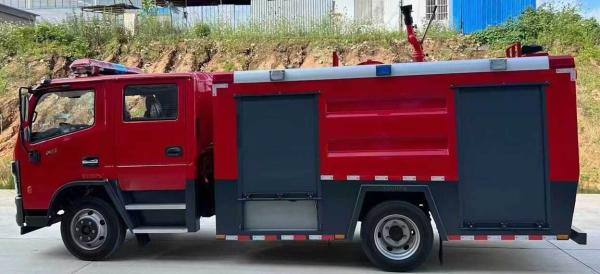

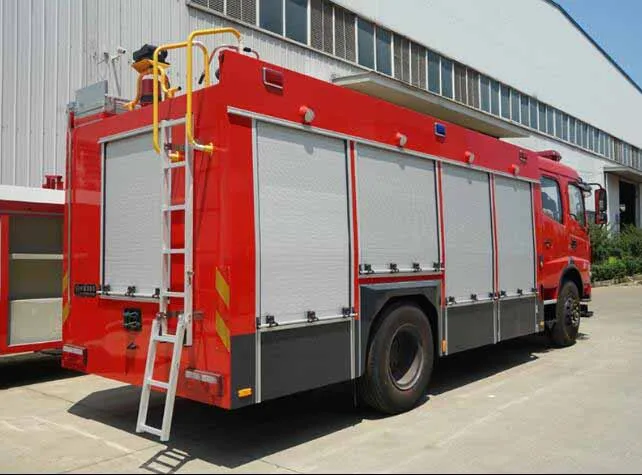

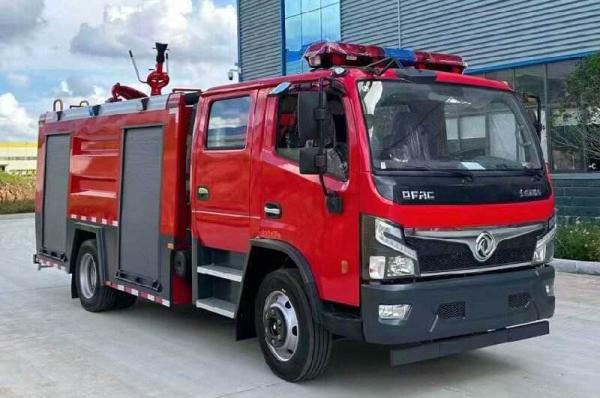

Diesel Engine 6 Wheel Dongfeng 6000kg 6tons Water Tank Fire Truck
Diesel Engine 6 Wheel Dongfeng 6000kg 6tons Water Tank Fire Truck
Diesel Engine 6 Wheel Dongfeng 6000kg 6tons Water Tank Fire Truck
Diesel Engine 6 Wheel Dongfeng 6000kg 6tons Water Tank Fire Truck
Diesel Engine 6 Wheel Dongfeng 6000kg 6tons Water Tank Fire Truck
Diesel Engine 6 Wheel Dongfeng 6000kg 6tons Water Tank Fire Truck
Diesel Engine 6 Wheel Dongfeng 6000kg 6tons Water Tank Fire Truck
Diesel Engine 6 Wheel Dongfeng 6000kg 6tons Water Tank Fire Truck
Diesel Engine 6 Wheel Dongfeng 6000kg 6tons Water Tank Fire Truck
Diesel Engine 6 Wheel Dongfeng 6000kg 6tons Water Tank Fire Truck
Diesel Engine 6 Wheel Dongfeng 6000kg 6tons Water Tank Fire Truck
Diesel Engine 6 Wheel Dongfeng 6000kg 6tons Water Tank Fire Truck
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Model of Fire Monitor :
Pl48 Fire Monitor
Model of Fire Pump :
CB10/40 Fire Pump
Fire Monitor Range :
Water More Than 55meters and Foam More Than 50m
Transport Package :
Bulk Ship, RO-RO
HS Code :
8705309990
Trademark :
CLW
Payload :
8tons
Fuel :
Diesel
Transmission Type :
Manual
Drive Wheel :
4×2
Flow Rate of Fire Monitor :
40L/S 1.0MPa
Extinguishant :
Water and Foam
Diameter of Manhole :
4600mm
Specification :
6tons 6t 6ton
Volume :
5001-7000L
Flow Rate of Fire Pump :
40L/S 1.0MPa
Type of Fire Pump :
Low Pressure Centrifugal Pump
Water Tank Capacity :
6000L 6000liters 6000kgs
Origin :
Suizhou, China
Condition :
New
Thickness of Water Tank :
4mm
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Emission Standard :
Euro 3
Material of Water Tank :
High Quality Carbon Steel Q235
Production Capacity :
300 Units Per Month
MOQ :
1
Price :
15000-35000 per unit
Horsepower :
251-350hp
Suction Depth :
Deeper Than 7m
Engine Type :
Cum-mins B190 33
Model NO. :
CLW5154GXFS
Description
Diesel Engine 6 Wheel Dongfeng 6000kg Water Fire Brigade Truck 6tons Water Tank Fire Truck

Water Tank Fire Truck, which is also called water fire engine, water foam fire truck, fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Water Tank Fire Truck can be divided into several types:
  • According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
  • According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck.
  • According to chassis brand, there are fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck and so on.
  • According to fire extinguishant, there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.
There are also fire rescue truck with special purpose as follows:
  • Foam supply fire truck;
  • Compressed air supply fire fighting truck;
  • Water tower fire truck;
  • Earthquake rescue fire truck;
Features of Dongfeng Water Tank Fire Truck:
  • Dongfeng chassis, Optional for different siz, strong enough for all road conditions.
  • Powderful engin; reliable performance, no overhaul within 100,000 km.
  • Nice shape, rational structure.
  • High quality fire pump
  • Massive, durable, long service life.
Spec. of Diesel Engine 6 Wheel Dongfeng 6000kg Water Fire Brigade Truck 6tons Water Tank Fire Truck
Model Parameters others
Overall Dimension 8205×2500×3375mm
GVW 15200kg
Engine Model B190 33
Engine Power 139kW
Wheelbase 4700mm
Driving Type 4X2
Max.speed 85km/h
Emission Standard 5700ml/kW Euro3
Fire pump rated flow 40L/s@1.0Mpa Vacuum pump
water monitor rated flow 40L/s@1.0MPa(adjustable) Straight stream/spray/mist spray
Water monitor range Water range≥55m
Foam range≥50
Passengers 2+4
Approach angle ≥16°
Departure angle ≥13°
Item Parameters Parameters others
1 Water tank capacity water 6000
2 Fire pump model CB10/40 Shanghai rongshen
3 Fire pump performance Pressure 1:1.0Mpa flow:40L/S Use vacuum pump to priming water
4 the installation site of fire pump rear
5 The quantity of fire pump water outlet 6
6 Pressure gauge 0-1.6 Mpa, 0-2.5 MPa 2.6 level
7 Vacuum gauge -0.1- -1 MPa 2.6 level



8



Fire monitor
(PS40W)


Injection pressure

 water:≥55m

1.0Mpa
Depression/Elevation angle -30-+70°
Turning angle 360°
9 PTO Model YTQ600F type full power sandwich , pneumatic
