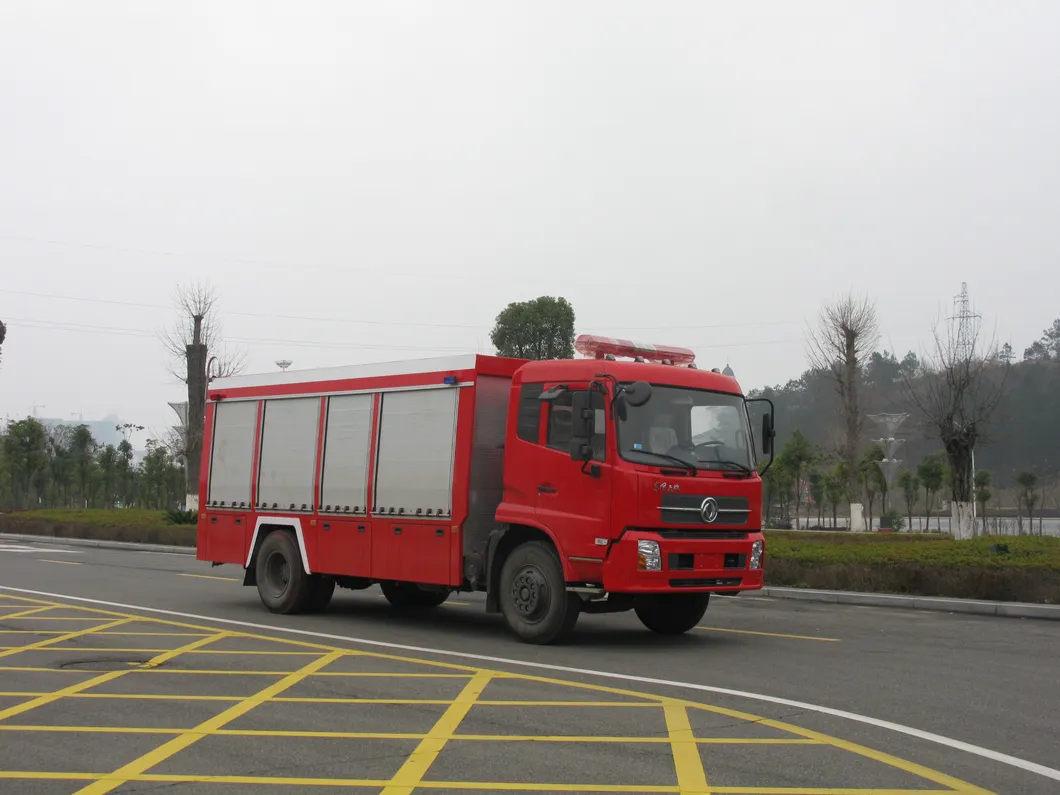

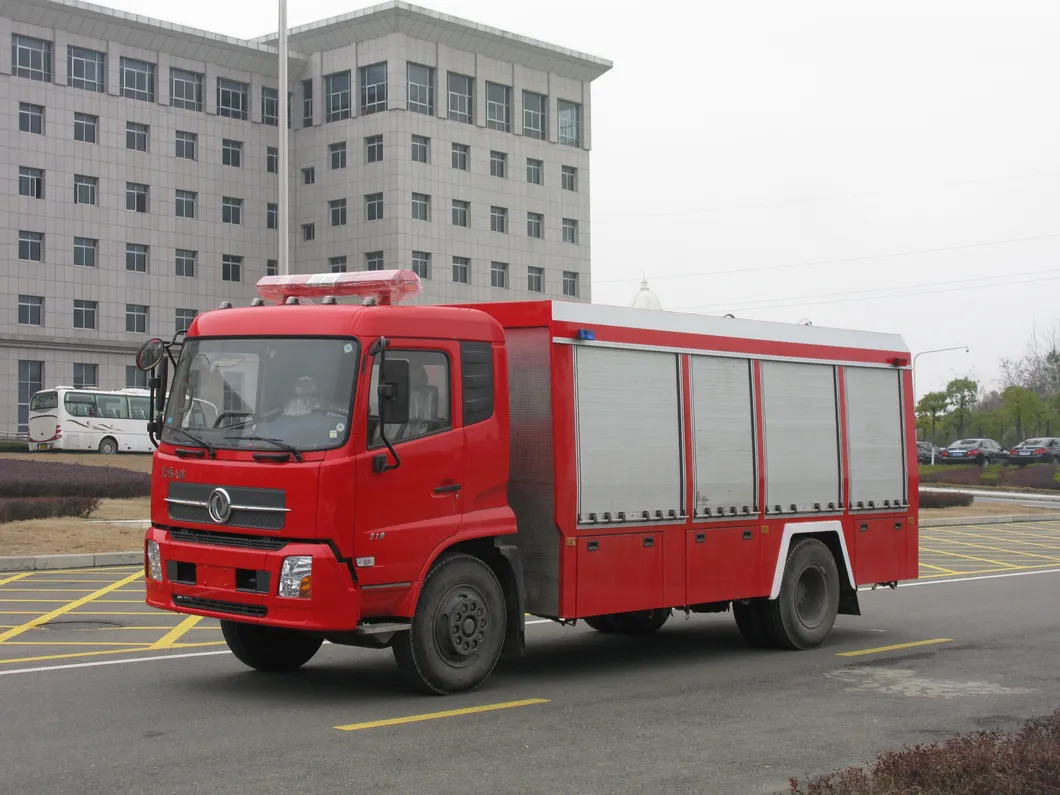

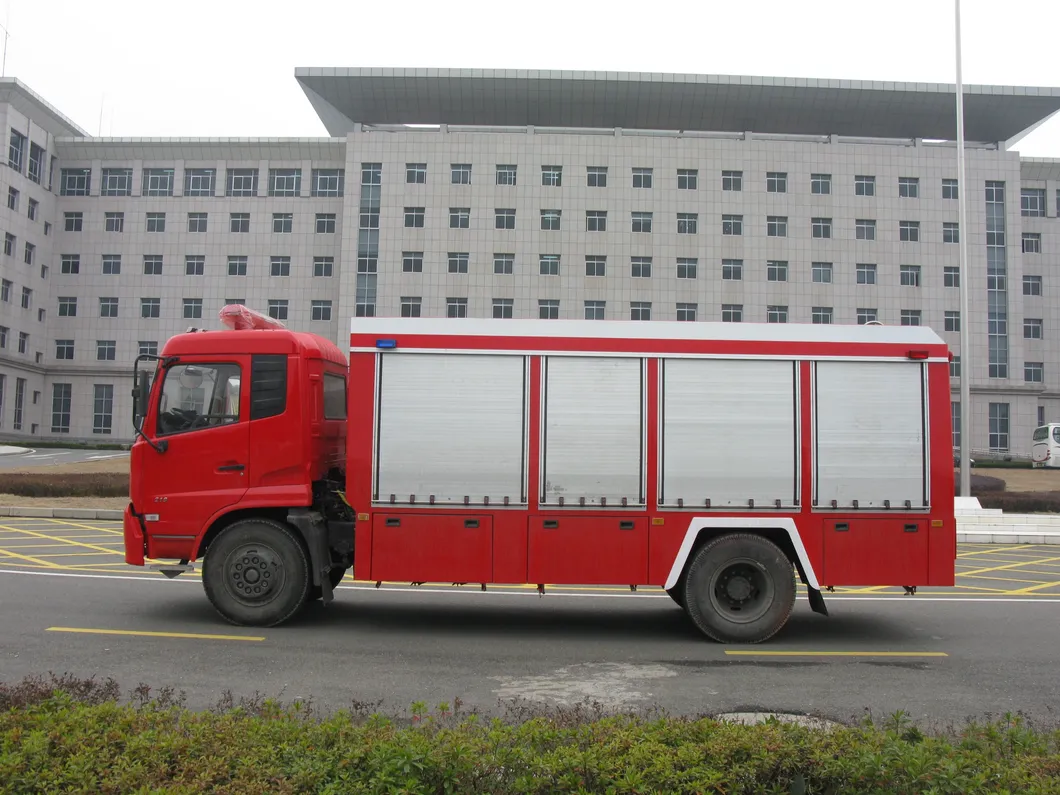

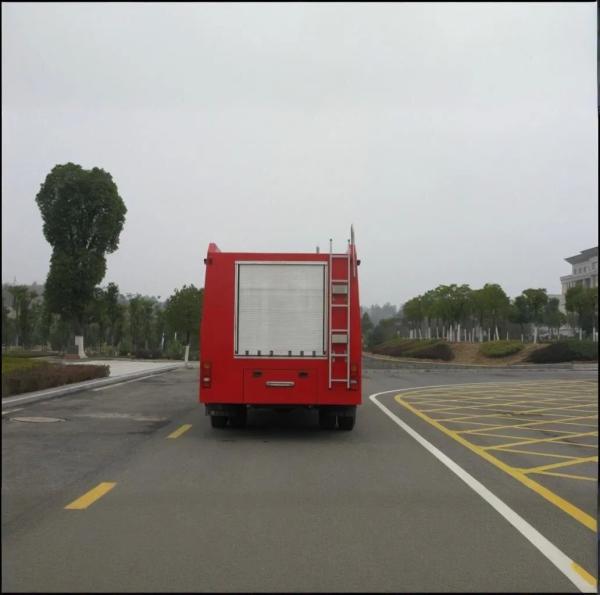

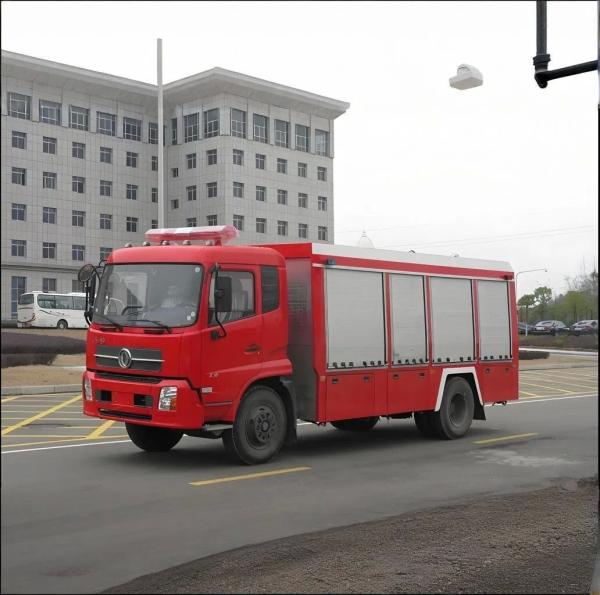

China Fire Fighting Truck Dongfeng 5ton 5000L Water and Foam Fire Truck Fire Fighting Equipment Fire Truck
China Fire Fighting Truck Dongfeng 5ton 5000L Water and Foam Fire Truck Fire Fighting Equipment Fire Truck
China Fire Fighting Truck Dongfeng 5ton 5000L Water and Foam Fire Truck Fire Fighting Equipment Fire Truck
China Fire Fighting Truck Dongfeng 5ton 5000L Water and Foam Fire Truck Fire Fighting Equipment Fire Truck
China Fire Fighting Truck Dongfeng 5ton 5000L Water and Foam Fire Truck Fire Fighting Equipment Fire Truck
China Fire Fighting Truck Dongfeng 5ton 5000L Water and Foam Fire Truck Fire Fighting Equipment Fire Truck
China Fire Fighting Truck Dongfeng 5ton 5000L Water and Foam Fire Truck Fire Fighting Equipment Fire Truck
China Fire Fighting Truck Dongfeng 5ton 5000L Water and Foam Fire Truck Fire Fighting Equipment Fire Truck
China Fire Fighting Truck Dongfeng 5ton 5000L Water and Foam Fire Truck Fire Fighting Equipment Fire Truck
China Fire Fighting Truck Dongfeng 5ton 5000L Water and Foam Fire Truck Fire Fighting Equipment Fire Truck
China Fire Fighting Truck Dongfeng 5ton 5000L Water and Foam Fire Truck Fire Fighting Equipment Fire Truck
China Fire Fighting Truck Dongfeng 5ton 5000L Water and Foam Fire Truck Fire Fighting Equipment Fire Truck
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
MOQ :
1
Price :
15000-35000 per unit
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Model NO. :
CLW5078re
Volume :
＞10000L
Emission Standard :
Euro 3
Transmission Type :
Manual
Payload :
6ton
Fuel :
Diesel
Drive Wheel :
4×2
Horsepower :
150-250hp
Condition :
New
Extinguishing Agents :
Water, Foam
Accessories :
as Per Customer's Request
Flow Rate of Fire Monitor :
60L/S 1.0MPa
Material :
Carbon Steel/Stainless Steel
Fire Fighting Monge :
Chinese or International Brand
Logo :
as Per Customer's Request
User Manual :
Yes
Truck Brand :
Dongfeng/Sinotruk HOWO/Foton/Shacman
Key Parts :
Pump, Fire Gun, High Pressure Pump
Usage :
Fire Fighting Truck, Emergency Rescue
Water Pump :
Chinese or International Brand
Fire Fighting Pump :
Chinese or International Brand
Throw Range :
Water 55m, Foam 50m
Transport Package :
Bulk Ship, RO-RO
Specification :
5cbm, 5000liters, 5000L
Trademark :
CLW
Origin :
Suizhou, China
HS Code :
87059099
Production Capacity :
300 Units Per Month
Description
Dongfeng 5Ton 5000L Water and Foam Fire Truck Fire Fighting Vehicle Fire Rescue Truck
Product Description

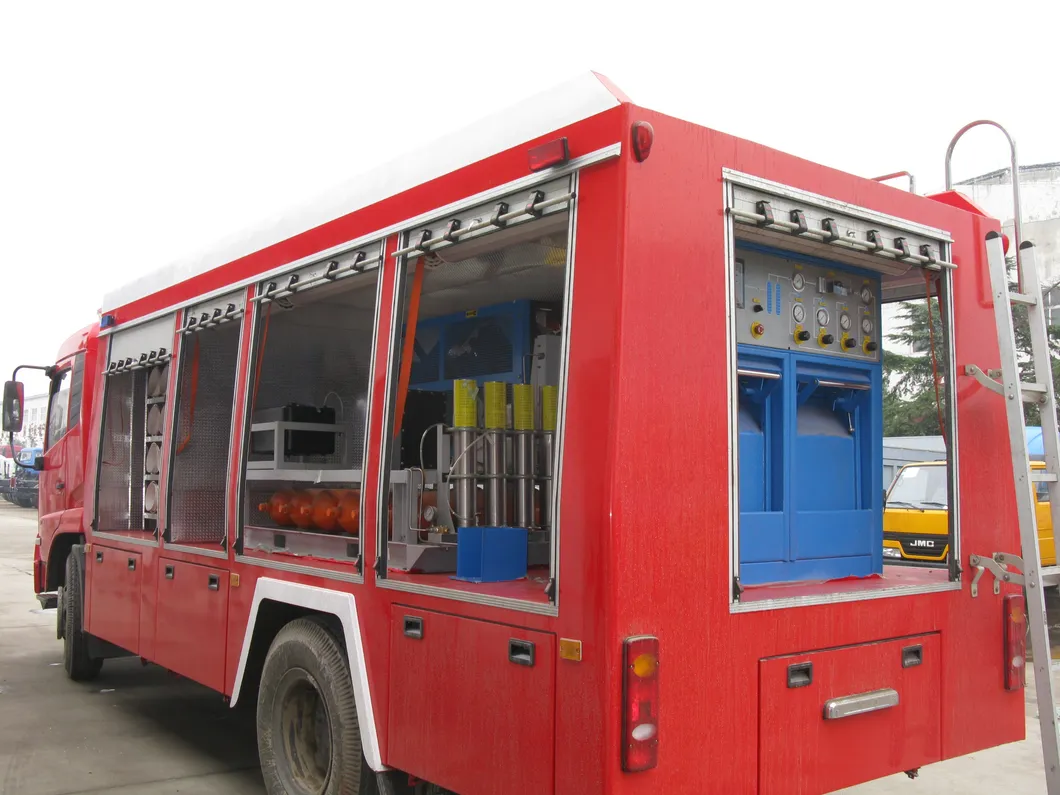

1.Dongfeng 4X2 fire fighting truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.

2) To ensure good performance of fire trucks,howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).

3) Fire trucks are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.

Specifications of Dongfeng 4X2 fire fighting truck
ModelParametersothers
Overall Dimension7660×2500×3460
GVW15560kg
Engine Model

Engine Power177kW
Wheelbase4500mm
Driving Type4X2
Max.speed90km/h
Emission Standard7790 mlEuro4
Passengers1+1+4
Fire pump rated flow60L/s@1.0Mpa;30L/s@2.0MpaVacuum pump
water monitor rated flow48-64L/sAdjustable
Water monitor rangeWater range≥60m,foam≥55m
Approach angle≥16°
Departure angle≥23°
Item ParametersParametersothers

1

Water tank capacitywater3000Built-in type
Foam tank capacityfoam2000
2Fire pump modelCB20·10/30·60Shanghai rongshen


3


Fire pump performance


condition

Pressure1:1.0Mpa flow:60L/S
Pressure2:2.0Mpa flow:30L/S		Use vacuum pump to priming water
4the installation site of fire pumprear
5The quantity of fire pump water outlet6
6Pressure gauge0-1.6 Mpa, 0-2.5 MPa2.6 level
7Vacuum gauge-0.1- -1 MPa2.6 level


8


Water monitor
(PL48-64YZ)

waterFlow:
48- 64L/S		Range:60mShandong zhangqiu
foamRange:55m
Depression/Elevation angle-30-+70°
Turning angle 360°
9PTO ModelYTQ590K type full power sandwich , pneumatic
