Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Certification :
ISO9000, CCC
MOQ :
1
Price :
15000-35000 per unit
Model NO. :
SY5251GXF
Transport Package :
Bulk Ship, RO-RO
Origin :
Suizhou, China
Cabin :
Double Row Four Doors 6 Persons Seats with A/C
HS Code :
87059099
Drive Wheel :
6×4
Trademark :
CLW
Driving Direction :
LHD Rhd
Horsepower :
150-250hp
Condition :
New
Chassis Truck Brand :
Beiben ,China Benz
Range :
Water 60-80m, Foam 50-70m
Tank Material :
Carbon Steel, Stainless Steel
Volume :
＞10000L
Transmission Type :
Manual
Payload :
8ton
Production Capacity :
300 Units Per Month
Water / Foam Tank Capacity :
Water 8000-16000L Foam 1000L-4000L
Fire Pump :
Normal Pressure, Middle-Low Pressure
Fire Monitor :
Manual, Optional Electric
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Fuel :
Diesel
Engine :
Weichai 336HP
Gear Box :
Fast 9-Speed
Specification :
11880x2500x3500mm
Emission Standard :
Euro 2,3,4
Description
North Benze Beiben 15000 Liters Foam and Water Fire Enginetruck for Sales
Product Description
  1. water fire truck, water and foam fire tender
  2. safe, reliable and easy to put out a fire with a low cost
  3. Long service life, convenient maintenance
  4. more fire vehicle for optional
1. fire truck Main equipped:
  1. fire truck chassis constitute cab, engine, gear box, steering wheel,beam,tyre,axles,etc.
  2. Fire truck upper body with water/foam tank, fire pump,fire monitor,pipe,etc.
  3. fire truck with Water fire fighting tank and foam fire fighting tank .or water fire fighting tank.
  4. fire truck with fire pump is normal pressure or middle-low pressure, made in China or imported.
  5. fire truck with fire monitor is controlled by Manual or Electric.
2. Fire tender main technical specifications:
model of chassis ND1250A50Q
Outside dimension(LWH)(mm) 10415×2495×3328
Tread(front/rear) 1990/1800
Approach angle /Departure angle 34/47
Front overhang / rear overhang(mm) 1410/2505
Driving type 6×6
wheelbase(mm) 5050+1450
Max.speed(km/h) 80
Kerb mass(kg) 25000
Kerb mass(kg) 12300
Max grade ability % (%) 70
Min turning radius (m) 21.8




engine

 model WD615.44, water cooling, four stroke, 6 cylinder in line
Displacement(ML) 9.726/diesel
power(Kw/rpm) 235/2200
Max. torque(Nm/rpm) 1250/1400-1600
Fuel consumption(g.kw/h) 197
Fuel tank capacity(L) 300
clutch type GFX420,dry diaphragm spring clutch,
Gear box type 5S-111GP, 9forward, 1 reverse
steering type America FUAO TAS85,hydraulic pressure
tire 12.00-20


Electric system

 Battery capacity (A.h) 2X12V/135Ah
Alternator 28V-35A
engine 5.4Kw/24V
cabin Double cabin, with air condition, four doors
FIRE TRUCK Special function





Tank

 Structure Welding, there is clapboard inner.


Material

 Water Tank High quality carbon steel plate, anti-rust treatment
Foam tank Stainless steel plate


Capacity

 Total 8000-16000L
Water Tank 8000-16000L
Foam tank 1000-5000L





Special Parts Parameter



Fire Pump

 Type Normal pressure fire pump
Model CB10/60
Flux 60L/S
Pressure 1.0Mpa
Fire Monitor Type For water and foam
Model PL48
Flux 48L/S
Pressure 1.0Mpa
PTO Use sandwich PTO, splashing-type lubricate, can put out fire when driving.
Carriage Carriage is made of high quality steel and Aluminum embossed sheet

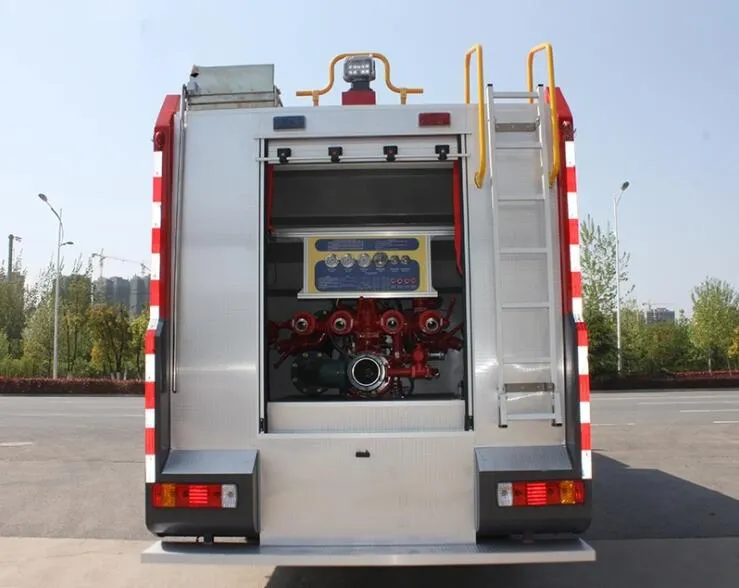

Pump room or on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch.



Equipment box

 Equipment box: at the back of carriage, there are two-layers clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box.
Structure: whole frame is welded to ensure intension and rigidity.
Material: frame is high quality steel, inner plague is aluminum embossed sheet,surface is anodic processed.
Rolling shutter door Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock.
color The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck.



Technical requirement

 1.Fire fighting vehicle is accord with GB7965 Performance requirements and test methods for fire fighting vehicle.
2.tank of foam and water is accord with GB39.5 General Specification for fire fighting vehicle.
3.the outside is very beauty, the surface roughness is accord with GB39.5 General Specification for fire fighting vehicle.
4.All operating switch and meter is accord with standard nameplate.
