Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Certification :
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
MOQ :
1
Price :
15000-35000 per unit
Volume :
3001-5000L
Emission Standard :
Euro 2
Transmission Type :
Manual
Payload :
3 Ton
Fuel :
Diesel
Drive Wheel :
4×2
Horsepower :
＜150hp
Condition :
New
Engine Model :
Yunei
Loading of F/R Axles :
2.4t /4.2t
Fire Pump :
CB10/20
Product Description :
DONGFENG 4X2 Small Mini 3cbm Fire Engine Wate
Chaasis Model :
Bj1030
Tires :
6.50-16
Driving Direction :
LHD Rhd
Water Tank :
3000L Water Tank
Fire Minitor :
Pl20
Transport Package :
Bulk Ship, RO-RO
Specification :
100x1680x2550mm
Trademark :
CLW
Origin :
Suizhou, China
HS Code :
87059099
Production Capacity :
300 Units Per Month
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Description

DONGFENG 4X2 Small Mini 3cbm Fire Engine Water Tank Truck, Fire Fighting Truck

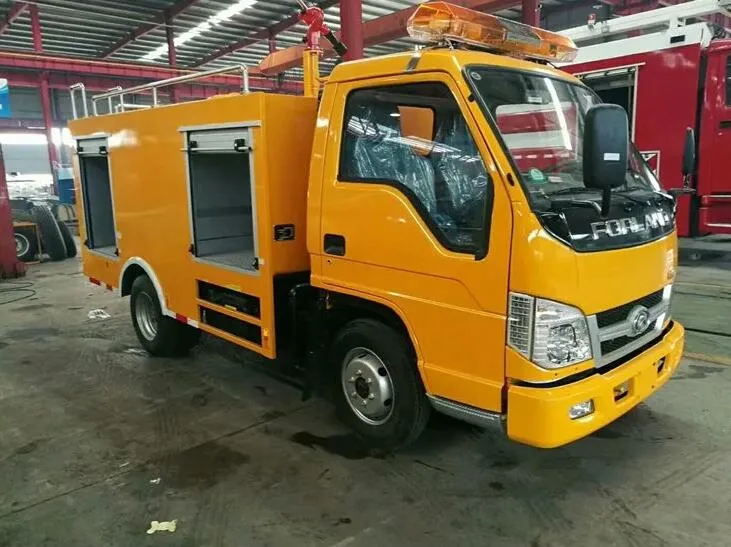

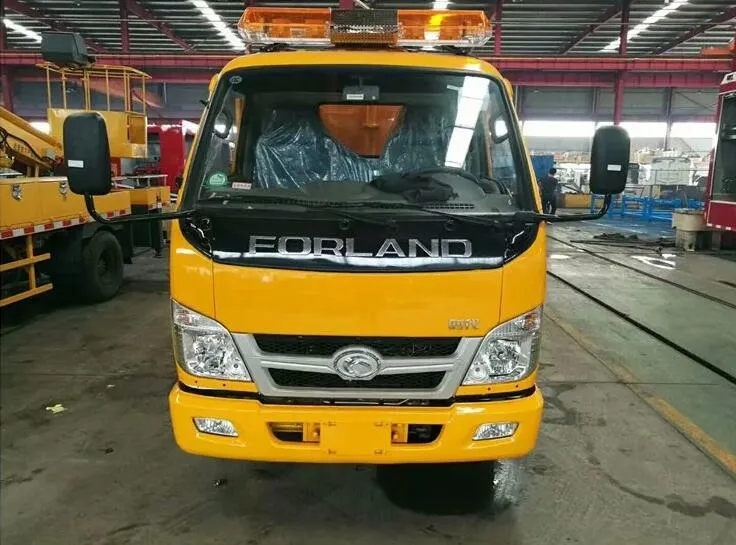

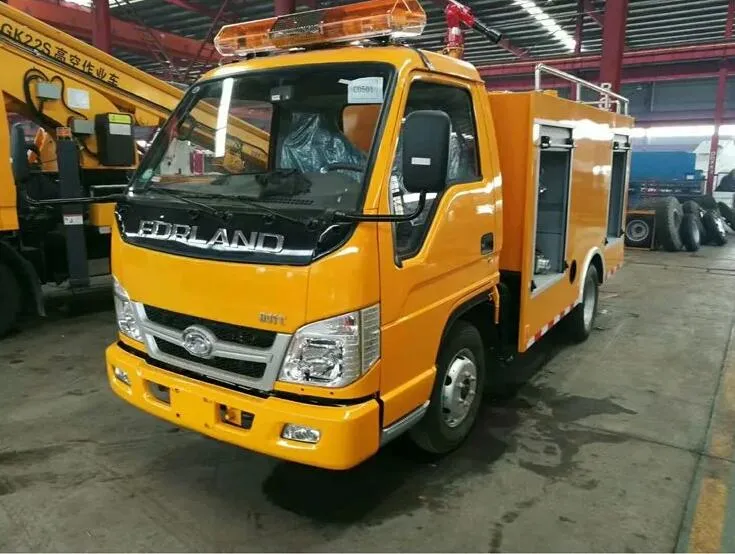

FOTON Forland 4x2 small mini 3CBM fire engine water tank truck,fire fighting truck
Overview
Name 3000 liters Fire Engine
Overall Dimension(LxWxH) 5990X1960X2380(mm)
Total Mass 8050Kg
Rated Payload 5000Kg
Kerb Weight 3050Kg
Cab Double Cab
Passenger 6
Approach/Departure Angle 19/15
The Parameters of Chassis
Manufacture/Model Forland
Driving Type 4*2 left/right hand drive
Wheel Base 3300 mm
Gearbox Six speed lever with five speed forward and one reverse, manual
Front/Rear Track 1506/1466(mm)
Tyre 7.00-16
The Number of Tyre 6+1(spare tyre)
Front/ Rear Suspension 1032/1658(mm)
Leaf Spring Number 8/9+5, 6/8+4
The Paremeters of Engine
Manufacturer/Model Yunei
Rated Power 98hp
Fuel Type Diesel oil
Displacement/Capacity 3856ml
Emission Standard Euro 3
Cylinder Straight/4/intercooling
Max. torque 450N.m
Velocity 3200rpm
The Parameters of Equipment
Fire Monitor Range 50-55 m
Pressure 1.0-2.0 Mpa
Rotation Speed 3200r/min
Flow Capacity 15-60L/S
Division Time 25S
Vertical Suction Range 7m
Material of Tank Carbon steel
Tank Thickness 4mm
Water 3000 L
Color Fire Engine Red, or customizable


Common Accessories

 2 Φ100×4m fire suction hose; 1 Φ100 water filter; 6 Φ65×20m firehose; 2 Φ80×20m firehose; 4 hose strap; 4 hose bandage; 2 Φ65-80 hose adapter; 1 Φ100 same adaptor; 1 Φ65 water stream branch; 1 multi-jet squirt; 1 DC switch water; 1 pick; 1 ground wrench; 1 fireman's axe; 1 fire tricks; 1 spade; 1 crow bar.
