Isuzu Elf 2ton Fire Fighting Truck 2000liters Water Tanker Fire Rescue Truck
Isuzu Elf 2ton Fire Fighting Truck 2000liters Water Tanker Fire Rescue Truck
Isuzu Elf 2ton Fire Fighting Truck 2000liters Water Tanker Fire Rescue Truck
Isuzu Elf 2ton Fire Fighting Truck 2000liters Water Tanker Fire Rescue Truck
Isuzu Elf 2ton Fire Fighting Truck 2000liters Water Tanker Fire Rescue Truck
Isuzu Elf 2ton Fire Fighting Truck 2000liters Water Tanker Fire Rescue Truck
Isuzu Elf 2ton Fire Fighting Truck 2000liters Water Tanker Fire Rescue Truck
Isuzu Elf 2ton Fire Fighting Truck 2000liters Water Tanker Fire Rescue Truck
Isuzu Elf 2ton Fire Fighting Truck 2000liters Water Tanker Fire Rescue Truck
Isuzu Elf 2ton Fire Fighting Truck 2000liters Water Tanker Fire Rescue Truck
Isuzu Elf 2ton Fire Fighting Truck 2000liters Water Tanker Fire Rescue Truck
Isuzu Elf 2ton Fire Fighting Truck 2000liters Water Tanker Fire Rescue Truck
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Volume :
＜3000L
Payload :
7tons
Condition :
New
Suction Depth :
Deeper Than 7m
Model of Fire Pump :
CB10/20fire Pump
HS Code :
8705309990
Flow Rate of Fire Monitor :
20L/S 1.0MPa
MOQ :
1
Price :
15000-35000 per unit
Fuel :
Diesel
Origin :
Suizhou, China
Transmission Type :
Manual
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Horsepower :
＜150hp
Production Capacity :
300 Units Per Month
Model of Fire Monitor :
PS20 Fire Monitor
Xtinguishant :
Water
Transport Package :
Bulk Ship, RO-RO
Model NO. :
CLW5071GXF
Emission Standard :
Euro 4
Engine Type :
4HK1cn5ls/72kw
Fire Monitor Range :
Less Than 48meters
Flow Rate of Fire Pump :
20L/S 1.0MPa
Type of Fire Pump :
Normal Pressure Centrifugal Pump
Trademark :
CLW
Drive Wheel :
4×2
Specification :
2000Liters, 2cbm, 2m3, 2000kg water
Water Tank Capacity :
2ton, 2000kg, 2t
Description

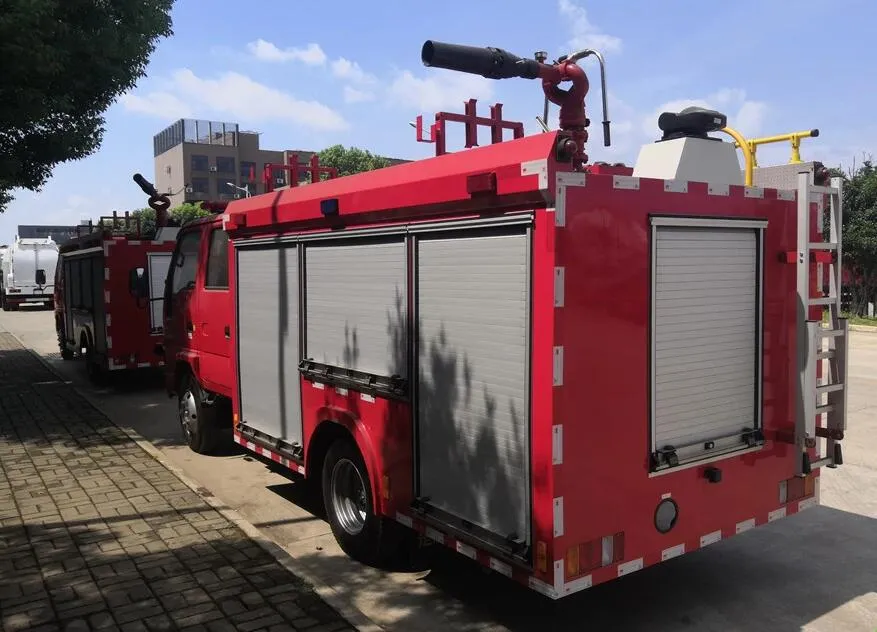

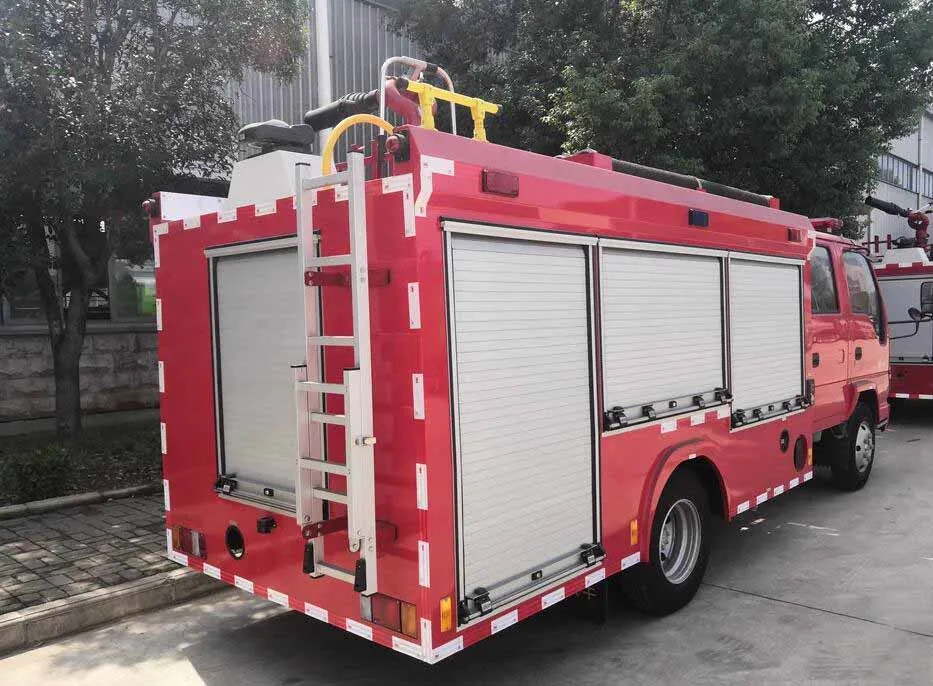

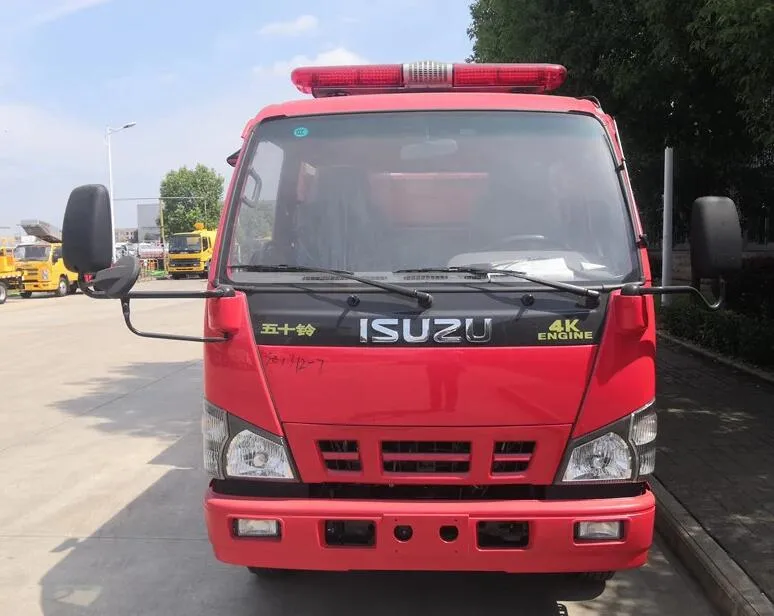

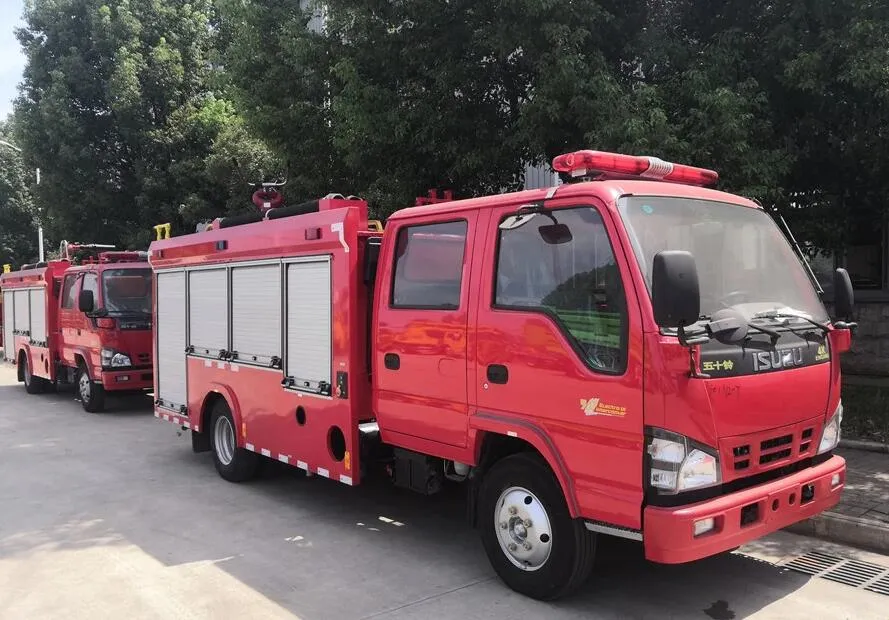

ISUZU ELF 2ton Fire Fighting Vehicle 2000liters Water Tanker Fire Rescue Fighter Truck

1SUZU fire rescue fighter truck,which is also called water fire engine,water foam fire truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire rescue fighter truck can be divided into several types:
  • According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
  • According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for m ilitary use.
  • According to chassis brand, there are 1SUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,5cania fire fighting truck and so on.
  • According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
  • There are also fire rescue truck with special purpose as follows,
    • Foam supply fire truck;
    • Compressed air supply fire fighting truck;
    • Water tower fire truck ;
    • Earthquake rescue fire truck;
Features of fire rescue fighter truck:
  • 1SUZU chassis, perfect performance.
  • 1SUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
  • Nice shape, rational structure.
  • High quality fire pump.
  • Massive, durable, long service life.
Spec. of 1SUZU ELF 2ton Fire Fighting Vehicle 2000liters Water Tanker Fire Rescue Fighter Truck
Model Parameters others
Overall Dimension 6185×2020×2750mm
GVW 7300kg
Engine Model 4KH1-TCG40
Engine Power 88kW
Wheelbase 3815mm
Driving Type 4×2
Max.speed 105km/h
Emission Standard 2999ml Euro4
Passengers 2+3
Fire pump rated flow 20L/s@1.0Mpa Vacuum pump
water monitor rated flow 20L/s@1.0MPa
Water monitor range Water range≥45m
Approach angle ≥21°
Departure angle ≥13°
Fire performance parameters:
Item Parameters Parameters others
1 Water tank capacity water 1000kg Built-in type
2 Fire pump model CB10/20

3

 Fire pump performance 20L/s@1.0MPa Use vacuum pump to priming water
4 the installation site of fire pump rear
5 The quantity of fire pump water outlet 2
6 Pressure gauge 0-1.6 Mpa 2.6 level
7 Vacuum gauge -0.1- -1 MPa 2.6 level

8

Water monitor
(PS20)

Injection pressure

 water:≥45m
1.0Mpa
Depression/Elevation angle -15°~+60°
Turning angle 360°
9 PTO Model YTQ200 (12V), MOTOR
