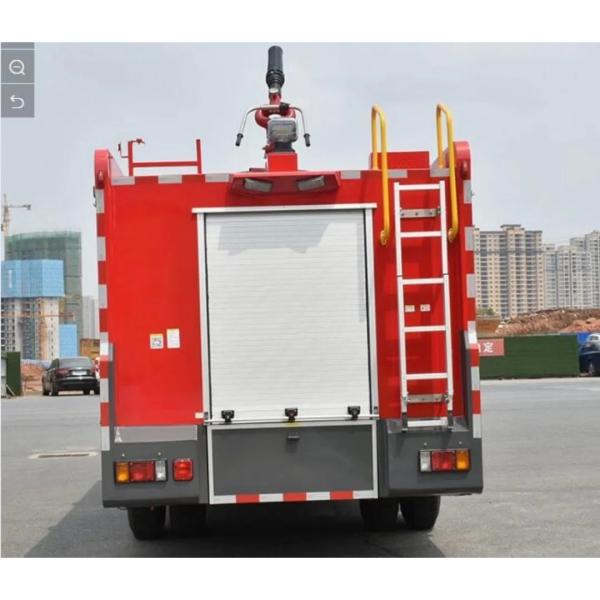

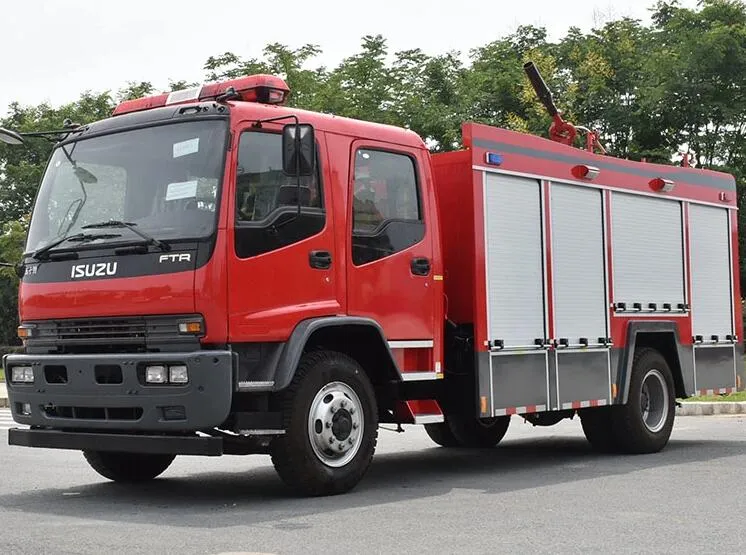

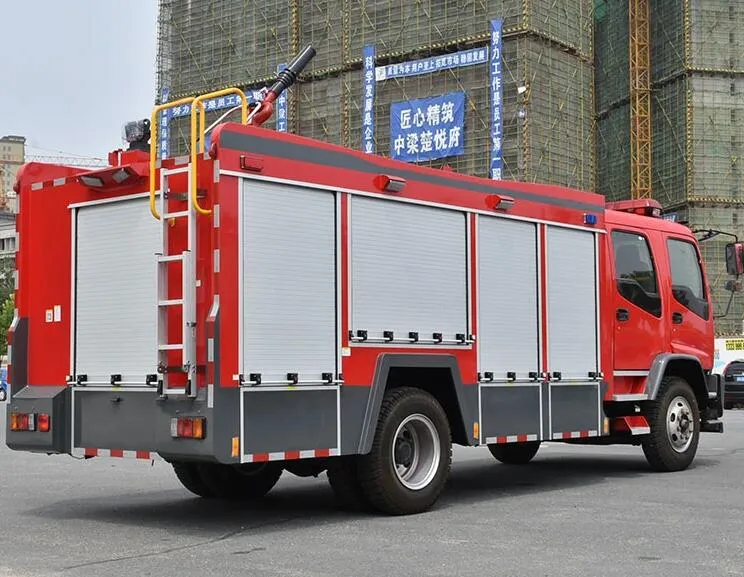

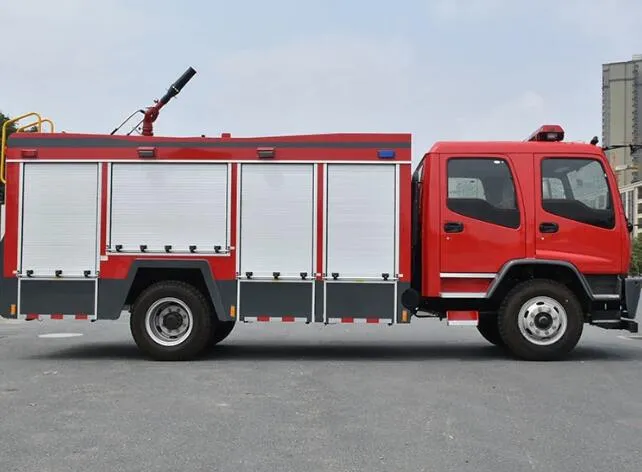

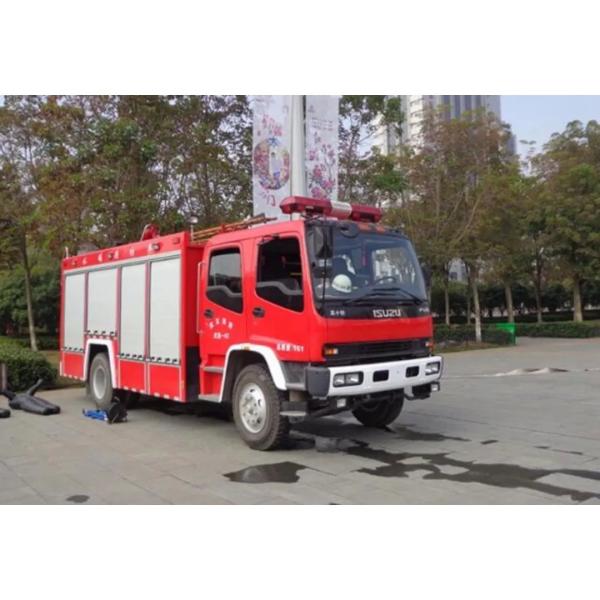

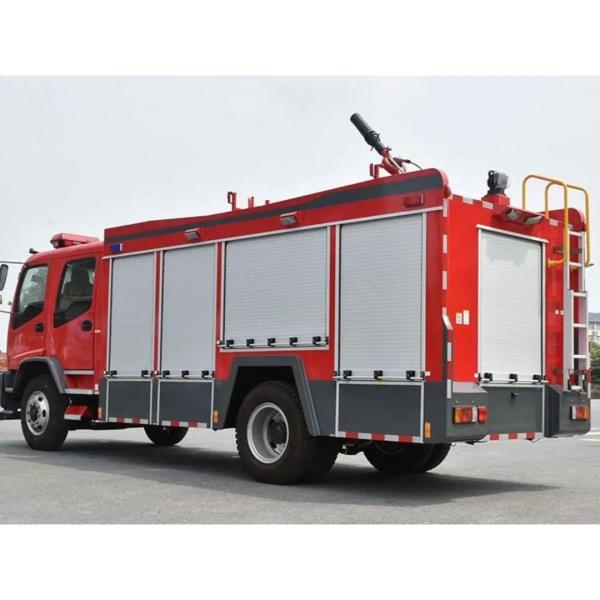

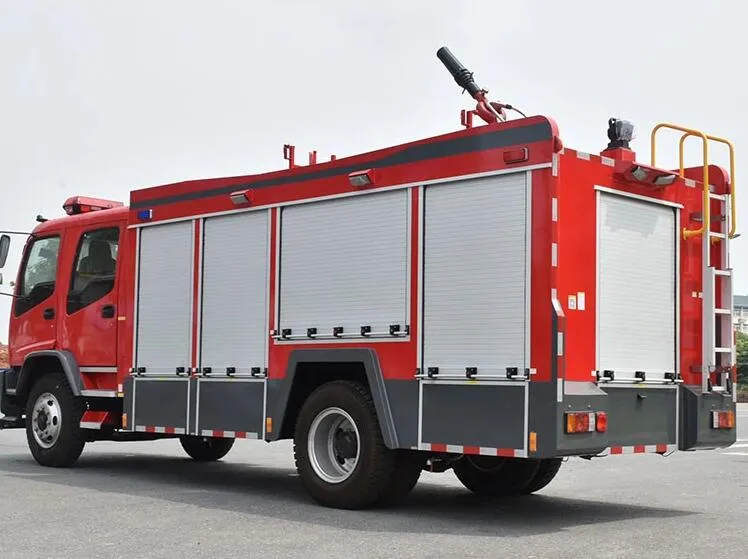

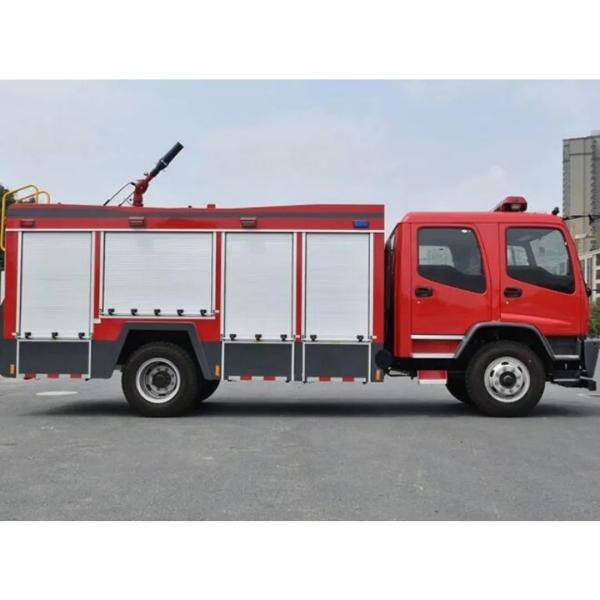

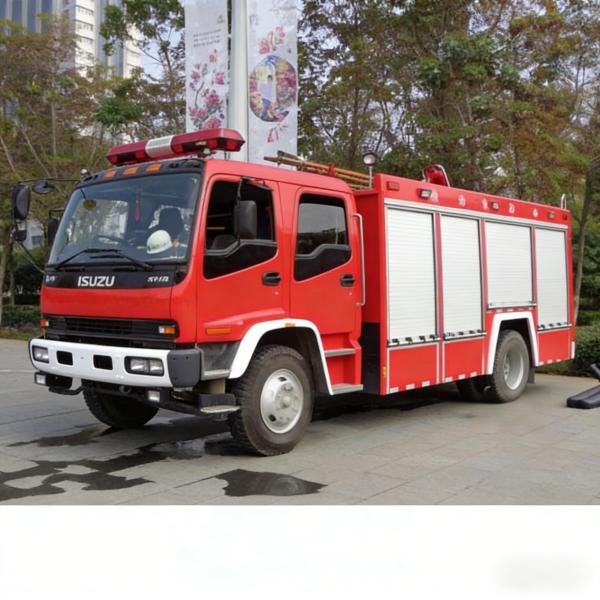

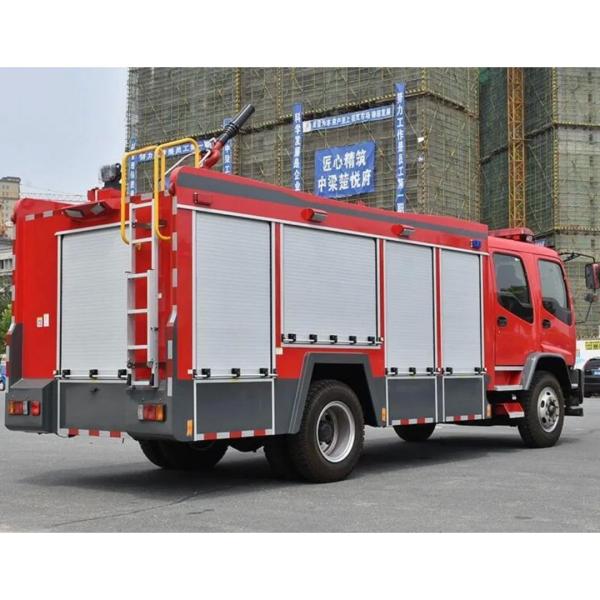

ISUZU Fvr 240HP 4tons Water 2tons Foam Fire Truck 6tons Fire Rescue Vehicles
ISUZU Fvr 240HP 4tons Water 2tons Foam Fire Truck 6tons Fire Rescue Vehicles
ISUZU Fvr 240HP 4tons Water 2tons Foam Fire Truck 6tons Fire Rescue Vehicles
ISUZU Fvr 240HP 4tons Water 2tons Foam Fire Truck 6tons Fire Rescue Vehicles
ISUZU Fvr 240HP 4tons Water 2tons Foam Fire Truck 6tons Fire Rescue Vehicles
ISUZU Fvr 240HP 4tons Water 2tons Foam Fire Truck 6tons Fire Rescue Vehicles
ISUZU Fvr 240HP 4tons Water 2tons Foam Fire Truck 6tons Fire Rescue Vehicles
ISUZU Fvr 240HP 4tons Water 2tons Foam Fire Truck 6tons Fire Rescue Vehicles
ISUZU Fvr 240HP 4tons Water 2tons Foam Fire Truck 6tons Fire Rescue Vehicles
ISUZU Fvr 240HP 4tons Water 2tons Foam Fire Truck 6tons Fire Rescue Vehicles
ISUZU Fvr 240HP 4tons Water 2tons Foam Fire Truck 6tons Fire Rescue Vehicles
ISUZU Fvr 240HP 4tons Water 2tons Foam Fire Truck 6tons Fire Rescue Vehicles
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Model NO. :
CLW5160GXF
Volume :
5001-7000L
Trademark :
CLW
Condition :
New
Engine Type :
6HK1-Tcng40/176kw
Transmission Type :
Manual
Specification :
4000Liters 4000kg water 2000liters foam
MOQ :
1
Price :
15000-35000 per unit
Payload :
4tons
Fuel :
Diesel
Transport Package :
Bulk Ship, RO-RO
Production Capacity :
300 Units Per Month
Water Tank Capacity :
4ton, 4000kg, 4t, 4tons
Xtinguishant :
Water
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Model of Fire Pump :
CB20.10/30.60 Fire Pump
Horsepower :
251-350hp
Flow Rate of Fire Pump :
48L/S 1.0MPa
Suction Depth :
Deeper Than 7m
Origin :
Suizhou, China
HS Code :
8705309990
Model of Fire Monitor :
Pl48 Fire Monitor
Emission Standard :
Euro 4
Fire Monitor Range :
Water 60meter and Foam 55meters
Drive Wheel :
4×2
Type of Fire Pump :
Medium-Low Centrifugal Pump
Flow Rate of Fire Monitor :
30L/S 1.0MPa
Description

ISUZU FVR 240hp 4tons Water 2tons foam Fire Truck 6tons Fire Fighting Trucks for Chile

Fire fighting truck,which is also called water fire engine,water foam fire truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire Fighting Trucks can be divided into several types:

  • According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
  • According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for mil itary use.
  • According to chassis brand, there are IS UZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Sc ania fire fighting truck and so on.
  • According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
  • There are also fire rescue truck with special purpose as follows,
    • Foam supply fire truck;
    • Compressed air supply fire fighting truck;
    • Water tower fire truck ;
    • Earthquake rescue fire truck;

Features of ISUZU 6tons water and foam Fire Fighting Trucks:

  • ISUZU chassis, perfect performance.
  • ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
  • Nice shape, rational structure.
  • High quality fire pump.
  • Massive, durable, long service life.
Spec. of ISUZU FVR 240hp 4tons Water 2tons foam Fire Truck 6tons Fire Fighting Trucks for Chile
Model Parameters others
Overall Dimension 8160×2500×3460
GVW 15560kg
Engine Model 6HK1-TCNG40
Engine Power 177kW
Wheelbase 4500mm
Driving Type 4X2
Max.speed 90km/h
Emission Standard 7790 ml Euro4
Passengers 1+1+4
Fire pump rated flow 60L/s@1.0Mpa;30L/s@2.0Mpa Vacuum pump
water monitor rated flow 48-64L/s Adjustable
Water monitor range Water range≥60m,foam≥55m
Approach angle ≥16°
Departure angle ≥23°
Item Parameters Parameters others
1 Water tank capacity water 4000 Built-in type
Foam tank capacity foam 2000
2 Fire pump model CB20·10/30·60 Shanghai rongshen

3

Fire pump performance

condition

 Pressure1:1.0Mpa flow:60L/S
Pressure2:2.0Mpa flow:30L/S		 Use vacuum pump to priming water
4 the installation site of fire pump rear
5 The quantity of fire pump water outlet 6
6 Pressure gauge 0-1.6 Mpa, 0-2.5 MPa 2.6 level
7 Vacuum gauge -0.1- -1 MPa 2.6 level

8

Water monitor
(PL48-64YZ)

 water Flow:
48- 64L/S		 Range:60m Shandong zhangqiu
foam Range:55m
Depression/Elevation angle -30-+70°
Turning angle 360°
9 PTO Model YTQ590K type full power sandwich , pneumatic
