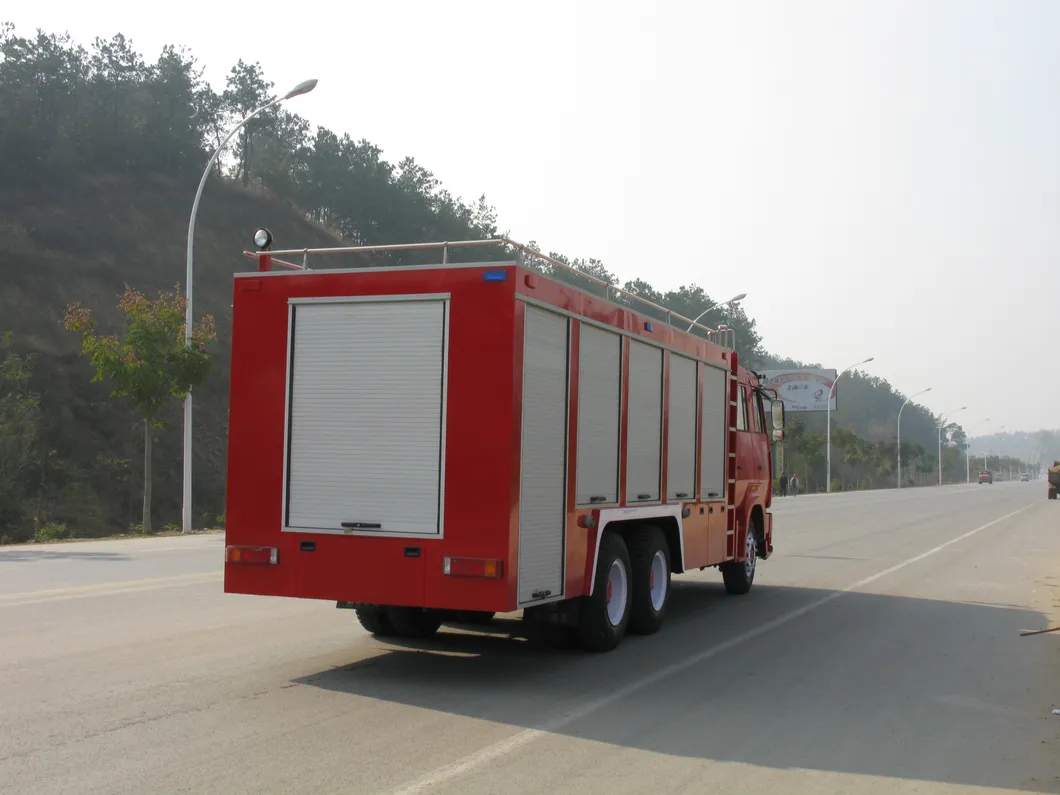

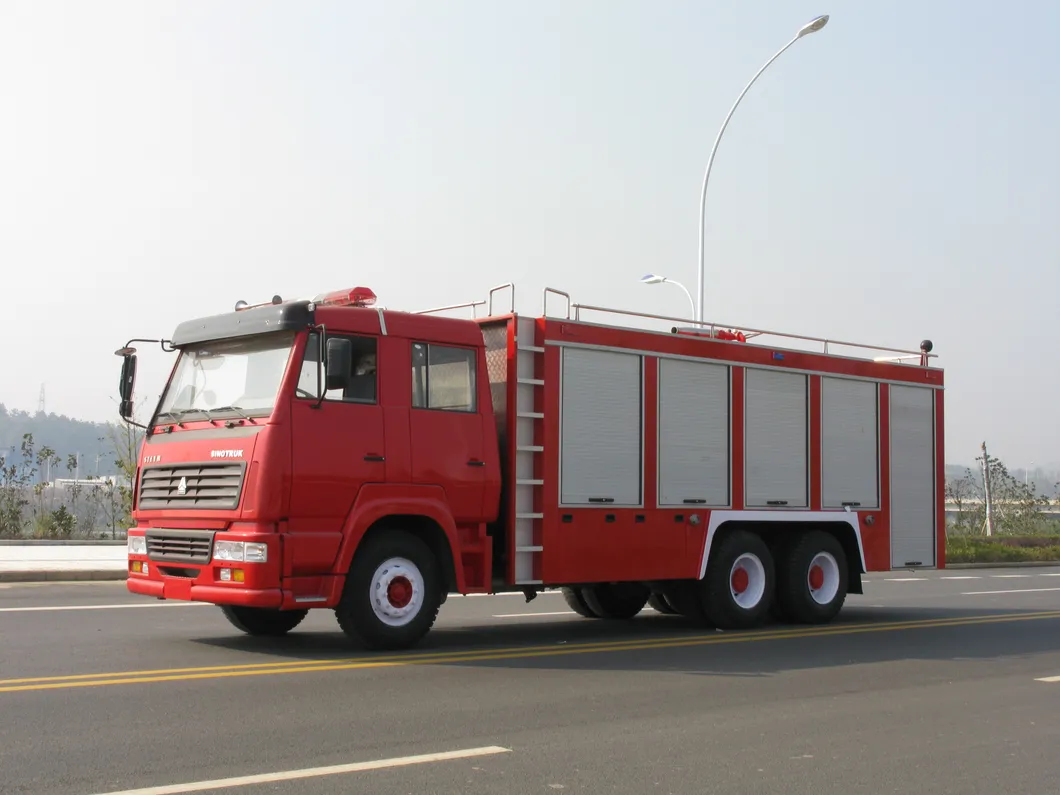

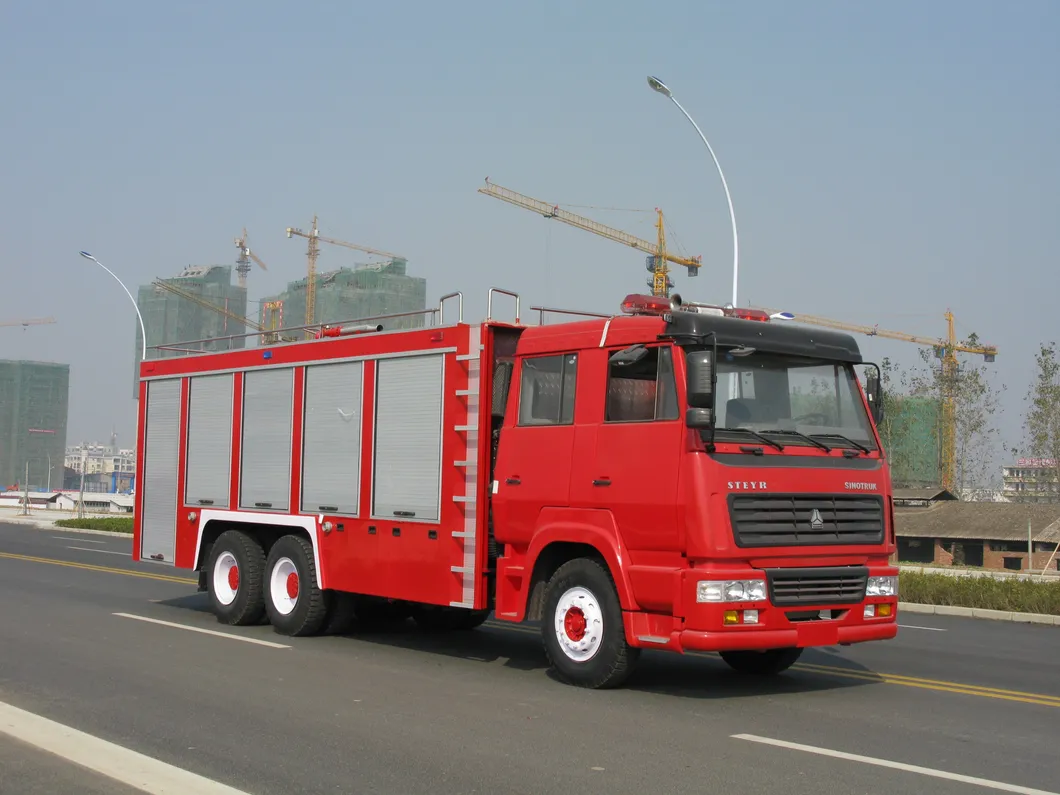

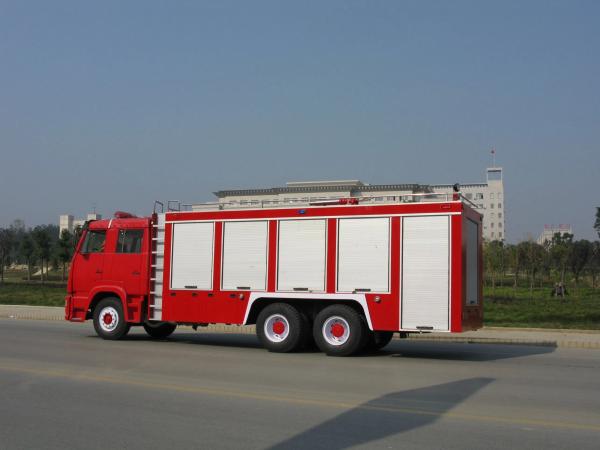

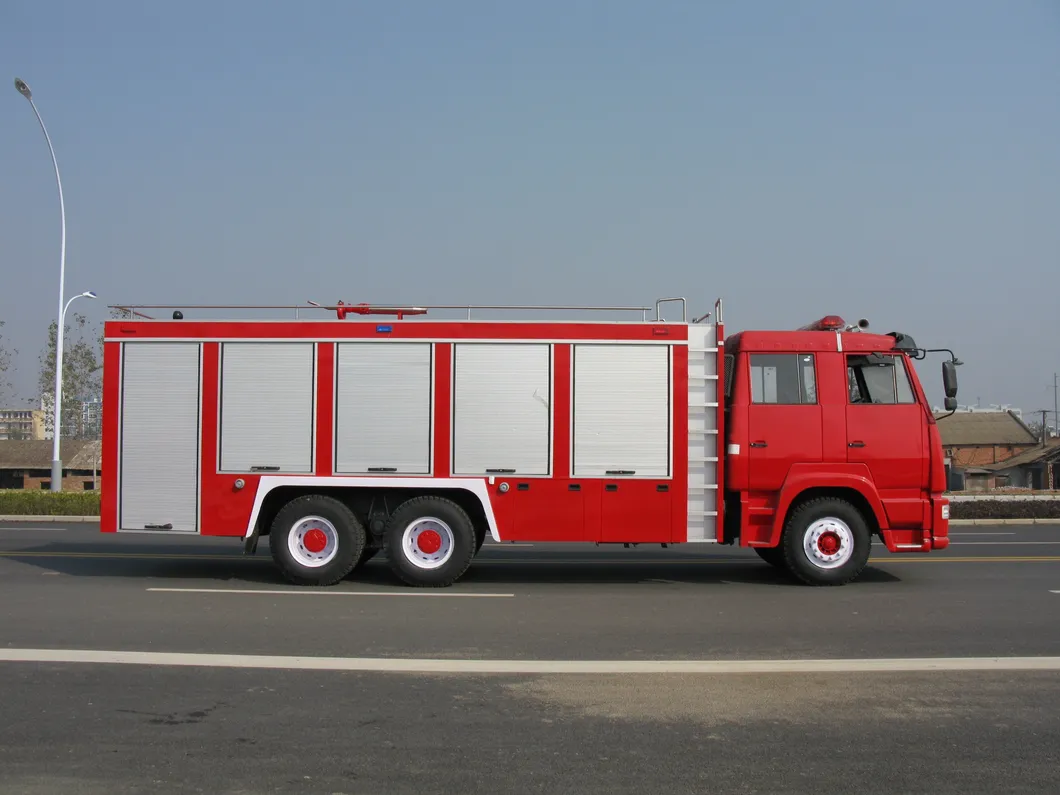

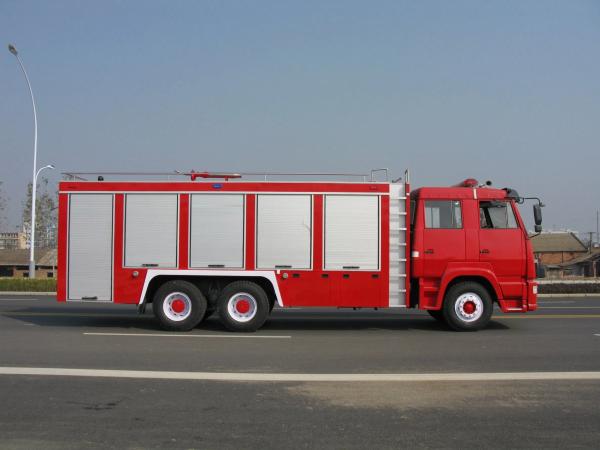

16tons Fire Engine Vehicle 251hp-350hp Foam And Water Tanker Fire Truck
16tons Fire Engine Vehicle 251hp-350hp Foam And Water Tanker Fire Truck
16tons Fire Engine Vehicle 251hp-350hp Foam And Water Tanker Fire Truck
16tons Fire Engine Vehicle 251hp-350hp Foam And Water Tanker Fire Truck
16tons Fire Engine Vehicle 251hp-350hp Foam And Water Tanker Fire Truck
16tons Fire Engine Vehicle 251hp-350hp Foam And Water Tanker Fire Truck
16tons Fire Engine Vehicle 251hp-350hp Foam And Water Tanker Fire Truck
16tons Fire Engine Vehicle 251hp-350hp Foam And Water Tanker Fire Truck
16tons Fire Engine Vehicle 251hp-350hp Foam And Water Tanker Fire Truck
16tons Fire Engine Vehicle 251hp-350hp Foam And Water Tanker Fire Truck
16tons Fire Engine Vehicle 251hp-350hp Foam And Water Tanker Fire Truck
16tons Fire Engine Vehicle 251hp-350hp Foam And Water Tanker Fire Truck
Specifications
Volume :
＞10000L
Place of Origin :
CHINA
Brand Name :
CLW
Fuel :
Diesel
Payload :
16tons
Dry Powder Size :
500liters, 500L, 0.5cbm, 0.5m3
Foam Tank Capacity :
2ton, 2000kg, 2t, 3tons, 3000kg, 3t
Model of Fire Pump :
CB20.10/30.60 Fire Pump
Drive Wheel :
6×4
Model NO. :
CLW5314GXF
Emission Standard :
Euro 2
Transmission Type :
Manual
Type of Fire Pump :
Low Pressure Centrifugal Pump
MOQ :
1
Price :
15000-35000 per unit
Production Capacity :
300 Units Per Month
Suction Depth :
Deeper Than 7m
Fire Monitor Range :
Water More Than 55meters, Foam More Than 50mete
Flow Rate of Fire Monitor :
60L/S 1.0MPa
Engine Type :
Wd615.69, 336HP
Transport Package :
Bulk Ship, RO-RO
Horsepower :
251hp-350hp
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Flow Rate of Fire Pump :
60L/S 1.0MPa
Origin :
Suizhou, China
Name :
NewFire Engine Vehicle
Water Tank Capacity :
13ton, 13000kg, 13t, 13tons
Specification :
15000liters 16000liters 15000L 16000L 15cbm 16cbm
Trademark :
CLW
HS Code :
8705309990
Model of Fire Monitor :
Pl48 Fire Monitor
Description
16tons Howo 10-wheel Fire Engine 13000Liters Water 3000liters foam Tanker Fire Fighting Truck

Fire Fighting Truck, which is also called water fire engine,water foam fire truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire Fighting Truck can be divided into several types:
  • According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
  • According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck.
  • According to chassis brand, there are howo fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck, fire fighting truck and so on.
  • According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
  • There are also fire rescue truck with special purpose as follows,
    • Foam supply fire truck;
    • Compressed air supply fire fighting truck;
    • Water tower fire truck ;
    • Earthquake rescue fire truck;
Features of howo Fire Fighting Truck :
  • Optional for different siz,strong enough for all road conditions.
  • powderful engin; reliable performance, no overhaul within 100,000 km.
  • Nice shape, rational structure.
  • High quality fire pump
  • Massive, durable, long service life.
Spec. of 16tons Howo 10-wheel Fire Engine 13000Liters Water 3000liters foam Tanker Fire Fighting Truck
Condition New condition/Left or Right hand drive/6x4

Chassis

 Brand SINOTRUK
Model HOWO
Curb weight(kg) 15750
Wheelbase(mm) 4300+1350 mm
Dimensions(mm) 10650*2500*3540 mm
Overhang (front/rear) (mm) 1500/2500 mm
Wheel track (front/rear) (mm) 2110/1830/1830 mm
Approach/Departure angle(°) 15/11°
Axle Load(kg) 7000/13000/13000
Max. driving speed(km/h) 95 km/h
Clutch Reinforced diaphragm clutch

Brakes

 Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Number 10pcs with one spare tire
Specifications 12R22.5
Gear box HW13710, Manual type, 10 Forwards & 2 Reverses
Cabin Four doors and it can hold 8 fire fighter and 1 driver. With Air conditioner

Engine

 Brand SINOTRUK
Model HOWO
Fuel type Diesel
Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Displacement(ml) 9726 ml
Power(kw) 247kw
Horsepower(HP) 336 HP
Emission standard Euro 2
Torque(N.m) 1500 N.m
Upper & Fire Fighting System

Water tank

 Volume(CBM) 13.0 CBM
Tank Material Q235 Carbon steel
Foam tank Volume(CBM) 3.0 CBM
Tank Material Q235 Carbon steel
Proportion control system Foam vessel , proportioned equipment, water - entering pipe and liquid - out pipe etc

Fire pump

 Type Centrifugal pump
Model CB20.10/30.60
Flow(L/s) 60
Pressure(Mpa) 1.0
Fire fighting pump Suction depth ≥ 7 m
Fire fighting pump Suction Time ≤45 s

Fire cannon

 Model PL48
Flow(L/s) 48 L/s
Water Range(m) ≥55 m
Foam Range(m) ≥50 m
Swing angle Horizontal 360 °
Tilt angle -30°~80°
