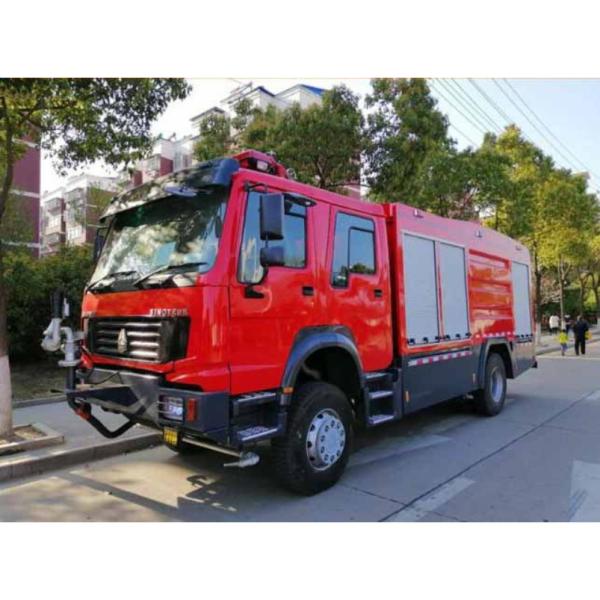

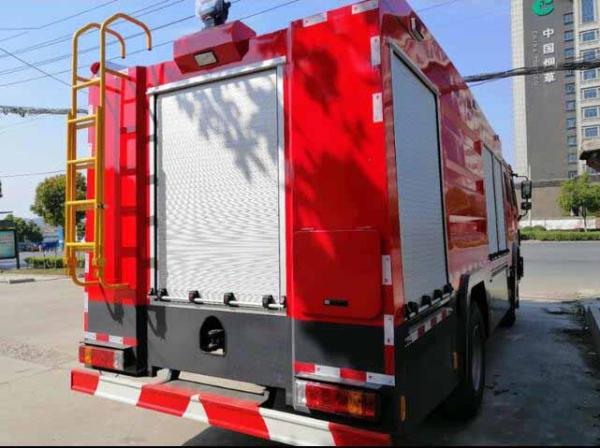

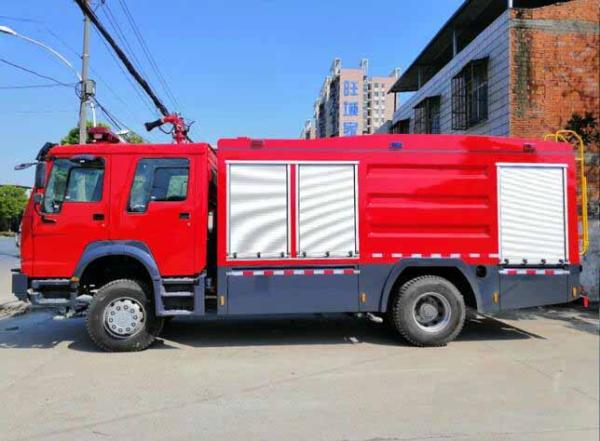

4X4 Off Road Fire Fighting Vehicles 5tons All Wheel Drive Water And Foam Fire Truck
4X4 Off Road Fire Fighting Vehicles 5tons All Wheel Drive Water And Foam Fire Truck
4X4 Off Road Fire Fighting Vehicles 5tons All Wheel Drive Water And Foam Fire Truck
4X4 Off Road Fire Fighting Vehicles 5tons All Wheel Drive Water And Foam Fire Truck
4X4 Off Road Fire Fighting Vehicles 5tons All Wheel Drive Water And Foam Fire Truck
4X4 Off Road Fire Fighting Vehicles 5tons All Wheel Drive Water And Foam Fire Truck
4X4 Off Road Fire Fighting Vehicles 5tons All Wheel Drive Water And Foam Fire Truck
4X4 Off Road Fire Fighting Vehicles 5tons All Wheel Drive Water And Foam Fire Truck
4X4 Off Road Fire Fighting Vehicles 5tons All Wheel Drive Water And Foam Fire Truck
4X4 Off Road Fire Fighting Vehicles 5tons All Wheel Drive Water And Foam Fire Truck
4X4 Off Road Fire Fighting Vehicles 5tons All Wheel Drive Water And Foam Fire Truck
4X4 Off Road Fire Fighting Vehicles 5tons All Wheel Drive Water And Foam Fire Truck
Specifications
Extinguishant :
Water, Foam and Dry Powder
Suction Depth :
Deeper Than 7m
MOQ :
1
Price :
15000-35000 per unit
Place of Origin :
CHINA
Brand Name :
CLW
Name :
Off Road Fire Fighting Vehicles
Emission Standard :
Euro 2
Drive Wheel :
4X4
Condition :
New
Specification :
3000Liters water 1000liter foam 500liters powder
Engine Type :
Wd615.87, 290HP
Trademark :
CLW
Production Capacity :
300 Units Per Month
Model of Fire Monitor :
PS30W Fire Monitor
Payload :
5tons
Fire Monitor Range :
More Than 55meters
Horsepower :
251-350hp
Model NO. :
CLW5167M46
Transport Package :
Bulk Ship, RO-RO
HS Code :
8705309990
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Water Tank Capacity :
3ton, 3000kg, 3t, 3tons
Flow Rate of Fire Monitor :
30L/S 1.0MPa
Origin :
Suizhou, China
Type of Fire Pump :
Low Pressure Centrifugal Pump
Dry Powder Size :
500liters, 500L, 0.5cbm, 0.5m3
Transmission Type :
Manual
Foam Tank Capacity :
1ton, 1000kg, 1t
Volume :
3001-5000L
Fuel :
Diesel
Model of Fire Pump :
CB10/60 Fire Pump
Description

Howo All Wheel Drive Fire Fighting Truck RHD Water Foam Dry Powder 4X4 Off Road Fire Truck

Off Road Fire Truck,which is also called water fire engine,water foam fire truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Off Road Fire Truck can be divided into several types:

  • According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
  • According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck
  • According to chassis brand, there are HOWO fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck, fire fighting truck and so on.
  • According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
  • There are also fire rescue truck with special purpose as follows,
    • Foam supply fire truck;
    • Compressed air supply fire fighting truck;
    • Water tower fire truck ;
    • Earthquake rescue fire truck;

Features of Off Road Fire Truck:

  • 4X4 or 6X6 chassis,better passing ability,suitable for tough road and forest fire fighting work.
  • powderful engin; reliable performance, no overhaul within 100,000 km.
  • Nice shape, rational structure.
  • High quality fire pump
  • Massive, durable, long service life.

Spec. of Howo All Wheel Drive Fire Fighting Truck RHD Water Foam Dry Powder 4X4 Off Road Fire Truck

Model Parameters others
Overall Dimension 8470×2500×3640mm
GVW 16000kg
Engine Model WD615.87
Engine Power 213kW/290hp
Wheelbase 4600mm
Driving Type 4×4
Max.speed 100km/h
Emission Standard 5900ml Euro 2
Passengers 2+3
Fire pump rated flow 60L/s@1.0Mpa Vacuum pump
water monitor rated flow 60L/s@1.0MPa
Water monitor range Water range≥55m
Approach angle ≥19°
Departure angle ≥13°

Fire performance parameters:

Item Parameters Parameters others
1 Water tank capacity water 3000kg Built-in type
2 Fire pump model
