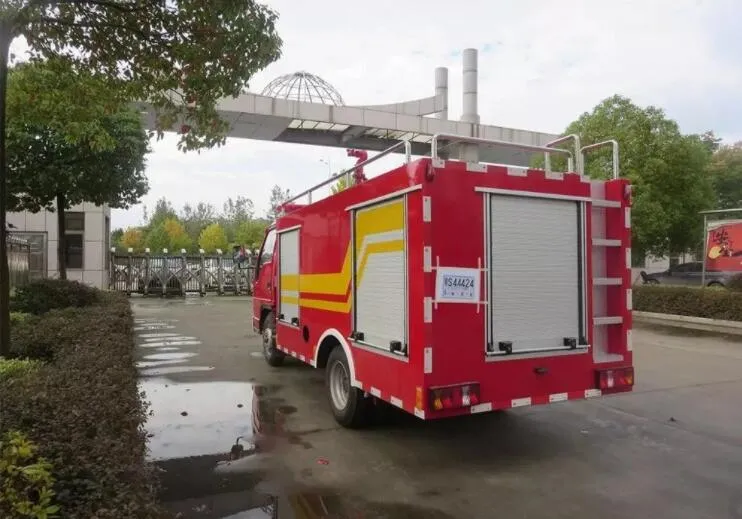

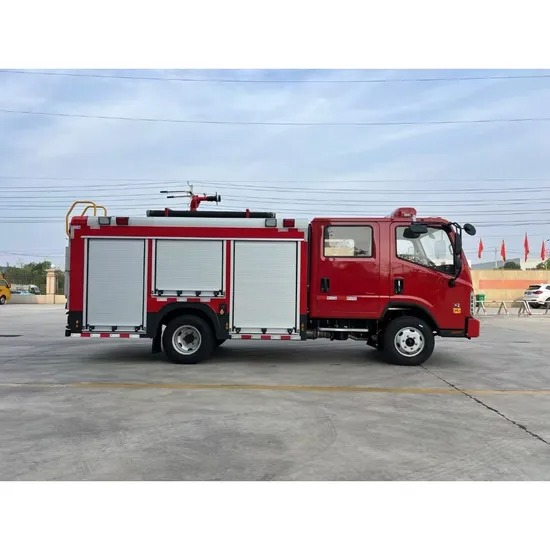

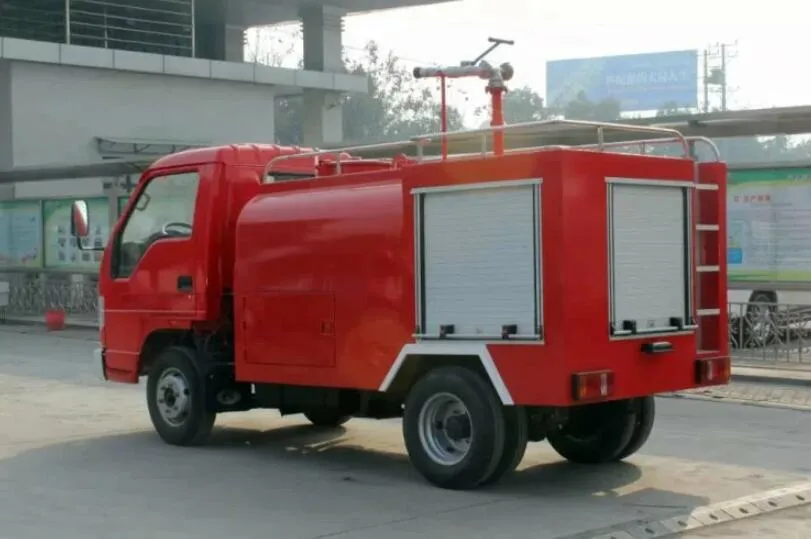

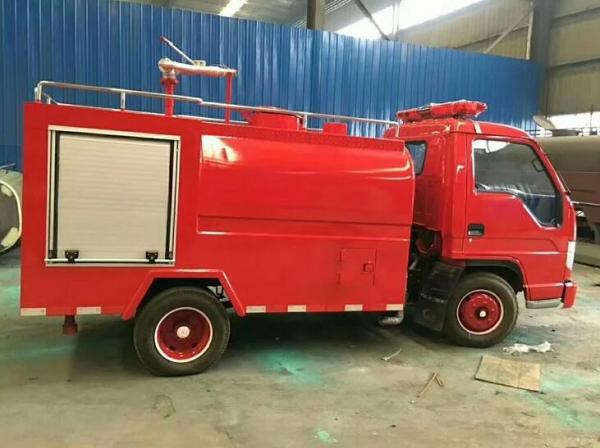

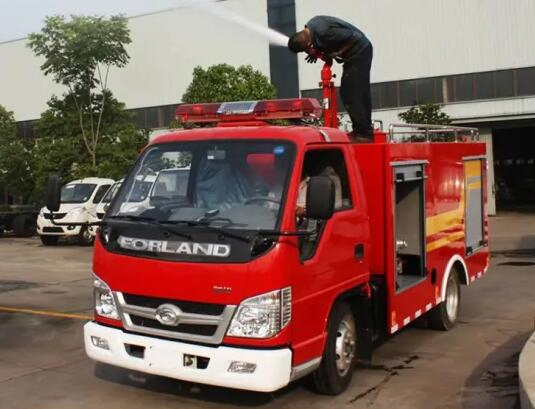

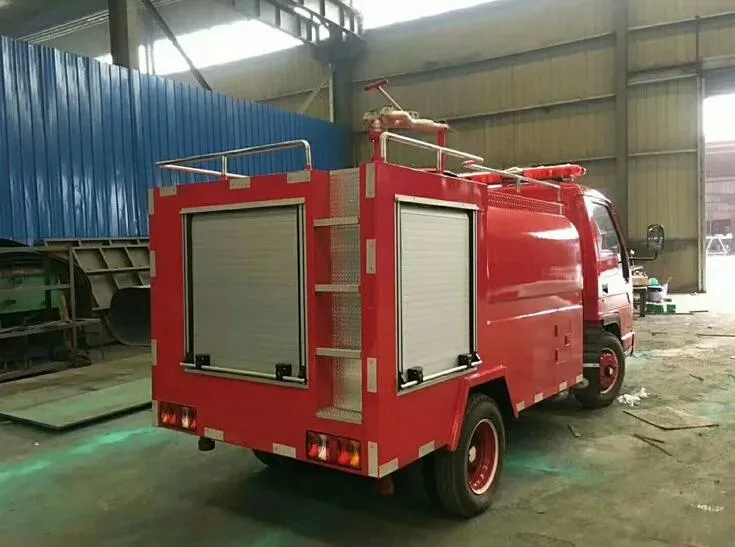

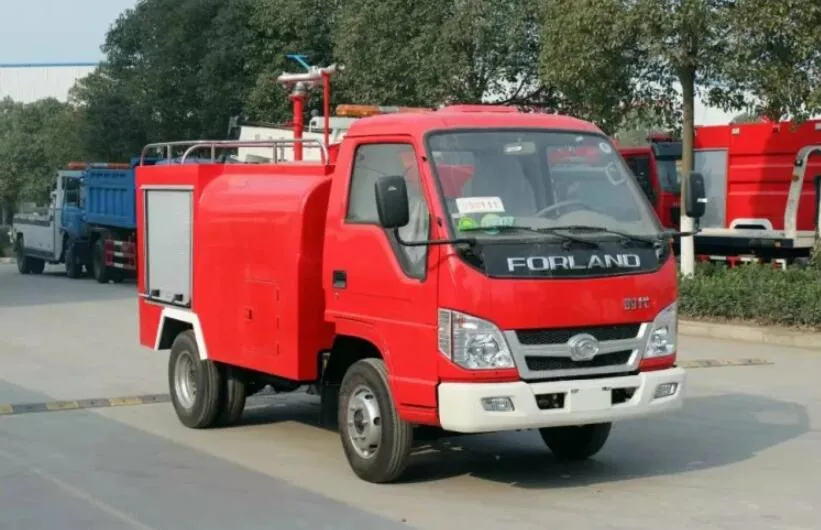

2m 2tons Water Tank Emergency Fire Truck 4×2 Diesel Fuel
2m 2tons Water Tank Emergency Fire Truck 4×2 Diesel Fuel
2m 2tons Water Tank Emergency Fire Truck 4×2 Diesel Fuel
2m 2tons Water Tank Emergency Fire Truck 4×2 Diesel Fuel
2m 2tons Water Tank Emergency Fire Truck 4×2 Diesel Fuel
2m 2tons Water Tank Emergency Fire Truck 4×2 Diesel Fuel
2m 2tons Water Tank Emergency Fire Truck 4×2 Diesel Fuel
2m 2tons Water Tank Emergency Fire Truck 4×2 Diesel Fuel
2m 2tons Water Tank Emergency Fire Truck 4×2 Diesel Fuel
2m 2tons Water Tank Emergency Fire Truck 4×2 Diesel Fuel
2m 2tons Water Tank Emergency Fire Truck 4×2 Diesel Fuel
2m 2tons Water Tank Emergency Fire Truck 4×2 Diesel Fuel
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Transport Package :
Bulk Ship, RO-RO
Fire Pump :
CB10/20
Production Capacity :
300 Units Per Month
Volume :
3001-5000L
Engine Model :
Yunei
Water Tank :
3000L Water Tank
Loading of F/R Axles :
2.4t /4.2t
Condition :
New
Certification :
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
MOQ :
1
Price :
15000-35000 per unit
Fuel :
Diesel
Trademark :
CLW
Transmission Type :
Manual
Driving Direction :
LHD Rhd
Fire Minitor :
Pl20
Origin :
Suizhou, China
Product Description :
Foton Forland 4X2 Small Mini 3cbm Fire Engine Wate
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Emission Standard :
Euro 2
Chaasis Model :
Bj1030
HS Code :
87059099
Horsepower :
＜150hp
Specification :
100x1680x2550mm
Payload :
3 Ton
Drive Wheel :
4×2
Tires :
6.50-16
Description

2mt 2 Ton China Water Tank Emergency Fire Fighting Truck

FOTON Forland 4x2 small mini 3CBM fire engine water tank truck,fire fighting truck
Overview
Name 3000 liters Fire Engine
Overall Dimension(LxWxH) 5990X1960X2380(mm)
Total Mass 8050Kg
Rated Payload 5000Kg
Kerb Weight 3050Kg
Cab Double Cab
Passenger 6
Approach/Departure Angle 19/15
The Parameters of Chassis
Manufacture/Model Forland
Driving Type 4*2 left/right hand drive
Wheel Base 3300 mm
Gearbox Six speed lever with five speed forward and one reverse, manual
Front/Rear Track 1506/1466(mm)
Tyre 7.00-16
The Number of Tyre 6+1(spare tyre)
Front/ Rear Suspension 1032/1658(mm)
Leaf Spring Number 8/9+5, 6/8+4
The Paremeters of Engine
Manufacturer/Model Yunei
Rated Power 98hp
Fuel Type Diesel oil
Displacement/Capacity 3856ml
Emission Standard Euro 3
Cylinder Straight/4/intercooling
Max. torque 450N.m
Velocity 3200rpm
The Parameters of Equipment
Fire Monitor Range 50-55 m
Pressure 1.0-2.0 Mpa
Rotation Speed 3200r/min
Flow Capacity 15-60L/S
Division Time 25S
Vertical Suction Range 7m
Material of Tank Carbon steel
Tank Thickness 4mm
Water 3000 L
Color Fire Engine Red, or customizable

Common Accessories

 2 Φ100×4m fire suction hose; 1 Φ100 water filter; 6 Φ65×20m firehose; 2 Φ80×20m firehose; 4 hose strap; 4 hose bandage; 2 Φ65-80 hose adapter; 1 Φ100 same adaptor; 1 Φ65 water stream branch; 1 multi-jet squirt; 1 DC switch water; 1 pick; 1 ground wrench; 1 fireman's axe; 1 fire tricks; 1 spade; 1 crow bar.
