Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Engine Type :
4HK1-Tcg40/141kw
Flow Rate of Fire Pump :
30L/S 1.0MPa
Transport Package :
Bulk Ship, RO-RO
Model of Fire Pump :
CB10/30-RS Fire Pump
Trademark :
CLW
Origin :
Suizhou, China
Condition :
New
Type of Fire Pump :
Low Pressure Centrifugal Pump
Model of Fire Monitor :
PS30W Fire Monitor
Water Tank Capacity :
3ton, 3000kg, 3t, 3tons
Suction Depth :
Deeper Than 7m
MOQ :
1
Price :
15000-35000 per unit
Transmission Type :
Manual
Fuel :
Diesel
Drive Wheel :
4×2
Flow Rate of Fire Monitor :
30L/S 1.0MPa
Production Capacity :
300 Units Per Month
Volume :
＜3000L
Emission Standard :
Euro 4
Fire Monitor Range :
More Than 55meters
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Horsepower :
＜150hp
Specification :
3000Liters, 3cbm, 3m3, 3000kg water
Model NO. :
CLW5100GXF
Payload :
3tons
Xtinguishant :
Water
HS Code :
8705309000
Description

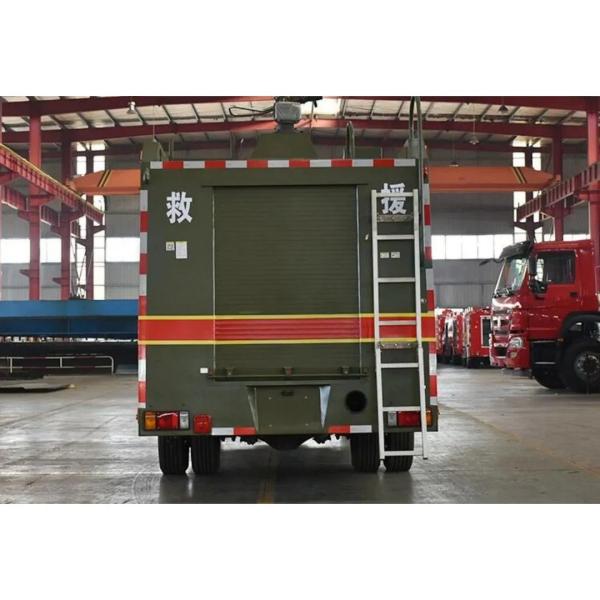

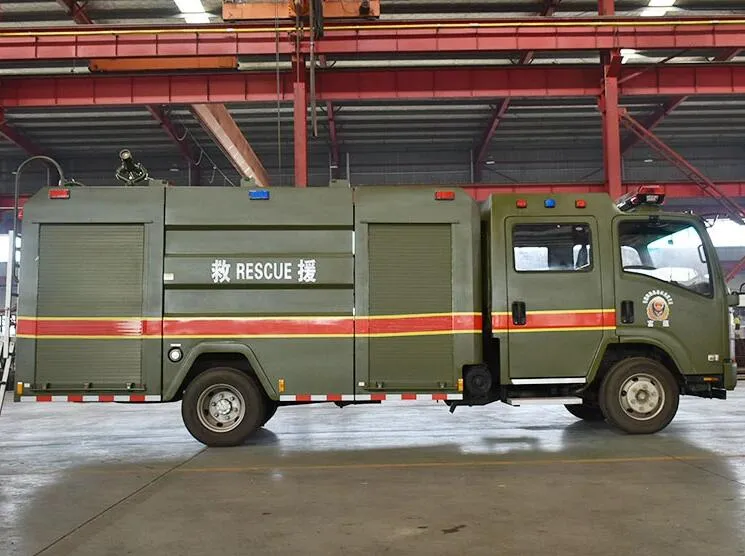

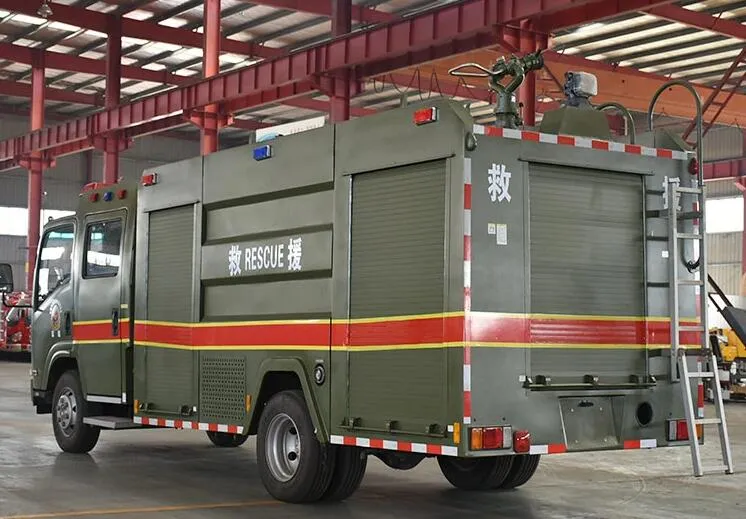

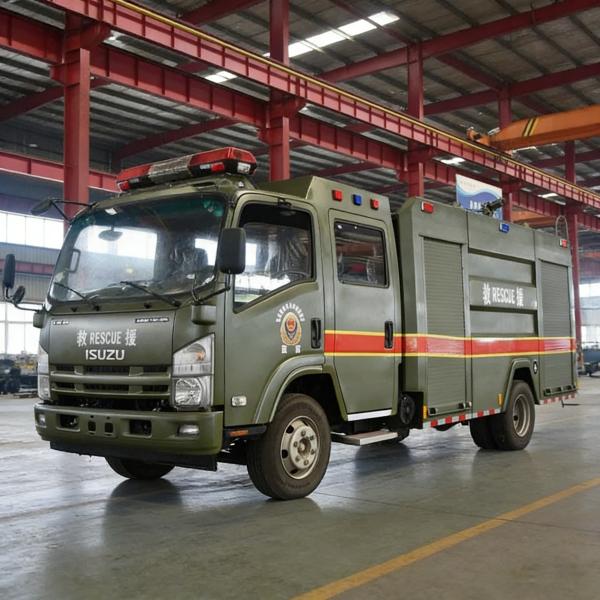

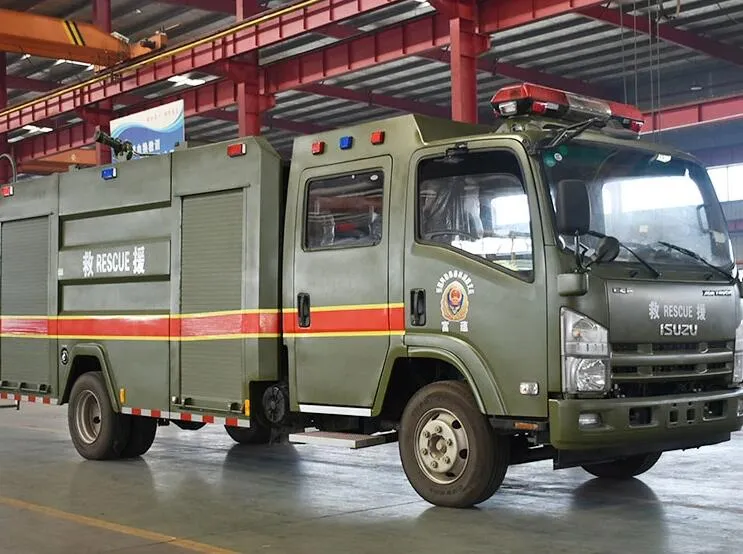

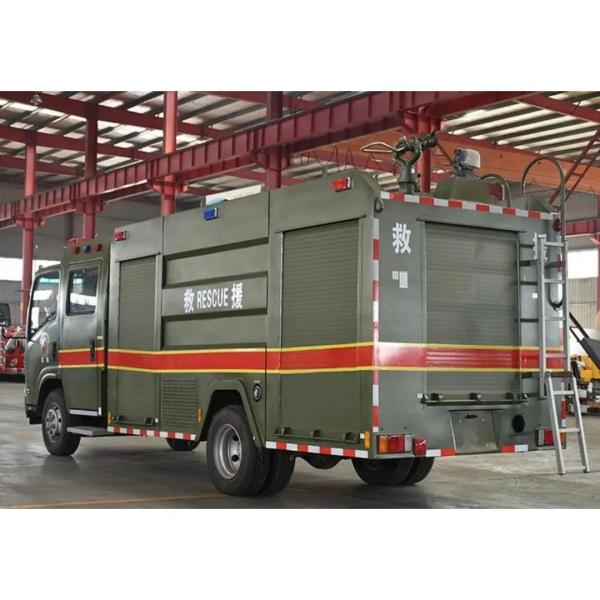

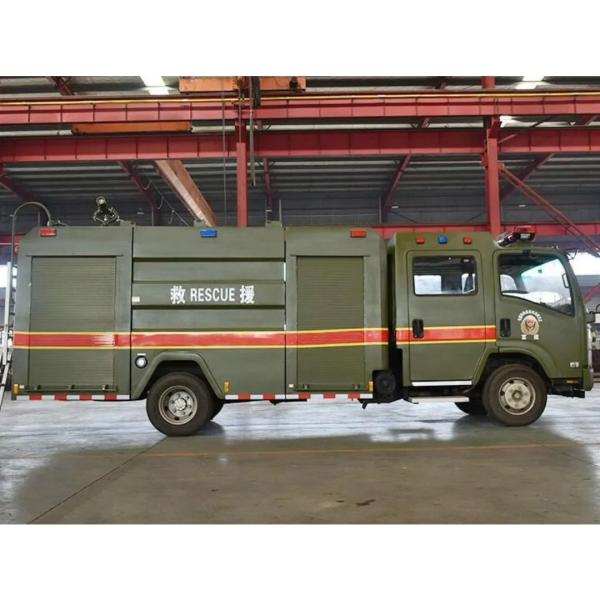

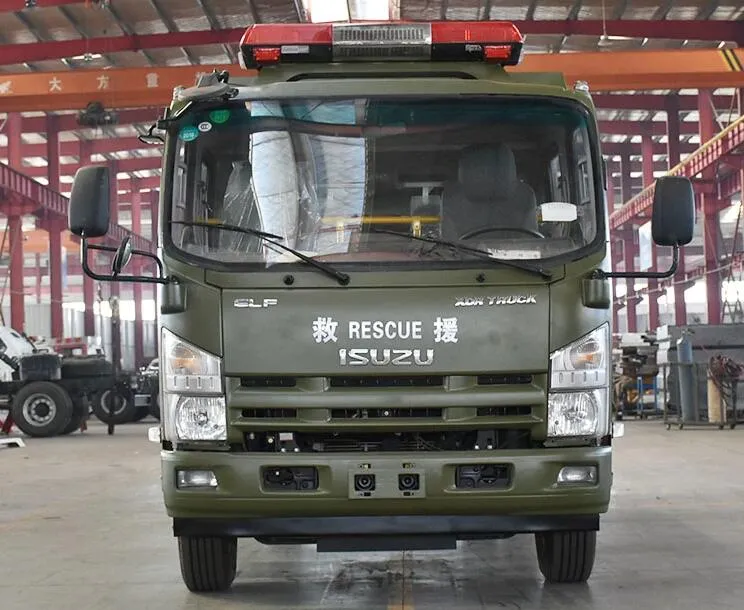

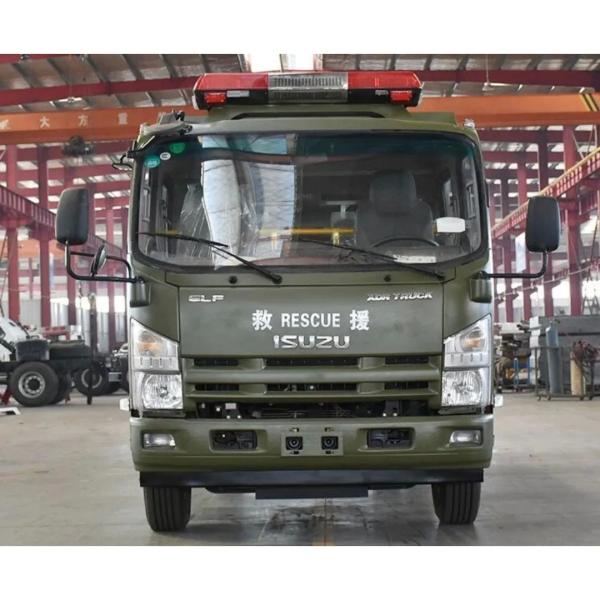

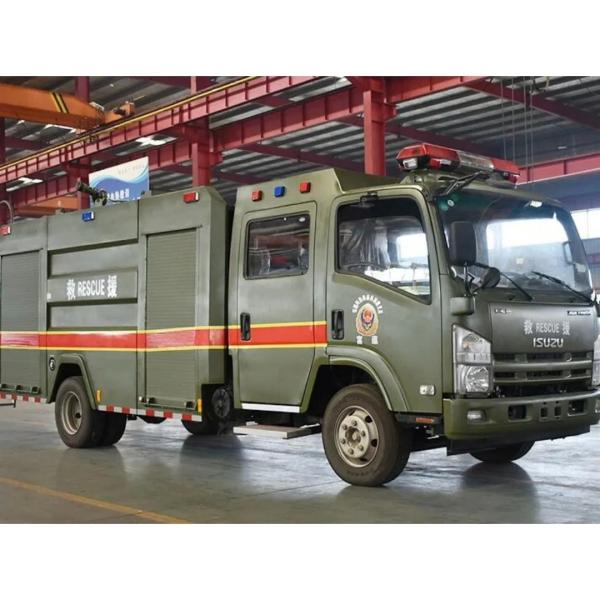

ISUZU 700p Euro4 Euro5 3000liters 4000liters Water Foam Fire Truck Price for Sale

ISUZU Water Tanker Fire Truck,which is also called water fire engine,water foam fire truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire Truck can be divided into several types:

  • According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
  • According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for mili tary use.
  • According to chassis brand, there are IS UZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,S cania fire fighting truck and so on.
  • According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
  • There are also fire rescue truck with special purpose as follows,
    • Foam supply fire truck;
    • Compressed air supply fire fighting truck;
    • Water tower fire truck ;
    • Earthquake rescue fire truck;

Features of is uzu 3tons water tanker fire truck:

  • ISUZU chassis, perfect performance.
  • ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
  • Nice shape, rational structure.
  • High quality fire pump.
  • Massive, durable, long service life.

Spec. of Japanese Brand 3000liters Water Tank Fire Engine 3Tons IS UZU Water Tanker Fire Truck

Model Parameters others
Overall Dimension 7690×2250×3000mm
GVW 9700kg
Engine Model 4KH1-TCG40
Engine Power 141kW
Wheelbase 4475mm
Driving Type 4×2
Max.speed 100km/h
Emission Standard 5193ml Euro4
Passengers 2+3
Fire pump rated flow 30L/s@1.0Mpa Vacuum pump
water monitor rated flow 30L/s@1.0MPa
Water monitor range Water range≥55m
Approach angle ≥19°
Departure angle ≥13°

Fire performance parameters:

Item Parameters Parameters others
1 Water tank capacity water 3000kg Built-in type
2 Fire pump model CB10/30-RS
3 Fire pump performance 30L/s@1.0MPa Use vacuum pump to priming water
4 the installation site of fire pump rear
5 The quantity of fire pump water outlet 2
6 Pressure gauge 0-1.6 Mpa 2.6 level
7 Vacuum gauge -0.1- -1 MPa 2.6 level

8

Water monitor (PS30W)

 Injection pressure water:≥55m
1.0Mpa
Depression/Elevation angle -15°~+60°
Turning angle 360°
9 PTO Model YTQ200 (12V), MOTOR
