18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel
18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel
18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel
18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel
18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel
18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel
18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel
18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel
18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel
18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Optional Brand :
Dongfeng, Forland, Sinotruk FAW
Payload :
7-8ton
Engine :
4HK1-Tc51,190HP
ABS :
with
Fuel :
Diesel
Condition :
New
Specification :
7800x2500x3700mm
HS Code :
870590990
Hoesrpower :
190HP
Transport Package :
Naked Package
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Color :
White, Yellow, or Blue
Trademark :
CLW
Transmission Type :
Manual
Bucket Loading Weight :
200kg
Origin :
Suizhou, China
MOQ :
1
Price :
15000-35000 per unit
Drive Wheel :
4x2
Tyre :
10.00r20, with One Spare Tyre
Transmission :
Msb, 6 Speed in Front, 1 Reverse
Emission Standard :
Euro 4, Euro 5
Max Lifting Height :
20m
Name :
Man Lifts Truck
Production Capacity :
500unit/Month
Description

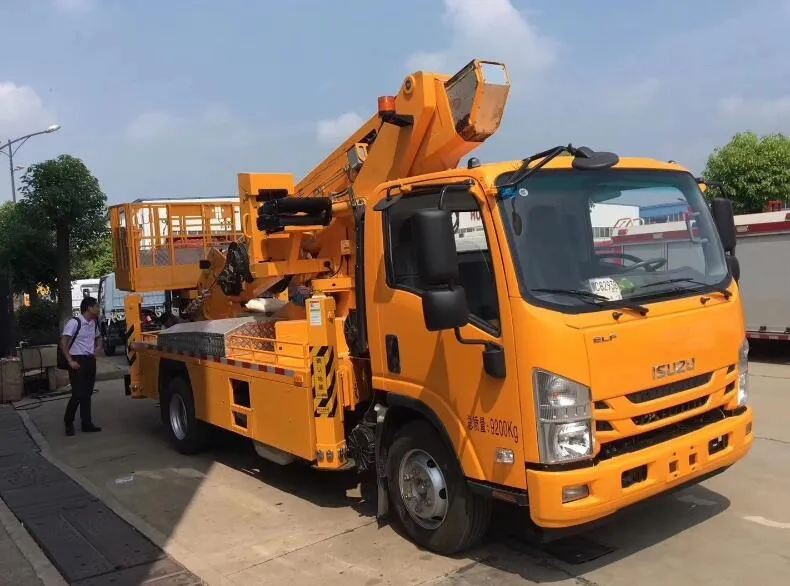

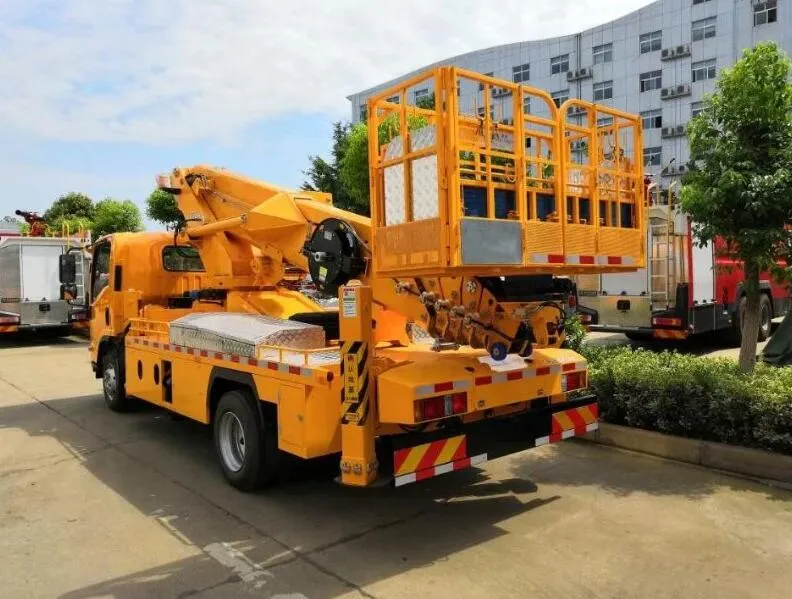

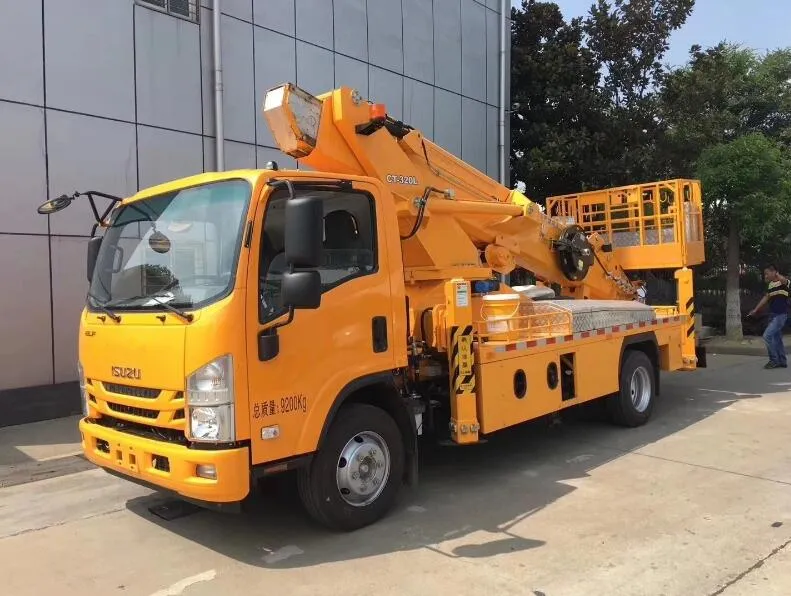

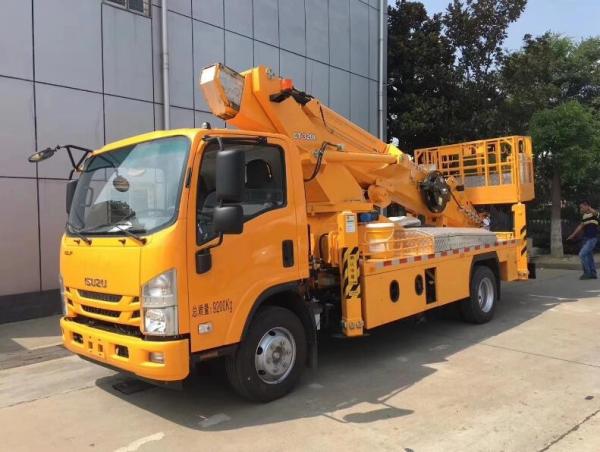

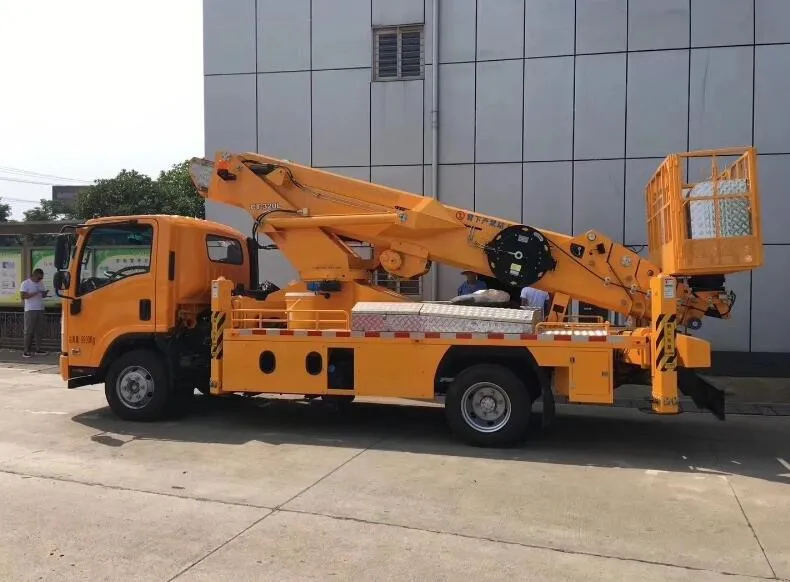

New 18m 20m 22m Telescopic Boom Man Lift Truck
  • Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
  • The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
  • Full Computer Control System with Danger Waring System.
  • LCD Screen in Both the Bucket and Truck to Display the Working Status.
  • Rectangular Shape Arms to Increase the Arm Strength.
  • V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.
Product Description
ITEMDescriptionsSpecifications and types



General

Truck BrandQL1160
Chassis BrandJapanese Chassis
Approx. Dimension8500*2500*3700 mm
GVW./Kerb Wt.9105 / 8910 (Kg)
CabCab Capacity3 persons' seat
Air ConditionerAir Conditioner is optional







Chassis

Drive Type4x2, lefthand drive
Fuel TypeDiesel
Engine Make & Model4HK1-TC50,205HP
Power205 HP
Displacement5193 ml
Emission StandardEuro 5
Wheelbase/No.of axle4475 mm / 2
Tyre Specfication10.00R20, with One Spare Tyre
Max Speed100 km/h
PaintAutomative metallic paint









Tops Parts

Max Working Height26m
Platform Dimension1080*610*1100mm
Max Working Radius7.5m
UAngle of Rotation360 degress
Platform Loading1000kgs
Platform Passenger2 persons
Roating Speed0-2m

Equipment:
a) Equipped double operation systems;
b) The operationg platform is three-section folding arm;
c) Locking fuction;
d) Four hydraulic H-shap legs which can be adjusted separately.
f) Two tool boxes

18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel 18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel 18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel 18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel 18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel 18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel 18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel 18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel 18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel 18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel 18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel 18m 20m 22m Telescopic Boom Man Lifts Truck Mounted Diesel Fuel
Products Catalog:
  • LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
  • Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
  • Truck with crane / Truck mounted crane
  • Dump Truck / Tipper Truck/Side Tipper/End Tipper
  • Fire Fighting Truck / Fire Truck / Fire Vehicle
  • Concrete Mixer Truck
  • Van truck /Refrigerated truck
  • Fecal suction truck / Sewage suction truck,
  • Cement Powder Tank truck/ Bulk cement truck
  • High-altitude operation truck,
  • Self-loading garbage truck, garbage compactor truck, sealed garbage truck
  • Tractor
  • High Pressure Cleaning Truck
  • Sweeper Truck
  • Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
