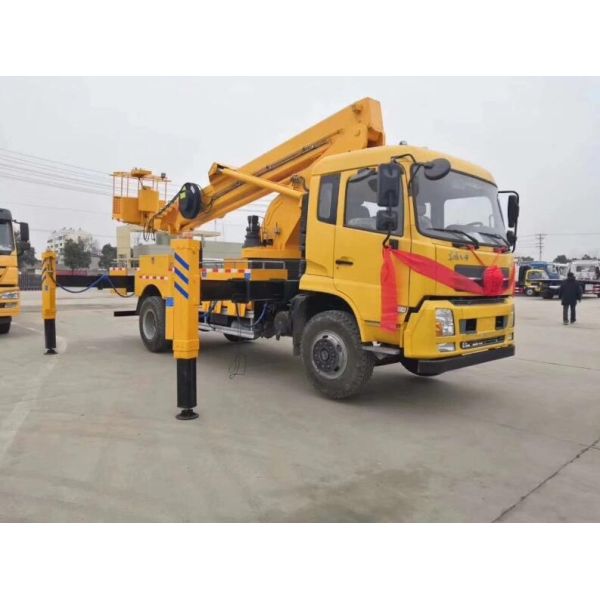

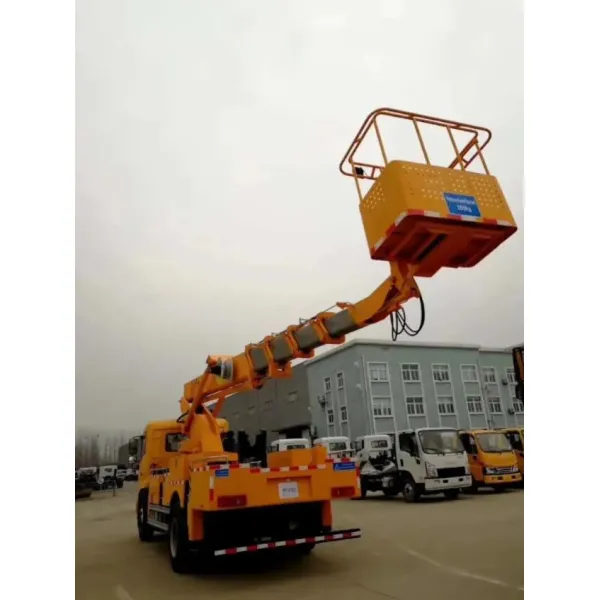

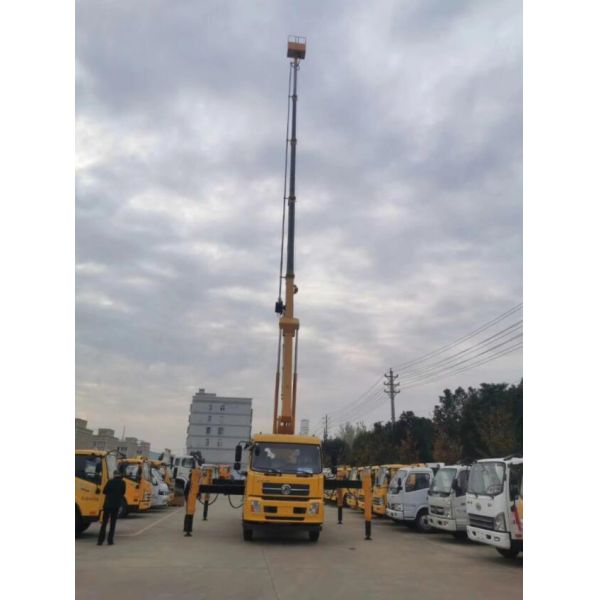

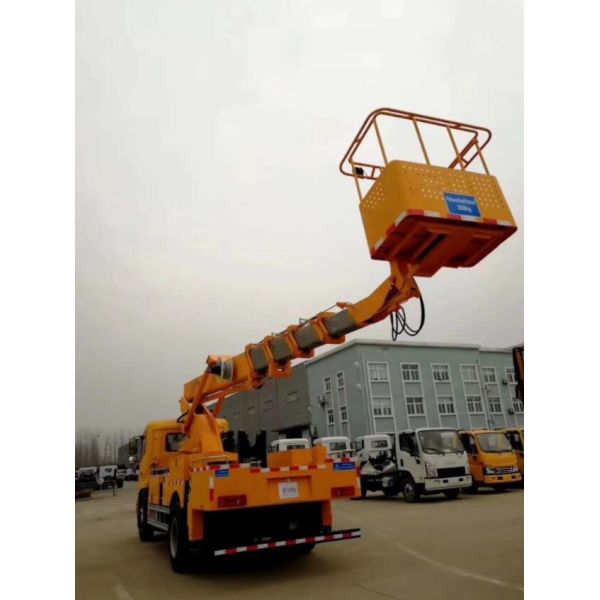

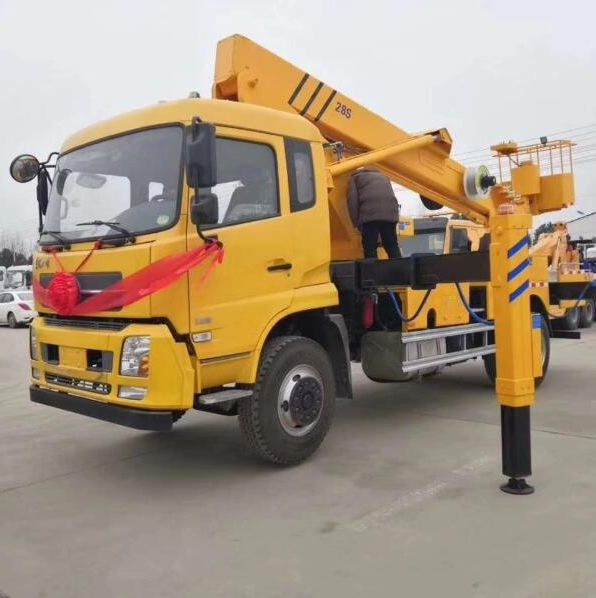

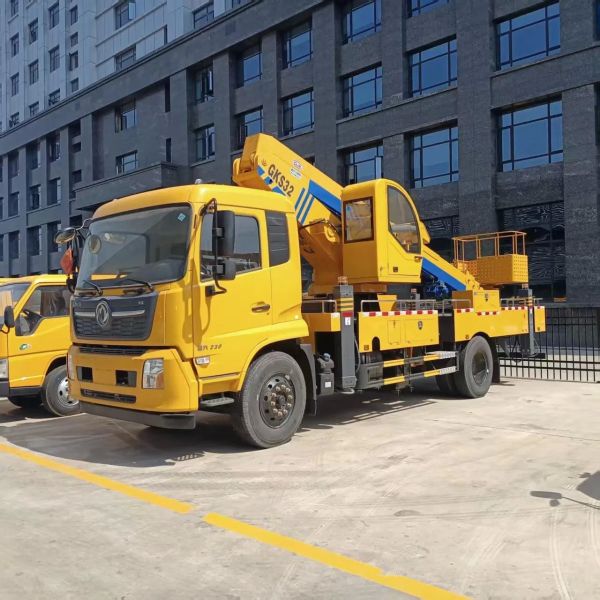

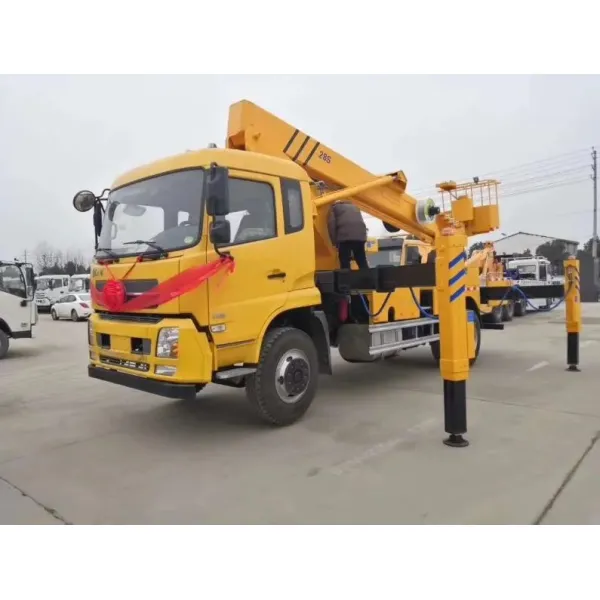

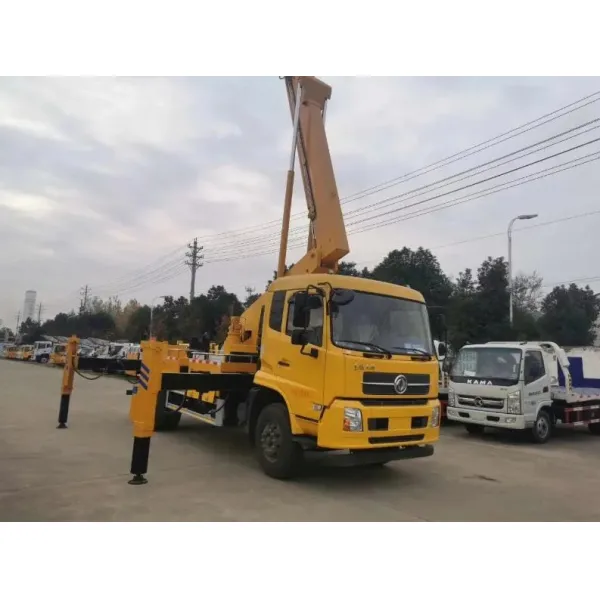

Dongfeng Kr 25m 26 Meters Hydraulic Lifting Platform Truck, Man Lift
Dongfeng Kr 25m 26 Meters Hydraulic Lifting Platform Truck, Man Lift
Dongfeng Kr 25m 26 Meters Hydraulic Lifting Platform Truck, Man Lift
Dongfeng Kr 25m 26 Meters Hydraulic Lifting Platform Truck, Man Lift
Dongfeng Kr 25m 26 Meters Hydraulic Lifting Platform Truck, Man Lift
Dongfeng Kr 25m 26 Meters Hydraulic Lifting Platform Truck, Man Lift
Dongfeng Kr 25m 26 Meters Hydraulic Lifting Platform Truck, Man Lift
Dongfeng Kr 25m 26 Meters Hydraulic Lifting Platform Truck, Man Lift
Dongfeng Kr 25m 26 Meters Hydraulic Lifting Platform Truck, Man Lift
Dongfeng Kr 25m 26 Meters Hydraulic Lifting Platform Truck, Man Lift
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Certification :
ISO9000, CCC, EEC, CE
MOQ :
1
Price :
15000-35000 per unit
Model NO. :
CLW5060GK
Type :
Telescopic Boom
Emission Standard :
Euro II/III/IV/V
Hoesrpower :
180HP
Payload :
16ton
Fuel :
Diesel
Transmission Type :
Manual
Drive Wheel :
4x2
Condition :
New
Truck Chassis Brand :
Dongfeng
Bucket Loading Weight :
200kg
Optional Brand :
Dongfeng, Lsuzu, Forland, Sinotruk FAW
Color :
White, Yellow, or Blue
Transmission :
8 Speed Forwards, 1 Reverse
ABS :
with
Max Lifting Height :
16m
Engine :
Dongfeng Engine
Tyre :
10.00r20, with One Spare Tyre
Transport Package :
Naked Package
Specification :
26meters
Trademark :
CLW
Origin :
Suizhou, China
HS Code :
870590990
Production Capacity :
500unit/Month
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Name :
Aerial Platform Truck
Description
High Quality Dongfeng Kingrun 25m 26 Meters Hydraulic Lifting Platform Truck, Man Lift
Product Description

Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.

  • The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
  • Full Computer Control System with Danger Waring System.
  • LCD Screen in Both the Bucket and Truck to Display the Working Status.
  • Rectangular Shape Arms to Increase the Arm Strength.
  • V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.
Product Parameters
GVW13280kg Driving Type 4x2
Chassis brand DONGFENG Tianjin
Cab Tianjin a row and a half deluxe cab(with sleeping berth),hydraulic mechanical flip, channel type instrument panel, air conditioner, allowable 3 passengers
Engine(Hp) 190
Power(Kw) 140
Wheelbase 4700
Front/Rear Suspension 1430/2230
Steering Power steering
Approach/departure angle 20/13
Wheels & tire 10.00R20
Tire number 6+1
Working height(m) 28
RHD or LHD LHD
Overall Dimensions(mm) 9600*2500*3850
Curb weight (Kg) 13085





Engine

 Model B190-33
Horsepower 190
Maximum output Kw 140
Maximum torque N.m 640
Type 6cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
Displacement 5900ml
Euro 3
Driving passenger 2,3
Transmission 8 speed forward and one reverse, manual
Front Axle 5T
Rear Axle 10T
Brake System air brake
exhaust brake
Color and LOGO customized
Electric system 24V



Standard configuration

 Synchronous telescopic can be rotated 360 degrees continuously, H-shaped legs can be adjusted separately, electrical operation of working platform and ground remote control, hydraulic operation of turntable, load-sensitive proportional control system, stepless speed regulation, hydraulic automatic leveling, standard work bucket Weighing device, automatic interlocking device for loading and unloading, wind speed detection function, emergency electric emergency pump, emergency stop device, night safety warning device, vehicle horizontal state tester, remote engine ignition and flameout, real-time communication wireless intercom function, computer control , automatic limiting, dangerous work alarm, excellent safety performance. Both the upper and lower vehicles have displays to display the working conditions of the vehicle in time.





Equipment

 Platform Dimension 1100X570X1000mm
Max Working Height 28m
Max Working Radius 12.6m
Angle Of Rotation 360°
Platform Loading 220kg
Platform Passenger 2
Working arm 5 section
Delivery date Within 30 days after receipt advance
Packing Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
