Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Name :
Aerial Platform Truck
MOQ :
1
Price :
15000-35000 per unit
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Emission Standard :
Euro II/III/IV/V
Hoesrpower :
150HP
Payload :
8ton
Fuel :
Diesel
Transmission Type :
Manual
Drive Wheel :
4x2
Condition :
New
Truck Chassis Brand :
Jmc
Transmission :
5 Speed Forwards, 1 Reverse
Color :
White, Yellow, or Blue
ABS :
with
Max Bucket Loading Capacity :
200kgs
Engine :
Jx4d30A5h
Tyre :
7.50r16, with One Spare Tyre
Air Conditioner :
with
Max Lifting Height :
22m
Transport Package :
Naked Package
Specification :
22meters
Trademark :
CLW
Origin :
Suizhou, China
HS Code :
8705909990
Production Capacity :
500unit/Month
Description

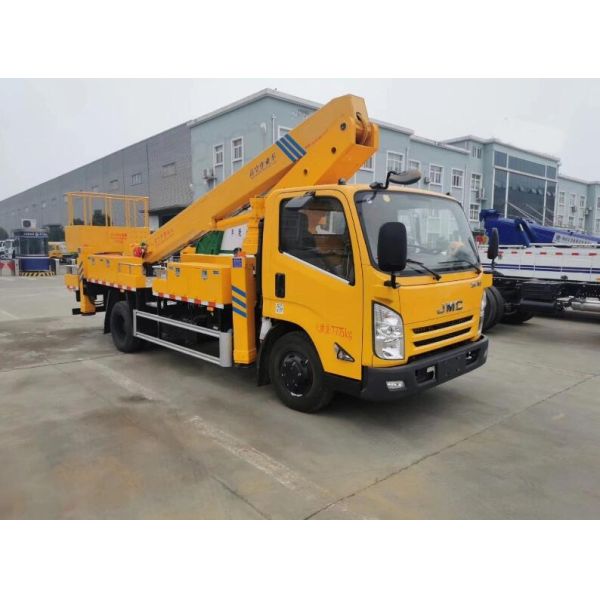

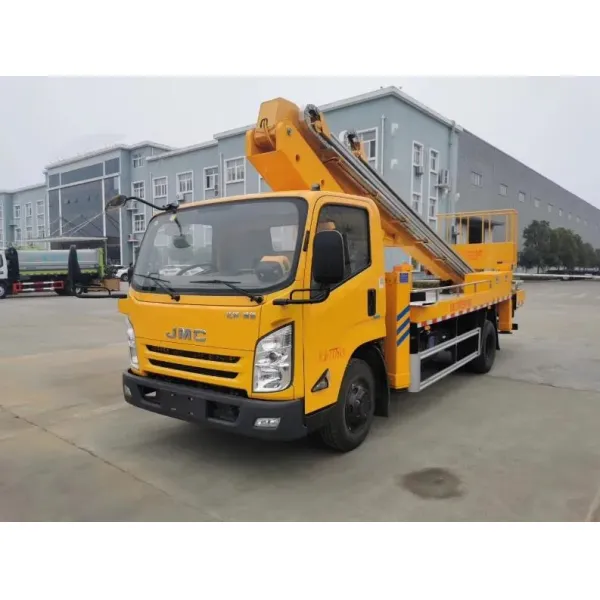

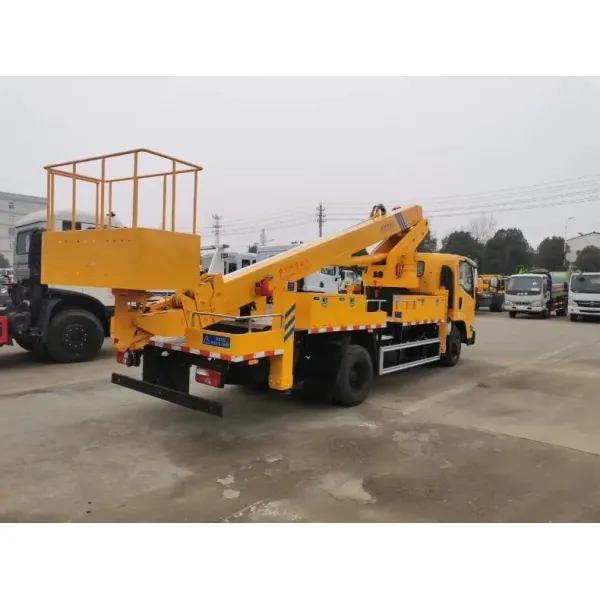

Hot Selling Mobile 22 Meter Telescopic Boom Aerial Working Truck, Lift Truck
Product Specifications
Product name JMC 22 meter telescopic boom aerial working truck Chassis model JX1083TK25
Lift height customization 20 meter Total mass (kg) 7410
Engine horsepower 150HP Rated load mass (Kg) 200
Engine name JX4D30A5H Emission Standards Euro 3
Dimensions (MM) 7240×2150×3100 Fuel type Diesel
Number of tires 6 Tire specifications 7.50R16
Wheelbase (MM) 3800 Maximum speed (km/h) 95
Front track 1680 Rear track 1640



Performance profile

 Imported reversing valve and hydraulic cylinder are used for commutation and balance, and the operation is flexible and convenient. Four H-type hydraulic legs are installed in the vehicle, which can be lifted and lowered at the same time to ensure the stability and safety of the whole vehicle during operation. It can be operated up and down, and the hook is installed. The maximum lifting weight of the hook is 200kg. The full telescopic is the working arm and the 360 degree rotation. Up and down two sets of operating systems, complete a variety of work on the work bucket and turntable, optional 14-32 meters series straight arm aerial work.









Dedicated configuration

Blue brand telescopic boom aerial work car function introduction:

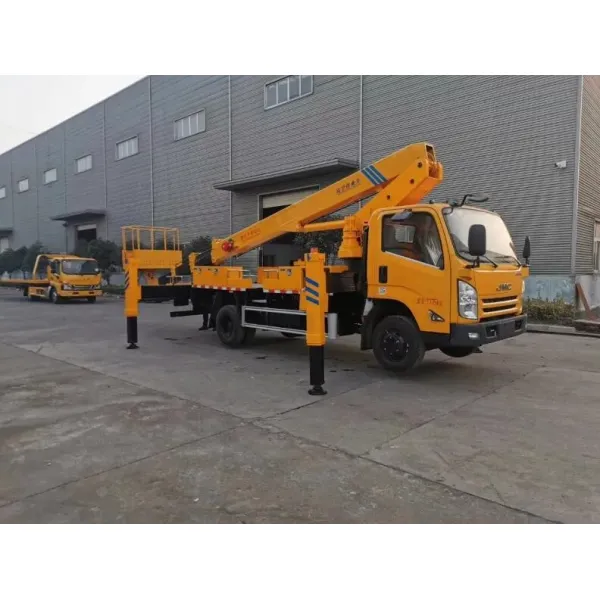

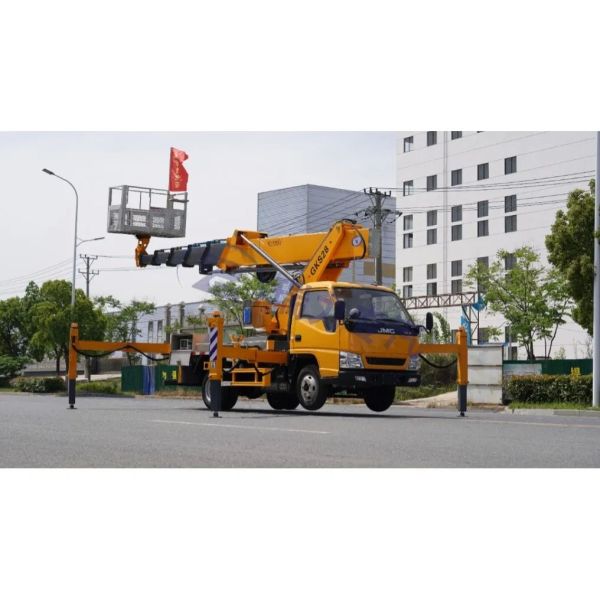

  • The front V rear H-shaped legs have good stability and can be operated simultaneously or separately to adapt to various working conditions.
  • The main supporting hydraulic and electrical components: load-sensitive proportional valves, balancing valves, controllers, etc. are produced by well-known domestic manufacturers.
  • The chassis is equipped with Jiangling Guosan chassis, equipped with air conditioning, and the steering wheel is hydraulically assisted.
  • Configure the vehicle level to ensure the level of the vehicle and ensure safety.
  • Computer control, automatic limiting, dangerous work alarm, excellent safety performance. Get off the vehicle and display the real-time operating conditions.
  • Hexagonal working arm, synchronous telescopic, compact structure, high working efficiency and large working range. The telescopic cylinder is external and the chain telescopic mechanism makes it easier to observe the fault point and facilitate maintenance.
  • The whole vehicle electrical appliance adopts CAN bus control system, and the line is neat and simple. There are two operations in the whole vehicle: platform operation, ground operation, safe and reliable, and high work efficiency.
  • The slewing mechanism adopts adjustable type for easy adjustment.
  • Optional 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 meters series of aerial work.
