Specifications
MOQ :
1
Price :
15000-35000 per unit
Hoesrpower :
190HP
Specification :
8500x2500x3700mm
Name :
Overhead Working Truck
Tyre :
10.00r20, with One Spare Tyre
Origin :
Suizhou, China
Place of Origin :
CHINA
Brand Name :
CLW
Production Capacity :
500unit/Month
Transport Package :
Naked Package
Fuel :
Diesel
Drive Wheel :
4x2
Color :
White, Yellow, or Blue
ABS :
with
Transmission :
Msb, 6 Speed in Front, 1 Reverse
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Payload :
10-15ton
Transmission Type :
Manual
Condition :
New
Emission Standard :
Euro5
HS Code :
8705909990
Optional Brand :
Dongfeng, Forland, Sinotruk FAW
Max Lifting Height :
26m
Engine :
4HK1-Tc50,205HP
Trademark :
CLW
Bucket Loading Weight :
200kg
Description

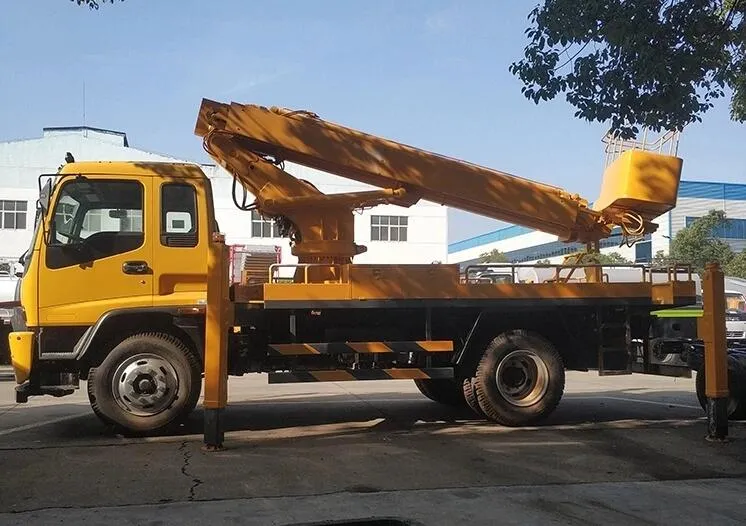

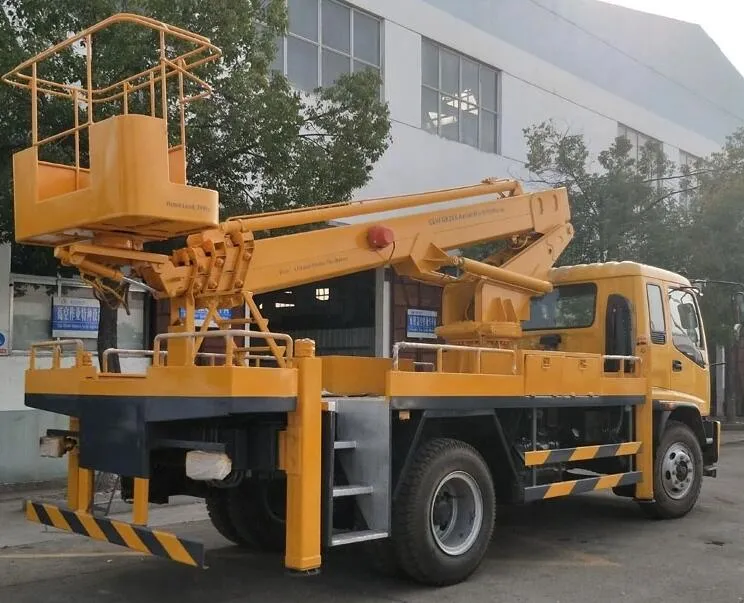

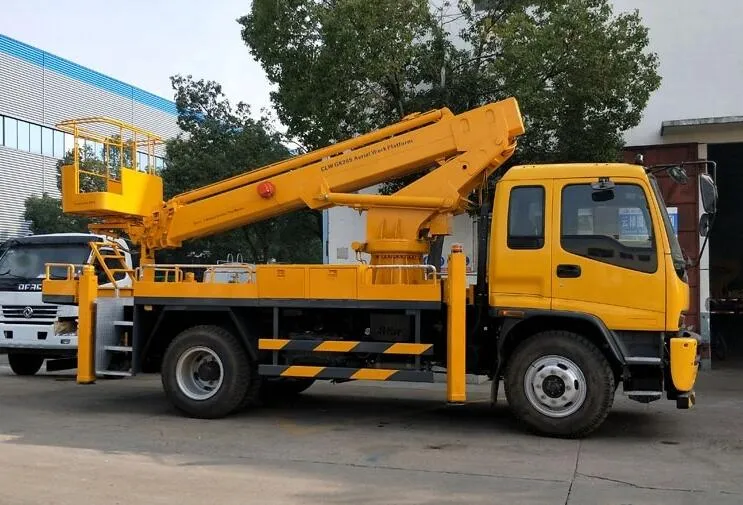

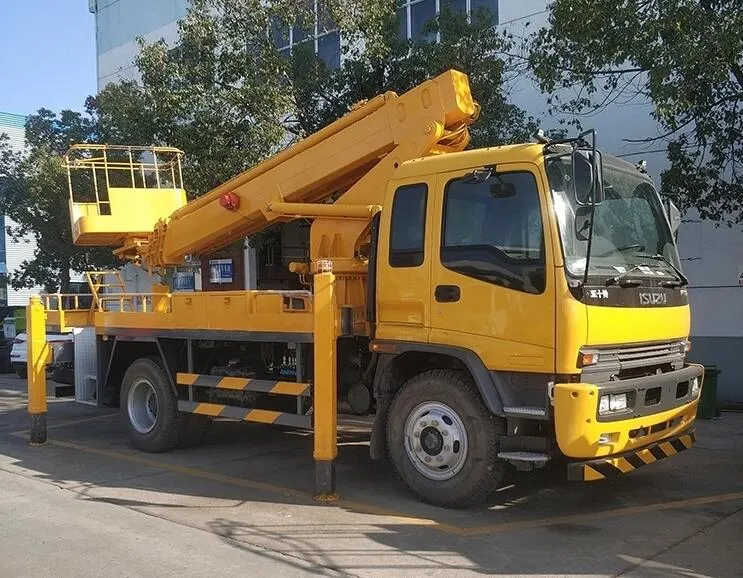

Japanese Brand 16m 18m 20m 22m 24m 26 Meter 28m 30m 32m 35m 38m Telescopic Boom Overhead Working Truck Man Lift Working Truck
  1. Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
  2. The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
  3. Full Computer Control System with Danger Waring System.
  4. LCD Screen in Both the Bucket and Truck to Display the Working Status.
  5. Rectangular Shape Arms to Increase the Arm Strength.
  6. V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.
Product Description

ITEM

Descriptions

Specifications and types




General

Truck Brand

QL1160

Chassis Brand

Japanese Chassis

Approx. Dimension

8500*2500*3700 mm

GVW./Kerb Wt.

9105 / 8910 (Kg)


Cab

Cab Capacity

3 persons' seat

Air Conditioner

Air Conditioner is optional







Chassis

Drive Type

4x2, lefthand drive

Fuel Type

Diesel

Engine Make & Model

4HK1-TC50,205HP

Power

205 HP

Displacement

5193 ml

Emission Standard

Euro 5

Wheelbase/No.of axle

4475 mm / 2

Tyre Specfication

10.00R20, with One Spare Tyre

Max Speed

100 km/h

Paint

Automative metallic paint







Tops Parts

Max Working Height26m
Platform Dimension1080*610*1100mm
Max Working Radius7.5m
UAngle of Rotation360 degress
Platform Loading1000kgs
Platform Passenger2 persons
Roating Speed0-2m

Equipment:
a) Equipped double operation systems;
b) The operationg platform is three-section folding arm;
c) Locking fuction;
d) Four hydraulic H-shap legs which can be adjusted separately.
f) Two tool boxes
