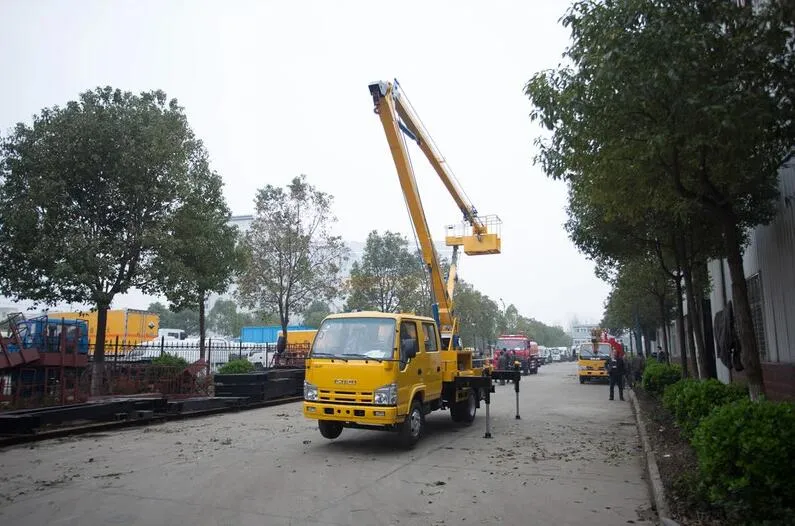

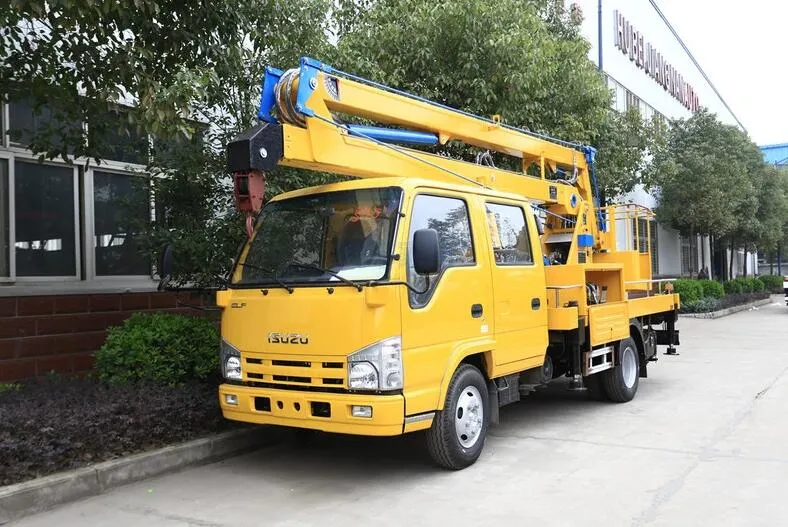

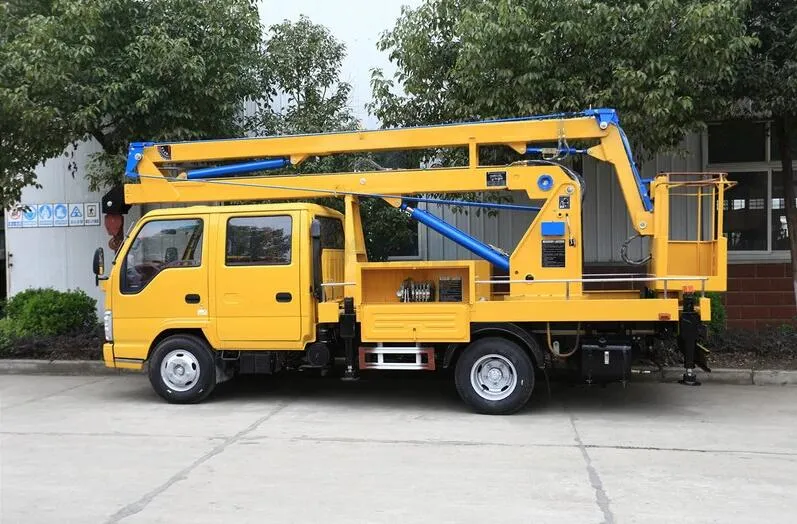

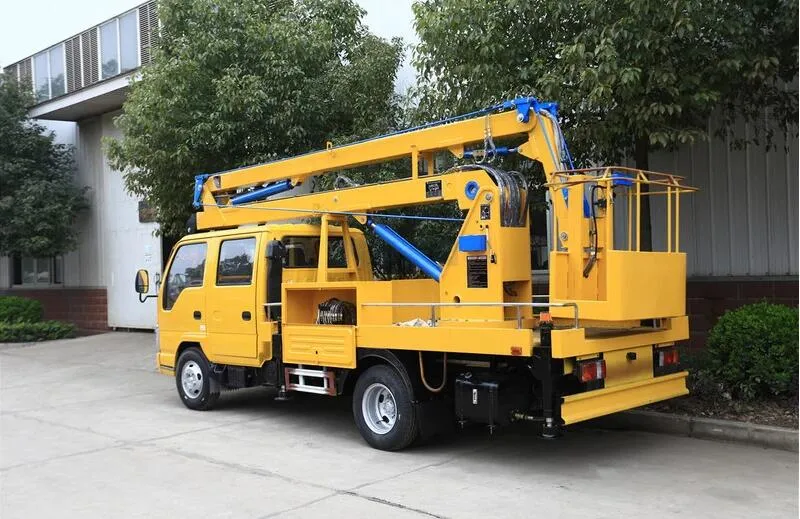

ISuzu Double Row 14m 16m Aerial Lift Truck For Cherry Picker
ISuzu Double Row 14m 16m Aerial Lift Truck For Cherry Picker
ISuzu Double Row 14m 16m Aerial Lift Truck For Cherry Picker
ISuzu Double Row 14m 16m Aerial Lift Truck For Cherry Picker
ISuzu Double Row 14m 16m Aerial Lift Truck For Cherry Picker
ISuzu Double Row 14m 16m Aerial Lift Truck For Cherry Picker
ISuzu Double Row 14m 16m Aerial Lift Truck For Cherry Picker
ISuzu Double Row 14m 16m Aerial Lift Truck For Cherry Picker
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Condition :
New
Transmission Type :
Manual
Max Bucket Loading Capacity :
200kg
Name :
Aerial Platform Truck
HS Code :
8701909000
Color :
White, Yellow, or Blue
Transmission :
5 Speed Forward and 1 Reverse, Manual
Fuel :
Diesel
Emission Standard :
Euro IV/V
Max Lifting Height :
14m
Transport Package :
Naked Package
Model NO. :
CLW6688GKZYCA03
Air Conditioner :
Have
Production Capacity :
500unit/Month
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Origin :
Suizhou, China
Delivery Time :
30 Days
Drive Wheel :
4x2
Engined :
4jb1cn/ Engine
Specification :
8-14m
Trademark :
CLW
Tyre :
7.00-16 ,6+1 Spare One
MOQ :
1
Price :
15000-35000 per unit
Hoesrpower :
98HP
Warranty Time :
1 Year
Payload :
5ton
ABS :
Have
Description
Double Row 14m 16m Aerial Lifting Truck for Cherry Picker
Description:
  • Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.
  • Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.
  • 360 degree Rotation Arms.
  • Arm and H leg Automatic Locking System to secure safety handling
Bucket Lift Truck (8-14M)

General

 Vehicle Brand CLW
Chassis Brand I SUZU
Overall Dimension 7640*2000*3150mm
GVW/Kerb Weight 6,800kg/15,275kg
Cab Cab Capacity 2+3persons allowed
Air Conditioner air conditioner

Engine

 Fuel Type Diesel
Engine Brand engine,4JB1CN
Power 98Ps(70KW)
Displacement 5193ml
Emission Standard EuroIV

Chassis

 Drive Type 4X2,left hand drive
Transmission gearbox,no overhaul within 500,000km
Wheelbase/No.of axle 3360mm/2
Tyre Specification 7.00-16
Tyre Number 6tyres and 1 sparetyre
Max Speed 105km/h
Paint Metallicpaint

Superstructure

 Working Cage 200kg capacity,anti-slipfloor
Working Height ≤14M
Slewing 360°continuous rotation with base turntable
Control Control both on the ground and in the cage
Emergency electrical / manual pumpis equipped to operate the equipment in
case of engine failure.
Emergency stop switches at base and operator'scage.
Optional Hoist hook with cables can be equipped for the function of a crane.
