Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Fuel :
Diesel
Hoesrpower :
98HP
Control Mode :
Hydraulic or Electronic
Bucket Type :
Insulated
Transport Package :
Naked Package
Payload :
20T
Delivery Time :
30 Days
Working Radius :
4-15m
Production Capacity :
500unit/Month
Condition :
New
Bucket Loading :
200kg
Boom Type :
Folading or Telescopic
Trademark :
CLW
Warranty Time :
1 Year
Rotation Angle :
360
Origin :
Suizhou, China
Bucket Size :
1200*600*1100mm
Emission Standard :
Euro 4
Rotating Speed :
0-2 R/Min
Supporting Leg :
Hydraulic
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Model NO. :
CLW5050JGKIS18T
Type :
S
Color and Logo :
Customized
Name :
Aerial Platform Truck
Transmission Type :
Manual
Drive Wheel :
4x2
Hook Loading :
1000kg
Certification :
ISO9000, CCC, EPA, EEC
MOQ :
1
Price :
15000-35000 per unit
Working Height :
6-22m
Specification :
6990*2100*2500
HS Code :
8701909000
Description
Japan Brand 12m/14m/16m/18m/22m/24m/26m/28m/30m/32m Aerial Work Platform High-Altitude Working High Platform Operation Truck
  • Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
  • The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
  • Full Computer Control System with Danger Waring System.
  • LCD Screen in Both the Bucket and Truck to Display the Working Status.
  • Rectangular Shape Arms to Increase the Arm Strength.
  • V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.
Product Description

1. It uses Japan lSUZU single row cabin chassis, the cab has advanced design with fully automatic welding manipulator ABB.

2. It is telescopic type, which supports to work in narrow places compared with folding types. The working altitude can reach to 18 meters . And the bucket loading capacity is about 200KG with non-slip body.

3. Front H and rear H legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.

4. Manual controlled, automatic limit, alarming when in dangerous work, excellent safety performance.

5. Slewing mechanism adopts adjustable type, which is easy to adjust.

Product Parameters

Chassis Specification

Truck model

CLW5050JGKIS18T

Cab

lSUZU 100P double row seat cab

Driving Type

4*2 Left hand driving

Max Speed (km/h)

90

Overall dimension (mm)

7350*2080*2920

GVW (kg)

Appro. 5555

Mass in working order( kg)

Appro. 5335

Wheelbase (mm)

3360

F/R track base (mm)

1504/1425

F/R overhang(mm)

1065/2125

Approach/Departure Angel

27/15

Tire

7.00-16

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

MSB 5-speed

Bridge

Front axle

2.5T

Rear axle

4.8T







Engine

Model

4JB1CN

Fuel Type

Diesel fuel

Emission Standard

Europe 4

Type

Water-cooled four-stroke, supercharged inter-cooling

Exhaust (ml)

2771

Max output power/rotate speed (hp /rpm )

98/3400

Max torque/rotate speed (N.m/rpm)

220/1700

BrakingSystem

Service Brake

Oil brake

Park Brake

Spring energy

Electric system

24v

Special Function

Working height (m)

18

Max working radius (m)

9

Boom type

Four sections telescopic boom

Rated loading in the bucket(kg)

200

Bucket size (mm)

1000*650*1200

Rotating speed (r/min)

0-2

Rotation Angle

360°

Supporting leg

foursetshydraulic legs

Span of supporting legs

Horizontal

3500mm

longitudinal

4000mm

Boom Control mode

1.Bucket control

2.Manual operation

Supporting leg Control mode

Manual operation


Working Condition:

1.Altitude: 0-4500m

2.Temperature: -350C~+450C

3.Relative humidity: 80%

4.Wind force: ≤8 degree

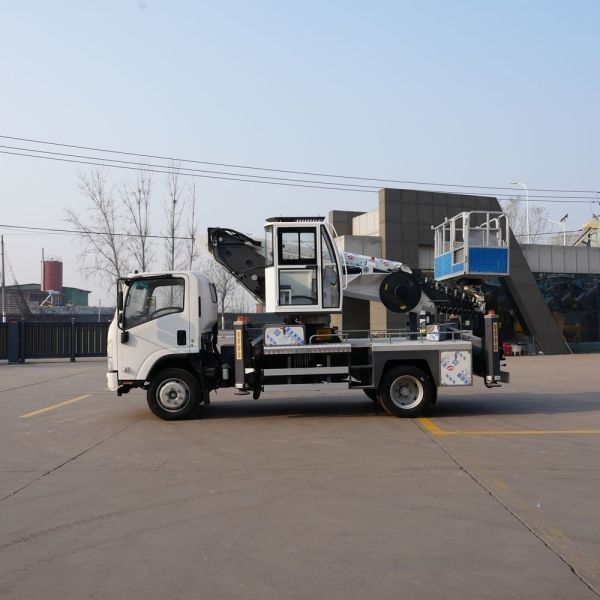

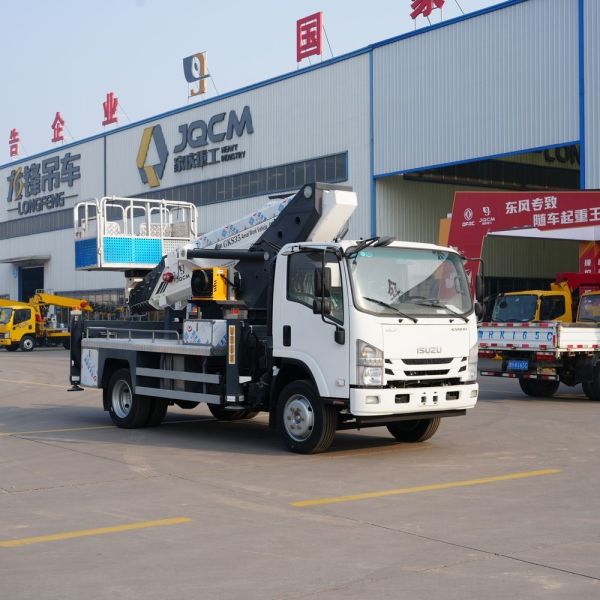

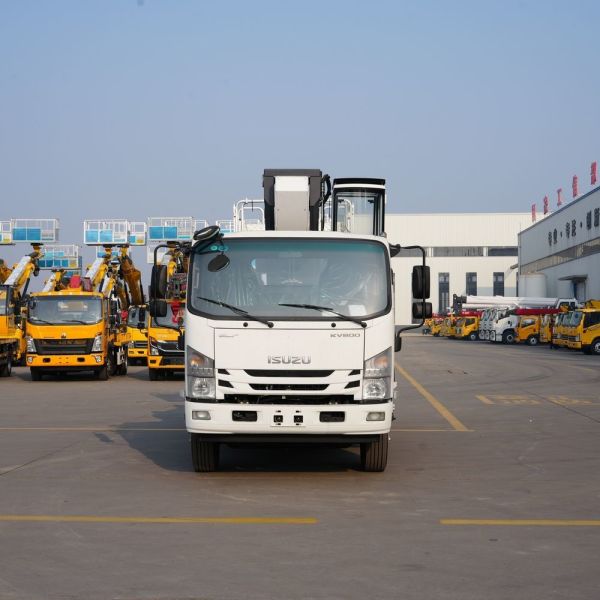

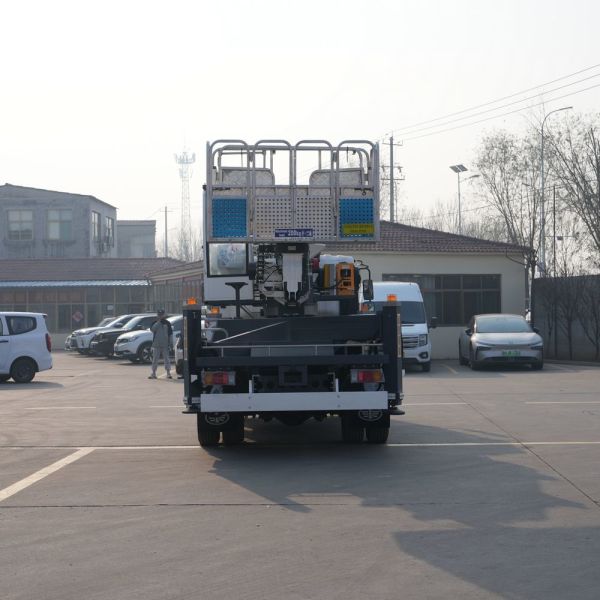

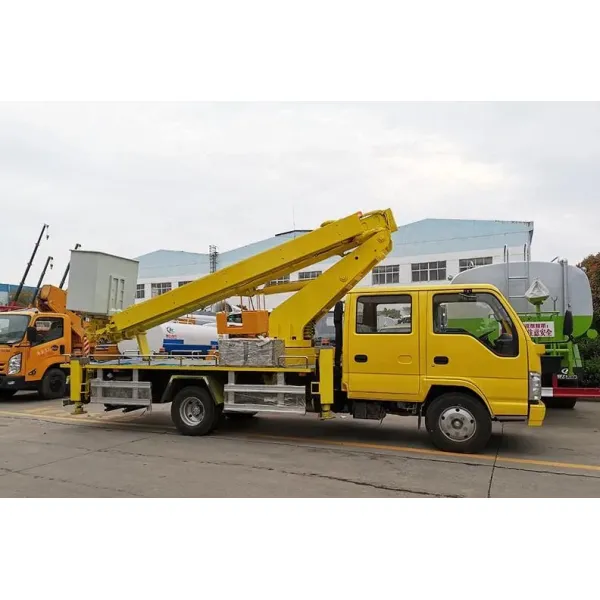

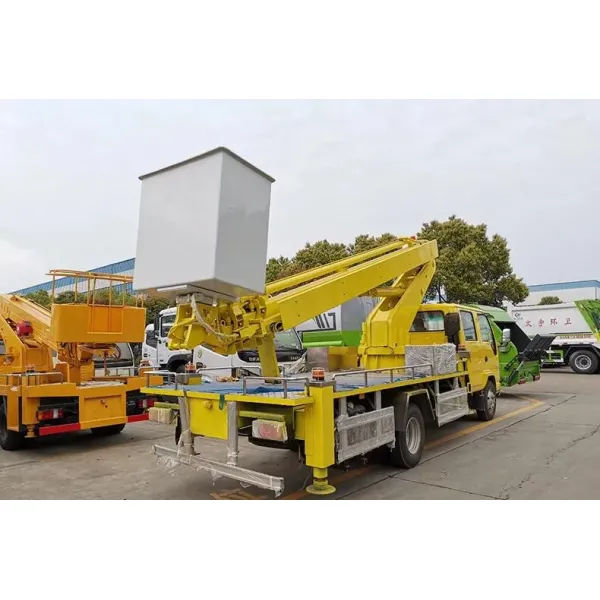

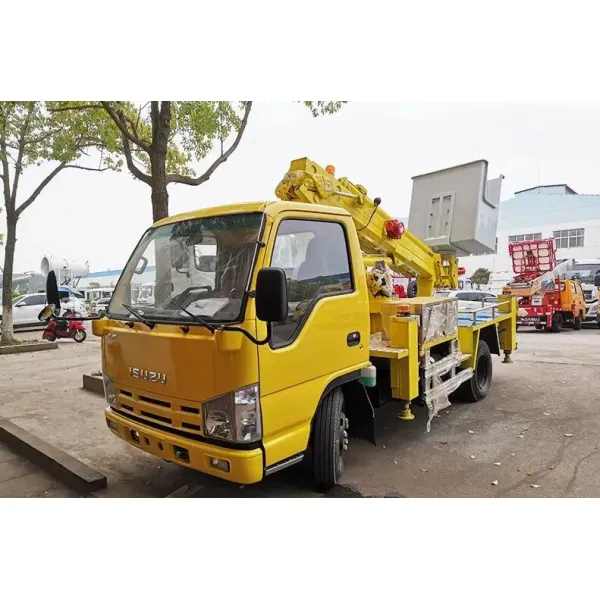

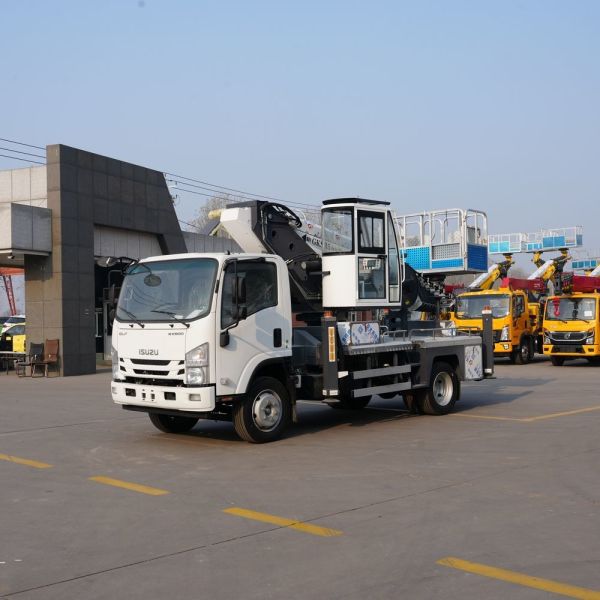

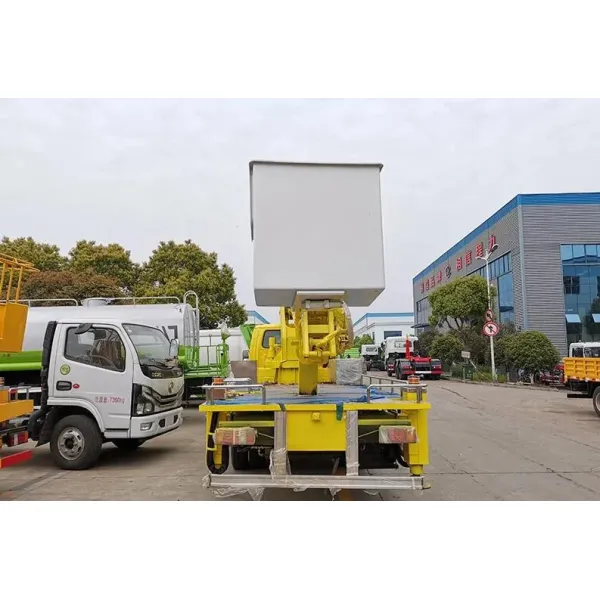

Detailed Photos
Isuzu 28m Aerial Work Platform High-Altitude Working High Platform Operation Truck
Isuzu 28m Aerial Work Platform High-Altitude Working High Platform Operation Truck
Isuzu 28m Aerial Work Platform High-Altitude Working High Platform Operation Truck
Isuzu 28m Aerial Work Platform High-Altitude Working High Platform Operation Truck
Isuzu 28m Aerial Work Platform High-Altitude Working High Platform Operation Truck
Isuzu 28m Aerial Work Platform High-Altitude Working High Platform Operation Truck
Isuzu 28m Aerial Work Platform High-Altitude Working High Platform Operation Truck
Isuzu 28m Aerial Work Platform High-Altitude Working High Platform Operation Truck
Isuzu 28m Aerial Work Platform High-Altitude Working High Platform Operation Truck

Isuzu 28m Aerial Work Platform High-Altitude Working High Platform Operation Truck
Isuzu 28m Aerial Work Platform High-Altitude Working High Platform Operation Truck
Isuzu 28m Aerial Work Platform High-Altitude Working High Platform Operation Truck
