Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Emission Standard :
Euro III/IV/V/VI
Drive Wheel :
4x2
Truck Chassis Brand :
Dongfeng
Delivery Time :
30 Days
Trademark :
CLW
HS Code :
8701909000
Fuel :
Diesel
Transmission :
5 Speed Forward and 1 Reverse, Manual
Payload :
7ton
Condition :
New
Name :
Aerial Platform Truck
Color :
White, Yellow, or Blue
ABS :
Have
Air Conditioner :
Have
Transmission Type :
Manual
Origin :
Suizhou, China
Hoesrpower :
120HP
Max Lifting Height :
10m
Specification :
12-16m
Warranty Time :
1 Year
Production Capacity :
500unit/Month
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Max Bucket Loading Capacity :
200kgs
Transport Package :
Naked Package
Tyre :
7.00-16 ,6+1 Spare One
MOQ :
1
Price :
15000-35000 per unit
Engined :
Dongfeng Engine
Description

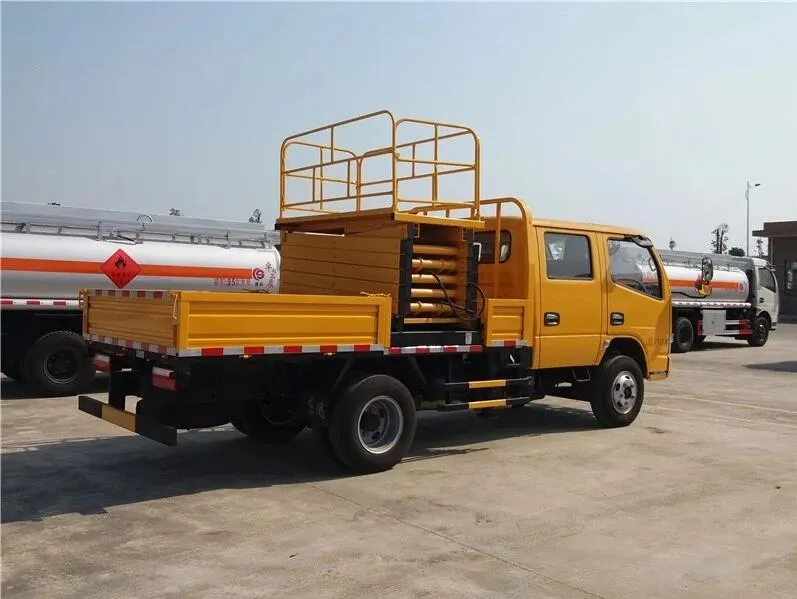

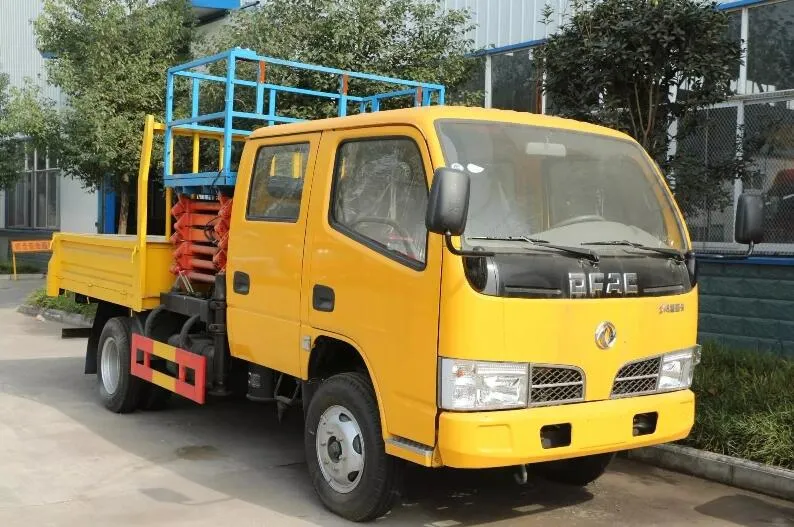

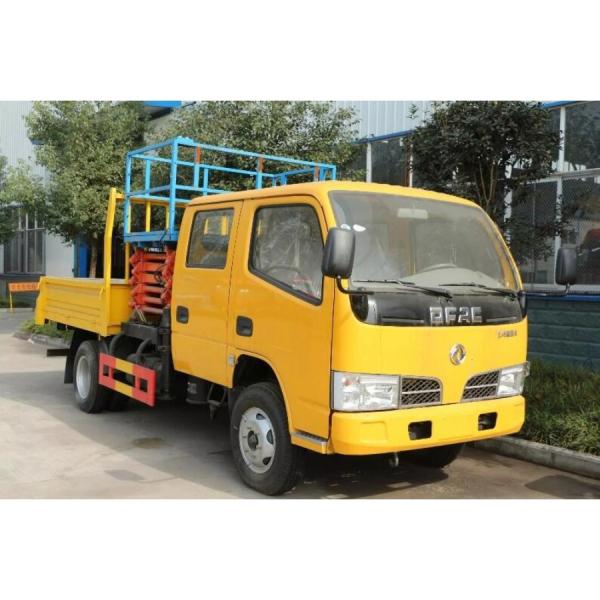

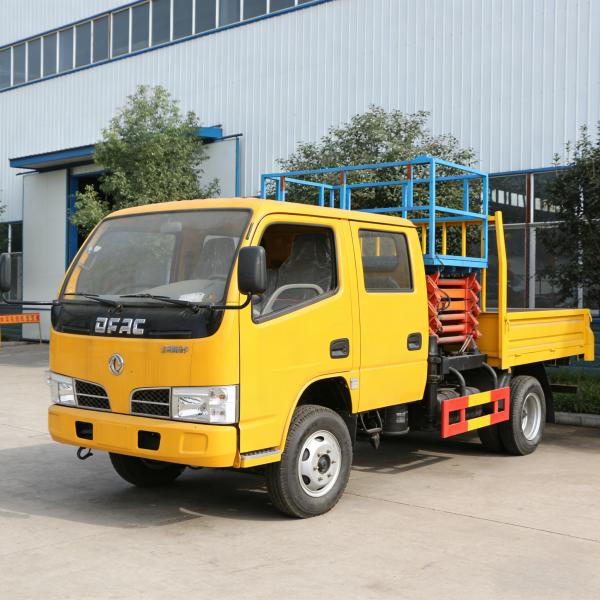

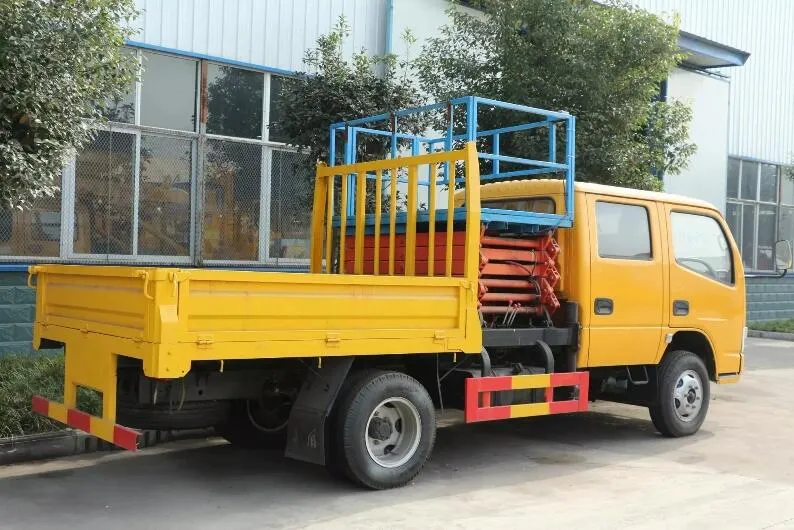

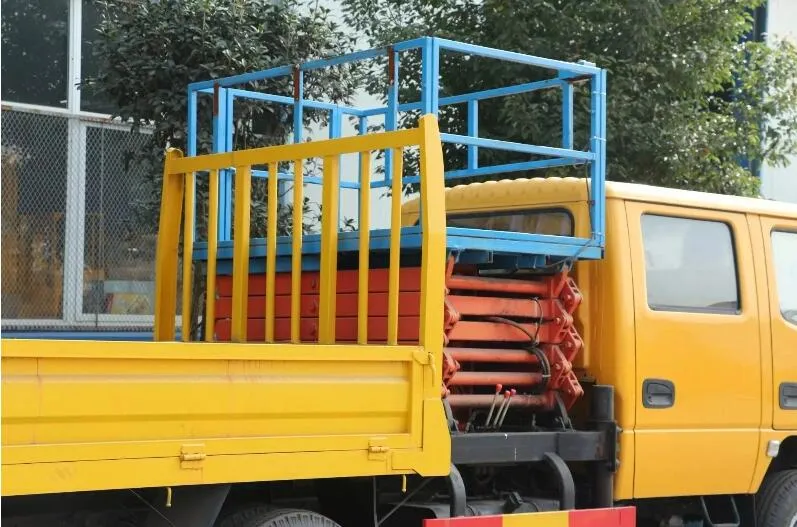

Dongfeng 6 Wheeler 8m 10m 12m Scissor Hydraulic Truck Mounted Lifting Ladder
Description:
  1. Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.
  2. Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.
  3. 360 degree Rotation Arms.
  4. Arm and H leg Automatic Locking System to secure safety handling
GVW 4150kg Driving Type 4x2
Model CLW
Cab Single row cab, allowable 3 passengers.
Engine(Hp) 95
Power(Kw) 70
Wheelbase 3300
Front/Rear Suspension 1040/1647
Steering Power steering
Approach/departure angle 20/13
Wheels & tire 7.0-16
Tire number 6+1
Working height(m) 10
RHD or LHD optional
Overall Dimensions(mm) 5995×2000×2700
Curb weight (Kg) 3825

Engine

 Model CY4102-E3C
Horsepower 95
Maximum output Kw 70
Type 4cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
Displacement 3856ml
Chaoyang brand, Euro 3
Driving passenger 2,3
Transmission 5 speed forward and one reverse, manual
Front Axle 1.5T
Rear Axle 3.5T
Brake System air brake
exhaust brake
Color and LOGO customized
Electric system 24V
Standard configuration working platform, "H" legs(Each leg is controlled individually), van body

Equipment

 Platform Dimension 1585X1805X955 mm
Max Working Height 10m
Max Working Radius straight
Platform Loading 500kg
Platform Passenger 2
Working pressure 14MPa
